A theoretical insight in interactions of some chemical compounds as mTOR inhibitors
Bulletin of the National Research Centre volume 45, Article number: 67 (2021)
A series of known Food and Drug Administration (FDA) approved anticancer drugs were collected from the literature and docked against mTOR receptor which has been identified in present time as a target for therapeutic anticancer agents. The compounds binding affinity were calculated after minimising the interaction within the binding pockets’ of the mTOR (4JT6) receptor.
The result shows that PF-04691502 ligand best inhibited mTOR while occupying the Adenosine triphosphate (ATP)-binding site on the receptor. PF-04691502 had the best binding affinity with a reported value of − 39.261 kcal/mol, and a hydrogen bond energy contribution of − 8.326 kcal/mol. Polamid529 is also found to have a good binding affinity of − 36.75 kcal/mol with the receptor, but was less significant than that calculated for the reference or standard inhibitor (X6K) used (− 37.862 kcal/mol). Further analysis revealed that Palomid529 formed a more stable complex with the receptor than torin2 and X6K due to the significant hydrogen bond contributions it adds to its overall binding score.
PF-04691502 ligand was identified as the best inhibitor due to its high binding affinity for mTOR and should be considered as the best alternative to the reference inhibitor X6K.
The mTOR kinase pathway is used for controlling growth of cells in the presence of nutrients, receptor growth factors and other external factors such as the environment, thereby causing cancer (Shaw and Cantley 2006; Zoncu et al. 2011; Laplante and Sabatini 2012; Chen and Long 2018; Paquette et al. 2018). The mTOR protein is an important growth receptor kinase, which is found in the phosphoinositide 3-kinase (PI3K)-related protein kinase (PIKK) family (Keith and Schreiber 1995).
mTOR is seen within two different complexes with inputs and resultant feedbacks. The first mTOR complex (mTORC1) is defined by its subunit Regulatory-associated protein of mTOR (RAPTOR) (Hara et al. 2002; Kim et al. 2002; Loewith et al. 2002), while in the second (mTORC2) is identified by Rapamycin-insensitive companion of mammalian target of mTOR (RICTOR) (Sarbassov et al. 2004). Both complexes contains the primary mLST8 subunit (Aylett et al. 2016), even though their number of subunits that forms chemical interactions with RAPTOR or RICTOR varies (Davis et al. 2014; Chen and Long 2018; Wu et al. 2018).
mTORC1 has been cited by so many authors to be responsible for cell growth through translation, biogenesis and autophagy (Matsuoka and Yashiro 2014; Meng et al. 2018; Paquette et al. 2018). On a second note, mTORC2 is responsible for promoting cell cycle entry, cell survival and anabolic output (Yang et al. 2013; Sciarretta et al. 2018; Wu et al. 2018).
Rapamycin, a known allosteric inhibitor forms a ternary complex with the FK506-binding protein 12 (FKBP12) and the FRB domain of mTOR (Choo and Blenis 2009). Rapamycin–FKBP12 inhibits mTORC1 to an uneven scale that is dependent on phosphorylation-site (Choo and Blenis 2009), but it does not form complex with mTORC2 (Bernard et al. 2020; Calejman et al. 2020; Knudsen et al. 2020). To overcome these limitations, ATP-competitive inhibitors that potently and evenly inhibit both mTORC1 and mTORC2 are now a driving focus in development of present day anticancer agents (Wander et al. 2011; Dienstmann et al. 2014; Jhanwar-Uniyal et al. 2019; Gericke et al. 2020).
Torin2 specifically inhibits mTORDN–mLST8, and was reported to act by occupying the ATP site (Liu et al. 2011; Choi et al. 2020; Gericke et al. 2020). The molecules also shows that Torin2 trifluoromethyl group occupies the binding N-lobe pocket to reveal multiple determinants of mTOR specificity, including a deep conformational change within the catalytic cleft.
Here we present the molecular docking study results of mTOR receptor bound to several ATP-competitive inhibitors.
Chemical dataset sources
In this study, a chemical dataset of thirteen (13) compounds of known cancer drugs were collected from FDA library of approved drugs (www.bindingDB.org). The compounds were optimized at the density functional theory (DFT) level using Becks’s three-parameter Lee–Yang–parr hybrid functional (B3LYP) at 6-31G* basis set (Davidson and Feller 1986; Schäfer et al. 1992) to simulate chemical structures of the molecules at their minimum potential energy or most stable state in a real chemical system before subjecting them to the molecular docking process (Table 1).
Optimization is the process of finding the equilibrium or concept energy geometry of molecules. Chemdraw software ultra-version 12.0 was used to draw the chemical structures of the compounds and subsequently imported into Spartan 14 software (Hehre and Huang 1995; Li, et al. 2004) to optimize the molecular geometry at the density functional theory (DFT) using B3LYP level of theory and 6-31G* as the basis set (Arthur and Abechi 2019; Arthur et al. 2019, 2020).
Computational docking studies
The molecular interactions studies were carried out on Dell computer system, with processor properties of Intel ® Core i5-6100U CPU Dual@2.30 GHz, 12 GB (RAM) between the ligands and Mammalian target of rapamycin (mTOR) kinase (target); the X-ray Crystal structure of Mammalian target of rapamycin (mTOR) kinase, a transferase of MTOR deposited in RSCB protein data bank by Yang and his lab partners in 2013 (Yang et al. 2013).
Preparation of ligand and target
All the compounds were optimized using Spartan software initially saved as SDF files and were appropriately later saved as Protein Data Bank (PDB) file. Subsequently the PDB file of the receptor were downloaded from RSCB site (http://www.rcsb.org/) with the PDB ID: 4JT6 for the crystal structure of Mammalian target of rapamycin (mTOR) kinase. The X-ray diffraction resolution for 4JT6 was given as 3.60 amstrong unit (Yang et al. 2013). Figure 1 displays the prepared structure of the receptor.
Detailed docking process on internal coordinate mechanics (ICM) molsoft program
The process involves setting up the project file by reading in the PDB file of the receptor. For example, the PDB file for WT protective antigen imported into ICM pro. The PDB file was converted into an ICM object by deleting all water molecules present in the binding pocket and selecting the option to optimise all hydrogens and optimise HisProAsnGlnCys. The box hide missing side chains was unchecked. Since the ICM is required to build missing heavy atoms that are not reported in the PDB (due to the lack of density), they are added according to the residue name and assigned zero occupancies. The next step involves moving any ligand that might be complexed with the receptor out of the pocket of mTOR kinase (4JT6), otherwise the ligand will be included in the docking maps which will ultimately affect the result (Arthur and Uzairu 2018; Arthur et al. 2019). The ligand was removed from the ICM object by right clicking on the ligand in the ICM Workspace and then selecting "move from object".
Afterwards we generated the receptor grid binding site map. The box was made large enough to encompass the binding pocket but not too large to include regions of the receptor which are not relevant for the ligand to bind. Once the receptor and maps have been correctly set up, then the docking procedure could begin. The SD files of the optimised ligands are imported into the ICM programme as chemical spreadsheet. To dock directly from a chemical table, the chemicals in the table to be docked were selected. On the docking menu, dock chemical table was selected and after the docking process is finished, the hitlist were displayed. The docking results are then exported as a spreadsheet file saved in csv format. After docking the binding modes and interaction of the best ligand-receptor complexes are displayed by right clicking the ligand docked in the ICM window and saving the file output as a pdb file. The saved file was then imported into the discovery studio visualiser, where the 2D and 3D interactions could be properly seen.
The receptors, after treatment, were docked with their respective ligands. Five types of interaction potentials that represent the receptor pocket includes van der Waals potential for a hydrogen atom probe, van der Waals potential for a heavy-atom probe (generic carbon of 1.7 Å radius), optimised electrostatic term, hydrophobic terms and lone-pair-based potential which reflects directional preferences in hydrogen bonds calculated. These energy terms are based on the all-atom vacuum force field ECEPP/3 with added functions to account for solvation free energy and entropic contribution. The score was calculated from
In Eq. (1), Evw, Eel, Ehb, Ehp, and Esf are van der Waals, electrostatic, hydrogen bonding, and non-polar and polar atom solvation energy differences between bound and unbound states, respectively. Eint is the ligand internal strain, ΔSTor is its conformational entropy loss upon binding, T = 300 K, and αi are ligand and receptor independent constants. Each compound was docked to the protein binding pocket, and a score from the docking was assigned to each compound according to the weighed component of the ICM scoring function. Each compound was docked ten times to ensure the convergence of the Monte Carlo optimisation, and the minimum score of each ligand from the ten independent docking experiments was retained and used for ranking (Neves et al. 2012).
The conformational sampling in the programme is based on the biased probability Monte Carlo (BPMC) procedure, which randomly selects a conformation in the internal coordinate space and then makes a step to a new random position independent of the previous one but according to a predefined continuous probability distribution. It has also been shown that after each random step, full local minimisation greatly improves the efficiency of the procedure (Arthur et al. 2018, 2019; Abdullahi et al. 2020). The ICM programme relies on global optimisation of the entire flexible ligand in the receptor field and combines large-scale random moves of several types with gradient local minimisation and a search history mechanism.
The scoring function should give a good approximation of the binding free energy between a ligand and a receptor and is usually a function of different energy terms based on a force-field. The ICM scoring function is weighted according to the following parameters
internal force-field energy of the ligand,
entropy loss of the ligand between bound and unbound states,
ligand–receptor hydrogen bond interactions,
polar and non-polar solvation energy differences between bound and unbound states,
hydrophobic energy, and
hydrogen bond donor or acceptor desolvation.
The lower the ICM score, the higher the chance the ligand is a binder.
The docking result of this study is presented in terms of binding affinity (kcal/mol/mol) as reported in Table 2 along with their number of flexible bonds (Nflex), hydrogen bond energy (Hbond), hydrophobic bond energy (Hphob) values and the compound IDs as collected from BindingDB library. All the ligands were docked into the active site of the receptor (crystal structure of structure of mTORdeltaN) in order to evaluate their abilities to mTOR kinase.
X6K whose IUPAC name is 3-(4-morpholin-4-ylpyrido[3′,2′:4,5]furo[3,2-d]pyrimidin-2-yl)phenol was found in complex with the receptor 4JT6. It was removed from the receptor and later redocked as reference inhibitor to be used in comparison with all other studied compounds.
The molecular docking result of the reference inhibitor is presented along with the docking scores of the chemical dataset in Table 2. The reference inhibitor (X6K) was reported to have a binding energy of − 37.862 kcal/mol/mol, the score shows a very strong affinity for the active site and hence high inhibition efficiency of the inhibitor. The contributions from hydrogen bonds, hydrophobic interactions and van der Waals interactions were significant to the high affinity for the binding site of the receptor.
The binding scores of the other inhibitors confirm that they are all active and effectively binds with the active sites. The binding energy of PF-04691502 was the least, its score was significantly lower than all the other inhibitors and also that of the referenced drug. The binding score of PF-04691502 is reported in Table 2 as − 39.261 kcal/mol, and from the table it is evident that the exceedingly low value was due to the high number of hydrogen bonds that is formed by the ligand leading to the significant value (− 8.326 kcal/mol) of hydrogen bond energy contribution (Fig. 2).
The 2 and 3-dimensional pose of X6K in the active site of the mTOR kinase is presented in Fig. 3. The 2-dimensional pose shows clearly that two distinct conventional hydrogen bonds were formed between the phenol fragment of X6K and Aspartic acid (B:2195), while the other way between value (B:2240) and the morpholinyl oxygen of X6K with VAL. A more detail descriptors of the other interactions formed can be seen in Table 3.
The hydrogen bond formed by the phenol fragment had the shortest bond length of 1.766 Å, this shows that the bond fastens X6K to receptor active site. In this case X6K acts as H-acceptor forming a DHA angle of 151.351 which are close to 180° found in linear bonds. Table 3 also shows that 3-alkyl-alkyl bond, and 10 pi–alkyl bonds were formed between the residue (X6K) and the receptor.
The 2D structure of PF-04691502 ligand is presented in Fig. 4, and was found to bond best with the mTOR–receptor (Fig. 5) when compared to all the other molecules in Table 2.
The binding energy of PF-04691502 was reported as − 39.261 kcal/mol in Table 2 and it shows that PF inhibited mTOR receptor more than the referenced ligand and other molecules on the table. The significance of the binding affinity was found to be as a result of the very low hydrogen bond energy between PF and 4JT6 (mTOR) in Table 2 given as − 8.326 kcal/mol.
The binding poses in figure show that the pyridolfragment was significant to the attachment of the ligand on the binding site of mTOR kinase receptor, it can be seen that the morpholinyl oxygen on pyrimidin backbone of the PF-04691502 land formed a hydrogen bond with VAL 882 which was firmly held by the bond distance reported in Table 4 as 1.897A, while the phenol group on the ligand stabilized the right-base corner of the complex by forming a strong hydrogen bond with TYR 867.
Other interactions that were noticeable within the complex formed includes carbon hydrogen bonds which were weak interactions, while the pi–alkyl and alkyl interactions present helped in stabilizing the conformation of the ligand as well as intercalating the structure with the binding pocket of the receptor.
Palomid 529 and INK 128 are two other ligands with high binding affinity for mTOR receptor binding pocket. The 2D structure of Palomid 529 in Fig. 6, shows that the chemical structure contains a lactone-ring and three alkoxy groups which formed important interactions with the surrounding amino acids in the binding pocket (Fig. 7).
Two hydrogen bonds were formed between Palomid 529 and 4JT6 (mTOR) receptor, the binding energy was reported as − 36.751 kcal/mol and can be seen to inhibit the receptor less when compared to PF and referenced ligand (X6K). All the interaction types involved in the Palomid 529–4JT6 (mTOR) receptor complex are presented in Table 5. The presence of pi–anion and pi–alkyl interaction helped in the intercalation of the ligand in the binding pocket of the receptor.

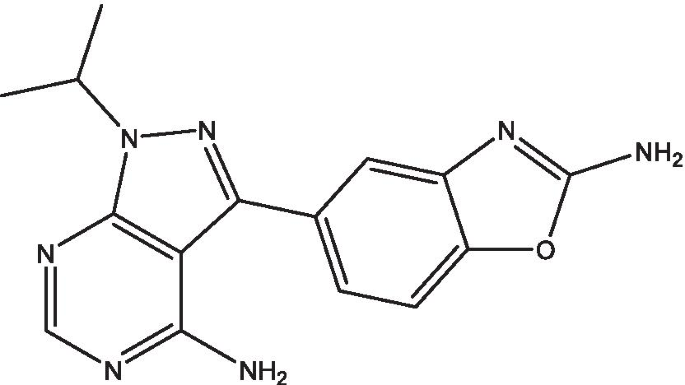

The 2D molecular structure of INK 128 presented in Fig. 8 shows that the structure contains a 1H-pyrazolo[3,4-d]pyrimidine fragment on the left side, while on the right side a benzo[d]oxazol-2-amine fragment. The presence of the amine groups on these fragments were responsible for the significant number of hydrogen bonds formed by INK 128 in the binding pocket shown in Fig. 9.

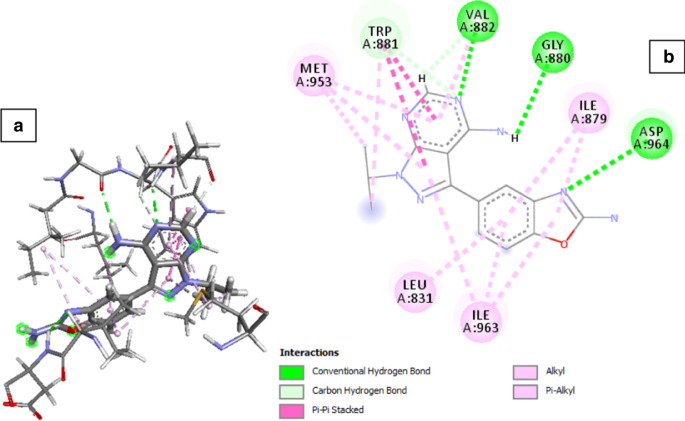

From the Table 2, it was observed that INK 128 (MLN0128) had binding energy (− 30.828 kcal/mol) higher than that of the referenced compound X6K. However, when the hydrogen bond contributions computed were compared to the X6K its energy was significant slightly lower (− 7.551 kcal/mol) but comparable to that of PF-04691502. Furthermore, the hydrogen bond formed by INK with VAL882, ASP964 and GLY880 amino acids as shown in Table 6, were consistent with the interactions type found in the previously discussed inhibitors (PF-04691502, Palomid 529), suggesting these compounds may be acting with similar mechanism. nevertheless, INK formed other interactions that helped stabilze the ligand within the complex, such interactions are Pi–Pi Stacked, Pi–Alkyl and Alkyl–Alkyl hydrophobic interactions.
An mTOR kinase pdb file was collected from the RSCB site with a pdb identification number of 4JT6. The mTOR kinase was reported by numerous researchers as a viable target for a systematic inhibition of breast cancer cells. The molecular docking study of all the dataset compounds as possible inhibitors were reported in the work and the results suggests that of all the FDA approved cancer drugs collected, PF-04691502 best inhibited 4JT6 (mTOR kinase). The binding affinity of PF-04691502 was significantly higher than all the other compounds that were studied even though their interaction types and points suggest they undergo similar reaction mechanism with the target site. PF-04691502 and INK can be used as possible lead compound for further drug designs, since the enthalpic contributions of these ligands suggest that they are more stable compared to the referenced ligand (X6K).
