In vitro bulb formation of direct and indirect regeneration of Lilium orientalis cv. “Starfighter” plants
Bulletin of the National Research Centre volume 43, Article number: 211 (2019)
- The Correction to this article has been published in Bulletin of the National Research Centre 2020 44:10
Lily is one of the most important commercial cut flower species and one of the three major bulb crops in the commercial market. The aim was to assess and establish a suitable protocol for increasing the number of Lilium bulblets and enlarge their size.
Different plant growth regulators (TDZ, 2,4-D, 2ip, and picloram) at different concentrations for direct and indirect micropropagation were used. Also, the effect of various concentrations of sucrose alone or with growth inhibitor on bulblet formation during three repeated subcultures was examined with anatomical study.
For direct shoot organogenesis, culturing leaf explant on MS culture medium containing TDZ (0.5 mg/l) + 2,4-D (10 mg/l) led to the highest number of shootlets after 1 month. For indirect micropropagation, MS was supplemented with 2ip (0.5 mg/l) + picloram (5 mg/l)-induced callus tissues which were differentiated to embryos then weak shoots after 3 months. For more proliferation, the highest numbers of shootlets, leaves, and bulb scales were observed on MS culture medium supplemented with 1.0 mg/l of BA plus 0.2 mg/l NAA. Using 60 g/l of sucrose plus 3 or 6 mg/l of paclobutrazol led to the highest number of bulblets/explant for the third subculture. The highest bulblet diameters were recorded with 120 g/l sucrose plus 6 or 3 mg/l paclobutrazol.
This study had reached to optimize a suitable protocol for direct and indirect micropropagation of Lilium orientalis cv. “Starfighter” bulbs and increase the number and size of bulbs that can be beneficial for increasing the production and reduce their price. This study will help the producers for commercial purposes.
Lily plant is one of the most important commercial cut flower species and one of the three major bulb crops in the commercial market because of its large size and colorful and fascinating flowers (Robinson and Firoozabady 1993). It is an attractive economic flowering plant used as cut flowers or grown in pots (Pobudkiewicz and Treder 2006; Younis et al. 2014). Lily is a member of the genus Lilium, grouped in seven sections, consist of 100–115 species, and can be planted under various climatic zones. Oriental lilies belonging to the Archelirion section are the most expensive among different lily forms due to their bulbs being highly valuable and their production requiring a special technique. Their hybrids are one of the most economical important groups with flowers which have a wide range of size, shape, color, and other morphological characteristics (Kumar et al. 2006; Roh 2011; Younis et al. 2014).
In vitro protocol produced fast mass production and speedy regeneration of uniform plant material and so has been recognized as a necessity particularly for future breeding and commercial utilization of the lily species (Pelkonen 2005; Muhanmmad et al. 2013). Tissue culture techniques are used for fast propagation of some species of the genus Lilium as oriental hybrid (Lian et al. 2002) and Lilium asiatic hybrid (Lian et al. 2003; Taha et al. 2018). In vitro scale culture is one of the best prolific vegetative propagation methods for lilies (Bahr and Compton 2004).
In vitro adventitious bud regeneration from scales of Lilium rely on many factors like cytokinin and auxin concentrations such as BA and NAA and sucrose concentration (Varshney et al. 2000; Kumar et al. 2005). Many previous studies found that bulblet growth was favorable when using a high concentration of sucrose in the growth medium (Joshi and Dhar 2009; Bakhshaie et al. 2010).
Plant growth retardants especially inhibitors of gibberellin biosynthesis are known by reducing the shoot length due to the shortening of plant internodes without changing their developmental patterns or being phytotoxic. Besides, they also reduce leaf size, enhance chlorophyll content, and cause thickening of roots (Smith et al. 1990). Paclobutrazol decreases stem elongation in various ornamental species (Coulston and Shearing 1985) and promotes storage organ development (Ziv 1989) when grown in media enriched with sucrose.
The present investigation was conducted in order to optimize an in vitro propagation protocol and identifying the suitable concentration of paclobutrazol and sucrose for bulb production from bulb scales explants of oriental lily.
Materials and methods
The present work was conducted at tissue culture Technique Laboratory, Central Labs, Ornamental Plants and Woody Trees Department, Agricultural and Biological Research Division, National Research Centre (NRC), Tissue Culture & Germplasm Conservation Research Lab., Horticulture Research Institute, Agricultural Research Center—Giza (ARC), and Agricultural Botany Department, Faculty of Agriculture, Cairo University, Egypt, during years the 2017 and 2018 to establish an efficient in vitro culture protocol for rapid micropropagation and bulblet formation of oriental lily “Starfighter.”
Explant source and surface sterilization
The scales of bulbs of Lilium (5–7 cm in diameter) were collected from a commercial nursery and gently excised from the points of attachment and surface sterilized in ethanol 70% (v/v) for 30 s, rinsed in Clorox 15% (sodium hypochlorite) for 7 min, then washed with sterilized distilled water three times. The scales were sterilized in 2% HgCl2 (MC) solution (w/v) for 10 min and finally rinsed three times in sterile water.
The sterilized bulb scales explants were cultured in jars containing 25 ml MS free of hormones (Murashige and Skoog 1962) supplemented with 3% sucrose and 0.7% agar. The pH of the medium was adjusted to 5.6–5.8 then autoclaved at 121 °C and 15 psi for 15 min.
The in vitro cultures during all stages were placed in the incubation room at 23 ± 2 °C under 16 h photoperiod and 1.5 k lux light intensity provided by cool, white, fluorescent lamps.
For direct and indirect shoots regeneration, the obtained leaves from culture starting were separated, sectioned, and transferred to MS medium supplemented with different plant growth regulators: 0.5 mg/l of thidiazuron (TDZ) and 6-γ,γ-dimethylallylamine purine riboside (2ip); 2,4-dichlorophenoxyacetic acid (2,4-D); and picloram at different concentrations (5 and 10 mg/l) for in vitro shoot multiplication. The formed shoots were used as secondary explants for further in vitro shoots propagation.
In vitro shoots proliferation
For this stage, 0.5 mg/l of both 6-benzyl amino purine (BA) and thidiazuron (TDZ) in combination or separated with α-naphthaleneacetic acid (NAA) at 0.1, 0.2, and 0.3 mg/l were tested. The characteristic features of regenerated plantlets were observed such as number of shootlets/explant, number of leaves/shootlet, and number of bulb scales/shootlet.
In this stage, shoot explants were transferred to culture media which contained different concentrations of sucrose (30, 60, 90, and 120 g L−1) only or combined with growth inhibitors (3 and 6 mg L−1 paclobutrazol) for bulblet formation of Lilium through three subcultures as well as the diameter of the obtained bulblets.
The bulblets were removed from culture jars and transferred to pots containing peat moss + sand (1:1), covered with transparent polyethylene pages for 2 weeks and gradually removed in the greenhouse.
Determination of total carbohydrates
Fresh samples of bulblets were used to determine total carbohydrates as described by Dubois et al. (1956).
Shootlets and different stages of somatic embryos were chosen from survived in vitro cultures (aged 12 weeks old) as well as the acclimatized bulbs that were aged 8 weeks after transferring to the greenhouse. Samples were fixed in F.A.A. (10 ml formalin, 5 ml glacial acetic acid, and 85 ml ethyl alcohol 70%) and dehydrated in butyl alcohol series then embedded in paraffin wax of melting point 56 °C. Sections (20 μm) were cut with a rotary microtome. The sections were stained with crystal violet-erythrosine combination, cleared in xylene and mounted in Canada balsam (Willey 1971).
The average of recorded data for different parameters was statistically analyzed using randomized complete block design with ten replicates per treatment. LSD test at 5% for comparison among means was used according to methods of Steel and Torrie (1980).
The leaf explants of in vitro culture of oriental lily were introduced to MS medium supplemented with different plant growth regulators [thidiazuron (TDZ), 2,4-dichlorophenoxyacetic acid (2,4-D), 6-γ,γ-dimethylallylamine purine riboside (2ip), and picloram] at different concentrations for direct shoot regeneration from leaf explants or indirect regeneration from callus tissues (Table 1 and Fig. 1). For direct shoot organogenesis, culturing leaf explant on MS culture medium containing TDZ (0.5 mg/l) + 2,4-D (10 mg/l) was more effective and led to the highest number of shoots (5.7) after 1 month (Fig. 1a). MS supplemented with TDZ (0.5 mg/l) + 2,4-D (5 mg/l) led to white friable calli, whereas using 2ip (0.5 mg/l) + picloram (5 mg/l) in the culture medium induced yellowish friable callus tissues. The development of callus tissues to differentiate embryos then weak shoots took 3 months. Different stages of somatic embryos that were inducted from callus were identified using the histological sections (Fig. 2).
The anatomical study (Fig. 3) indicated the histological section of the control that showed the shootlet formation of lily plant consisting of apical meristem (SAM) end compassed with leaf primordial (lp) and young leaves (l). The axis of the shoot tip in these plant seems to be more wider but shorter than those of the embryogenesis. The formation of buds from bulb scales was observed after formation of calluses at the lower end. The plantlet resulted from the direct organogenesis which looked like a bulblet. Plantlets that were directly grown on culture medium containing TDZ (0.5 mg/l) + 2,4-D (10 mg/l) showed formation of many shoot apical meristems as compared to other treatments.
In vitro shoot proliferation
The different responses of regenerated shoot from explants that were cultured on MS culture medium supplemented with various concentrations of BA, TDZ (0.5, 1.0, and 2.0 mg/l) and NAA (0.1, 0.2, and 0.3 mg/l) to proliferate more shoots were reported in Table 2. The highest number of shootlets, leaves, and bulb scales (8.25, 5.44, and 8.88 respectively) was observed in the MS medium supplemented with 1.0 mg/l of BA plus 0.2 mg/l NAA compared with the other treatments. The lowest number of shoots and bulb scales per explant (1.22 and 2.44, respectively) were recorded for MS free hormone (control) treatment.
Data presented in Table 3 show a comparison for the effect of different concentrations of sucrose (30, 60, 90, and 120 g/l) alone or combined with growth inhibitor (3 and 6 mg/l paclobutrazol) on bulblet formation of Lilium through three subcultures in MS media. Higher bulblet formation was recorded with increasing the concentration of sucrose alone at 90 and 120 g/l (3.01 and 2.86, respectively). Also, sucrose at 60 g/l with paclobutrazol at 3 and 6 mg/l significantly increased bulb formation (2.99 and 2.84, respectively) as compared to other treatments.
Concerning the effect of subculture number on bulblet formation, the results revealed that the increase in the number of the repeated subcultures lead to a significant increase in the bulblet formation. The third subculture produced the maximum bulblets formed (2.99 bulblets) in MS medium as compared to the first or second subcultures (1.39 and 2.36 bulblets, respectively).
The interaction effect of different concentrations of sucrose and paclobutrazol on the number of subcultures revealed that using 60 g/l of sucrose plus 3 or 6 mg/l paclobutrazol led to the highest number of bulblets/explant (4.44 and 4.08 bulblets, respectively) for the third subculture. Also, the bulblet formation was significantly increased by adding sucrose at concentrations of 90 and 120 g/l (3.78 and 3.89 bulblets, respectively) for third subculture, comparing with other treatments (Fig. 4).
The higher concentration of sucrose with paclobutrazol concentrations was more effective on increasing diameter of bulblets (Fig. 5). The highest bulblet diameters were recorded with 120 g/l sucrose plus 6 or 3 mg/l paclobutrazol (1.68 and 1.63 cm, respectively) followed by 90 g/l sucrose alone or plus 6 mg/l paclobutrazol (1.45 and 1.43 cm, respectively) comparing with other treatments, whereas the lowest diameter of bulblets (0.6 cm) was recorded with MS culture medium which contains 30 g/l sucrose only.
Total carbohydrate percentage
The carbohydrate percentage was increased in the same treatment for bulblets’ diameter enlarged. The highest percentage (41.01%) was recorded with 120 g/l sucrose plus 3 or 6 mg/l paclobutrazol comparing with other treatments (Fig. 6).
The anatomical study
The anatomical study on successful acclimatized survived plants (Fig. 7) confirmed the stimulation effect of 120 g/l sucrose plus 6 mg/l paclobutrazol which produced the large size of bulbs as compared to those of the control.
The present results of Fig. 2 were in agreement with the development of callus tissues to differentiate embryos; different stages of somatic embryos that were identified using the histological sections were described as small meristematic cells with regular shape, prominent nucleus, densely cytoplasm, and stained cell walls without intercellular space (Vinterhalter et al. 2016). The globular embryos were developed into heart shapes. The heart somatic embryos then transferred to torpedo stage as described by Dam and Bandyopadhyay (2010), which finally differentiated into a structure that seems like zygotic embryo of the plant.
It could be observed from this study that direct shoot regeneration was favored to obtain higher shoot frequency than those obtained from indirect one. The different responses of shoot regeneration varied in morphogenesis affected by growth regulators as mentioned by many studies, and both cytokinins and auxins were used for regeneration of lily bulblets, but the role of TDZ is known for both somatic embryogenesis induction and regeneration of shoots on the same explant (Huetteman and Preece 1993).
For bulblet formation in Table 3, it was reported that the growth of bulblets depended on the sucrose concentration (Yamagishi 1998; Kumar et al. 2005), whereas the number of bulblets was higher by increasing the level of sucrose for oriental hybrid lily “Stargazer,” and using paclobutrazol had stimulation effect on the number of bulblets compared with the control. Bulb formation of Lilium was significantly encouraged by the addition of paclobutrazol (PBZ) even at lower concentrations (Thakur et al. 2006). Wang et al. (1999) found that using paclobutrazol produced better bulb formation for Lilium plantlets. Also, confirmed reports pointed out that the treatments with paclobutrazol led to a shift in the partitioning of assimilates from the leaves to the storage organs and roots and increased chlorophyll and carbohydrates in all parts of seedlings (Hazarika 2003).

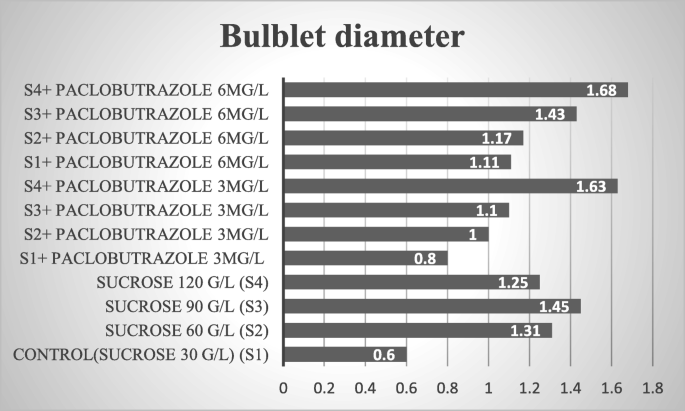

From Fig. 5, it seemed that sucrose and paclobutrazol play an effective role in bulblets’ diameter of oriental hybrid lily in vitro. Support findings from the studies of Langens-Gerrits et al. (2003) during in vitro culture observed that the high concentration of sucrose had the large bulblets. The increase in bulblets’ size was obtained on the medium supplemented with high concentration of sucrose (60 and 90 g/l) in various Lilium cultivars using different explants (Bonnier and Van 1997). The increase in bulblets’ size in high level of sucrose was due to the raise in starch and total carbohydrates (Langens-Gerrits et al. 1997). The interaction effect of paclobutrazol and sucrose was significant for cormel size. Using 120 g/l sucrose and 10 mg/l of paclobutrazol in MS culture medium gave the best formation of bigger cormels (Nagaraju et al. 2002). Moreover, paclobutrazol play an important role in enhancing the accumulation of soluble carbohydrates and starch (Wu et al. 2019).
This large size of acclimatized bulblets that appeared in the anatomical study as a result of using 120 g/l sucrose plus 6 mg/l paclobutrazol in the culture medium might be attributed to the increase in size and number of scaly leaves which were affective on flower size of lily plant.
Lilium orientalis cv. “Starfighter” bulbs can be obtained by direct shoot organogenesis, culturing leaf explant on MS culture medium containing TDZ (0.5 mg/l) + 2,4-D (10 mg/l) and indirect micropropagation by MS supplemented with TDZ (0.5 mg/l) + 2,4-D (5 mg/l) or using 2ip (0.5 mg/l) + picloram (5 mg/l). Using 60 g/l of sucrose plus 3 or 6 mg/l of paclobutrazol led to the highest number of bulblets/explant. The highest bulblet diameters were recorded with 120 g/l sucrose plus 6 or 3 mg/l paclobutrazol.
