Construction and validation of a multi-epitope in silico vaccine model for lymphatic filariasis by targeting Brugia malayi: a reverse vaccinology approach



Lymphatic filariasis (LF), often referred to as elephantiasis, has been identified as one of the 17 neglected tropical diseases by the World Health Organization. Currently, there are no vaccines available to treat this infection in humans. Therefore, with the objective of devising a novel preventive measure, we exploited an immunoinformatics approach to design a multi-epitope-based subunit vaccine for LF, that can elicit a variety of immune responses within the host. In this study, different B cell, TC cell, and TH cell-binding epitopes were screened from the antigenic proteins of Brugia malayi and they were passed through several immunological filters to determine the optimal epitopes.


As a result, 15 CD8+, 3 CD4+, and 3 B cell epitopes were found to be prominent, antigenic, non-toxic, immunogenic and non-allergenic. The presence of conformational B cell epitopes and cytokine-inducing epitopes confirmed the humoral and cell-mediated immune response that would be triggered by the constructed vaccine model. Following that, the selected epitopes and TLR-4-specific adjuvant were ligated by appropriate peptide linkers to finalize the vaccine construct. Protein–protein docking of the vaccine structure with the TLR4 receptor predicted strong binding affinity and hence putatively confirms its ability to elicit an immune response. Further, the efficiency of the vaccine candidate to provide a long-lasting protective immunity was assessed by in silico immune simulation. The reverse translated vaccine sequence was also virtually cloned in the pET28a (+) plasmid after the optimization of the gene sequence.


So taken together, by monitoring the overall in silico assessment, we hypothesize that our engineered peptide vaccine could be a viable prophylactic approach in the development of vaccines against the threat of human lymphatic filariasis.

Graphical Abstract


  • A novel computational approach was adopted for the development of a vaccine model against lymphatic filariasis.

  • The potential epitopes were screened to test their antigenicity, toxicity, immunogenicity, and allergenicity.

  • The prophylactic vaccine model was constructed with appropriate peptide linkers and the adjuvant—50 s ribosomal protein L7/L12.

  • The tertiary structure of the vaccine model was validated with Ramachandran plot, ProSA, etc.

  • Molecular docking against TLR4 receptor and immune simulation studies were performed to test the efficacy of the vaccine.


Human lymphatic filariasis (LF) is a neglected tropical disease (NTD) caused by either of the three filarial nematodes such as Wuchereria bancrofti, Brugia malayi, and Brugia timori (Gorai et al. 2022; Specht et al. 2019). The concept of neglected tropical diseases (NTDs) emerged more than a decade ago and was recognized as a valid term to use for describing illnesses that are largely confined to the poor (Molyneux et al. 2017). Globally, the World Health Organization (WHO) has identified seventeen such neglected tropical diseases (Additional file 1: Table S1) that affect approximately 1 billion of the world’s poorest people and another 1 billion who are at the risk of getting an infection in the near future. Due to the lack of willingness to manufacture prophylactic vaccines for the benefit of such downtrodden communities, research and therapeutic interventions for these diseases are highly neglected, thereby becoming the cause as well as the result of poverty. Among the 17 neglected tropical diseases, lymphatic filariasis (LF) is endemic to about 80 tropical and subtropical countries, infecting approximately 120 million people (Wynd et al. 2007). According to WHO, about 2.8 million disability-adjusted life-years are attributed to lymphatic filariasis alone, thereby becoming the second most common cause of long-term disability.

Among the three filarial parasites, Wuchereria bancrofti is responsible for about 90% of the infections followed by Brugia malayi, and then Brugia timori (Ram 2016). The WHO has taken several measures to bring the disease under control, like the MDA (mass drug administration) programme in which whole communities are treated with anti-helminthic drugs at regular intervals and transmission assessment surveys (TAS) are undertaken to promote early diagnosis of the infection in acute stages (Riches et al. 2020). Apart from this, increasing efforts are also made to control the vector-borne transmission of the disease by mosquitoes (Deshpande et al. 2020). Though the MDA approach has significantly reduced the global death toll due to LF, this current strategy has certain concerns with regard to its long-term benefits and prevention of future infections. Hence, a more sustainable approach would be the development of a prophylactic vaccine against LF which would prevent the relapse or re-occurrence of the disease, besides inducing herd immunity within the population (Kalyanasundaram et al. 2020). Though several research groups have attempted to develop a vaccine using different filarial antigens (Babayan et al. 2012; Morris et al. 2013), there exists no commercially licensed vaccine for the cure of LF till now (Kalyanasundaram et al. 2020). And there are obvious reasons contributing to the difficulties in the construction of a potential vaccine against LF such as (i) lack of appropriate animal models to conduct research on LF, (ii) the complexity in the life-cycle of the parasite, (iii) the limited evidence to prove the existence of natural protective immunity in the host, (iv) the complicated immune responses in the host against the parasite, and (v) the paucity in information on the characteristics of a protective immune response in animals as well as humans (Morris et al. 2013).

The conventional strategy for developing a vaccine would be to use a live attenuated pathogen or a combination of protein complexes that are randomly selected from the parasite after extraction and purification, in order to stimulate an immune response in the host (Gorai et al. 2022). Such traditional methods used in vaccinology are labour-intensive, time-consuming, and also expensive due to the huge amount of money spent on the failed trials, let alone causing virulence reversion in some individuals (Gorai et al. 2022). However, these limitations are being outdone in the modern vaccines that are developed by reverse vaccinology technique and it has emerged as a promising field in immunology. In this reverse vaccinology method, instead of culturing the parasite, its genomic information including its epitope map is used for the construction of the vaccine (Gorai et al. 2022). This novel strategy of designing multi-epitope-based vaccines has been found successful for the development of vaccines against dengue virus (Ali et al. 2017; Fadaka et al. 2021), SARS-CoV-2 (Al Zamane et al. 2021; Ansori et al. 2021; Fahmi et al. 2021) and onchocerciasis (Shey et al. 2019) which is also a parasitic disease. Hence in our research, we intend to adopt a similar reverse vaccinology approach for the construction of an in silico vaccine model for the cure of lymphatic filariasis. Despite the fact that several bioinformatics tools and online servers are available for performing various screening tests and analyses, the selection of appropriate tools with relevance to our target organism, let alone its advantages, and limitations is crucial for the accuracy of results.

Though W. bancrofti is the major filarial parasite causing 90% of the infections, the comparison of selective well-characterized genes indicates that W. bancrofti and B. malayi share greater than 95% homology between them. Additionally, B. malayi is largely responsible for the infections in south-east Asian countries that hold one-third of the disease burden (Wynd et al. 2007). Moreover, the availability of the complete genome, transcriptome, proteome, and secretome data for the Brugia malayi parasite indicates that it is possible to develop an effective vaccine against LF as a prophylactic measure (Kalyanasundaram et al. 2020). Due to these reasons and by means of a curiosity-driven approach, Brugia malayi was selected as our target organism. In our research, we aim to develop a multi-epitope-based multivalent vaccine in order to prevent the LF parasite from exploiting multiple pathways to evade the host immune system. Hence, the following candidate antigens homologous in both the species—B. malayi and W. Bancrofti, were selected for screening the epitopes namely abundant larval transcript 2 (ALT2), thioredoxin peroxidase (TPX), venom allergen antigen-like protein 1(VAH), and glutathione S-transferases (GSTs). A few more antigens were chosen based on the criterion that the proteins get expressed on the surface of the infective stages of the parasite, thereby becoming readily accessible to the human immune system (Kalyanasundaram et al. 2020) Those antigens are: the embryonic fatty acid-binding protein Bm-FAB-1, thioredoxin (Gorai et al. 2022), cuticular glutathione peroxidase or cuticular glycoprotein gp29, and transglutaminase. To trigger early activation of the innate immunity and to induce broader adaptive protection, peptide antigens require an adjuvant. Some recent studies have shown promising results by using analogs of TLR-4 or tuftsin to improve vaccine protection in LF (Chauhan et al. 2017; Paul et al. 2018; Khatri et al. 2018), because TLR4 involvement has been linked to protective immunity (Shey et al. 2019; Kerepesi et al. 2005). Hence, the 50 S ribosomal protein L7/L12 (Locus RL7_MYCTU) was selected as an adjuvant (Accession no. P9WHE3) since it acts as an agonist for TLR4 (Gorai et al. 2022).

In this context, we present the in silico construction and validation studies for our multi-epitope-based vaccine-“Filariaccine”, which was designed with a number of HTL, CTL, and LBL epitopes, after carefully screening them for their antigenicity, immunogenicity, toxicity, and cross-reactivity.


Protein sequence retrieval for antigen prediction

As the first step in vaccine development, the genome of Brugia malayi was studied through literature, and to analyse the specific antigenic proteins, the complete amino acid sequences of the eight Brugia malayi proteins (glutathione S-transferase, embryonic fatty acid-binding protein, thioredoxin, abundant larval transcript-2, venom allergen antigen-like protein 1, peroxiredoxin 1, cuticular glycoprotein gp29, and transglutaminase) were extracted from NCBI ( (Home-Protein n.d.) and UniProt ( (Bateman 2019) databases in the FASTA format. Their respective accession numbers are glutathione S-transferase (UniProt: Q5GSK1), embryonic fatty acid-binding protein (NCBI: AAG09305), thioredoxin (NCBI: XP_042935624), abundant larval transcript-2 (NCBI: XP_001902122), venom allergen antigen-like protein 1 (NCBI: XP_042932260), peroxiredoxin 1 (UniProt: P48822), cuticular glycoprotein gp29 (NCBI: XP_001899550), and transglutaminase (NCBI: XP_001897232).

Epitope prediction for vaccine construct

Prediction of cytotoxic T lymphocytes (CTL) epitope and MHC-I binding alleles

Predicting CTL epitopes was important for developing a vaccine as it plays an important role in cell-mediated immunity. The IEDB MHC-I processing tool ( (Fleri et al. 2017) was applied to identify 9-mer length of CTL epitopes with 49 frequently occurring MHC-I alleles (Additional file 2: Table S2) using the stabilized matrix method (SMM) keeping default values of 1 for the maximum precursor extension and 0.2 for the alpha factor. Prediction involves a combination of three approaches, proteasomal cleavage and processing, TAP transport efficiency, and MHC class I binding affinity in order to assess the outcome of antigen processing and presentation. The threshold was adjusted for MHC class I alleles at 50 nM (IC50 ≤ 50 strong binders) (Al Zamane et al. 2021).

Prediction of helper T-lymphocyte (HTL) epitope and MHC-II binding alleles

The induction of both humoral and cellular immune responses is aided by HTL responses. As a result, HTL epitopes are likely to play a key role in both prophylactic and immunotherapeutic vaccines. IEDB MHC-II Binding Predictions tool ( (Fleri et al. 2017) using the SMM method was used to predict 15-mer length of HTL epitopes against a set of 15 human HLAs (Additional file 3: Table S3). The prediction of HTL epitopes was based on affinity to MHC-II alleles, which can be deduced from the IC50 values and percentile ranks assigned to each predicted epitope. IC50 values for high-affinity peptides should be less than 50 nM. A value of 500 nM or less suggests intermediate affinity, while values of 5000 nM or more indicate poor affinity (Khatoon et al. 2017).

Linear B cell (LBL) epitopes prediction

To elicit a high expression of antigen-specific antibody production in the serum, B cell epitopes are important. Hence, the proteins were subjected to linear B cell epitope prediction using two different servers since the use of multiple tools in epitope prediction has been reported to improve the rate of true positives (Shey et al. 2019). Initially, epitopes for 16-mer were predicted using ABCPred, with a default threshold of 0.51 based on a recurrent neural network ( Finally, FBCPred (El-Manzalawy et al. xxxx) ( was utilized for the prediction of LBL epitopes with specificity adjusted to 75% which predicts epitopes of flexible length using the subsequence kernel.

Antigenicity, allergenicity and toxicity prediction of the CTL, HTL, and LBL epitopes

The antigenicity of the proposed epitopes (CTL, HTL, and LBL) was verified using VaxiJen 2.0 server ( with a selected target organism as a parasite. This server is based on auto-cross-covariance (ACC) transformation of protein sequences into uniform vectors of principal amino acid properties. Peptides with an antigenicity threshold of ≥ 0.4 were considered to be potential immunogens (Al Zamane et al. 2021; Cuspoca et al. 2021). The allergenicity status of all CTL, HTL, and LBL epitopes was evaluated using the AllerTOP v.2.0 server ( to decrease allergic responses to the selected epitopes. AllerTOP uses an auto-covariance transformation to normalize the alignment of peptides with immunogenic potential and includes an automatic and manual pull of cured allergenic and non-allergenic proteins, similar to VaxiJen 2.0 (Bateman 2019). Further, to rule out the toxic reactions caused by the interaction of peptides, we used ToxinPred (, an in silico approach based on machine learning technique and quantitative matrix using physicochemical properties of peptides.

Immunogenicity prediction of the CTL epitopes

The immunogenicity of CTL epitopes was estimated using the MHC class I immunogenicity tool ( from the IEDB server. This tool was designed to identify the immunogenicity of peptides based on their amino acid position and other characteristics (Fleri et al. 2017).

Prediction of cytokine-inducing HTL epitopes

The ability of the identified HTL epitopes to trigger various cytokines was investigated further (Nain et al. 2019). Interferon-gamma (IFN-γ), a cytokine that stimulates macrophages and natural killer cells and enhances the immune response to MHC antigens, is a key player in both adaptive and innate immune responses (Ali et al. 2017). Hence, T-helper epitopes were screened for IFN-γ epitopes using the IFNepitope server ( Also, HTL epitopes were screened to identify Interleukin-4 (IL4) stimulating epitopes using IL4pred ( IL4 had been shown to play a critical role in response to helminths and other extracellular parasites, and it is important for antibody class switching, haematopoiesis and inflammation, and the formation of proper effector T cell responses. Furthermore, HTL epitopes were scanned for interleukin-10 (IL-10) inducing peptides using IL-10Pred ( (Nagpal et al. 2017). IL-10 is an anti-inflammatory cytokine that keeps the immune response in balance, allowing infection to be expelled while causing the least amount of damage to the host.

Population coverage

The shortlisted epitopes from the HLA class I, class II families, and their respective binding HLA alleles were subjected to the IEDB Population Coverage tool ( (Fleri et al. 2017). Since the epitopes with different HLA alleles have distinct binding sites and it varies with different populations across the globe, the vaccines that are being designed should be able to cover a wide range of the world population. Therefore in this study, the population coverage of our CTL and HTL epitopes was estimated against the entire world and specific hotspots of NTD (Fig. 1) (Hotez 2014) to obtain and ensure a universal vaccine. The calculation option was set to “Class I and II combined” for the MHC alleles (Abdelmageed et al. 2020; Maleki et al. 2021).

Fig. 1
figure 1

The 10 global hotspots for neglected tropical diseases (NTDs)

Construction of multi-epitope vaccine candidate sequence

All different HTL and CTL epitopes that were predicted by various immunoinformatic tools and immunological filters were used to design the multi-epitope vaccine with the help of linker proteins. Immunomodulatory molecules were introduced to vaccine constructs as safe vaccine adjuvants in order to amplify the immune system. Since peptides are not immunogenic on their own, they require an adjuvant to stimulate the immune system (Bin Sayed et al. 2020; Li et al. 2014). 50S ribosomal protein L7/L12 (accession no: P9WHE3.1) was chosen as an adjuvant to improve the immunogenicity of the vaccine since it is an agonist of TLR4 (Gorai et al. 2022; Das et al. 2021). Also, TLR4 agonists have been shown to induce strong T cell and antibody-mediated responses when used as adjuvants in vaccine candidates. The final vaccine was constructed by joining the adjuvants, MHC-I and MHC-II epitopes with EAAAK, GPGPG, and AAY, respectively, i.e. linker proteins.

Evaluation of antigenicity, allergenicity, physicochemical properties, and solubility of the designed vaccine peptide

For the evaluation of antigenic features of constructed vaccine, VaxiJen v2.0 ( was used and the allergenicity of the vaccine was assessed from AllerTOP v.2.0 ( (Dimitrov et al. 2014). The physiochemical properties of the vaccine were estimated using the ExPASy ProtParam ( These properties included amino acid composition, instability index, theoretical pI, aliphatic index, molecular weight, in vitro and in vivo half-life, and grand average of hydropathicity (GRAVY). The solubility of the vaccine construct was estimated using the ProteinSol ( (Hebditch et al. 2017).

Cross-reactivity analysis with human proteomes

The BLASTP ( search engine in the NCBI database was used to examine the sequential similarity of our epitope-based vaccine against human proteomes by applying the expected threshold value 10 and BLOSUM 62 matrix as a parameter.

Secondary structure prediction

PSIPRED v4.0 ( (Buchan and Jones 2019) was used to predict the secondary structures of the designed vaccine candidate based on their primary sequences as input. This tool employs two feed-forward neural networks that execute an analysis of the output obtained from PSI-BLAST (Position-Specific Iterated-BLAST) (Ali et al. 2017).

Tertiary structure construction, refinement, and validation

RaptorX ( was used to infer the 3D model of our final vaccine. This server predicts tertiary structure using a deep learning technique that combines evolutionary coupling (EC) and sequence conservation information via an ultra-deep neural network constructed from two deep residual neural networks (Xu 2019). To improve the optimal 3D structure of the construct, the structure was refined by GalaxyRefine ( and the energy was then minimized using Swiss-PDB Viewer. To validate the modelled protein, the ProSA-web (Protein Structure Analysis) and PROCHECK (Ramachandran Plot Assessment) servers have been used. ProSA ( has been assigned with calculating an overall quality score for the given input structure. The PROCHECK server was used to obtain the Ramachandran plot, which determines the quality of the modelled structure.

Conformational B cell epitope prediction

More than 90% of B cell epitopes are known to be discontinuous, meaning that they are made up of segments from the pathogen protein sequence that are brought together by the folding of the protein (Shey et al. 2019). Such epitopes are called conformational B cell epitopes. Hence, ElliPro ( was used to predict discontinuous (conformational) B cell epitopes for our validated 3D vaccine construct. This tool assigns a score to each output epitope based on the PI (Protrusion Index) value averaged over each epitope residue.

Molecular docking and interaction studies with TLR4

Molecular docking is a crucial step to ensure the binding affinity of the vaccine with its receptor TLR4. For this purpose, the crystal structure of the TLR4 receptor (PDB code: 4G8A) was retrieved from the RCSB protein data bank ( whose atomic resolution was 2.4 A°. The prepared tertiary structures of the vaccine and its receptor TLR4 were then subjected to a balanced docking method in the ClusPro 2.0 server (Desta et al. 2020; Vajda et al. 2017; Kozakov et al. 2017) ( where rigid-body protein–protein docking was performed. Under the balanced docking method, the ClusPro server calculates the lowest weighted energies of the various docked complexes by employing the force field equation: E = 0.40Erep − 0.40Eatt + 600Eelec + 1.00EDARS (Kozakov et al. 2017). As a result, a number of docked clusters with their respective lowest energy weighted scores were obtained. The final selected cluster was visualized in the PyMoL molecular graphics system (Yuan et al. 2017), and the various non-bonded interactions occurring between the respective residues were deeply analysed using the Discovery studio 2021 client software (

Normal mode analysis

Through iMODS (, a normal mode analysis was performed to assess the conformational stability of the docked complex. It simulates protein collective motion by evaluating normal modes (NMA) in internal coordinates and predicting features including deformability, mobility profiles, eigenvalues, variance, and covariance map (Madanagopal et al. 2022).

Immune simulation

To further validate the immunogenicity and immune response profile of the constructed vaccine, in silico immune simulation using the C-ImmSim server ( (Yuan et al. 2017; Rapin et al. 2010; Castiglione et al. 2021) was performed. C-ImmSim is an agent-based model that predicts immunological interactions using a position-specific scoring matrix (PSSM) for immune epitope prediction and machine learning approaches. This server simulates the components of bone marrow, thymus, and lymph node (mammalian) by using the FASTA format of the vaccine. The vaccine’s ability to stimulate immune cells such as cytotoxic T cells, helper T cells, B cells, immunoglobulins, and cytokines was investigated. In the immune simulation, three dosages of injection were administrated at regular intervals of 4 weeks. Hence, the time step parameters were set as 1, 84, and 168 since one time step is equal to 8 h in real life. The total steps of the simulation were 1050 which approximates 1 year in real life. All the other parameters were kept as default.

mRNA structure prediction

The secondary structure and the minimum free energy (ΔG) of folding and the positional entropy for the mRNA structure of the vaccine construct were predicted using the RNAfold web server ( A lower free energy value would indicate that the structure is thermodynamically stable.

Codon optimization and in silico cloning

To express the multi-epitope vaccine design in a selected expression vector, the Java Codon Adaptation Tool (JCat) ( was used for reverse translation and codon optimization. For codon optimization, E. coli (strain K12) was used. The server gives a codon adaptation index (CAI), which indicates codon usage and GC content biases that can be used to evaluate protein expression levels. Finally, the cloning procedure was conducted by inserting the modified nucleotide sequence into the pET28a (+) expression vector using Snap Gene v4.2 software (


Prediction of T cell epitopes and prioritization

In this study, CTL epitopes were predicted using the IEDB MHC-I processing tool, whereas HTL epitopes were predicted using the IEDB MHC-II Binding Predictions tool and both types of T cell epitopes were predicted by the SMM approach against a set of human reference HLAs with adjusted IC50 value less than 50 nM. A total of 15 CTL epitopes and 3 HTL epitopes were shortlisted for eight selected antigenic proteins by applying several immunological filters as shown in Tables 1 and 2. All of the optimal epitopes, as well as their antigenicity, positioning and binding alleles, are documented in Tables 3 and 4. In addition, for the best possible epitopes, the corresponding alleles which have a moderate binding affinity (IC50 < 500 nM) were also documented.

Table 1 Results of the finally shortlisted CTL epitopes
Table 2 Results of the finally shortlisted cytokine-inducing HTL epitopes
Table 3 TC epitopes with its binding allele (IC50 < 500 nM)
Table 4 TH epitopes with its binding allele (IC50 < 500 nM)

Linear B cell epitope prediction

Totally 60 B cell epitopes from FBCPred and 222 epitopes from the ABCPred server were obtained. A total of 11 common peptides were scrutinized between those two servers’ results which were further checked for antigenicity, allergenicity, and toxicity. Finally, three highly antigenic LBL epitopes were found as shown in Table 5.

Table 5 B cell epitopes selected by FBCPred and ABCPred server

Multi-epitope subunit vaccine construction

The total number of predicted epitopes used in designing the vaccine was 15 CTL epitopes, 3 HTL epitopes, and 3 LBL epitopes. The predicted peptide sequences containing our CTL, HTL, and LBL epitopes were fused with the help of appropriate linkers (AAY, GPGPG, and KK). In order to enhance antigen-specific immune responses, 50S ribosomal L7/L12 was ligated to the amino terminus of the vaccine peptide via an EAAAK linker. Our final vaccine peptide comprised of 426 amino acid residues derived from 21 combined peptide sequences (Fig. 2).

Fig. 2
figure 2

Diagrammatic representation of the final vaccine construct

Evaluation of antigenicity and allergenicity of the designed vaccine candidates

The antigenicity of the final sequence (including the adjuvant) was assessed to be 0.5876 by the VaxiJen 2.0 server with a parasitic model at a threshold of 0.4. The main vaccine sequence (without adjuvant) gave a score of 0.7245 with the parasite model at a threshold of 0.4 on VaxiJen 2.0. The results show that the predicted vaccine sequences (with and without adjuvant) are both antigenic in nature. On the AllerTOP v.2 server, the vaccine sequence with and without adjuvant was predicted to be non-allergenic as well.

Physiochemical properties and solubility prediction

The different physicochemical properties of our final vaccine construct are presented in Table 6. The molecular weight of the vaccine construct was calculated to be 46.39 kDa with the theoretical pI 4.67 which corroborated the acidic nature. The vaccine’s stability was represented by the instability index of 26.34 (a score of less than 40 indicates a stable protein). The half-life of mammalian reticulocytes (in vitro) was evaluated to be 30 h, yeast (in vivo) to be > 20 h, and Escherichia coli to be > 10 h (in vivo). The aliphatic index of 92.49 indicates thermostability, while the GRAVY rating of 0.027 indicates the very slight hydrophobic nature of our vaccine. The construct was also shown to be soluble in the ProteinSol server (Additional file 4: Fig. S1).

Table 6 Physiochemical properties identification of our vaccine

Cross-reactivity between designed vaccine candidate and human proteome

The shortlisted epitopes were subjected to NCBI-BLAST for searching similarities against the human proteome; however, no significant matches were found. This shows that our predicted epitopes may not cause cross-reactivity reactions with the human proteome.

Population coverage analysis of CTL and HTL epitopes

HLA allelic distribution varies by geographical region and ethnic group around the world. As a result, in addition to developing an effective vaccine, population coverage must be considered. HLA alleles relevant to our chosen CTL and HTL epitopes were collected individually and merged for population study against the hotspot regions of LF. The strongest continental coverage was found in South-East Asia (Fig. 3), and this region is reported to have a high prevalence of Brugia malayi cases. The study revealed that our vaccines represent 94.96%, 94.38%, 95.30%, 94.94%, 98.18%, 91.29%, 96.57%, 94.19%, 92.11%, and 97.73% coverage of the HLA alleles in Brazil, Peru, Argentina, Mexico, Sudan, Uganda, Zimbabwe, India, China, and Iran populations, respectively.

Fig. 3
figure 3

Population coverage of T cell epitopes with their HLA alleles against the hotspots of LF

Secondary structure prediction

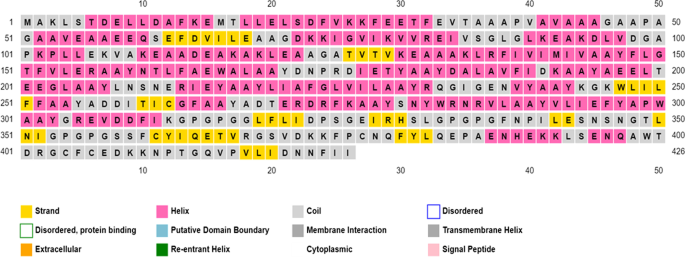

The secondary structure composition of our vaccine model can be majorly classified as helix, coil, and strand regions. Figure 4 obtained from the PSIPRED server represents a graphical illustration of the various regions in which almost 53% (227 residues) accounted for a helix, 10% (44 residues) accounted for b strands and 36% (155 residues) accounted for random coils.

Fig. 4
figure 4

Secondary structural predictions of the vaccine sequence

Tertiary structure modelling, refinement, and validation

The tertiary structure of our vaccine model was predicted through RaptorX and refined with the GalaxyRefine server. Figure 5 depicts a cartoon representation of the tertiary structure for our vaccine. The energy minimization of the refined model was done through a Swiss-PDB viewer, and the final structure was validated using ProSA and PROCHECK. The Z-score value obtained from ProSA is − 7.34, and Fig. 6 shows a graphical illustration wherein the Z-score lies within the acceptable range for a residue length of 426. Figure 7 depicts the Ramachandran plot that was obtained from PROCHECK in which 89.1% of the residues lie in the most favoured regions and 9.9% of the residues lie in the additionally allowed regions.

Fig. 5
figure 5

A cartoon representation of the tertiary structure of the vaccine construct

Fig. 6
figure 6

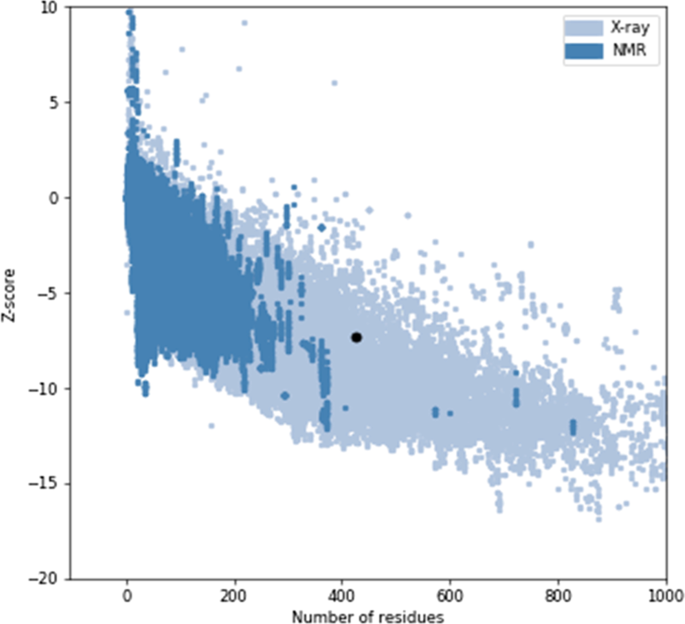

Tertiary structural validation by ProSA

Fig. 7
figure 7

Ramachandran plot obtained from PROCHECK

Conformational B cell epitope identification of final vaccine

A total of 14 discontinuous B cell epitopes were identified in Ellipro which crossed the threshold score of 0.5. The length of the epitopes had a broad range of 5 to 44 residues, and Table 7 represents the start and end positions of the respective epitopes in the overall sequence.

Table 7 List of conformational B cell epitopes obtained from Ellipro

Molecular docking analysis and interaction studies

A total of 21 docked protein complexes were obtained from the ClusPro server each having a representative centre weighted score and the lowest energy weighted score. Among the 21 clusters, the 13th cluster was having the lowest energy score of − 969 and hence it was selected as the best complex. It is also notable that the 13th cluster was the only cluster in which the centre weighted score was the same as the lowest energy weighted score (− 969 for both), thus re-affirming our selection. Figure 8 shows a surface representation of the docked protein complexes. The non-bonded interactions between the two proteins that were further analysed in the Discovery studio visualizer revealed that a total of 24 residues are involved in a number of hydrogen bonds, salt bridges, electrostatic bonds, and hydrophobic interactions. It is believed that all these interactions act synergistically to produce an overall effect in the binding complex. Table 8 represents the type of interaction specific to particular residues.

Fig. 8
figure 8

A docked cluster of our vaccine with TLR4 receptor (vaccine model in cyans and TLR4 receptor in greens)

Table 8 List of non-bonded interactions at the surface of docking between our vaccine model and TLR4 receptor

Normal mode analysis

The results of the normal mode analysis obtained from the iMODS server provided information on the conformational stability and biophysical alterations of the vaccine-receptor complex. The deformability plot shown in Fig. 9a indicates the non-rigid portions as peaks nearing the value of 1, meaning that those atoms are prone to fluctuations and thereby rendering flexibility to the protein. Figure 9b represents the eigenvalue of the docked complex which is directly related to the lowest energy required to deform the complex. The eigenvalue for our protein was 8.375468e-06 which is a measure of the overall stiffness of the protein complex. Figure 9c shows an elastic network graph that represents the pair of atoms connected by springs and each dot in the graph indicates one spring between the corresponding pair of atoms. In the graph, a darker grey represents a stiffer spring between the atoms.

Fig. 9
figure 9

a Deformability, b Eigenvalue, and c Elastic network of our constructed vaccine protein model

Immune simulation

The results of the immune simulation studies obtained from the C-ImmSim server revealed that our vaccine is capable of inducing an effective immune response through a number of mechanisms including but not limited to an increased B cell, T cell and NK cell population. A relatively high amount of IgM was observed than the immunoglobulin IgG. There was a concurrent decrease in the antigen levels followed by an enhanced level of the IgG1 + IgG2, IgM, and IgG + IgM antibodies during the secondary and tertiary responses. An increased antigen clearance was observed in the subsequent exposures owing to the development of immune memory. Our vaccine was able to provide effective and long-lasting protection by generating increased levels of activated memory B cells. In addition, the helper T cells, cytotoxic T cells, and regulatory T cells also showed a strong response to immune memory. The dendritic cells, natural killer cells, and macrophages worked in unison to complement each of their immune responses. Furthermore, the innate immune system components like epithelial cells were also involved. Overall, there was an appreciable immune response to our vaccine especially after the second and third titres as it is demonstrated by the graphical illustrations in Figs. 10, 11 and 12.

Fig. 10
figure 10

a B cell population b PLB cell population c B cell population per state d TH cell population e TH cell population per state f T regulatory cells population

Fig. 11
figure 11

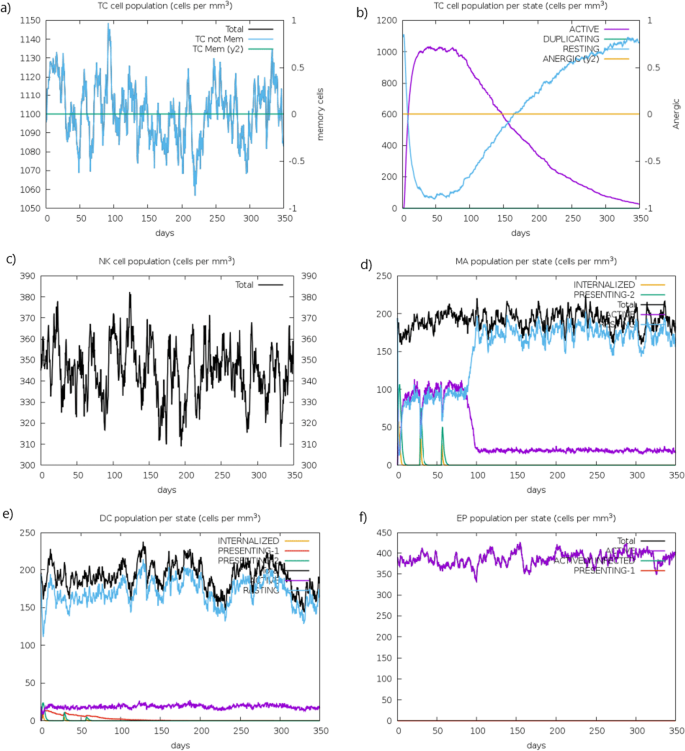

a TC cell population b TC cell population per state c Natural killer cell population d Macrophages population per state e Dendritic cell population per state f Epithelial cell population per state

Fig. 12
figure 12

a Production of several subclasses of immunoglobulin (coloured lines) in response to vaccine injection (black vertical lines) b Production of Cytokine and Interleukin

Codon optimization, mRNA structure prediction, and in silico gene cloning

In order to prove the expression efficiency of our vaccine, in silico gene cloning was performed in a suitable expression vector. For this purpose, the amino acid sequence of our vaccine was subjected to reverse transcription using the Java codon adaptation tool and thereby the codons were optimized. After codon optimization, the length of the entire nucleotide sequence was 1278. The average GC content of the optimized nucleotide sequence was 50.54%, while the ideal range of GC content for any nucleotide sequence should be between 30 and 70% for it to be thermodynamically stable. The CAI value of the improved sequence was 0.96 and hence falling within the acceptable range.

The optimal secondary structure of mRNA had a minimum free energy of − 372.10 kcal/mol. The centroid structure had a minimum free energy of − 278.07 kcal/mol, and the free energy of the thermodynamic ensemble was − 393.80 kcal/mol. Additional file 5: Fig. S2 represents the minimum free energy structure encoding its positional entropy, and Additional file 6: Fig. S3 represents the centroid structure. Additional file 7: Fig. S4 shows a mountain plot of the minimum free energy structure, the thermodynamic ensemble of RNA structures, and the centroid structure along with a graphical illustration of the positional entropy at each position.

Finally, our improved gene sequence was cloned into the vector pET28a (+) by introducing the restriction enzymes EcoRI and BamHI at the N terminal and C terminal positions of our vaccine’s nucleotide sequence, thereby forming a recombinant plasmid in Fig. 13.

Fig. 13
figure 13

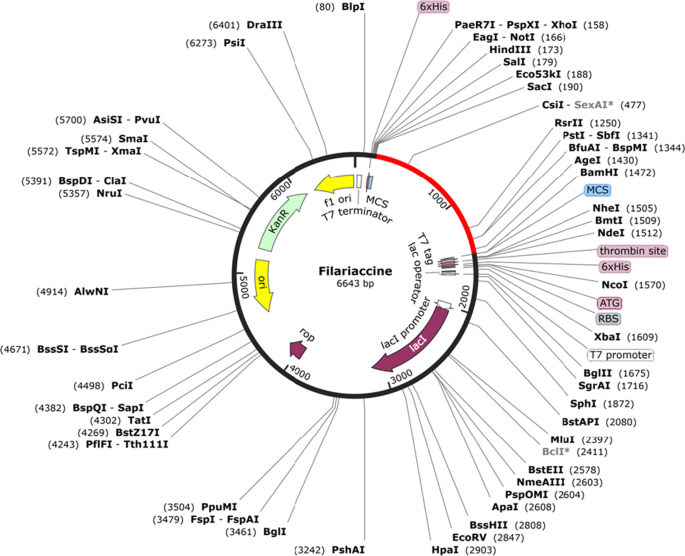

A diagrammatic map of in silico gene cloning


Although lymphatic filariasis caused by Brugian species is responsible for only 10% of the global LF infections, it still contributes to a huge disease burden in South-east Asian countries (Chandrasena et al. 2019). It parasitizes human lymphatics, causing lymphostasis, hydrocele, lymphedema, and, eventually, elephantiasis. The medications approved by the FDA are only effective against microfilaria and have no effect on adult worms. Recently, attention has shifted to the development of peptide vaccines, which have excellent safety profiles and are logistically more feasible. Epitope-based vaccines are a novel strategy for eliciting a specific immune response while avoiding reactions to other unfavourable epitopes (such as epitopes that may cause immunopathogenic or immunological modifying responses) in the complete antigen.

In this study, several in silico assessments were therefore used to design and develop a multi-epitope peptide-based vaccine for LF by screening eight highly antigenic proteins of Brugia malayi, obtained through a literature review. So, in order to develop both humoral and cytotoxic immune responses, the CTL, HTL, and LBL epitopes were first identified from the shortlisted antigenic proteins by the various immunoinformatics tools. Then, using specific servers stated in the methodology section, the best epitopes were chosen for vaccine construction that proved antigenicity, non-allergenicity, non-toxicity, and immunogenicity.

Finally, the CTL, HTL, and LBL epitopes were connected with vaccine compatible-peptide liners (AYY, GPGPG, KK) to construct the final vaccine. It is noteworthy that the GPGPG and AAY linkers aid in generating controlled functional immunogenicity, while the EAAAK is found to segregate domains of functional protein structure. Additionally, to boost the immunogenicity, longevity, and most importantly, the vaccine construct’s stability, an adjuvant—50S ribosomal protein L7/L12 which is an agonist of human TLR4, was added at the N terminal position of the vaccine. Several prediction scores from various web tools made it possible to design an antigenic as well as the non-allergenic vaccine. Adjuvant interactions with TLR4 polarize cytotoxic T cell responses and generate robust immunological responses. Furthermore, the population coverage analysis demonstrated that the shortlisted epitopes would be excellent vaccine candidates for people of South-east Asian countries as well as the other hotspots of LF.

An effective vaccine should have good physicochemical characteristics during production, formulation, consumption, and storage. The ExPASy ProtParam server predicted the vaccines’ physicochemical properties. Physicochemical properties include the number of amino acids, molecular weight, theoretical isoelectric point (pI), formula, the total number of atoms, aliphatic index, GRAVY, estimated half-life and instability index. The vaccines’ molecular weight would be utilized as an indication in SDS-PAGE electrophoresis and Western blot analysis. The pH at which a molecule has zero net electrical charge is known as theoretical pI. The vaccine’s theoretical pI was calculated to be 4.67, indicating that it was acidic in nature and the aliphatic index of 92.49 confirmed its thermostability which means the approximate occupied mass by aliphatic side chains of the vaccine (Table 6). The half-life period obtained from the server is related to the time of disappearance after the vaccine’s administration. The instability index of our vaccine being lower than 40 indicates that the vaccine is classified as stable (Table 6). GRAVY is an indication of the average hydropathy values of amino acids in a protein. Protein solubility is a critical feature in predicting a vaccine’s immunogenicity. Since insoluble proteins are non-immunogenic, solubility index was checked by the ProteinSol server, where it proved its effective interaction with water (Additional file 4: Fig. S1). The constructed vaccine ensured that it could be easily expressed inside the host cell of E. coli due to its solubility and predicted half-life of > 10 h in vivo (Table 6).

The secondary structural composition of the vaccine sequence shows that nearly half of the sequences would form a helices (53%), followed by random coils (36%) and only 10% of the residues would form b strands. The confidence level of prediction by the PSIPRED server was also pretty high for most of the residues (Buchan and Jones 2019). The few discrepancies in the tertiary structure predicted through the RaptorX software were significantly improved after refinement by the GalaxyRefine server. There was also a slight increase in the Ramachandran plot favoured residues (from 96.5 to 96.9) post-refinement. The Z-score graph obtained from ProSA provides a surface range for X-ray crystallographic structures and NMR spectroscopy structures for appropriate residue lengths. Though the Z-score − 7.34 outlies the region for NMR, it falls well within the range for X-ray crystallographic structures. The knowledge-based energy graph validates the thermodynamic stability of the protein since there are very few peaks crossing the positive energy axis. Generally, for a valid protein structure in the Ramachandran plot, the percentage of residues in the allowed regions should be greater than 90%. For our constructed vaccine, it was 99% (including most favoured, additionally allowed, and generously allowed regions) and hence being strongly validated.

Following the validation of the vaccine’s tertiary structure, the discontinuous B cell epitopes were predicted using the Ellipro tool. Among the 14 epitopes that crossed the threshold value of 0.5, an epitope of length 44 residues had a maximum score of 0.877, an epitope of length 6 residues had a minimum score of 0.502, 3 of the epitopes had a moderate score of above 0.7 and the remaining 9 epitopes had their scores around 0.6. The docked cluster obtained from the ClusPro tool depicted our vaccine model being strongly buried within the cavities of the TLR4 receptor (Kozakov et al. 2017). In addition, several non-bonded interactions are known to be occurring between the two protein complexes that complement their effective binding and interaction (Yuan et al. 2017). During the normal mode analysis, the flexibility, stiffness, and overall biophysical stability of our vaccine were strongly validated by the deformability graph, eigenvalue plot as well as elastic network map, respectively.

Though the structure and stability of our vaccine model were strongly validated in the preliminary studies, the ability of the protein to induce an appropriate immune response remained a sceptical question until it was proven by the immune simulation studies that were performed through the C-ImmSim tool. The population of various immune cells such as the immunoglobulins (IgG, IgM, IgG + IgM), TH cells, TC cells, natural killer cells, macrophages, dendritic cells, and even epithelial cells were critically analysed during various states. Since the simulation was run for 12 months (1050) with the regular administration of 3 titres on day 1 (1st-time step), day 28 (84th-time step), day 56 (168th-time step), the B cell population, as well as the T cell population, saw a significant rise after the second and third titres. The antigen clearance pattern followed an inverse correlation to the levels of memory cells and thereby producing a long-lasting protective immunity.

Previous research efforts have demonstrated that IgG1 and IgG3 antibodies in the peripheral circulation of the infected patients kill Brugia malayi infective larvae in an ADCC reaction. It has been shown that these cytophilic antibodies in humans correlate with the absence of infection. The development of prophylactic vaccines based on antigens or peptides that induce these protective antibodies is therefore of interest (Morris et al. 2013). Furthermore, the elevated level of IgE follows a consistent pattern in filarial infections. In order to minimize any adverse effects, the selected antigens should not be homologous or have little homology to human proteins and should not elicit any IgE or IgG4 responses. Considering these points, our vaccine produced appreciable levels of IgG1 antibodies and demonstrated zero levels for IgE or IgG4 antibody production. Hence, our vaccine would be capable of killing the Brugia malayi larvae during the infective stages. Also, the vaccine’s sequence showed no significant homology with the human proteome when checked for cross-reactivity using the BLASTP tool. This adds to another advantage of our vaccine being non-allergenic to humans.

The protein sequence of the vaccine was reverse transcribed to nucleotide sequence and optimized to improve its expression levels using the Java codon adaptation tool. The optimized nucleotide sequence had an ideal value of CAI index as well as an ideal percentage of GC content which are crucial parameters for the expression and stability of the gene. The minimum free energy and the positional entropy of the predicted mRNA structure rendered an outline about the thermodynamic stability of the mRNA during the transcription process. The optimized nucleotide sequence was finally cloned into a recombinant plasmid vector pET28a (+). The insertion was facilitated by the two popular restriction enzymes EcoRI and BamHI at the N terminal and C terminal positions, respectively (Gorai et al. 2022).
