Exploitation of sweet lemon residues in the production of essential oils

Bulletin of the National Research Centre volume 43, Article number: 152 (2019) Cite this article

Abstract

Background and objective

The constituents of sweet lemon essential oil (EO) have different biological and medical properties. The exploitation of sweet lemon residues in the production of EO is an important means of increasing natural products and disposing of those residues. The aim of this study was to evaluate the EO extracted from various sweet lemon residues such as leaves, flowers, and peels of fruits to find out their content of active substances.

Materials and methods

The EO of different residues of sweet lemon was isolated by hydrodistillation (HD) method, then they were analyzed by GC/MS. Data were statistically analyzed using ANOVA-1.

Results

The content of EO (%) was higher in peels than in flowers or leaves. Citronellal, nerol, and limonene were the major constituents of EO extracted from leaves, flowers, and peels, respectively. All detected components of various oils belonged to four chemical fractions (monoterpene hydrocarbons (MH), oxygenated monoterpenes (OM), sesquiterpene hydrocarbons (SH), and oxygenated sesquiterpenes (OS)). The MH was the major faction of peel EO while the OM was the major fraction of leaf and flower EOs. The SH and OS were formed as the minor fractions in all EOs.

Conclusion

Different variations were observed in sweet lemon EO extracted from various residues which lead to diversity in natural sources of EO production.

Background

Essential oils are secondary metabolites formed in aromatic plants. They are volatile, terpenoids, and usually isolated by distillation methods. They have odor and several pharmaceutical, medical, and biological properties such as antiseptic, bactericidal, virucidal, and fungicidal, as well as against liver and lung carcinogenesis, colon tumors, and gastric cancer (Davis 1982; Yeung 1999; Khursheed et al. 2016). The Administration of Food and Drug (FDA) indicated that EO of citrus is safe natural product, so it can be added to canned food and cosmetics to prevent the propagation of pathogens and spoiling microorganisms (Fisher and Phillips 2006; Nannapaneni et al. 2009; Velázquez-Nuñez et al. 2013). The residues of different organs of citrus tree such as peels, leaves, and flowers that are produced after juice extraction, pruning of branches and change to precipitation flowers are very important sources of EO (Viuda-Martos et al. 2009), as well as citrus residues which can serve as raw material for the extraction of EOs needed for various domestic and industrial uses (Giwa et al. 2018). Sweet lemon (Citrus limettioides Tan.), one of the citrus species, belongs to family Rutaceae. Just one literature was carried out in México to isolate and characterize the constituents of sweet lemon EO that was isolated from peels and leaves (Pino et al. 2010); this study reported that different variations were observed in the chemical constituents due to the differences in plant organs, and the major component of peel EO was limonene while the main constituents of leaf EO were limonene, citronellal, and linalool.

The yield and chemical constituents of EO can be changed by various conditions such as fertilizers, irrigation, climate, location, plant organ, and others (Krayni et al. 2015). The highest yield of EO and major constituents (thymol and carvacrol) of thyme were detected in the EO isolated from the aerial parts during the flowering stage (Jordan et al. 2006; Nejad-Ebrahimi et al. 2008; Omidbaigi et al. 2010). Different changes were recorded in the composition of oregano (Origanum onites) EO due to various plant organs (Kizil et al. 2008). The EO extracted from Eucalyptus cinerea fruits produced higher amount of 1,8-cineole (81%) than that isolated from leaves (75%) and flowers (78.8%) (Silva et al. 2011). The EO of Sodom apple extracted from the leaf, stem, flower, and fruit was analyzed by GC/MS (Wahba and Khalid 2018); leaf EO resulted in the highest values of E-phytol, myristicin, myristic acid, oxygenated sesquiterpenes (OS), and oxygenated diterpenes (OD); fruit EO recorded the greatest amounts of E,E-farnesyl acetone, monoterpene hydrocarbons (MH), oxygenated monoterpenes (OM), and sesquiterpenes hydrocarbons (SH). The EO components of Sarcopoterium plants were evaluated by Sipahi et al. (2017); the major components of EO isolated from the stem were aldehydes (40%), aromatic constituents (34.0%), and OM (21%); aldehyde component (43%), OS (26%), and aliphatic hydrocarbons (21%) were detected as the main components in leaf EO, while aldehydes (52%) and aromatic components (48.4%) were identified as the main constituents of root EO.

There are no investigations on the EO composition of sweet lemon extracted from various part residues (leaves, flowers, peels) in Egypt, so the aim of this study was to describe the composition of sweet lemon EO extracted from different residues. This study may increase the sources of natural products (EO) used in food and drug industries.

Materials and methods

Plant materials

Plant materials (leaves, flowers, and peels) were collected from the citrus farm of National Research Centre (NRC) during 2 years (2017 and 2018). The citrus farm is located at the reclaimed zone and is characterized by sandy soil. The leaves were obtained from pruning trees which were collected in February. Flowers produced from the precipitation were collected in June while fruit peels were collected in November at both seasons.

EO isolation

The fresh plant materials were collected, and then 250 g from each replicate (three replicates) were subjected to hydrodistillation (HD) for 3 h using a Clevenger-type apparatus (Clevenger 1928).

Gas chromatography (GC) and gas chromatography-mass spectrometry (GC–MS) conditions

Gas chromatography analyses were performed using a Shimadzu GC-9 gas chromatograph equipped with a DB-5 (dimethylsiloxane, 5% phenyl) fused silica column (J&W Scientific Corporation) (30 m x 0.25 mm i.d., film thickness 0.25 μm). Oven temperature was held at 50 °C for 5 min and then programmed to rise to 240 °C at a rate of 3 °C/min. The flame ionization detector (FID) temperature was 265 °C, and the injector temperature was 250 °C. Helium was used as the carrier gas with a linear velocity of 32 cm/s. The percentages of compounds were calculated by the area normalization method, without considering response factors. GC–MS analyses were carried out in a Varian 3400 GC-MS system equipped with a DB-5 fused silica column (30 m x 0.25 mm i.d., film thickness 0.25 lm); the oven temperature was 50–240 °C at a rate of 4 °C/min, transfer line temperature 260 °C, carrier gas, helium, with a linear velocity of 31.5 cm/s, split ratio 1:60, ionization energy 70 eV, scan time 1 s, and mass range 40–300 amu.

Identification of volatile components

The components of EOs were identified by comparison of their mass spectra with those of a computer library or with authentic compounds and confirmed by comparison of their retention indices (RI), either with those of authentic compounds or with data published in the literature (Adams 1995). Mass spectra from the literature were also compared (Adams 1995). Further identification was made by comparison of their mass spectra on both columns with those stored in NIST-98 and Wiley-5 Libraries.

Statistical analysis

In this experiment, one factor was considered: plant part residues (leaves, flowers, and peels). For each residue, there were three replicates; the experimental design followed a complete random block design. The average data of both seasons were statistically analyzed using one-way analysis of variance, ANOVA-1 (Snedecor and Cochran 1990). Significant values were determined according to P values (P < 0.05 = significant and P < 0.01 = highly significant). The applications of that technique were according to the STAT-ITCF program version 7 (Foucart 1982).

Results

EO content

Different variations are detected in sweet lemon EO (%) with various plant part residues (leaves, flowers, and peels) (Table 1). The greatest EO percentage is found in peel EO (0.3%) followed by leaf EO (0.2%) and flower EO (0.1%). The changes in EO oil contents are significant (P < 0.05) for different plant residues (Table 1).

Table 1 Changes in EO contents and chemical fractions of various plant residues
Full size table

EO constituents

In this study, 42 components are observed by GC/MS analysis (range from 99.3 to 99.4%) in leaf, flower, and peel EOs of sweet lemon trees (Table 2). Different changes are found in various constituents due to the differences in plant part residues. The major constituents of leaf EO are citronellal (51.1%), limonene (13.8), and linalool (11.1%). Nerol (53.9%), limonene (12.5%), and β-nerolidol (10.3%) are identified as the major components in flower EO while limonene (72.5%) is the major component in peel EO. All detected components are grouped into four chemical fractions (MH, OM, SH, and OS) (Table 1 and Figs. 1, 2, 3, and 4). The MH is the major fraction of peel EO while the OM is the major fraction of leaf and flower EOs. The SH and OS are formed as the minor fractions in all EOs (Table 1). The changes in the most detected components and chemical fractions are highly significant (P < 0.01) while α-terpinolene, thymol, and α-bisabolol are only significant (P < 0.05). Insignificant variations are observed in isopulegol, terpinen-4-ol, decanal, cis-carveol, citronellyl acetate, neryl acetate, germacrene D, and Ѐ,Ѐ-farnesol.

Table 2 Changes in EO constituents of various plant residues
Full size table

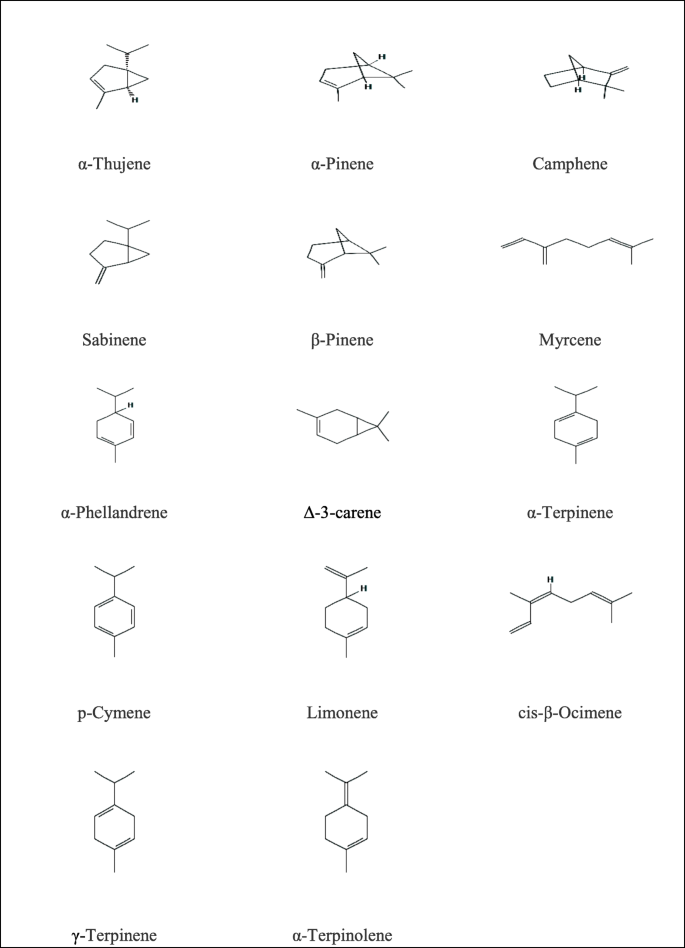

Fig. 1
figure1

MH constituents

Full size image
Fig. 2
figure2

OM constituents

Full size image
Fig. 3
figure3

SH constituents

Full size image
Fig. 4
figure4

OS constituents

Full size image

Discussion

In this study, various plant residues resulted in different variations of quantity and quality of sweet lemon EO. These changes might be due to the different variations in the metabolism and enzyme activities of EO formations in various plant residues (Burbott and Loomis 1969). The changes in EO composition with different plant residues were confirmed by previous investigators on some medicinal plants. Significant variations were reported in EO and its major constituents of oregano, thyme, and Eucalyptus sp. as a result of the difference of the plant part (Jordan et al. 2006; Kizil et al. 2008; Nejad-Ebrahimi et al. 2008; Omidbaigi et al. 2010; Ghasemi-Pirbalouti et al. 2011; Silva et al. 2011; Golparvar et al. 2015). The various fractions (aldehydes, aromatic components, MH, OM, SH OS, OD, and aliphatic hydrocarbons) of EO extracted from Sarcopoterium spinosum and Sodom apple plants were significantly changed with different plant organs (Sipahi et al. 2017; Wahba and Khalid 2018). On the other hand, the present study indicated that the EO of sweet lemon consists of various kinds of terpenes (MH, OM, SH, and OS). Theses terpenes included natural flavor additives for food or fragrances in perfumery and in traditional and alternate medicines as aroma therapy (Brahmkshatriya and Brahmkshatriya 2013). Other important therapeutic uses of terpenoids include antimicrobial, antifungal, antiviral, antihyperglycemic, antiinflammatory, antioxidant, anticancer, antiparasitic, and immunomodulatory, and as a skin permeation enhancer (Brahmkshatriya and Brahmkshatriya 2013).

Conclusion

The compositions of EO isolated from sweet lemon residues were evaluated. The yields of peel EO were higher than those isolated from flowers and leaves. The leaf EO is rich with citronellal, limonene, and linalool. Flower EO is distinguished by high values of nerol, limonene, and β-nerolidol while peel EO is characterized by its high quantity of limonene. Various types of terpenes such as MH, OM, SH, and OS were found in different EOs extracted from sweet lemon residues. This investigation indicated that sweet lemon residues contain various effective substances that have different activities. Therefore, this study will lead to increase the natural sources of active substances, especially EOs.

Availability of data and materials

The datasets supporting the results are included within the article.

Abbreviations

ANOVA:

Analysis of variance

EO:

Essential oil

GC:

Gas chromatography

GC/MS:

Gas chromatography–mass spectrometry

HD:

Hydrodistillation

MH:

Monoterpene hydrocarbons

OM:

Oxygenated monoterpenes

OS:

Oxygenated sesquiterpenes

RI:

Retention index according to DB5 column

SH:

Sesquiterpenes hydrocarbons

References

  1. Adams RP (1995) Identification of essential oil components by gas chromatography/mass spectrometry. Allured Publ. Corp, Carol Stream

    Google Scholar

  2. Brahmkshatriya PP, Brahmkshatriya PS (2013) Terpenes: chemistry, biological role, and therapeutic applications. In: Ramawat KG, Merillon JM (eds) Natural Products. Springer Heidelberg New York Dordrecht London

    Google Scholar

  3. Burbott AJ, Loomis D (1969) Evidence for metabolic turnover monoterpene in peppermint. Plant Phys 44:173–179

    CAS  Article  Google Scholar

  4. Clevenger JF (1928) Apparatus for determination of essential oil. J Amer Pharm Asso 17:346–349

    CAS  Google Scholar

  5. Davis PH (1982) Flora of Turkey and the East Aegean Islands, vol 7. University Press, Edinburgh, pp 349–382

    Google Scholar

  6. Fisher K, Phillips CA (2006) The effect of lemon, orange and bergamot essential oils and their components on the survival of Campylobacter jejuni, Escherichia coli O157, Li steria monocytogenes, Bacillus cereus and Staphylococcus aureus in vitro and in food systems. J App Microbio 101:1232–1240

    CAS  Article  Google Scholar

  7. Foucart T (1982) Analyse Factorielle, Programmatiol Sur Micro- ordinateur. Masson ITCF, Paris

    Google Scholar

  8. Ghasemi-Pirbalouti A, Rahimmalek M, Malekpoor F, Karimi A (2011) Variation in antibacterial activity, thymol and carvacrol contents of wild populations of Thymus daenensis subsp. daenensis Celak. Plant Om 4:209–214

    CAS  Google Scholar

  9. Giwa SO, Muhammad M, Giwa A (2018) Utilizing of orange peels for essential oil production. ARPN J Eng App Sci 13(1):1–27

    Google Scholar

  10. Golparvar AR, Mehrabi AM, Hadipanah A (2015) Effect of phonological stage on yield, essential oil, thymol percentage of Thymus daenensis Celak grown in Iran. Ind J Fund App Life Sci 5:2903–2910

    Google Scholar

  11. Jordan MJ, Martınez RM, Cases MA, Sotomayor JA (2006) Seasonal variation of thymus hyemalis Lange and Spanish thymus vulgaris L. essential oils composition. Ind Crop Prod 24:253–263

    CAS  Article  Google Scholar

  12. Khursheed A, Rather MA, Rashid R (2016) Plant-based natural compounds and herbal extracts as promising apoptotic agents: their implications for cancer prevention and treatment. Adv Biomed Pharma 3:245–269

    Article  Google Scholar

  13. Kizil S, Ipek A, Arslan N, Khawar KM (2008) Effect of different developing stages on some agronomical characteristics and essential oil composition of oregano (Origanum onites). New Zealand J Crop Hort Sci 36:71–76

    CAS  Article  Google Scholar

  14. Krayni H, Zouari S, Chouaieb H, Fakhfakh N, Kossentini M, Zouar N (2015) Variations in the essential oil composition from different organs of Ruta chalepensis L. (Rutacea) growing wild in Tunisia. J Ess Oil Bear Plants 18:1495–1499

    CAS  Article  Google Scholar

  15. Nannapaneni R, Chalova VI, Crandall PG, Ricke SC, Johnson MG, Bryan CA (2009) Campylobacter and Arcobacter species sensitivity to commercial orange oil fractions. Int J Food Microbio 129:43–49

    CAS  Article  Google Scholar

  16. Nejad-Ebrahimi S, Hadian J, Mirjalili MH, Sonboli A (2008) Essential oil composition and antibacterial activity of Thymus caramanicusat different phenologycal stages. Food Chem 110:927–931

    CAS  Article  Google Scholar

  17. Omidbaigi R, Fattahi F, Karimzadeh GH (2010) Harvest time effect on the herb yield and essential oil content of lemon thyme (Thymus × citriodorus (Pers.) Schreb). Iran J Med Aro Plants 26:318–325

    Google Scholar

  18. Pino JA, Sauri-Duch E, Cuevas-Glory L (2010) Volatile constituents of peel and leaf oils from Citrus limettioides Tan. J Ess Oil Bear Plant 13(3):292–296

    CAS  Article  Google Scholar

  19. Silva SM, Abe SY, Murakami FS, Frensch G, Marques FA, Nakashima T (2011) Essential oils from different plant parts of Eucalyptus cinerea F. Muell. ex Benth. (Myrtaceae) as a source of 1, 8-cineole and their bioactivities. Pharma 4:1535–1550

    CAS  Google Scholar

  20. Sipahi H, Korkmaz B, Avsar C, Fandakli S, Elmas E (2017) Volatile profiles, antioxidant, and antimicrobial activities of essential oils and extracts of different parts from Sarcopoterium spinosum (L.) Spach growing wild in Sinop (Turkey). J Ess Oil Bear Plant 20:688–700

    CAS  Article  Google Scholar

  21. Snedecor GW, Cochran WG (1990) Statistical methods, 11th edn. Iowa State Univ. Press, Ames Iowa

    Google Scholar

  22. Velázquez-Nuñez MJ, Avila-Sosa R, Palou E, López-Malo A (2013) Antifungal activity of orange (Citrus sinensis var. Valencia) peel essential oil applied by direct addition or vapor contact. Food Cont 31:1–4

    Article  Google Scholar

  23. Viuda-Martos M, Ruiz-Navajas Y, Fernández-López J, Pérez-Álvarez JA (2009) Chemical composition of mandarin (C. reticulata L.), grapefruit (C. paradisi L.), lemon (C. limon L.) and orange (C. sinensis L.) essential oils. J Ess Oil Bear Plants 12:236–243

    CAS  Article  Google Scholar

  24. Wahba HE, Khalid AK (2018) Comparative study on essential oil composition in various organs of Sodom apple (Calotropis procera) grown wild in Egypt. As J Plant Sci 17(2):85–90

    Article  Google Scholar

  25. Yeung TK (1999) The mode of action of taxol: apoptosis at low concentration and necrosis at high concentration. Biochem Biophys Res Comm 263:398–404

    CAS  Article  Google Scholar

Download references

Acknowledgements

The authors would like to thank the National Research Centre (NRC) for its facilities during this scientific work.

Funding

No specific fund was supplied for this work.

Author information

Affiliations

  1. Medicinal and Aromatic Plants Department, National Research Centre, Dokki, Cairo, Egypt

    Khalid A. Khalid & Ahmed E. El-Gohary

  2. Botany Department, National Research Centre, Dokki, Cairo, Egypt

    Aisha M. A. Ahmed

Authors
  1. Khalid A. Khalid
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Ahmed E. El-Gohary
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Aisha M. A. Ahmed
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

All authors have contributed significantly to the conception and design of the study, the interpretation of data, and the drafting and revision of the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Khalid A. Khalid.

Ethics declarations

Ethics approval and consent to participate

The manuscript does not contain studies involving human participants, human data, or human tissue.

Consent for publication

The authors declare that the work has consent for publication.

Competing interests

The authors declare that they have no competing interests.

Additional information
