Coumarin and fatty alcohol from root bark of strychnos innocua (delile): isolation, characterization and in silico molecular docking studies
Bulletin of the National Research Centre volume 46, Article number: 174 (2022)
Coumarin and fatty alcohol are abundant in nature, particularly in plants, and have been reported to have therapeutic uses. Strychnos innocua (Loganiaceae family) is commonly utilized for medicinal purposes in several African countries. Ethyl acetate extract of the plant (root bark) was subjected to chromatography separation, leading to the isolation of Umbelliferone (1) and 2,13-octadecadien-1-ol (2).
Their structures were verified using mass spectrometry (MS) and nuclear magnetic resonance (NMR) and then compared with published data. This is the first time these compounds (1 and 2) have been isolated from S. innocua root bark. In the molecular docking analysis, the binding scores of the compounds (1 and 2) with the binding sites of Staphylococcus aureus pyruvate carboxylase (PDB: 3HO8) and Pseudomonas aeruginosa virulence factor regulator (PDB: 2OZ6) were − 5.6 and − 4.7 kcal/mol, and − 6.9 and − 5.7 kcal/mol, respectively. These were compared with ciprofloxacin (standard drug), which had docking scores of -6.6 and -8.7 kcal/mol, respectively.
In conclusion, this study established the rich presence of Umbelliferone and 2,13-octadecadien-1-ol in the plant root bark, and their docking studies revealed moderate binding potential with the binding sites of S. aureus and P. aeruginosa.
Compounds isolated from plants have enormous potential in the development of new drugs (Sasidharan et al. 2011). In general, plants can be found all over the world, and their parts (leaves, stems, roots, fruit, and flowers) are employed in a variety of uses, including medicine (Umaru et al. 2019).
The phytochemical composition and secondary metabolites of plants such as coumarin and fatty alcohols contain active therapeutic components and are associated with their pharmacological potential (Mondal et al. 2019; Uttu et al. 2022). Umbelliferone (7-hydroxycoumarin) is sometimes utilized as a fluorophore. It has a large π–π conjugated system that allows it to be used as a fluorescent sensor for a variety of biological applications (Raunio et al. 2020), such as antidiarrheal, antiulcerogenic, antibacterial, mutagenic, and antioxidant activities (Cruz and de-Figueriredo G. F., Pedro L. P., Amorin Y. M., Andrade J. T., Passos T. F. and Araujo M. G. D. 2020), whereas 2,13-octadecadien-1-ol was identified as one of the major phytochemical compounds in Epipremnum aureum and possesses diuretic, antimicrobial, antiulcer, anti-inflammatory, antioxidant, and pesticide activities (Meshram et al. 2016).
The antimicrobial potential of natural compounds from plant origins has been assessed using a variety of in vitro, in vivo, and in silico computational approaches. Docking is one of the techniques that have seen a lot of application in microbial medication development (Nour et al. 2021).
Strychnos innocua is a Loganiaceae plant with a straight-stem that can reach up to 18 m in height. It has multiple branches, with a trunk diameter ranging from 7 to 40 cm. Its leaves are normally simple, with a rarely rounded base. The plant is found in Sudan, Malawi, Cameroon, Uganda, and Nigeria, to name a few countries. Its root is claimed to help with gonorrhoea, while root decoction of the plant in fresh form is reported to help in the treatment of snake bites [9.10]. In Kaduna State, Nigeria, the plant can be obtained.
The root bark of this plant has been previously found to contain important chemical compositions (Ibrahim et al. 2021; Iyun et al. 2022; Sallau et al. 2022). However, there is a dearth of information regarding in silico molecular docking studies of compounds isolated from S. innocua root bark. In this research, 7-hydroxycoumarin (1) and 2,13-octadecadien-1-ol (2) were isolated from S. innocua root bark, characterized, and subjected to docking analysis. This is the first time these compounds have been isolated from this plant.
The plant of S. innocua was collected from the wild in Kaduna State of Nigeria. It was then identified and authenticated in the Department of Biology at ABU, Zaria, by Mr. Namadi Sunusi, where V/N–01884 is the herbarium voucher number.
The root bark of S. innocua was dried under shade. Subsequently, it was then crushed to a fine powder. The powder (i.e., pulverized sample, 2 kg) was subjected to extraction using the maceration technique with solvents n-hexane solvent, ethyl acetate solvent, and methanol solvents, respectively, in increasing polarity as reported by Ibrahim et al. (2021); Iyun et al. 2022; Sallau et al. 2022).
General experimental procedure
GC–MS of the isolated compounds was done on GC 7890B, MSD 5977A, Agilent Tech. The NMR (1D and 2D) spectra were measured on Varian–VNMRS 400 MHz spectrometer using dimethyl sulfoxide (DMSO) for Compound (1) and chloroform (CdCl3) for Compound (2) as the solvent, while ppm is the unit of the chemical shift (δ).
Reagents and chemicals used
All the reagents and chemicals used in this research (n-hexane, ethyl acetate, chloroform, and methanol) are of analytical grade.
Isolation of compounds and purification
The ethyl acetate extract was checked on a pre-coated TLC, which revealed many spots using various solvent systems. The extract (30 g) was mixed with silica gel (60–120 mesh) and left to dry. The dried extract was then transferred into a column (size: 5 cm × 60 cm) after packing with silica gel and n-hexane and eluting with a suitable solvent (n-hexane: ethyl acetate) with increasing polarity (n-hexane 100%, 9:1, 8:2, 7:3, 6:4, 1:1, 4:6, 3:7, 2:8, 1:9, and 100% ethyl acetate) at a flow rate of 1 drop/sec, resulting in 261 collections of 50 mL. These collections were monitored using a pre-coated TLC with spraying reagent which is a mixture of CH3OH: CH3COOH: H2SO4: CH3OC6H4CHO at a ratio of 85:10:5:0.l, respectively, resulting in 24 fractions (F1–F24). The fractions 8 and 9 were combined and separated on column chromatography eluting with HEX: EA in increasing concentrations (HEX: 100%, HEX: EA, 9:1) to obtain 60 collections of 5 mL each. The collections were monitored using a pre-coated TLC plate to give eight subfractions (FF1–FF8). The FF8 was further chromatographed on a small column and eluted with HEX: EA (9.1) to give two smaller fractions (SF1 and SF2). SF2 revealed one spot on TLC to represent compound 1 (Rf = 0.27). The yield was 51 mg. Subfractions FF2 and FF3 were merged and eluted with HEX: EA (9:1) to give four smaller fractions (SF1, SF2, SF3 and SF4). The SF2 revealed one spot on TLC to give compound 2 (Rf = 0.64), the yield value of 24 mg.
In Silico docking studies
In silico docking studies were performed on compounds (1 and 2) and ciprofloxacin (standard drug) with target receptors (PDB: 3HO8 and 2OZ6) downloaded from www.rcsb.org. Their two-dimensional structure (2D) was generated from ChemDraw professional 16.0 and converted to three-dimensional (3D) geometrical optimization using Spartan 20v.1.1 /2020. The target receptors in three-dimensional form were prepared using Discovery Studio Visualizer and saved in PDB and then uploaded for docking studies using Pyrx. The docking output with binding score was visualized in Discovery Studio to analyze the protein–ligand interactions (Ejeh et al. 2021; Tukur et al. 2022).
Compound 1 (41 mg) was gotten as a pale yellow crystal having a 231 °C (melting point). The mass spectrum (Fig. 1) of 1 indicates m/z 162 as the molecular ion peak, while m/z 134, 105, 78, 67, 51, 43, 39, and 28 are the fragment ions, suggesting its molecular formula to be C9H6O3. The NMR spectra data (Table 1) of 1 were very similar to literature for Umbelliferone with 1H NMR (Fig. 2) displaying δH for five olefinic methine protons (δH 6.00 H-2, 6.51 H-8, 6.75 H-6, 7.31 H-5, and 7.75 H-3). The 13C NMR (Fig. 3) and DEPT displayed 9 carbon signals for five olefinic methine (δC 102.58 C-8, 109.43 C-6, 111.59 C-2, 129.32 C-5, and 144.15 C-3), and four quaternary carbon (δC 110.00 C-4, 156.34 C-9, 160.90 C-7, and 161.19 C-1).
Compound 2 (24 mg) was obtained as a clear crystal. The mass spectrum (Fig. 4) of the 2 indicates m/z 266 as a fragmentation ion, which represents H2O was lost from m/z 248. Other fragment ions are m/z 222, 205, 177, 152, 135, 109, 81, and 55 suggesting its molecular formula to be C18H34O. The NMR spectra data (Table 2) were very similar to literature for 2,13-octadecadien-1-ol with 1H NMR (Fig. 5) displaying δH for thirteen methylene protons (δH 1.16 H-8, 1.19 H-11, 1.21 H-5/16, 1.27 H-9, 1.29 H-7, 1.35 H-6, 1.37 H-10, 1.43 H-17, 2.17 H-12/15, 2.28 H-4, and 4.57 H-1), Four signals for olefinic methine protons (δH 5.53 H-13, 5.55 H-14, 5.80 H-2, and 5.90 H-3), one signals for methyl protons (δH 0.83 H-18), and one hydroxyl proton (δH 5.21). The 13C NMR (Fig. 6) and DEPT displayed 18 carbon signals for thirteen methylene carbons (δC 22.88 C-17, 29.55 C-8, 29.71 C-6, 29.62 C-7, 29.43 C-9, 29.32 C-10, 29.94 C-5, 29.21 C-11, 32.06 C-16, 27.29 C-15, 27.35 C-4, 24.81 C-12, and 66.28 C-1), one methyl carbon (δC 14.23 C-18), and four olefinic methine carbons (δC 129.86 C-2, 130.16 C-13/14, and 132.41 C-3).
The ethyl acetate extract of S. innocua (Fig. 7) revealed the presence of coumarin in the phytochemical study, and the extract showed antibacterial activity against B. subtilis, S. aureus, and P. aeruginosa (Sallau et al. 2022). When the extract was subjected to chromatography separation, Umbelliferone and 2,3-Octadecadien-1-ol (Figs. 8 and 9) were isolated, and their structures were determined by spectroscopic analysis and compared to published data (Naka et al. 2006; Singh et al. 2010; Mazimba 2017; Hoskovec et al. 1990). Umbelliferone is found in nature in a variety of plant families and has been shown to have pharmacological effects such as antioxidants and antimicrobials (Mazimba 2017), while 2,13-octadecadien-1-ol was discovered among the major chemical constituents of Cedrela sinensis seed, and the plant's antibacterial activity in vitro was found to be significant (Lin et al. 2012).

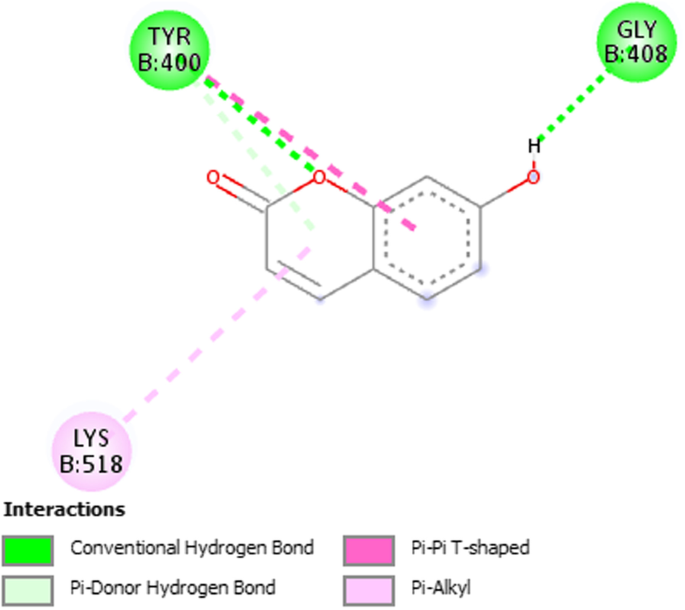

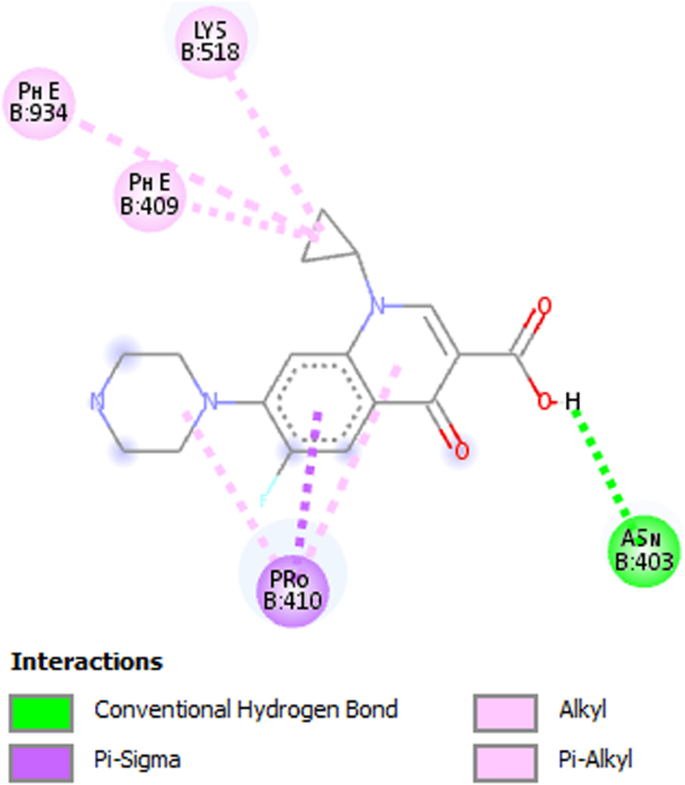

The interactions of the compounds with the target receptors (PDB: 3HO8 and 2OZ6) were investigated using molecular docking (Tables 3 and 4) and in comparison with ciprofloxacin (standard drug). The binding scores of the compounds with S. aureus pyruvate carboxylase 3HO8 (receptor) are all moderately lower than ciprofloxacin, as shown in Table 3. Though Umbelliferone binding energy (-5.6 kcal/mol) is higher than 2,13-octadecadien-1-ol (− 4.7 kcal/mol), their interactions with the receptor are demonstrated in Figs. 10 and 11, while the binding energy of ciprofloxacin was − 6.6 kcal/mol and its interaction is presented in Fig. 12. In addition, Table 4 also demonstrates that the compounds bind to the active site of P. aeruginosa virulence factor regulator 2OZ6 (receptor) with lower binding scores than ciprofloxacin. Also, Umbelliferone has a higher binding energy (− 6.9 kcal/mol) than 2,13-octadecadien-1-ol (− 5.6 kcal/mol), their interactions with the receptor are depicted in Figs. 13 and 14, respectively. The binding energy of ciprofloxacin was − 8.7 kcal/mol, and its interactions are depicted in Fig. 15.
Isolation of two compounds (Umbelliferone and 2,13-octadecadien-1-ol) from S. innocua root bark was carried out through column chromatography, and their structures were characterized using MS and NMR spectroscopic analyses. Docking study results revealed that Umbelliferone showed moderate binding scores of − 5.6 and − 6.9 kcal/mol, while 2,13-octadecadien-1-ol showed − 4.7 and − 5.7 kcal/mol slightly lower than Umbelliferone. These results were all relatively lower than ciprofloxacin (− 6.6 and − 8.7 kcal/mol), hence the compounds might be a potential antibacterial agents against P. aeruginosa and S. aureus.
Availability of data and materials
Nuclear magnetic resonance
Protein data bank
Ahmadu Bello University
Parts per millions
Cruz LF, de-Figueriredo G. F., Pedro L. P., Amorin Y. M., Andrade J. T., Passos T. F. and Araujo M. G. D. (2020) Umbelliferone (7-hydroxycoumarin): a non-toxic antiulcerogenic coumarin. Biomed Pharmacother 129:110432. https://doi.org/10.1016/j.biopha.2020.110432
Ejeh S, Uzairu A, Shallangwa GA, Abechi SE (2021) Computational techniques in designing a series of 1,3,4-trisubstituted pyrazoles as unique hepatitis C virus entry inhibitors. Chemical Revew and Letters 4:108–119
Hoskovec M, Saman D, Koutek B (1990) A convenient synthesis of 2,13- and 3,13-Octadecadienyl acetates, sex pheromone components of the Synanthedon Species. Collect Czechoslovak Chem Commun 55(9):2270–2281. https://doi.org/10.1135/cccc19902270
Ibrahim H, Uttu AJ, Sallau MS, Iyun ORA (2021) Gas chromatography–mass spectrometry (GC–MS) analysis of ethyl acetate root bark extract of Strychnos innocua (Delile). Beni-Suef Univ J Basic Appl Sci 10(65):1–8. https://doi.org/10.1186/s43088-021-00156-1
Iyun ORA, Uttu AJ, Sallau M, S and Ibrahim H. (2022) GC-MS analysis of methanol extract of Strychnos Innocua (Delile) root bark. Adv J Chem-Sect A 5(2):104–117. https://doi.org/10.22034/AJCA.2022.322806.1295
Mazimba O (2017) Umbelliferone: sources, chemistry and bioactivities review. Bull Fac Pharm, Cairo Univ 55(2):223–232. https://doi.org/10.1016/j.bfopcu.2017.05.001
Meshram A, Srivastava N, Bhagyawant SS (2016) Identification of phytoconstituents present in Epipremnum aureum (linden and andre) g S bunting by GC-MS. Int J Life Sci Rev 2(3):45–51
Mondal M, Hossain MS, Das N, Khalipha ABR, Sarkar AP, Islam MT, Kundu SK (2019) Phytochemical screening and evaluation of pharmacological activity of leaf methanol extract of Colocasia affinis Schott. Clinical Phytoscience 5(8):1–11. https://doi.org/10.1186/s40816-019-0100-8
Naka H, Nakazawa T, Sugie M, Yamamoto M, Horie Y, Wakasugi R, Ando T (2006) Synthesis and characterization of 3,13- and 2,13-octadecadienyl compounds for identification of the sex pheromone secreted by a clearwing Moth, Nokona pernix. Biosci Biotechnol Biochem 70(2):508–516
Nour EA, Abd E, Khaled E, Maher AE, Samir AS, Mostafa ME (2021) Designed, synthesis, molecular docking and in silico ADMET profile of pyrano[2,3-d]pyrimidine derivatives as antimicrobial and anticancer agents. Bioorg Chem 115:1051186. https://doi.org/10.1016/j.bioorg.2021.105186
Raunio H, Pentikainen O, Juvonen RO (2020) Coumarin-based profluorescent and fluorescent substrates for determining xenobiotic-metabolizing enzymes activities in vitro. Int J Mol Sci 21(13):4708. https://doi.org/10.3390/ijms21134708
Ruffo CK, Birnie A, Tengnas B (2002) Edible wild plants of Tanzania. Regional Land Management Unit, Nairobi
Sallau MS, Uttu AJ, Iyun ORA, Ibrahim H (2022) Strychnos innocua (Delile): Phytochemical and antimicrobial evaluations of its root bark extracts. Ad J Chem B 4(2022):17–28. https://doi.org/10.22034/ajcb.2022.323148.1104
Sasidharan S, Chen Y, Saravanan D, Sundram KM, Latha LY (2011) Extraction, isolation and characterization of bioactive compounds from plants extracts. Afr J Traditional Complement Alternat Med 8(1):1–10 (PMID: 22238476)
Singh R, Singh B, Singh S, Kumar N, Kumar S, Arora S (2010) Umbelliferone: an antioxidant isolated from Acacia nilotica (L) Willd Ex Del. Food Chem 120(3):825–830. https://doi.org/10.1016/j.foodchem.2009.11.022
Tukur A, Habila JD, Ayo RG, Iyun ORA (2022) Design, synthesis, docking studies and antibiotic evaluation (in vitro) of some novel ( E )-4 -(3 -(d iph eny lam ino )ph eny l)-1-(4-m eth oxy phe nyl )-2 -methylbut-3-en-1-one and their analogues. Bull Nat Res Centre 46(60):1–12. https://doi.org/10.1186/s42269-022-00745-9
Umaru I, Badruddin F, A and Umaru H. A. (2019) Extraction, isolation and characterization of new compound and anti-bacterial potentials of the chemical constituents compound from Leptadenia hastata leaf extract. ChemRxiv. https://doi.org/10.26434/chemrxiv.9782585.v2
Lin Q, Li M, Zhou R and Liu Y (2012) Chemical composition and antibacterial activity of essential oil from Cedrela sinensis (A. Juss) Roem seed. African Journal of Biotechnology https://doi.org/10.5897/AJB11.2947.
Orwa C A, Mutua K R, Jamnadass R and Anthony S (2009) Agroforestree database: a tree reference and selection guide version 4.0. Retrieved from http://www.worldagroforestry.org/sites/treedbs/treedatabases.asp
Uttu A J, Sallau M S, Iyun O R A and Ibrahim H (2022) Recent Advances in Isolation and Antimicrobial Efficacy of Selected Strychnos Species: A Mini Review. J Chem Rev 4(1): 15–24 https://doi.org/10.22034/JCR.2022.314381.1129.
The authors would like to appreciate Mr. Silas Ekwuribe of Chemistry Department, ABU University Zaria—Nigeria for his immense contribution in spectroscopy analyses.
Ethics approval and consent to participate
Consent for publication
Authors have declared no competing interests.
