Photobiomodulation (PBMT) and antimicrobial photodynamic therapy (aPDT) in oral manifestations of patients infected by Sars-CoV-2: systematic review and meta-analysis
Bulletin of the National Research Centre volumeĀ 46, ArticleĀ number:Ā 140 (2022)
Abstract
Background
In 2019, a viral and respiratory pathology called COVID-19 emerged in Wuhan, China, and spread to other continents. Its main symptoms include fever, cough, dyspnea, myalgia, anorexia and respiratory distress in the most severe cases, which can lead to death. Furthermore, manifestations in the oral cavity such as ageusia and dysgeusia, as well as lesions in other regions of the oral cavity, can be observed.
Main body
This systematic review and meta-analysis aimed to critically assess the clinical evidence on the use of photobiomodulation (PBMT) and antimicrobial photodynamic therapy (aPDT) for the treatment of oral lesions in patients infected with Sars-Cov-2. The literature extracted from electronic databases such as PubMed, Medline, CINAHL, and Google Scholar was screened for eligibility, and relevant articles were included. The review is limited to manuscripts published in English, Spanish and Portuguese language between December 2019 and October 2021. A total of 5 articles with 11 cases retracting PBMT and aPDT as therapeutic strategies for the regression of oral lesions and painful symptoms. The results show favoring the associated use of PBMT with aPDT (Pā=ā0.004), and the isolated use of PBMT with the result of significant āPā=ā0.005ā and good confidence interval (7.18, 39.20) in ulcerative lesions, herpetic, aphthous, erythematous, petechiae and necrotic areas.
Conclusions
PBMT and aPDT could be effective in the treatment of oral lesions of patients infected with Sars-Cov-2 in a short period of time; however, more long-term randomized clinical trials studies are needed to define the therapeutic strategy.
Background
COVID-19 is an acute respiratory pathology and the set of signs and symptoms develop rapidly in a synchronous and varied manner, leading to a global characterization of the name āSevere Acute Respiratory Syndrome Coronavirus 2ā (Sars-CoV-2) (Singh et al. 2021; Pacheco et al. 2021). The most common symptoms are fever, dyspnea, cough, myalgia and anorexia (Sousa and Paradella 2021; Jiang et al. 2020; Huang et al. 2020). In severe cases, pulmonary impairment occurs with increased respiratory rate (>ā30 times/min.), decreased O2 saturation (<ā93% in room air) and PaO2/FiO2 (<ā300Ā mm Hg) are observed (Sousa and Paradella 2021; Berlin et al. 2020). Critical cases include severe acute respiratory syndrome, acute cardiac injury, and multiple organ failure (Sousa and Paradella 2021; Huang et al. 2020; Pacheco et al. 2021).
Due to this new pandemic context, and the growing expansion of the number of cases, it is possible to identify and relate a wide variety of signs and symptoms in these patients contaminated by the coronavirus with the appearance of secondary lesions in the oral cavity (Pacheco et al. 2021).
Many patients infected with Sars-CoV-2 present oral lesions, and as it is a new systemic disease, the database of these lesions is being published in case reports (Pacheco et al. 2021). However, there are reports of oral manifestations by clinicians and researchers related to various comorbidities such as ulcer, erosion, blister, vesicle, pustule, fissured or depapillary tongue, macula, papule, plaque, pigmentation, halitosis, whitish areas, hemorrhagic crust, necrosis, petechiae, swelling, erythema and spontaneous bleeding (Iranmanesh et al. 2021; Pacheco et al. 2021). The most affected sites were tongue (38%), lip mucosa (26%) and palate (22%) (Iranmanesh et al. 2021; Soares et al. 2020). Suggested diagnoses of lesions are diverse, including aphthous stomatitis, herpetic lesions, candidiasis, vasculitis, Kawasaki type, eruption by drug, periodontal necrotizing disease, bullous angina type, angular cheilitis, atypical Sweet's syndrome and MelkerssonāRosenthal syndrome (Iranmanesh et al. 2021; Pacheco et al. 2021). Oral lesions are characterized as symptomatic in 68% of cases and similar in both sexes (49% female and 51% male) (Tamang et al. 2021). And it should be noted that the lack of oral cavity hygiene, opportunistic infections, stress, immunosuppression, vasculitis and inflammatory response secondary to Sars-CoV-2 are being characterized as the most important causal factors for the appearance of these lesions in patients with Sars-CoV-2 (Tsuchiya 2021; Iranmanesh et al. 2021).
Taste disorder (dysgeusia) is the most common oral manifestation found in this niche of patients with Sars-CoV-2 (Jakubovics 2021; Pacheco et al. 2021). In mild cases, oral mucosal lesions evolve before or simultaneously with the initial respiratory symptoms; however, in patients who worsened and required medication and hospitalization, oral lesions had an evolution process approximately between 7 and 24Ā days after the onset of symptoms (Dos Santos et al. 2021; Pacheco et al. 2021).
There are physiological structures in the oral cavity available through cell receptors called Angiotensin-Converting Enzyme 2 (ACE2) (Jia et al. 2005). The coronavirus has in its structure the glycoprotein S, which is the key factor for the entry of Sars-CoV-2 into the cell, which contains two functional domains: S1 (Zhong et al. 2020) which is an angiotensin converting enzyme receptor binding domain 2 (ACE2) and the S2 which is required for coronavirus fusion and cell membranes. There is a resonance in global studies that ACE2 is likely the receptor for Sars-CoV-2 (Zhong et al. 2020; Cassol-Spanemberg et al. 2016) which could induce an increase in the susceptibility and/or progression of COVID-19 disease, and this severity would be closely linked to increased viral load in the oropharyngeal region with eventual systemic repercussions for respiratory epithelial cells (Zhong et al. 2020).
In case of minimizing these secondary manifestations caused by the Sars-CoV-2 infection, low intensity laser therapy (LLLT) emerges as a practical tool and is characterized by its non-invasiveness to biological tissues, which through a wavelength (red or infrared) stimulates responses to injured tissue by promoting anti-inflammatory, analgesic and healing effects. LLLT promotes the effect of photobiomodulation (PBMT) which is able to regulate antioxidant defenses and reduce oxidative stress (Cassol-Spanemberg et al. 2016).
PBMT is based on the interaction of light with biological tissues, stimulating photo-physical, chemical and biological events in the cell, in the search for better therapeutic responses, consequently altering cell metabolism. It is known that this therapy can currently bio-stimulate or bio-inhibit cells depending on different variables relevant to light (Cassol-Spanemberg et al. 2016). The therapeutic effects of low-power laser irradiation have been investigated in several health areas (Bensadoun et al. 2020). Some beneficial effects such as improved immunosuppression-immunostimulation, stabilization of autoimmune disease and nerve regeneration have been reported in the literature (Zecha et al. 2016; Cassol-Spanemberg et al. 2016).
The basic physiological effects and mechanisms of PBMT are widely discussed in the world literature and have excellent results in healing processes, decontamination, biomodulation of the inflammatory process, and pain control. Indications for clinical applications of PBMT at the cellular level are broad within the healthcare field, and include interdisciplinary therapies that involve the treatment of different pathologies, as well as pain control in general (Pacheco et al. 2021).
It should be noted that the imbalance of the oral cavity microbiota may provide the functional instability of the oropharynx with the development of numerous secondary pathogens related to systemic diseases. This instability open space for colonization by microorganisms in other organs that may evolve into an undesirable effect as they produce potent toxic agents (Pacheco et al. 2021). The oral microbiome in patients has a greater bacterial sensitivity and specificity due to the vulnerability of the immune system. In this context, PBMT proposes another interesting aspect for the decontamination of the oral microbiota in these patients, given that the biosensors contained in the oral region through photodynamic therapy will activate a photosensitizing substance by a red laser with a high efficiency in the decontamination of microorganisms, such as bacteria, viruses and fungi. We call this process antimicrobial photodynamic therapy (aPDT) (Carrera et al. 2016; Pacheco et al. 2021).
The aPDT has photosensitization as a mechanism, which consists of the direct action of light with a photosensitizing agent together with oxygen. This process induces the production of free radicals that promote microbial lysis (Pacheco et al. 2021), promoting decontamination (Issa and Manela-Azulay 2010). This therapy is of low cost, basically without side effects, and the possibility of controlling the oral microbiota (Pacheco et al. 2021).
When a photosensitizing substance, such as methylene blue, for example, is photoactivated in the presence of oxygen, it leads to the generation of reactive oxygen species (Vittar et al. 2008), causing irreversible damage to target structures such as proteins and lipids, leading to death of microorganisms by apoptosis or necrosis (Conrado et al. 2021; Castano et al. 2005). In viral infectious agents, aPDT can affect the lipid or protein structures of the viral envelope membrane, even the nucleic acid, regardless of the specific interaction with a receptor, indicating that it is an efficient tool to eliminate these infectious agents (Conrado et al. 2021; Castano et al. 2005; Wiehe et al. 2019; Monjo et al. 2018; Pacheco et al. 2021).
The aim of this manuscript is to present a systematic review of the literature on the use of PBMT and aPDT in oral lesions of patients affected by the Sars-CoV-2 infection, reviewing all relevant observational studies to answer the following question: photobiomodulation (PBMT) and antimicrobial photodynamic therapy (aPDT) are effective to treat oral manifestations of patients infected with Sars-CoV-2?
Methods
The methodology was defined following the PRISMA guidelines (Preferred Systematic Reviews and Meta-Analysis Report) (Moher et al. 2015), and registered in the database in the International Prospective Registry of Systematic Reviews (PROSPERO) under registration CRD42021250106.
The literature search was conducted in 4 databases and in gray literature, whose question focused in the review was āPhotobiomodulation (PBMT) and antimicrobial Photodynamic Therapy (aPDT) are effective to treat oral manifestations of patients infected by Sars-CoV-2?ā. The flow diagram was used as the strategy design in this study.
Literature research
A search was performed in the PubMed, Medline, CINAHL, Google Scholar databases, as well as a manual search of the reference lists of the included studies, from January 1, 2019, to October 16, 2021. The first phase established an investigation for define MeSH (Medical Subject Headings) terms to ensure high sensitivity and accuracy, and researchers tracked abstract and publication titles (Conrado et al. 2021). The MESH terms used in searches across all databases were: āCOVID 19ā OR āSars-Cov-2ā OR āCoronavirus infectionsā OR coronavirus AND āPhotodynamic therapiesā OR āPhotodynamic therapyā OR āPDT methylene blueā OR āCold laser decontaminationā OR āPhotodynamic LLLTā OR Photobiomodulation AND āOral manifestationsā OR āOral injuryā AND āAngiotensin IIā OR āACE2ā.
Election criteria
Articles describing photobiomodulation therapy and antimicrobial photodynamic therapy as treatment for oral manifestations in patients infected by the Sars-CoV-2 infection, based on titles and abstract, were included in this review (Conrado et al. 2021). Original articles in English, Spanish and Portuguese within the defined period (2019ā2021) with abstract available in the database were evaluated and validated within the inclusion criteria. Inclusion criteria were defined using the PICO strategy (Population, Intervention, Comparison and Outcome) (Table 1) and consisted of "in vivo" studies and case reports, excluding works published as letters to the editor, systematic reviews and articles not available in full.
Selection and quality assessment of relevant studies
Articles selected according to the selection criteria were retrieved in PDF format, numbered and randomly distributed among three researchers. The reference list was manually checked by the researchers in order to retrieve publications that were not previously found in the database search, to increase the sensitivity and quality of the review (Contado et al. 2021). A consensus meeting was held to discuss divergences after evaluating the quality of publications and guaranteeing the validation of the articles selected by the researchers.
Data extraction
Articles included in the study were randomly distributed among researchers to collect relevant data (Conrado et al. 2021).
Through a table, important data were selected, including: author and year of publication, local and type of lesion, applied technique and parameter of laser and outcome, whether there was improvement of the lesion, in how many days there was improvement, whether the type of light source interfered and to observe whether these complementary therapies would be effective or not in the treatment of oral lesions in patients affected by Sars-CoV-2. With the results collected, the data were evaluated one by one, each case addressed in the literature was presented in each row of the table.
Bias risk
Quality and risk of bias in selected articles were independently performed by two authors, using the Joanna Briggs Institute's Critical Assessment Checklist for systematic reviews and research summaries (Moola et al. 2015). The third author was consulted in case of disagreement. Scoring decisions were discussed by all reviewers prior to assessments. Checklists allow for the quantification of scores, where high scores represent a low risk of bias; low scores indicate a high risk of bias or "unclear" domains in publications (Conrado et al. 2021).
Results
Selection and heterogeneity of studies

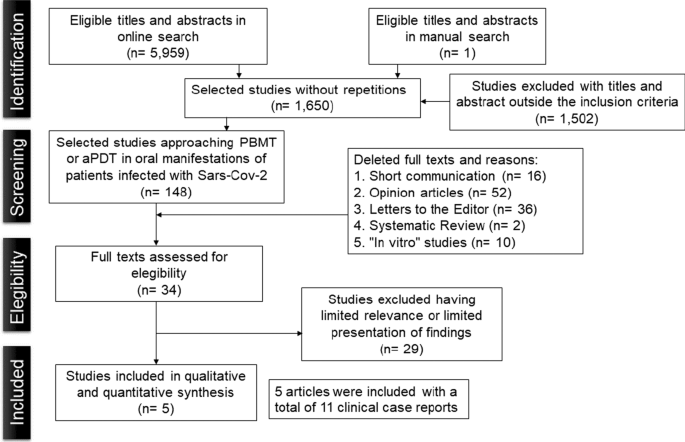

In the first phase, 5,959 articles were identified in the databases and, after removing the duplicates, 1,650 articles remained for reading the title and abstract. After evaluating all records, 32 articles were selected where they were read in full and following the inclusion and exclusion criteria, 5 articles were finally included, as instructed in the Infographic (Fig.Ā 1).
All studies were carried out in Brazil; they were case reports in the literature and were published between January and October 2021, in English, where patients were admitted to hospitals with symptoms characteristic of COVID-19 and later confirmed through the examination RT-PCR. However, they used different therapeutic approaches for lesions in the oral cavity, including PBMT (Brandão et al. 2021; Baeder et al. 2021), PBMT associated with aPDT (Teixeira et al. 2021; Ramires et al. 2021; Garcez et al. 2021) and awaiting spontaneous regression of the lesions without any laser intervention (Brandão et al. 2021; Baeder et al. 2021). Thus, 5 articles found in the literature presented a total of 11 cases using PBMT and aPDT as therapeutic strategies for the regression of oral lesions and painful symptoms in patients with COVID-19 (Table 2).
Of these, 3 were male (27%) and 8 female (73%), where 8 patients were aged over 60Ā years (mean 75Ā years) and 3 were younger than 60Ā years (mean 47Ā years).
The place most affected by the lesions were upper and lower lip (33.3%), followed by tongue (12.5%), hard palate (8.3%), buccal mucosa (4.1%) and attached gingiva (4,1%).
Among the most frequent types of lesions are ulcers (50%), herpetic lesions (40%), in addition to the rest being expressed by necrotic, erythematous, vesicular and petechiae areas.
The risk of bias assessment was established using the Joanna Briggs Institute (Moola et al. 2015) Critical Assessment List for case series, and the articles analyzed here had a low risk of bias, between 20 and 40% (Table 3).
Photosensitizer and light sources
Brandão et al. (2021), after not observing improvement in vesicular, erythematous and vesicle lesions with the use of antiviral therapy with intravenous Acyclovir (250 mg), 3 times a day for 7 days, used PBMT (Twin Flex, MMOptics, São Carlos, Brazil) with the therapeutic protocol for oral mucositis associated with cancer therapy, in patients with COVID-19, where the laser device was positioned perpendicular to the surface of the oral ulcers, for 10 s per site, operating at a wavelength of 660 nm, 40 mW average power, 0.04 cm2 beam area, 1 W/cm2 irradiance, 0.4 J energy and 10 J/cm2 creep.
Baeder et al. (2021) proposed the treatment of herpetic lesions that did not spontaneously regress in patients infected with COVID-19 through the use of PBMT with a wavelength of 660Ā nm, with a dose of 3Ā J every 48Ā h, in addition to the mouthwash with 0.12% chlorhexidine twice daily for 7Ā days.
Teixeira et al. (2021) and Ramires et al. (2021) used similar protocols, the first one using an association of aPDT and PBMT for two days. For PBMT, a DUOĀ® Laser device (MMOptics, SĆ£o Carlos, SP, Brazil) was used at 660Ā nm, contact mode, point to point, with 100 mW, 33Ā J/cm2, 0.5Ā J and 5Ā s per point. A total of 6 points were distributed for necrotic lesions, bleeding ulcers and erythematous lesions in patients with COVID-19. Soon after, an aPDT technique was performed, with 0.01% methylene blue applied to all lesions, and after 3Ā min (pre-irradiation time), the same laser parameters were used, but providing 40Ā s (4Ā J) for injury. Ramires et al. (2021) differed in the pre-irradiation time, which waited 5Ā min, and the laser device used was the Therapy ECĀ® (DMC, SĆ£o Carlos, SP, Brazil) at 660Ā nm, contact mode, point to point, with 100 mW, 32.14Ā J/cm2, 9Ā J and 9Ā s per stitch. In this case, a total of 30 points were distributed over the affected areas: 20 points on the upper lip and 10 on the lower lip. In addition, on the second day, a PBMT session was held. The same areas described above were irradiated with the same equipment, but using 100 mW, 17.8Ā J/cm2, 1Ā J and 10Ā s of irradiation per point at 660 and 808Ā nm, using a programming tool that triggers the two lengths simultaneously (every 5Ā s).
Garcez et al. (2021) used a protocol of 3 sessions of aPDT (660Ā nm diode laserā+āmethylene blue) on the lips and tongue, every 24Ā h to control contamination, followed by PBMT (low power laser, 100 mW, 2Ā J/point) for the lips, tongue and oral mucosa for four additional sessions every 24Ā h, in ulcerative lesions, hemorrhagic crusts, petechiae and erythematous lesions in patients with COVID-19.
Synthesis of meta-analysis
The synthesis of statistical data was performed through meta-analysis, which consists of the statistical combination of results from two or more separate studies. Potential advantages of meta-analysis include an improvement in accuracy, the ability to answer questions not posed by individual studies, and the opportunity to resolve disputes arising from conflicting claims (Deeks et al. 2021). Meta-analysis was performed on groups of studies that were homogeneous in terms of similarity in population, interventions, and outcomes to provide a meaningful summary (Higgins et al. 2021). Most of the scientific articles selected in this study presented a low risk of bias and corroborated the final production of the analysis.
It should be noted that the results of the 11 clinical cases referring to the 5 articles of the study were evaluated through meta-analysis, considering that these studies presented homogeneous data quantitatively evaluating the use of PBMT and aPDT for the reduction of oral lesions in patients affected by COVID-19.
Repair of oral lesion by PBMT and aPDT/PBMT
The results show favoring the associated use of PBMT with aPDT (Pā=ā0.004) (Pacheco et al. 2021), considering that there was a greater reduction in ulcerative, erythematous, necrotic and petechiae oral lesions in these patients positive by COVID-19, which is demonstrated in the āForest plotā confidence interval (Fig.Ā 2). The fixed model was applied in this meta-analysis and heterogeneity is not a considerable factor for the analysis.
Heterogeneity was analyzed through the analysis of the approximate guide for interpretation in the context of meta-analysis of randomized clinical trials, which is made available by the Cochrane Group of Statistical Methods (Higgins et al. 2021), according to the source of the Review Manager 5.4.1 program and Deeks et al. (2021); as described below:
-
0% to 40%: may not be important;
-
30% to 60%: may represent moderate heterogeneity;
-
50% to 90%: may represent substantial heterogeneity;
-
75% to 100%: considerable heterogeneity.
The isolated use of PBMT, according to the meta-analysis, was also effective in the treatment of oral lesions caused by COVID-19 (Santos et al. 2021), with the result of a significant āPā=ā0.005ā and a good confidence interval (7.18, 39.20) (Pacheco et al. 2021) (Fig.Ā 3).
Analysis of the main results
PBMT without association with other laser therapy (Brandão et al. 2021; Baeder et al. 2021), the relief of painful symptoms occurred between 2 and 14 days with total healing of the lesion, excluding one case (Case 2) (Brandão et al. 2021), where until the date of publication of the article there was no response to laser therapy or regression of the COVID-19 infection picture.
PBMT associated with aPDT showed the best results with relief of painful symptoms in the first 24Ā h and healing of the lesion within 4Ā days (Teixeira et al. 2021; Ramires et al. 2021; Garcez et al. 2021).
Cases where laser therapy was not used as adjuvant, were young patients, mean age of 38.2Ā years and the lesions had their spontaneous regression within a considerable time, between 4 and 16Ā days.
Effects of PBMT and aPDT on Sars-CoV-2 contaminated oral tissues
PBMT allowed relief of painful symptoms and complete resolution of lesions in the clinical cases presented in this review. When associated with aPDT, this improvement occurred in a shorter time span, thus suggesting that it is an effective therapy to treat oral lesions in patients affected by COVID-19 (Teixeira et al. 2021).
Discussion
The pandemic process related to COVID-19 in the last two years, current studies related to morbid changes in the oropharyngeal region are in the process of evolution, as therapies for the repair of secondary lesions promoted by Sars-CoV-2 are ongoing. In an incipient way in the health-disease process, as well as the impossibility of clinicians and patients to evaluate a reduced amount of case studies (Pacheco et al. 2021) or long-term research.
In this view, systematic reviews aim to ensure that clinical decisions are made with an up-to-date and complete understanding of the relevant scientific evidence (Lasserson et al. 2021). Judiciously evaluating the scientific literature, systematic reviews provide an up-to-date, qualitative summary of the state of research knowledge about an intervention, address the main research problem, namely, that of bias; as well as direct new research projects, indicating specific gaps in knowledge or whether evidence is lacking (Chalmers et al. 2014; Lasserson et al. 2021).
The present study verified in the available scientific literature whether there was evidence regarding the efficacy and safety of the clinical applicability of PBMT and aPDT as effective options to treat oral manifestations of patients infected by COVID-19 (Chalmers et al. 2014; Pacheco et al. 2021), through a review of narrative case reports from current literature. The studies included in this research evaluated 5 scientific articles, where 11 clinical cases had similar interventions. All clinical cases evaluated in this systematic review demonstrated positive therapeutic effects that promoted a global impact on patients' health.
The focus of the systematic review was to address the use of PBMT, and/or aPDT/PBMT in the cytotoxic reduction of secondary manifestations promoted by COVID-19 (Pacheco et al. 2021; Conrado et al. 2021) that manifest themselves in the oral mucosa, through ulcers, erosions, aphthous lesions, plaques, hemorrhagic crusts among other alterations, being the tongue, labial mucosa and palate the most affected places (Iranmanesh et al. 2021).
Lesions of the stomatognathic system that evolve negatively during the therapeutic process have a refractory potential to compromise and exacerbate immunosuppression, which adds to the appearance of opportunistic infections arising from atypical changes in oral mucosa cells, such as aphthous stomatitis (Pacheco et al. 2021), herpetic lesions and candidiasis.
It is extensive in the current literature that the main receptor for Sars-CoV-2 is ACE2, which would be closely linked to the imbalance of the oral microbiome that could induce an increase and sharp progression of the viral load in the oropharyngeal region with an eventual undesirable systemic repercussion (Zhong et al. 2020).
Furthermore, PBMT and aPDT could become associative or complementary therapeutic strategies, as they present themselves as an auxiliary tool with a positive multi and interdisciplinary nature in the focal control of pathologies of the oropharyngeal tract, in addition to being a low-cost, painless and non-invasive technique (Hennessy and Hamblin 2017). Furthermore, techniques related to low intensity laser therapy constitute, in the contemporary context, a form of treatment of painful symptoms and clinical picture of these diseases in the oral cavity by stimulating analgesic, anti-inflammatory and anti-edematous effects (Zecha et al. 2016; Carrera et al. 2016; Castano et al. 2005; Wiehe et al. 2019; Monjo et al. 2018).
This systematic review contributes to the amount of 11 clinical cases that used PBMT and/or aPDT as therapeutic resources for lesions in the oral cavity of patients affected by COVID-19, or awaiting natural regression of the lesions with topical medication in some cases (Brandão et al. 2021; Baeder et al. 2021; Teixeira et al. 2021; Ramires et al. 2021). The cases were patients admitted to public and private hospitals with symptoms characteristic of COVID-19 and confirmed through the RT-PCR (Corman et al. 2020). Most were female (73%), where 8 patients were aged over 60 years (average 75 years old) and 3 were younger than 60 years old (average 47 years old). The studies were conducted in Brazil, which creates the need for manuscripts in other regions of the world.
In the observational criterion for the incidental evaluation of oral lesions, in ascending order of nature of these manifestations, there was an involvement of ulcerative lesions, necrotic areas, herpetic lesions, erythematous and petechiae (Iranmanesh et al. 2021). Regarding the nature of the oral lesion, in ascending order: upper and lower lips, tongue, hard palate, buccal mucosa and attached gums, which is in agreement with the findings in the literature (Soares et al. 2020; Iranmanesh et al. 2021; Amorim Dos Santos et al 2021).
Brandão et al. (2021) and Baeder et al. (2021) using protocols pertinent to the case, did not observe apparent regression of herpetic lesions on the lip, and used PBMT with clinical improvement of the lesions total tissue repair between 5 and 14 days. When they awaited spontaneous regression of the lesions, medications such as Acyclovir, mouthwash with 0.12% chlorhexidine, ascorbic acid (Brandão et al. 2021; Baeder et al. 2021), were used, in addition to individual medication protocols for each patient due to COVID-19 infection (Lofti et al. 2020; Carlotti et al. 2020; Pacheco et al. 2021).
Teixeira et al. (2021), Ramires et al. (2021) and Garcez et al. (2021) implemented associative protocols between the PBMT and aPDT techniques, and observed relief of painful symptoms in the first 24Ā h and healing of the lesion within 4Ā days, in accordance with the findings of Maya et al. (2020) for the treatment of palatal ulcers.
In the observational evaluation criteria of the 5 articles in question, it is important to emphasize that oral lesions appeared in these patients positive by COVID-19 (Cruz Tapia et al. 2020), concomitantly with loss of taste and smell (Mutiawati et al. 2021), worsening of COVID-19 symptoms and were more severe in people older and systemically compromised (Brandão et al. 2021).
Another considerable score is that these lesions were characterized by necrotic ulcers and with great painful symptoms. In young patients, with mild COVID-19, they presented as aphthous ulcers.
The risks of bias were analyzed following the Joanna Briggs Institute's Critical Assessment Checklist for systematic reviews and research summaries (Moola et al. 2015), and was between 60 and 80% in the studies, that is, the closer to 100%, the more reliable the model contextualizes the variability of the response data around the mean, and the risk of bias between 20 and 40% and the lower this risk, the greater the methodological quality (Pacheco et al. 2021).
And it is worth noting the inclusion of the meta-analysis in this systematic review that highlights the intervention with PBMT and aPDT/PBMT with evidence of efficacy corresponding to the 5 studies included, as well as the action of the therapeutic theme in the reduction of secondary lesions in the oropharyngeal region caused by COVID-19, who showed a statistically significant improvement in tissue repair and consequent quality of life. This also alerts about the importance of the dental surgeon in an intensive care unit, as part of the multi-disciplinary team, for the recovery of patients infected with COVID-19, in the improvement of the clinical and symptomatological condition (Amorim et al. 2020). However, it is noteworthy to report that the small number of cases in the literature opens the need for the publication of more articles using these therapeutic protocols, especially including randomized clinical trials.
Therefore, a total of 11 cases were presented here; in this way, we can suggest that PBMT and aPDT could be effective therapies, both isolated, but mainly when associated, as they are relatively low-cost therapies, of practical employability in hospital or outpatient settings, and that they proved to be effective in repairing the clinical picture of oral lesions of different nature and locations, in these patients affected by COVID-19 in a short period of time. However, as it is a recent disease on the world stage and non-random publications, it is necessary that further research on the benefits and harms of the use of low-intensity laser is carried out so that it is really effective in reducing and neutralization of diseases of the oropharyngeal tract in detriment of the probable high viral load of Sars-CoV-2 (Pacheco et al. 2021), for example, investigating the immunoexpression of ACE2 in oral lesions or saliva, and evaluating the possibility of these therapies inhibiting or altering this receptor at these sites.
Therefore, based on current findings, we suggest conducting new randomized clinical trials, which contain a well-developed methodology and include case descriptions with specific protocols for each lesion, in order to enrich the findings in these patients, and also define therapeutic protocols concrete for patients with COVID-19 who present lesions in the oral cavity (Sousa and Paradella 2021).
Conclusions
Based on the findings of this systematic review and literature meta-analysis, PBMT and aPDT were effective in the treatment of oral lesions in patients infected with COVID-19 in a short period of time.
The simultaneous use of PBMT/aPDT techniques, with different wavelengths, and the use of the photosensitive substance of methylene blue enhance the decontamination action of the oral cavity with eventual repair of the affected cells.
It is important to emphasize how meager the results' literature analysis were and that based on current literature no recommendation can be given, except that properly controlled long-term studies are needed with enough patient material.
Availability of data and materials
Not applicable.
Abbreviations
- PBMT:
-
Photobiomodulation
- aPDT:
-
Antimicrobial photodynamic therapy
- Sars-CoV-2:
-
Severe acute respiratory syndrome Coronavirus 2
- PRISMA:
-
Preferred report on systematic reviews and meta-analysis
- PROSPERO:
-
International prospective registry of systematic reviews
- LLLT:
-
Low intensity laser therapy
- COVID-19:
-
Coronavirus disease 2019
- ACE2:
-
Angiotensin-converting enzyme 2
- MeSH:
-
Medical subject headings
- PICO:
-
Population, intervention, comparison, outcome
- RT-PCR:
-
Reverse transcription polymerase chain reaction
References
Baeder FM, Albuquerque ACL, Corazza PFL et al (2021) Oral lesions in patients infected with SARS-CoV-2: a case series. Res Soc Dev 10(4):e45410414349. https://doi.org/10.33448/rsd-v10i4.14349
Bensadoun RJ, Epstein JB, Nair RG, Barasch A, Raber-Durlacher JE, Migliorati C, Genot-Klastersky MT, Treister N, Arany P, Lodewijckx J, Robijns J, World Association for Laser Therapy (WALT) (2020) Safety and efficacy of photobiomodulation therapy in oncology: a systematic review. Cancer Med 9(22):8279ā8300. https://doi.org/10.1002/cam4.3582
Berlin DA, Gulick RM, Martinez FJ (2020) Severe Covid-19. N Engl J Med 383(25):2451ā2460. https://doi.org/10.1056/NEJMcp2009575
BrandĆ£o TB, Gueiros LA, Melo TS et al (2021) Oral lesions in patients with SARS-CoV-2 infection: could the oral cavity be a target organ? Oral Surg Oral Med Oral Pathol Oral Radiol 131(2):e45āe51. https://doi.org/10.1016/j.oooo.2020.07.014
Carlotti APCP, Carvalho WB, Johnston C, Rodriguez IS, Delgado AF (2020) COVID-19 diagnostic and management protocol for pediatric patients. Clinics (sao Paulo) 75:e1894. https://doi.org/10.6061/clinics/2020/e1894
Carrera ET, Dias HB, Corbi SCT et al (2016) The application of antimicrobial photodynamic therapy (aPDT) in dentistry: a critical review. Laser Phys 26(12):123001. https://doi.org/10.1088/1054-660X/26/12/123001
Cassol-Spanemberg J, Figueiredo MA, Cherubini K, Salum FG (2016) Low-level laser therapy: a review of its applications in the management of oral mucosal disorders. Altern Ther Health Med 22(6):24ā31
Castano AP, Demidova TN, Hamblin MR (2005) Mechanisms in photodynamic therapy: part two-cellular signaling, cell metabolism and modes of cell death. Photodiagnosis Photodyn Ther 2(1):1ā23. https://doi.org/10.1016/S1572-1000(05)00030-X
Chalmers I, Bracken MB, Djulbegovic B et al (2014) How to increase value and reduce waste when research priorities are set. Lancet (london, England) 383(9912):156ā165. https://doi.org/10.1016/s0140-6736(13)62229-1
Conrado P, Sakita KM, Arita GS, Galinari CB, GonƧalves RS, Lopes L, Lonardoni M, Teixeira J, Bonfim-MendonƧa PS, Kioshima ES (2021) A systematic review of photodynamic therapy as an antiviral treatment: Potential guidance for dealing with SARS-CoV-2. Photodiagn Photodyn Ther 34:102221. https://doi.org/10.1016/j.pdpdt.2021.102221
Corman VM, Landt O, Kaiser M et al (2020) Detection of 2019 novel coronavirus (2019-nCoV) by real-time RT-PCR. Euro Surveill 25(3):2000045. https://doi.org/10.2807/1560-7917.ES.2020.25.3.2000045
Cruz TRO, Peraza LAJ, Guimaraes DM, Matos VLH (2020) Oral mucosal lesions in patients with SARS-CoV-2 infection. Report of four cases. Are they a true sign of COVID-19 disease? Special Care Dent 40(6):555ā560. https://doi.org/10.1111/scd.12520
Deeks JJ, Higgins JPT, Altman DG (eds) (2021) Chapter 10: analysing data and undertaking meta-analyses. In: Higgins JPT, Thomas J, Chandler J, Cumpston M, Li T, Page MJ, Welch VA (eds). Cochrane Handbook for systematic reviews of interventions version 6.2, Cochrane. www.training.cochrane.org/handbook
Dos Amorim SJ, Normando AGC, da Carvalho SRL et al (2020) Oral mucosal lesions in a COVID-19 patient: New signs or secondary manifestations? Int J Infect Dis 97:326ā328. https://doi.org/10.1016/j.ijid.2020.06.012
Dos Amorim SJ, Normando AGC, da Carvalho SRL et al (2021) Oral manifestations in patients with COVID-19: a living systematic review. J Dent Res 100(2):141ā154. https://doi.org/10.1177/0022034520957289
Garcez AS, Delgado MGT, Sperandio M et al (2021) Photobiomodulation, photomedicine and laser. Surgery 39(6):386ā389. https://doi.org/10.1089/photob.2020.4977
Hennessy M, Hamblin MR (2017) Photobiomodulation and the brain: a new paradigm. J Opt 19(1):013003. https://doi.org/10.1088/2040-8986/19/1/013003
Higgins JPT, Thomas J, Chandler J, Cumpston M, Li T, Page MJ, Welch VA (eds). (2021) Cochrane Handbook for Systematic Reviews of InterventionsĀ version 6.2Ā (updated FebruaryĀ 2021). Cochrane. www.training.cochrane.org/handbook
Huang C, Wang Y, Li X et al (2020) Clinical features of patients infected with 2019 novel coronavirus in Wuhan, China [published correction appears in Lancet. Lancet 395(10223):497ā506. https://doi.org/10.1016/S0140-6736(20)30183-5
Iranmanesh B, Khalili M, Amiri R, Zartab H, Aflatoonian M (2021) Oral manifestations of COVID-19 disease: a review article. Dermatol Ther 34(1):e14578. https://doi.org/10.1111/dth.14578
Issa MC, Manela-Azulay M (2010) Photodynamic therapy: a review of the literature and image documentation. An Bras Dermatol 85(4):501ā511. https://doi.org/10.1590/s0365-05962010000400011
Jakubovics NS (2021) Taking stock of COVID-19. J Dent Res 100(2):113ā114. https://doi.org/10.1177/0022034520984713
Jia HP, Look DC, Shi L et al (2005) ACE2 receptor expression and severe acute respiratory syndrome coronavirus infection depend on differentiation of human airway epithelia. J Virol 79(23):14614ā14621. https://doi.org/10.1128/JVI.79.23.14614-14621.2005
Jiang S, Shi Z, Shu Y et al (2020) A distinct name is needed for the new coronavirus. Lancet 395(10228):949. https://doi.org/10.1016/S0140-6736(20)30419-0
Lasserson TJ, Thomas J, Higgins JPT (2021) Chapter 1: starting a review. In: Higgins JPT, Thomas J, Chandler J, Cumpston M, Li T, Page MJ, Welch VA (editors). Cochrane handbook for systematic reviews of interventionsĀ version 6.2 (updated February 2021). Cochrane. www.training.cochrane.org/handbook
Lotfi M, Hamblin MR, Rezaei N (2020) COVID-19: transmission, prevention, and potential therapeutic opportunities. Clin Chim Acta 508:254ā266. https://doi.org/10.1016/j.cca.2020.05.044
Maya R, Ladeira LLC, Maya JEP, Mail LMG, Bussadori SK, Paschoal MAB (2020) The combination of antimicrobial photodynamic therapy and photobiomodulation therapy for the treatment of palatal ulcers: a case report. J Lasers Med Sci 11(2):228ā233. https://doi.org/10.34172/jlms.2020.38
Moher D, Shamseer L, Clarke M et al (2015) Preferred reporting items for systematic review and meta-analysis protocols (PRISMA-P) 2015 statement. Syst Rev 4(1):1. https://doi.org/10.1186/2046-4053-4-1
Monjo AL, Pringle ES, Thornbury M et al (2018) Photodynamic inactivation of herpes simplex viruses. Viruses 10(10):532. https://doi.org/10.3390/v10100532
Moola S, Munn Z, Sears K et al (2015) Conducting systematic reviews of association (etiology): the Joanna Briggs Instituteās approach. Int J Evid Based Healthc 13(3):163ā169. https://doi.org/10.1097/XEB.0000000000000064
Mutiawati E, Fahriani M, Mamada SS, Fajar JK, Frediansyah A, Maliga HA, Ilmawan M, Emran TB, Ophinni Y, Ichsan I, Musadir N, Rabaan AA, Dhama K, Syahrul S, Nainu F, Harapan H (2021) Anosmia and dysgeusia in SARS-CoV-2 infection: incidence and effects on COVID-19 severity and mortality, and the possible pathobiology mechanisms-a systematic review and meta-analysis. F1000research. 10:40. https://doi.org/10.12688/f1000research.28393.1
Pacheco JA, Molena KF, Martin CROG, Corona SAM, Borsatto MC (2021) Photobiomodulation (PBMT) and antimicrobial photodynamic therapy (aPDT) in oral manifestations of patients infected by SARS-COV-2: systematic review and meta-analysis, PREPRINT (Version 1) available at Research Square https://doi.org/10.21203/rs.3.rs-664972/v1
Ramires MCCH, Mattia MB, Tateno RY, Palma LF, Campos L (2021) A combination of phototherapy modalities for extensive lip lesions in a patient with SARS-CoV-2 infection. Photodiagnosis Photodyn Ther 33:102196. https://doi.org/10.1016/j.pdpdt.2021.102196
Santos D, Galvão GS, Ribas PF, Peres M, Franco JB (2021) Photodynamic therapy in the treatment of oral lesions caused by paracoccidiomycosis. Photodiagnosis Photodyn Ther. https://doi.org/10.1016/j.pdpdt.2021.102648
Singh DK, Singh B, Ganatra SR, Gazi M, Cole J, Thippeshappa R, Alfson KJ, Clemmons E, Gonzalez O, Escobedo R, Lee TH, Chatterjee A, Goez-Gazi Y, Sharan R, Gough M, Alvarez C, Blakley A, Ferdin J, Bartley C, Staples H, Kaushal D (2021) Responses to acute infection with SARS-CoV-2 in the lungs of rhesus macaques, baboons and marmosets. Nat Microbiol 6(1):73ā86. https://doi.org/10.1038/s41564-020-00841-4
Soares CD, Carvalho RA, Carvalho KA, Carvalho MG, Almeida OP (2020) Letter to Editor: oral lesions in a patient with Covid-19. Med Oral Patol Oral Cir Bucal 25(4):e563āe564. https://doi.org/10.4317/medoral.24044
Sousa F, Paradella TC (2021) Considerations on oral manifestations of COVID-19. J Med Virol 93(2):667ā668. https://doi.org/10.1002/jmv.26451
Tamang PS, Bajgai GP, Phurpa D, Ngedup S, Pokhrel HP (2021) Knowledge, attitude and practice towards COVID-19 among dental practitioners in Bhutan. IHRJ 5(2):OR1āOR6
Teixeira IS, Leal FS, Tateno RY, Palma LF, Campos L (2021) Photobiomodulation therapy and antimicrobial photodynamic therapy for orofacial lesions in patients with COVID-19: a case series. Photodiagnosis Photodyn Ther 34:102281. https://doi.org/10.1016/j.pdpdt.2021.102281
Tsuchiya H (2021) Oral symptoms associated with COVID-19 and their pathogenic mechanisms: a literature review. Dent J 9(3):32. https://doi.org/10.3390/dj9030032
Vittar NB, Prucca CG, Strassert C, Awruch J, Rivarola VA (2008) Cellular inactivation and antitumor efficacy of a new zinc phthalocyanine with potential use in photodynamic therapy. Int J Biochem Cell Biol 40(10):2192ā2205. https://doi.org/10.1016/j.biocel.2008.02.024
Wiehe A, OāBrien JM, Senge MO (2019) Trends and targets in antiviral phototherapy. Photochem Photobiol Sci 18(11):2565ā2612. https://doi.org/10.1039/c9pp00211a
Zecha JA, Raber-Durlacher JE, Nair RG et al (2016) Low level laser therapy/photobiomodulation in the management of side effects of chemoradiation therapy in head and neck cancer: part 1: mechanisms of action, dosimetric, and safety considerations. Support Care Cancer 24(6):2781ā2792. https://doi.org/10.1007/s00520-016-3152-z
Zhong M, Lin B, Pathak JL et al (2020) ACE2 and furin expressions in oral epithelial cells possibly facilitate COVID-19 infection via respiratory and fecal-oral routes. Front Med (lausanne). 7:580796. https://doi.org/10.3389/fmed.2020.580796
