Temperature change of the pulpal floor and restoration with preheated bis-GMA free and containing resin composite (a randomized clinical trial)
Bulletin of the National Research Centre volumeĀ 46, ArticleĀ number:Ā 121 (2022)
Abstract
Background
Preheating is one of several innovative approaches and improvements developed to increase the durability and clinical behaviorĀ of resin composites. Development of preheated composites is to reduce its viscosity in order to improve resin composite adaptation and placement ease. The purpose of this clinical trial was to study the effect of preheating Bis-GMA free and Bis-GMA-containing resin composites at different temperatures on the pulpal floor and restoration temperature. A total of twenty individuals (Nā=ā40) have two carious posterior teeth that need to be restored were randomly assigned to one of two groups based on the type of restorative materials used: (group 1) Bis-GMA-containing resin composite VisCalor bulk (VCB), and (group 2) Bis-GMA-free resin composite Admira Fusion x-tra (AFX). Preheating temperatures of 50 °C and 70 °C were utilized to separate each group into two subgroups. Class I or II cavities were prepared. Thermometer device with two separate K-type temperature probes was used to measure the base line temperature values at the pulpal floor before beginning the restorative procedure (C0), pulpal floor during packing of preheated composite (C1), the top composite surface after packing and before curing (C2), pulpal floor after curing of the preheated composite (C3), and top composite surface after curing (C4). One-way ANOVA and the KruskalāWallis test were used to analyze the data.
Results
The measured temperature of pulpal floor for both preheated VCB or AFX at 50 °C or 70 °C revealed significant increasing from base line measured temperature to during packing as well as after curing with (P-valueā<ā0.001). There was no significant difference for mean composite surface temperature for both preheated materials at 50 °C or 70 °C whether before or after curing.
Conclusions
Preheating of bulk fill Bis-GMA free and containing resin composite rises both the pulpal floor and the restoration temperature; meanwhile, the rise in temperature was limited. The application of the curing unit caused the greatest temperature rise.
Background
Resin-based composites (RBCs) have become the most widely used materials for direct tooth restoration, owing to their superior esthetic properties as compared to alternative traditionally used materials, as well as significant improvements in physical and mechanical capabilities (Devoto et al. 2010). Polymerization shrinkage, postoperative sensitivity, inadequate proximal contact, limited wear resistance, and a lack of proper adaptability in specific clinical settings are all issues that resin composites face (Mohammadi et al. 2016). Bisphenol-A glycidyl methacrylate (Bis-GMA) is the most widely used monomer in dental composites, sealants, and cements. Because Bis-GMA has a higher viscosity than other di-methacrylates, this causes low degree of conversion (DC). Highly filled RBCs have a high viscosity, which might cause a lack of adaptation to prepared cavity, poor marginal integrity, and eventual restoration failure. Reducing resin composite viscosity is the ways to improve restoration adaptability to the cavity (Yang et al. 2019). As a countermeasure, Bis-GMA substitutional monomer component have been developed to enhance longevity and biocompatibility. One possibility is to use an Ormocer-based dental composite material (Organic Modified Ceramic), which is made up of inorganicāorganic co-polymers (Kalra et al. 2012). The first motivation for the development of preheated composite is to reduce its viscosity to improve handling properties, better flowability, marginal adaptation, and reduce microleakage (Clelland et al. 2005). Preheating high viscosity bulk fill composites could be a promising approach to achieve a momentary viscosity lowering close to that of a flowable composite while maintaining the mechanical propertiesĀ benefits of highly filled resin composites (Alshali et al. 2015). VisCalor bulk fill resin composite created especially for preheating and have improved handling properties (Lopes et al. 2020). When a preheated composite is placed directly into a prepared cavity, the heat from the restoration may pass to the prepared dentin surface, potentially elevating intrapulpal temperature and putting the tissue's health at risk (Whalen and Bouschlicher 2003).
Therefore, it seems valuable to evaluate clinically the effect of preheating Bis-GMA-free resin composite at different temperatures and compare it with Bis-GMA-containing resin composite on pulpal floor temperature with preheated composite. The null hypothesis tested in the current study was that the pulpal floor temperature with preheated bulk fill Bis-GMA-free resin composite was similar to that of Bis-GMA-containing resin composite.
Methods
Ethical regulation
This study was reviewed and approved by the IRBs/ECs [institutional review boards/ethical committees] in the Faculty of Dentistry-Minia University with serial no. (490), and also registered and approved on (www. Clinicaltrials.gov) with trial number: (NCT05140447). Patients had to sign a documented informed consent form outlining the study's objectives. Moreover, the study adheres to CONSORT guidelines.
Study design, randomization and allocation
This study was four-armed, parallel-design randomized clinical trial and was conducted in the clinic of Operative Dentistry Department, Faculty of Dentistry, Minia University, Egypt. All volunteers who gave consent for participation and fulfilled the eligibility criteria were randomized. Twenty patients were selected; each patient has 2 carious posterior teeth which were restored with the same type of resin composite with two different heating temperature of resin composite in each tooth. The total sample size was forty teeth (Nā=ā40). Randomization was carried out via computer sequence generation (www.random.org) and was used to provide a sequence for groups A and B with randomized participant numbers (10 numbers in each group). When they were observed consent, each patientĀ was given a number from a series of consecutively numbered dark sealed envelopes. The allocation sequence was generated by one contributor other than the operator. The researcher was responsible for all activities associated with the research. Blinding of the operator was not possible; because the tested materials were supplied in two forms syringe and compules. The operator was blinded until randomization into two groups to avoid bias regarding the application of resin composite to which molar. Patients were assigned to one of two groups based on the type of restorative materials utilized (A): group (A1) was restored by Bis-GMA-containing resin composite VisCalor bulk (VCB), and group(A2) was restored by Bis-GMA-free resin composite Admira Fusion x-tra (AFX) (Table 1). According to the preheating temperatures used, each group was split into two subgroups, each with ten teeth (T): The first subgroup (T1) was preheated at 50⦠C,and the second subgroup (T2) was preheated at 70Ā ā¦C.
Sample size calculation
Pulpal floor temperature was used as the primary outcome, while composite surface temperature was used as the secondary outcome in this power analysis. A pilot study was conducted on three patients in each group, and results of the pilot study were used for sample size calculation. Based upon the results of the pilot study, the effect size (f) for repeated-measures ANOVA design was 0.6. Using alpha (α) level of (5%) and beta (β) level of (20%) i.e. powerā=ā(80%), the minimum estimated sample size was a total of 20 patients. Sample size calculation was performed using G*Power version 3.1.9.2.
Patients selection
A random sample was selected among population treated in the Clinic of Operative Dentistry Department, Faculty of Dentistry, Minia University. This clinical trial was performed from April 2021 to September 2021. All restorative procedure and all temperature measurement was taken immediately in a single visit as this test has no follow-up periods. The patients were selected according to the following exclusion and inclusion criteria:
Inclusion criteria of participants
-
Healthy men and women between the ages of 25 and 45 with proper oral hygiene.
-
In the preoperative radiograph, at least two posterior class I carious lesions away from the pulp, there was no preoperative pain, and the teeth were in normal occlusion.
-
Before being enrolled, all patients had to sign a written consent form, and there was a decent possibility of recall.
Exclusion criteria of participants
-
Patient with severe periodontitis or severe erosion damage.
-
patients with a preexisting medical condition or who had had therapeutic irradiation to the head and neck
-
If the patient used analgesics or antibiotics during the last 12Ā h before operation, it could affect their pain perception.
-
Patients with bruxism, clenching, or non-carious lesions such as attrition, erosion, abrasion, or abfraction.
-
More mobility than grade I.
-
Immature teeth or non-restorable teeth.
-
Periodontal pathosis.
-
External or internal root resorption can be seen on radiographs.
-
Alcoholic and smoker patients.
-
Pregnancy.
-
Physical disabilities.
-
Patients were unable to return for a recall appointment.
Cavity preparation
The subject was anesthetized by (Mepecaine-L: Mepevacaine 31.36Ā mg/1.8Ā ml). Rubber dam was applied; then the cavities were prepared by carbide bur No. 245 (Blue white carbide bur, Kerr, Switzerland) mounted in a high-speed handpiece (NSK panaflir FX, Japan) with copious air water spray. Caries removal was done using large round bur (Mani, Germany) operated in low-speed handpiece (NSK low speed handpiece, Japan), and excavation of soft caries was done using large spoon excavator (Excavator double ended. Dentsply, maillefer, lot: 1548935, Switzerland) in a sweeping motion. A periodontal probe was used to measure the pulpal floor depth, which ranged from 3 to 4Ā mm. X-ray was taken after cavity preparation.
Restorative procedure
The 37 percent phosphoric acid etching gel was placed for 15 s to the prepared cavity tooth enamel only (selective etching), washed with water for 15 s, and then gently air-dried for 5 s to leave the cavity almost moist. Bonding procedure (Futurabond M+, Voco, Cuxhaven, Germany) (Table 1) was done according to the manufacturer's instructions. Temperature values were recorded in Celsius (°C) and measured by two separate K-type thermocouple temperature probes attached to a portable mini-type digital thermometer device (UNI-T Mini Type K/J Dual Input Thermometer, UT320D, P/N: 110401106698X, China) (Fig. 1). The device used in industrial application; petroleum, chemical, steel, paper, thermoelectricity, nuclear power and other production industries and not specified in dental uses. This device can be adjusted in one of three different moods to record the temperature: minimum, maximum, and average, and this helps to measure the temperature at specific point without being affected by a decrease in temperature over time. In the present study, the maximum mood was used. Modification added to the first probe by isolating its end with a shrinkable plastic tube (Fig. 2) and left its tip to be the only part of the probe touching the pulpal floor. This heat shrink tube is adjusted to the probe after cutting it into the required length from a continuous tube and then subjected to the heat from the dental torch and confirmed that the heat shrink is in tight contact with the probe.
The first probe was placed at the pulpal floor to measure: (C0): pulpal floor temperature before beginning the restorative procedure, (C1) pulpal floor temperature during placement of preheated composite, and (C3): pulpal floor temperature after curing of the preheated composite. The second probe was placed at the top surface of the preheated resin composite to measure (C2): top composite surface after packing and before curing and (C4): top composite surface after curing. The syringe of AFX adjusted into the composite heater (ceramic one input voltage 220v, output voltage 12v, power 24w, china) while the compule of VCB loaded in the dispenser gun then placed into the heater. Both materials preheated for 15Ā min (Lopes et al. 2020) in the composite heater. The resin composite was packed into the prepared cavity while the isolated probe resting on the pulpal floor, C1 and C2 temperature values, was recorded and then composite cured for 10Ā s for VCB and 20Ā s for AFX according to the manufacturer's instructions by light-curing unit (LCU) with intensity of (1000Ā mw/cm2). C3 and C4 recorded after curing and then the probe was removed and the empty space from the probe was filled with resin composite then cured. Rubber dam was removed, and the restorations were finished and polished.
Statistical analysis
The data were analyzed in several stages. To begin, descriptive statistics for each group's findings was used. The distribution of numerical data was checked for normality, and normality tests were used (KolmogorovāSmirnov and ShapiroāWilk tests). For parametric data (temperature measurement), one-way ANOVA test was used. Repeated-measures ANOVA test was utilized to compare between composite types, preheating temperatures, site of measurement as well as to compare between temperatures before and after curing. When the ANOVA test was significant, Bonferroni's post hoc test was applied for pair-wise comparisons. When nonparametric data (temperature change) were used, the KruskalāWallis test was applied first, followed by Dunn's test for pair-wise comparisons when the KruskalāWallis test was significant. To compare temperature variations at the pulpal floor and composite surface, the Wilcoxon signed-rank test was performed. To compare qualitative variables in various groups, the Chi-square test was applied. The significance level was set at Pāā¤ā0.05. IBM SPSS Statistics for Windows was used to conduct the statistical analysis, version 23.0. Armonk, NY: IBM Corp.
Results
Table 2 shows the measured temperature at the pulpal floor and on resin composite restoration when the resin composite materials were preheated at different temperatures. At the pulpal floor with preheating temperature 50 °C, there was no statistically significant difference at base line temperature between the two composite types (P-valueā=ā0.931). Whether before or after curing at 50 °C, VCB showed statistically significantly higher mean pulpal floor temperature than AFX, where the meanā±āSD values of VCB and AFX before curing were (34.3ā±ā0.97) and (32.66ā±ā1.11), respectively. P-value between VCB and AFX before curing was (P-valueā=ā0.002). The meanā±āSD values of VCB and AFX after curing were (37.41ā±ā0.96), and (35.57ā±ā2.18), respectively. P-value between VCB and AFX after curing was (P-valueā=ā0.020).
With preheating temperature 70 °C there was no statistically significant difference at base line temperatures between mean pulpal floor of the two composite types (P-valueā=ā0.601), while before or after curing at 70 °C there was no statistically significant difference between both materials, where the meanā±āSD values of VCB and AFX before curing were (35.25ā±ā1.36) and (34.3ā±ā1.02), respectively. P-value between VCB and AFX before curing was (P-valueā=ā0.067). The meanā±āSD values of VCB and AFX after curing were (36.53ā±ā1.61) and (38.04ā±ā1.8), respectively. P-value between VCB and AFX after curing was (P-valueā=ā0.054).
At composite surface, the preheating to 50Āŗ C whether before or after curing, there was no statistically significant difference between mean composite surface temperatures of the two composite, where the meanā±āSD values of VCB and AFX at 50 °C before curing were (32.53ā±ā0.86) and (31.93ā±ā1.12), respectively. The P-value between VCB and AFX before curing was (P-valueā=ā0.129). The meanā±āSD values of VCB and AFX at 50 °C after curing were (33.39ā±ā0.8) and (33.22ā±ā0.96), respectively. The P-value between VCB and AFX after curing was (P-valueā=ā0.661).
With preheating temperature 70 °C before curing, VCB showed statistically significantly higher mean composite surface temperature than AFX (33.3ā±ā0.51) and (32.43ā±ā0.85), respectively, with (P-valueā=ā0.031). After curing, there was no statistically significant difference between mean composite surface temperatures of the two composite types where the meanā±āSD values of VCB and AFX at 70 °C after curing were (33.74ā±ā0.86) and (33.92ā±ā0.82), respectively. The P-value between VCB and AFX after curing was (P-valueā=ā0.643).
From Table 3 and Fig.Ā 3, the measured temperature at the pulpal floor and on resin composite restoration before and after curing revealed that at the pulpal floor, both VCB and AFX composites, whether preheated at 50Āŗ or 70 °C, there was a significant increase in mean pulpal floor temperature after curing where the meanā±āSD values of VCB at 50 °C before and after curing were (34.3ā±ā0.97) and (37.41ā±ā0.96), respectively, with (P-valueā<ā0.001). The meanā±āSD values of VCB preheated at 70 °C before and after curing were (35.25ā±ā1.36) and (36.53ā±ā1.61), respectively, with (P-valueā<ā0.001). Pair-wise comparisons revealed that there was a statistically significant increase in temperature from base line to before curing as well as after curing. With AFX composite the meanā±āSD values preheated at 50 °C before and after curing were (32.66ā±ā1.11) and (35.57ā±ā2.18), respectively, with (P-valueā<ā0.001). The meanā±āSD values of AFX preheated at 70 °C before and after curing were (34.3ā±ā1.02) and (38.04ā±ā1.8), respectively, with (P-valueā<ā0.001). Pair-wise comparisons revealed that there was a statistically significant increase in temperature from base line (C0) to before curing (C1) as well as after curing (C3).
At composite surface, with VCB composite preheated at 50 °C, there was a statistically significant increase in mean composite surface temperature after curing where the meanā±āSD values before and after curing were (32.53ā±ā0.86) and (33.39ā±ā0.8), respectively, with (P-valueā=ā0.004). There was no statistically significant change in mean composite surface temperature after curing of VCB preheated at 70 °C where the meanā±āSD values before and after curing were (33. 3ā±ā0.51) and (33.74ā±ā0.86), respectively, with (P-valueā=ā0.121). At composite surface, with AFX composite whether preheated at 50 °C or 70 °C, there was a statistically significant increase in mean composite surface temperature after curing where the meanā±āSD values of AFX preheated at 50 °C before and after curing were (31.93ā±ā1.12) and (33.22ā±ā0.96), respectively, with (P-valueā<ā0.001). The meanā±āSD values of AFX preheated at 70 °C before and after curing were (32.43ā±ā0.85) and (33.92ā±ā0.82), respectively, with (P-valueā<ā0.001).

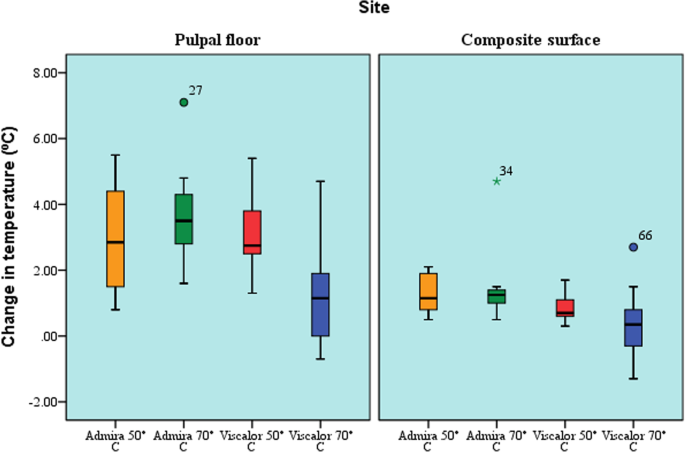

Table 4 and figure 4 show the difference between groups; at the pulpal floor there was a significant difference between temperature changes in different groups (P-value = 0.023). Pair-wise comparisons between the groups revealed that AFX preheated at 70 °C showed the statistically significantly highest median temperature rise at the pulpal floor. There was no statistically significant difference between VCB preheated at 50 °C and AFX preheated at 50 °C, and both showed statistically significantly lower median temperature rise at the pulpal floor. VCB preheated at 70 °C showed the statistically significantly lowest median temperature rise at the pulpal floor.
At the composite surface, the temperature changes in different groups were significant (P-value = 0.018). When the groups compared in pair-wise, the results showed that there were no significant differences between VCB preheated at 50 °C and VCB preheated at 70 °C and both showed the lowest median temperature rise values at the composite surface. There was no statistically significant difference between AFX preheated at 50 °C and AFX preheated at 70 °C and both showed the significant highest median temperature rise values at the composite surface.
When the groups are compared in pair-wise comparisons, the pulpal floor and composite surface for VCB preheated at 70 °C revealed that there was no significant difference between temperature rise at pulpal floor and composite surface. As regards AFX preheated at 50 °C, AFX preheated at 70 °C as well as VCB preheated at 50 °C pulpal floor showed statistically significantly higher median temperature rise than composite surface.
Discussion
The current clinical trial was aimed to compare the effect of preheating at 50 °C and 70 °C on two bulk fill resin composite restorative materials one containing Bis-GMA (VCB) and the other free Bis-GMA (AFX) on the temperature change of the pulpal floor and restoration surface. The expelled of bisphenol-A out from resinous matrix could enhance its cytotoxic properties. Bisphenol-A glycidyl methacrylate (Bis-GMA) monomer is routinely used in manufactured resin composites (El-Askary et al. 2017). As a result, an alternative to Bis-GMA has been developed, such as Ormocer resin composite (organic modified ceramic). Due to their greater three dimensions cross-linked ceramic polysiloxane monomers, Ormocer composite materials are thought to get low polymerization shrinkage than Bis GMA resin composite restorative materials. (Kalra et al. 2012). Compared to standard dimethacrylate resins, they have decreased or no cytotoxicity (El-Askary et al. 2017).
To improve the handling properties of dental resin-based composites (RBCs), chairside pre-heating has been adopted. It minimizes microleakage and gap formation by lowering the viscosity of composites, resulting in enhanced flowability and marginal adaptability (Yang et al. 2020). The temperature range of 54ā68 °C is regarded safe because it does not harm the pulp tissue (Gavic et al. 2015), (El-Deeb et al. 2015), and (Karacan and Ozyurt 2019). Moreover, resin composite can be preheated at 50ā70 °C (Trugillo et al. 2004; Prasanna et al. 2007; Uctasli et al. 2008; Silva-JĆŗnior et al. 2018).
K-type thermocouple is the most widely used sensor in temperature measurement, it can measure temperature ranging from āā50 °C to +ā1300 °C. It was used by many authors (Daronch et al. 2007; El-Deep et al. 2015; Karacan and Ozyurt 2019; and Erhardt et al. 2020) in laboratory measurement of intrapulpal temperature with preheated composite. They measured the intrapulpal temperature on extracted teeth (in vitro study), and the metal probe of the K-type thermocouple was fitted inside the pulp chamber through the molar root after removing of the pulp tissues. In this clinical trial, they believe that depending on empty pulp chamber it gives no indication what really happens in the temperature of the pulp tissues due to resin composite preheating. Rueggeberg et al. 2010 usedĀ a typical photoactivated hybrid resin composite (Esthet-X) at room temperature (23.6 °C) or preheated to 54.7 °C, toĀ assessĀ the temperature of the prepared tooth surface throughout a restorative treatment on onlyĀ three patients. Temperature data at the tooth pulpal floor were recorded using a customized handheld temperature measuring probe equipped with K-type thermocouples. To our knowledge, this is the first clinical trial to measure the temperature of the pulpal floor of the cavity believing that a higher increase in the temperature due to preheating can affect the pulp tissues causing harm. Similarly, measuring the resin composite temperature after curing might be effective as rapid returning to intraoral temperature is important to avoid pulp affection.

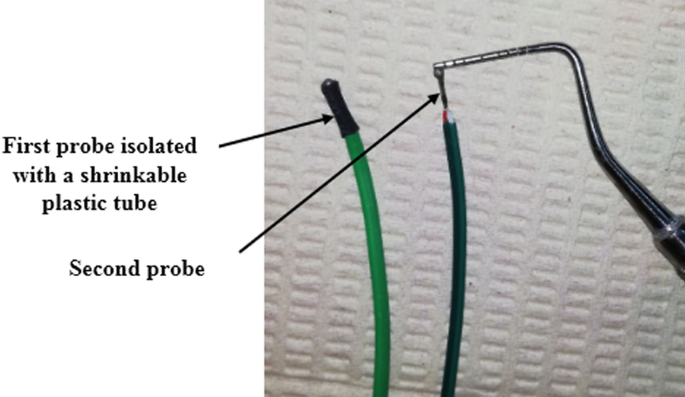

In the current study the whole metal probe was modified and covered with shrinkable non-conductive plastic tube leaving only the tip that touches the pulpal floor for measurement.Ā This was done to overcome the problem that there was no specific device to pass through the restoration measuring only the pulpal floor temperature without measuring the temperature of the preheated resin composite. Also to prevent the probe from sticking to the resin composite while packing. This heat shrinkable tubing is commonly used for electrical and mechanical insulation, sealing, and connecting application (Barth 2005). When heated, heat shrink tubing is a mechanically expanding extruded plastic tube, often made of the thermoplastic materials nylon or polyolefin, that contracts exclusively in one plane (its diameter), (Luo et al. 2014).
In the present study, the mean values of the recorded baseline temperature of the pulpal floor before the bonding procedure ranged from 31.5 to 32.5 °C with no statistically significant difference in all groups and this was consistent with Rueggeberg et al. 2010 where the temperature was 30.5 °C, not 37 °C like the intraoral temperature, while this low temperature 30.5 °C acted to rapidly cool warmed composite but it has negative effect on increasing the viscosity, reducing the potential for composite flow that enhances the restoration adaption to prepared tooth surfaces (Rueggeberg et al. 2010).
The result of pulpal floor temperature on this clinical trial showed that there was significant difference between VCB preheated at 50 °C and AFX during packing and after curing while VCB showed the higher mean value. In the contrary, when both testing materials were preheated at 70 °C, there was a nonsignificant difference between both testing materials either before and after curing (Table 2). The varied matrix compositions seem to be a reason for these findings between VCB and AFX that results in differences in the degree of convergence which lead to exothermic variances between two materials (Al-Qudah et al. 2007). Moreover, increased heat is a sign of a high conversion rate (KneževiÄ et al. 2005). These results were in accordance with (Daronch et al. 2006) whom reported that increasing the conversion of dimethacrylate monomers is caused by increasing polymerization temperature, but only up to a certain point. Following that point, monomer conversion reduces as the temperature rises. This limit is reached near 90 °C for monomers like Bis-GMA or BisEMA. Reactant evaporation and photoinitiator degradation cause a decrease in monomer conversion when the temperature is too high.
Comparing the pulpal floor temperature before (C1) and after curing (C3) to the baseline (C0) temperature, there was significant difference in both testing materials when preheated at 50 °C and 70 °C (Tables 3 and 4). There was a significant increase in the pulpal floor temperature from base line (C0) to (C1), where the highest recorded value of C0 was 32.5 °C and highest recorded value of C1 was 35.25 °C where the increasing was only 2.75 degrees Celsius. These results were in agreement with (Akarsu and AktuÄ Karademir 2019) who reported that the application of heat to tooth structures might result in increasing pulpal floor temperature and can cause varying degrees of pulpal damage. Chiang et al. 2008 reported that the enamel may be considered as a originĀ of heat because it has the fastest early temperature rise. Furthermore, investigations revealed that enamel and dentin had poor thermal conductivity and diffusivity (Lin et al. 2010). Dentin tubule fluids volume and blood flow rate, as well as the tooth's potential to perform as a heat originĀ in the occurrence of a temperature change, all have a significant impact on the tooth's thermal properties (Raab 1992). There was a significant increase in the pulpal floor temperature from (C1) to (C3), where the highest recorded value of C1 was 35.25 °C and the highest recorded value of C3 was 38.04 °C where the increasing was only 2.79 °C. The light exposure causes significant intra-pulpal temperature changes, with light energy, exposure length, and light source being some of the characteristics related to greater temperature variations (Yazici et al. 2006; Armellin et al. 2016). All of the curing units resulted in a statistically significant increase in pulpal temperature. In high-energy curing modes, the pulpal temperature climbed by more than 5.0 °C, while in low-energy curing modes itĀ increased by 2.5 °C. Furthermore, researchers showed a strong correlation between high energy density and increased pulpal temperature (Vinagre et al. 2019).
Even after the curing light has been switched off, the temperature of heat energy in the pulp eventually dissipates, which arrives to a higher temperature in the pulp chamber. Dentin has not only the potential to transmit heat energy but also the tendency to preserve it due to its low thermal diffusivity (ChiangĀ et al. 2008). The thermal energyĀ of dentin should only be considered when incremental strands of resin composite are serially positioned in a cavityĀ followed by exposure to the LCU, and it is logical to assume that manyĀ exposures to LCU above a short time will lead to higher heatĀ storage in dentin. (Runnacles et al. 2015).
The pulpal floor temperature rises in both testing materials from the baseline (C0) to after curing (C3) was in the range of 4ā6 degrees only. The highest recorded value of C1 was 35.25 °C, and the highest recorded value of C3 was 38.04 °C The application of heat to tooth structures might result in varying degrees of pulpal damage. Temperatures between 42 and 42.5 °C are required for reversible dental pulp damage (Pohto and Scheinin 1958). At 5.5 °C, 15% of pulps have necrosis, which is the most well-known temperature threshold associated with pulpal injury. This threshold was observed in a monkey study by Zach (1965), who used a soldering iron at 275 °C to produce temperature variations, which did not correlate to the temperature changes that occur during dental procedures (Erhardt et al. 2020). With temperature rises ranging from 8.9 to 14.7 °C, Baldissara et al. (1997) observed neither clinical or histological pulp injury in people using various techniques. Heat-induced pulp cell degeneration occurs when the pulpal temperature is raised over 42 °C or 43 °C, according to other researchers (Amano et al. 2006; Kitamura et al. 2005). As a result, Jakubinek et al. (2008) and Tunc (2007) concluded that thoseĀ temperatures were critical for pulp viability. However,Ā the current researchĀ results can support all previous studies reported that the greatest temperature change caused by the application of the curing unit.
The findings of this clinical investigation revealed a statistically significant difference in the temperature rises at the Admira Fusion x-tra restoration before and after curing when preheated at 50 °C and 70 °C, while after curing showed the highest mean values. At composite surface, with VisCalor bulk preheated at 50 °C after curing, the mean composite surface temperature increased statistically significantly. There was no statistically significant difference in mean composite surface temperature after curing of VCB preheated at 70 °C. The materials were supplied in two forms where the VCB supplied in compules and AFX supplied in syringe. The preheated compules actual delivery temperature was lower than the heating device's preset temperature. Furthermore, when a resin composite heated at 60 °C and then separated from the heat source, the temperature decreased 50% in 2 min and 90% in 5 min. As a result, to keep the temperature from lowering too far, the operator must intervene quickly. To gain the benefits of increased monomeric conversion, the operator should deliver the material, adjust it, remove excess and shape it as needed, then light-cure it while it is still warm (Daronch et al. 2007).
The degree of rising temperature during photopolymerization is affected by a number of factors, including the type of light curing unit, power output, exposure time, nearness between the tooth and/or composite surface and the light guide tip end, composite shade, and thickness of both the composite material and remaining dentin (El-Deeb et al. 2015). The majority of the temperature rise in the preheated composite was caused by exothermic photopolymerization and heat produced by the LCU (Daronch et al. 2007; Fróes-Salgado et al. 2010). Researchers and physicians have long been concerned about the buildup of heat during photopolymerization.
Significant temperature gains during light curing can be attributed to the increased irradiance and/or a longer exposure period when comparing different forms of LCU (Rueggeberg et al. 2017).
The current study's findings that the hypothesis was accepted as there was a nonsignificant difference in the pulpal floor and restoration temperatures between Bis-GMA containing and free when both preheated at 50 °C and 70 °C.
Conclusions
Within the confines of this study's limitations, it is possible to draw the following conclusions:
-
The pulpal floor temperature did not reach even the normal body temperature with preheating Bis-GMA free and containing resin composite to 50 °C.
-
Pulpal temperature rise was greater with the application of the curing light more than preheating resin composite.
-
Temperature rise of both the pulpal floor or restoration with preheating either Bis-GMA free or containing resin composite even to 70 °C is not the most important factor that harms the pulp so may be utilized with considerable safety when it comes to causing pulp damage.
Availability of data and materials
The authors state that the data supporting the study's findings are included in the article.
Abbreviations
- Bis-GMA:
-
Bisphenol-A glycidyl methacrylate
- AFX:
-
Admira Fusion x-tra
- VCB:
-
VisCalor bulk
- HEMA:
-
2-Hydroxyethyl methacrylate
- ORMOCER:
-
Organically modified ceramics
- DC:
-
Degree of convergence
- RBCs:
-
Resin-based composites
- LCU:
-
Light curing unit
References
Akarsu S, AktuÄ Karademir S (2019) Influence of bulk-fill composites, polimerization modes, and remaining dentin thickness on intrapulpal temperature rise. Biomed Res Int. https://doi.org/10.1155/2019/4250284
Al-Qudah AA, Mitchell CA, Biagioni PA, Hussey DL (2007) Effect of composite shade, increment thickness, and curing light on temperature rise during photocuring. J Dent 35(3):238ā245. https://doi.org/10.1016/j.jdent.2006.07.012
Alshali RZ, Salim NA, Satterthwaite JD, Silikas N (2015) Post-irradiation hardness development, chemical softening, and thermal stability of bulk-fill and conventional resin-composites. J Dent 43(2):209ā218. https://doi.org/10.1016/j.jdent.2014.12.004
Amano T, Muramatsu T, Amemiya K, Kubo K, Shimono M (2006) Responses of rat pulp cells to heat stress in vitro. J Dent Res 85(5):432ā435. https://doi.org/10.1177/154405910608500507
Armellin E, Bovesecchi G, Coppa P, Pasquantonio G, Cerroni L (2016) LED curing lights and temperature changes in different tooth sites. Biomed Res Int. https://doi.org/10.1155/2016/1894672
Baldissara P, Catapano S, Scotti R (1997) Clinical and histological evaluation of thermal injury thresholds in human teeth: a preliminary study. J Oral Rehab 24(11):791ā801. https://doi.org/10.1111/j.1365-2842.1997.tb00278.x
Barth A (2005) Visual inspection of fast moving heat shrink tubes in real-time. Doctoral dissertation, Bonn-Rhein-Sieg University of Applied Sciences.
Chiang YC, Lee BS, Wang YL, Cheng YA, Chen YL, Shiau JS, Lin CP (2008) Microstructural changes of enamel, dentināenamel junction, and dentin induced by irradiating outer enamel surfaces with CO 2 laser. Lasers Med Sci 23(1):41ā48. https://doi.org/10.1007/s10103-007-0453-y
Clelland NL, Pagnotto MP, Kerby RE, Seghi RR (2005) Relative wear of flowable and highly filled composite. J Prosthet Dent 93(2):153ā157. https://doi.org/10.1016/j.prosdent.2004.11.006
Daronch M, Rueggeberg FA, Hall G, Mario F (2007) Effect of composite temperature on in vitro intrapulpal temperature rise. Dent Mater 23(10):1283ā1288. https://doi.org/10.1016/j.dental.2006.11.024
Daronch M, Rueggeberg FA, Moss L, De Goes MF (2006) Clinically relevant issues related to preheating composites. J Esthet Restor Dent 18(6):340ā350. https://doi.org/10.1111/j.1708-8240.2006.00046.x
da Silva-JĆŗnior ME, de Fz LR, Bagnato VS, Tonetto MR, SimƵes F, Borges ĆH, BandĆ©ca MC, de Andrade MF (2018) Effect of the curing temperature of dental composites evaluated with a fluorescent dye. J Contemp Dent Pract 19(1):3ā12. https://doi.org/10.5005/JP-JOURNALS-10024-2204
Devoto W, Saracinelli M, Manauta J (2010) Composite in everyday practice: how to choose the right material and simplify application techniques in the anterior teeth. Eur J Esthet Dent 5(1):102ā124
El-Askary FS, Salah M, Anwar MN, Ćzcan M (2017) Immediate and delayed repair bond strength of a new ormocer resin restorative material as a function of mechanical and chemical surface conditioning methods. J Adhes Sci Technol 31(3):310ā326
El-Deeb HA, Abd El-Aziz S, Mobarak EH (2015) Effect of preheating of low shrinking resin composite on intrapulpal temperature and microtensile bond strength to dentin. J Adv Res 6(3):471ā478. https://doi.org/10.1016/j.jare.2014.11.013
Erhardt MCG, Goulart M, Jacques RC, Rodrigues JA, Pfeifer CS (2020) Effect of different composite modulation protocols on the conversion and polymerization stress profile of bulk-filled resin restorations. Dent Mater 36(7):829ā837. https://doi.org/10.1016/j.dental.2020.03.019
Fróes-Salgado NR, Silva LM, Kawano Y, Francci C, Reis A, Loguercio AD (2010) Composite pre-heating: effects on marginal adaptation, degree of conversion and mechanical properties. Dent Mater 26(9):908ā914. https://doi.org/10.1016/j.dental.2010.03.023
Gavic L, Gorseta K, Glavina D, Czarnecka B, Nicholson JW (2015) Heat transfer properties and thermal cure of glass-ionomer dental cements. J Mater Sci Mater Med 26(10):1ā6. https://doi.org/10.1007/s10856-015-5578-0
Jakubinek MB, OāNeill C, Felix C, Price RB, White MA (2008) Temperature excursions at the pulpādentin junction during the curing of light-activated dental restorations. Dent Mater 24(11):1468ā1476. https://doi.org/10.1016/j.dental.2008.03.012
Kalra S, Singh A, Gupta M, Chadha V (2012) Ormocer: An aesthetic direct restorative material; An in vitro study comparing the marginal sealing ability of organically modified ceramics and a hybrid composite using an ormocer-based bonding agent and a conventional fifth-generation bonding agent. Contemp Clin Dent 3(1):48. https://doi.org/10.4103/0976-237X.94546
Karacan AO, Ozyurt P (2019) Effect of preheated bulk-fill composite temperature on intrapulpal temperature increase in vitro. J Esthet Restor Dent 31(6):583ā588. https://doi.org/10.1111/jerd.12503
Kitamura C, Nishihara T, Ueno Y, Nagayoshi M, Kasugai S, Terashita M (2005) Thermotolerance of pulp cells and phagocytosis of apoptotic pulp cells by surviving pulp cells following heat stress. J Cell Biochem 94(4):826ā834. https://doi.org/10.1002/jcb.20340
KneževiÄ A, Tarle Z, Meniga A, Å utalo J, Pichler G (2005) Influence of light intensity from different curing units upon composite temperature rise. J Oral Rehabil 32(5):362ā367. https://doi.org/10.1111/j.1365-2842.2004.01418.x
Lin M, Xu F, Lu TJ, Bai BF (2010) A review of heat transfer in human toothāexperimental characterization and mathematical modeling. Dental Mater 26(6):501ā513. https://doi.org/10.1016/j.dental.2010.02.009
Lopes LCP, Terada RSS, Tsuzuki FM, Giannini M, Hirata R (2020) Heating and preheating of dental restorative materialsāa systematic review. Clin Oral Invest. https://doi.org/10.1007/s00784-011-0513-3
Luo X, He C, Zhang F, Wang H, Yang B, Liang X (2014) Heat-shrink tubing as a solid-phase microextraction coating for the enrichment and determination of phthalic acid esters. J Sep Sci 37(24):3656ā3661. https://doi.org/10.1002/jssc.201400752
Mohammadi N, Jafari-Navimipour E, Kimyai S, Ajami AA, Bahari M, Ansarin M, Ansarin M (2016) Effect of pre-heating on the mechanical properties of silorane-based and methacrylate-based composites. J Clin Exp Dent 8(4):e373. https://doi.org/10.4317/jced.52807
Pohto M, Scheinin A (1958) Microscopic observations on living dental pulp II. The effect of thermal irritants on the circulation of the pulp in the lower rat incisor. Acta Odontol Scand 16(3):315ā327. https://doi.org/10.3109/00016355809064116
Prasanna N, Pallavi RY, Kavitha S, Lakshmi Narayanan L (2007) Degree of conversion and residual stress of preheated and room temperature composites. Indian J Dent Res 18(4):173ā176
Raab WH (1992) Temperature related changes in pulpal microcirculation. Proc Finn Dent Soc 88(Suppl 1):469ā479
Rueggeberg FA, Daronch M, Browning WD, De Goes MF (2010) In vivo temperature measurement: tooth preparation and restoration with preheated resin composite. J Esthet Restor Dent 22(5):314ā322. https://doi.org/10.1111/j.1708-8240.2010.00358.x
Rueggeberg FA, Giannini M, Arrais CAG, Price RBT (2017) Light curing in dentistry and clinical implications: a literature review. Braz Oral Res. https://doi.org/10.1590/1807-3107BOR-2017.vol31.0061
Runnacles P, Arrais CAG, Pochapski MT, Dos Santos FA, Coelho U, Gomes JC, Rueggeberg FA (2015) Direct measurement of time-dependent anesthetized in vivo human pulp temperature. Dent Mater 31(1):53ā59. https://doi.org/10.1016/j.dental.2014.11.013
Trujillo M, Newman SM, Stansbury JW (2004) Use of near-IR to monitor the influence of external heating on dental composite photopolymerization. Dent Mater 20(8):766ā777. https://doi.org/10.1016/j.dental.2004.02.003
Tunc EP (2007) Finite element analysis of heat generation from different light-polymerization sources during cementation of all-ceramic crowns. J Prosthet Dent 97(6):366ā374. https://doi.org/10.1016/S0022-3913(07)60025-0
Uctasli MB, Arisu HD, Lasilla LV, Valittu PK (2008) Effect of preheating on the mechanical properties of resin composites. Eur J Dent 2(4):263ā268. https://doi.org/10.1055/s-0039-1697390
Vinagre A, Ramos JC, Rebelo C, Basto JF, Messias A, Alberto N, Nogueira R (2019) Pulp temperature rise induced by light-emitting diode light-curing units using an ex vivo model. Materials 12(3):411. https://doi.org/10.3390/ma12030411
Whalen S, Bouschlicher M (2003) Intrapulpal temperature increases with temporary crown and bridge materials. Gen Dent 51(6):534ā537
Yang J, Silikas N, Watts DC (2019) Pre-heating effects on extrusion force, stickiness, and packability of resin-based composite. Dent Mater 35(11):1594ā1602. https://doi.org/10.1016/j.dental.2019.08.101
Yang J, Silikas N, Watts DC (2020) Pre-heating time and exposure duration: effects on post-irradiation properties of a thermo-viscous resin-composite. Dent Mater 36:787ā793. https://doi.org/10.1016/j.dental.2020.03.025
Yazici AR, Müftü A, Kugel G, Perry RD (2006) Comparison of temperature changes in the pulp chamber induced by various light curing units, in vitro. Oper Dent 31(2):261ā265. https://doi.org/10.2341/05-26
Zach L (1965) Pulp response to externally applied heat. Oral Surg Oral Med Oral Pathol 19:515ā530. https://doi.org/10.1016/0030-4220(65)90015-0
Acknowledgements
Not applicable.
Funding
This study received no specific funding from public, commercial, or nonprofit sources.
Author information
Authors and Affiliations
Contributions
AN, MR, and NA performed the study design. AN performed the whole methodology. AN, MR, and NA analyzed the data. AN was the major contributor in writing the manuscript. All the authors read and approved the final manuscript.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
This study was reviewed and approved by the IRBs/ECs [institutional review boards/ethical committees] in the Faculty of Dentistry-Minia University with serial no (490), and also registered and approved on (www. Clinicaltrials.gov) with trial number: (NCT05140447). Patients were told to follow general instructions and sign a printed informed consent form that explained the study's purpose.
Consent for publication
Consent was obtained for publication from the department and patients.
Competing interests
There are no interests involved.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Clinical Relevance The preheating of bulk fill resin composite at 50 °C and 70 °C prior to curing yielded a limited rise in both pulpal floor of posterior cavities and on resin composite restorations. Preheating of Bis-GMA-free resin composite is recommended, as it reduces the temperature rise with the benefit of lowering the viscosity.
Supplementary Information
Additional file 1.
CONSORT check list and Flow diagram of the study (Consolidated Standards of Reporting Trial).
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Nasser, A., Mahmoud, N.A. & Riad, M.I. Temperature change of the pulpal floor and restoration with preheated bis-GMA free and containing resin composite (a randomized clinical trial). Bull Natl Res Cent 46, 121 (2022). https://doi.org/10.1186/s42269-022-00784-2
Received:
Accepted:
Published:
DOI: https://doi.org/10.1186/s42269-022-00784-2
Keywords
- Preheating
- Bulk-fill composite
- Bis-GMA-free resin composite
- Pulpal floor temperature
- Restoration temperature
