Re-mineralization potential, shear bond strength and hydration characteristics of experimentally prepared tri-calcium aluminate phase-modified glass ionomer cement on sound and caries-affected dentin (An in vitro/in vivo study)
Bulletin of the National Research Centre volume 45, Article number: 192 (2021)
This study aimed to in vivo and in vitro evaluate the remineralization potential and shear bond strength (SBS) of experimentally prepared tri-calcium aluminate (C3A)-modified glass ionomer cements on sound and artificial caries-affected dentin (CAD). A pure tricalcium aluminate (C3A) phase prepared via solid state reaction at elevated temperature from chemically pure calcium carbonate and alumina, to formulate ceramic composite of composition: 75% C3A, 15% CaSO4·2H2O and 10% Bi2O3. The influence of artificial saliva solution on the hydration characteristics and microstructure of the synthesized composite was investigated by X-ray diffraction (XRD) analysis, FTIR spectral analysis, pH determination and scanning electron microscope (SEM) in comparison with distilled water curing medium. Modified cements of C3A glass ionomers (C3A-CGIC) were prepared by addition of the experimentally prepared C3A to the powder component of the conventical glass ionomer cement (CGIC). Five and 10 wt% of C3A- CGICs powder were prepared and compared to CGIC. Cements were applied in prepared class V cavities in rabbits’ teeth either to sound or artificial CAD. All rabbits were killed after 15 days, and then, Ca and P wt% were evaluated at the cement–dentin interface using Energy-Dispersive X-ray Analysis. Specimens for SBS evaluation were prepared for the tested cements bonded either to sound or artificial CAD, then tested using universal testing machine.
The XRD results indicate that there is an acceleration effect on the hydration reactions and decrease in the rate of conversion process of C3A phase composite due to the presence of free ions in saliva solution which was emphasized by the results of the IR spectral bands of the hydrated paste samples. The SEM micrographs showed a more-dense microstructure with large accumulations of aluminate hydrate crystals of samples cured under saliva solution. Results of the prepared C3A-CGICs showed that 10wt% C3A-GIC group had the highest statistically significant mean Ca, P wt% and SBS values on CAD compared to 5wt% C3A-GIC and CGIC.
10 wt% C3A-GIC has a remineralizing effect on artificial CAD under in vivo conditions, plus its improved bonding to dentin compared to CGIC. Thus, it might be promising restorative/base with advanced remineralization potential and adequate bond strength to both sound dentin and CAD.
Since the introduction of glass ionomer cements in 1972, it has been widely used in clinical dentistry. Glass ionomers have many favorable characteristics including; chemical adhesion to the tooth structure and sustained release of fluoride over a prolonged time. On the other hand, glass ionomer cements have some restrictions in their clinical applications due to their low early mechanical properties and moisture sensitivity during the initial stages of the setting reaction (Hasenwinkel et al. 2013). Thus, many modifications were introduced to the glass ionomers original formulations aiming to improve its properties. These modifications include alternative filler particles (e.g., different metal oxides) and/or matrix setting reaction (e.g., resinous formulation) (Rahaman et al. 2011; Ezz et al. 2018).
A new category of dental cements has been emerged within the last two decades. Similar to the calcium silicate cements (CSCs), the calcium aluminate cements (CAC) are also originated from the class of cements called “hydraulic” or natural cements (Jefferies 2014). Tri-calcium aluminate phase (C3A) is one of the major phases of mineral trioxide (MTA) material. Calcium aluminate (C3A) phase has been used as biomedical material in many applications as it enhances the hydration chemical reactions with a continuous dissolution/precipitation process which maintain sufficient seal insoluble in tissue fluid and non-resorbable. The calcium aluminate cements have high levels of calcium, display a pH in the alkaline range, and they are bioactive as they are able to form surface apatite in the presence of a simulated body fluid (SBF) (Camilleri et al. 2005; Dammaschke et al. 2005; Sarkar et al. 2005).
Due to the favorable properties of calcium aluminate, modifying the conventional glass ionomer cements (CGIC) with it could enhance the glass ionomer cement composition (Jefferies 2014). Thus, the present work aimed to study the influence of curing media, namely distilled water and saliva solution on the hydration reactions of composite material based on tri-calcium aluminate phase (C3A) to be used as biomaterial for dental applications. Investigation of hydration reaction characteristics and morphology of the hardened pastes were carried out. Furthermore, in vivo evaluation of the remineralization potential of the experimentally prepared tri-calcium aluminate added to glass ionomer cements with different concentrations in class V prepared cavities applied on sound and artificial caries-affected dentin. Moreover, the shear bond strength of tri-calcium aluminate-modified glass ionomer cements was also tested on both sound and caries-affected dentin.
Preparation of calcium aluminate phase
A dry mixture of 3:1 CaCO3 and Al2O3 [CaCO3 (≈99.8%) and Al2O3 (≈99.6%)] was used to synthesize the C3A phase. All chemicals used in this investigation were supplied by BDH Chemicals Ltd, Poole, England. The mixture was homogenized using an electric roller for 24 h and then pressed into 2-inch cubes and calcined at 1000 °C for 2 h in Vecstar electric furnace. The produced material was milled and then remolded in 2-inch cubes and fired at 1350 °C for 3 h. This solid-state reaction was carried out in accordance with the phase diagram of calcium aluminate phases at a temperature needed for tri-calcium aluminate phase formation (C3A) (Taylor 1997). Firing process was repeated until nearly complete formation of the phase. The final product was tested for their free lime and insoluble residue contents. The resulting material was finely ground for 15 h in an electric milling machine (Retsch GmbH PM100, Germany) to pass completely through a 53 μm (270 mesh) standard sieve and packed in a plastic container. The final phase powder was characterized by its X-ray diffraction (XRD) pattern (Fig. 1) and Transmission Electron Microscopy (TEM) ((JEM-1230) at 100 kV) for the particle size (Fig. 2).
The synthesized C3A phase was used to formulate the composite material of the following weight percentages:-
75 wt% C3A phase.
15 wt% chemically pure CaSO4·2H2O (gypsum).
10 wt% chemically pure Bismuth Oxide (Bi2O3).
The desired amount of the composite material was dry mixed, homogenized and finely ground for 3 h using a milling machine (Retsch GmbH PM100, Germany) to pass the above mentioned 270 mesh standard sieve. Bismuth Oxide (Bi2O3) was added to the mix composition as a radio pacifier material.
Two types of aqueous solutions, namely distilled water (DW) and artificial saliva solution, were used as curing liquids. The chemical composition of the artificial saliva solution is given in Table 1 (Shetty et al. 2014).
The preparation of a workable paste of the synthesized composite material was done at a liquid/powder ratio of 0.25 ml/g. The cement pastes were prepared with the aid of cylindrical brass mold (10 mm diameter X 2 mm height). The paste was filled in the mold into two approximately equal layers. Each layer was compacted and pressed until a homogenous specimen was obtained. The samples were cured in the incubator at 37 °C for 24 h directly after molding. The samples were de-molded and cured under DW and the prepared artificial saliva solution in the incubator at 37 °C until testing times at 1, 3, 7 and 14 days.
The final setting time of the synthesized bio-cement composite was performed using Vicat apparatus with the best workable past mixed with DW for 30 s at a water/powder ratio of 0.25 ml/g as mentioned above. The paste was placed into a disk mold that measured; 10 mm diameter and 2 mm in thickness. After 120 s from the start of mixing, a Gilmore needle (with a flat end diameter of 2 mm and weighting 100 g load) was gently lowered to the horizontal surface of the tested material. This procedure was repeated at 30 s intervals until the indenter failed to make a complete circular mark on the tested material surface. The recorded average setting time of set of five disk samples prepared from the synthesized composite bio-material was taken.
Characterization of the prepared Tri-Calcium aluminate phase
The XRD analysis was carried out on some selected hydrated samples with the aid of Philips X-ray diffractometer PW 1730 with Ni-filtered Cu-Kα X-ray radiation (λ = 1.5406 Ao) powered at 40 kV and 30 mA. Diffraction data were recorded in the 2θ range from 5° to 70°, counting for 10 s in steps of Δ(2θ) = 0.01°.
IR spectra were recorded on some selected samples with the aid of JASCO 4600 model FTIR spectrometer.
Investigation of the morphology of some selected cured samples was done by Scanning Electron Microscopy (SEM) together with energy-dispersive X-ray spectra (EDX) using an instrument (type Inspect S, T810, D8571, FEI Co., Japan) with an accelerating voltage of 30 kV and a magnification from 10 × to 300,000 × .
pH of the immersion solution
Disk specimens of cement paste were prepared by mixing with distilled water for 30 s at a water/powder ratio of 0.25 ml/g. The workable mix was then placed in a mold that (10 mm diameter X 2 mm height). Then, the prepared discs were directly placed in 20 ml of DW or artificial saliva (Nurit et al. 1993) and kept at 37 °C in a 100% humidity water bath for 3, 7 and 14 days curing periods. The pH values of the immersion solution were determined using a solid-state pH sensor connected to a pH meter (Medika Scientific Jenway bench top pH meter, England).
Preparation and dental application of the experimental C3A-modified glass ionomer
Modified cements of calcium aluminate glass ionomers were prepared by addition of the experimentally prepared calcium aluminate to the powder component of the conventical glass ionomer cement (CGIC) (Fugi II, GC Gold Label 2, GC Corporation, Tokyo, Japan) prior to mixing the cements according to manufacturer's specifications (Sidhu and Nicholson 2016). Five and ten percent by weight of CGIC powder were replaced by C3A cement and then mixed using ball mill machine (LFJS, Hunan, China) with 200 rpm for 30 min to produce a homogenous mixed powder (Crowley et al. 2001).
Then, the modified calcium aluminate glass ionomers were tested for their remineralization potential to both sound and caries-affected dentin in vivo in rabbits’ teeth. Moreover, the modified calcium aluminate glass ionomers were evaluated in vitro for their shear bond strength to both sound and caries-affected dentin.
In vivo study
Selection of rabbits
Nine healthy adult female New-Zealand white rabbits weighing between 3.5 and 4 kg with age three months were obtained from the Medical Experiment Practice and Research Institute In El Azab El Fayoum). Ethical approval was obtained from the research ethics committee National Research Centre, Egypt (No. 2421022021). Rabbits were kept in individual cages at room temperature under veterinary supervision. They were fed a standard diet as grass, carrot and water (Belduz et al. 2010).
Study design and rabbits grouping
A total of 36 teeth were prepared in the nine selected rabbits. Each rabbit contains four teeth (two upper and two lower). A total of thirty six teeth were subdivided into two groups (n = 18 teeth each) according to the type of dentin substrate, in which the right side teeth of each rabbit was utilized as sound dentin (SD) substrate, while the left side teeth of each rabbit was utilized as artificial caries-affected dentin (CAD) substrate. Then, each dentin substrate was further divided into three subgroups (n = 6 teeth each) according to the received cement type: subgroups I: Conventional glass ionomer (CGI) (control), subgroups II: 5 wt% experimental Ca aluminate glass ionomer (5% C3A GI), subgroups III: 10 wt% experimental Ca aluminate glass ionomer (10% C3A GI).
Class V cavity preparation
After the sedation of each rabbit with 3 cc propofol I.V. as induction followed by 1 cc propofol as maintain ace, standardized class V cavities with dimensions (1.5 mm × 2 mm) (Likitpongpipat et al. 2018) was prepared on the labial surfaces of both upper and lower anterior teeth using round tungsten carbide bur size (#009) (Komet, Lemgo, Germany) which was changed after every four teeth (Aljandan et al. 2012). Low speed hand piece (NSK, Naskanishi, Japan) was used to prepare the cavities by cutting the tooth structure until the entire head of the round bur disappeared under copious water coolant. An endodontic file stopper was placed at the termination of the bur head to control the depth.
Preparation of artificial caries-affected dentin
On each rabbit, the left side prepared cavities on the upper and lower teeth were etched using 37% phosphoric acid (Meta Biomed, Germany) for 30 s followed by rinsing for 30 s to obtain artificial caries-affected dentin (Alrafee et al. 2017).
Application of the cements in the prepared cavities
Prepared class V cavities with sound dentin or artificial caries-affected dentin were randomly assigned to the previously mentioned subgroups. Modified Ca aluminate glass ionomer cements (subgroups II, III) or glass ionomer cement (control; subgroups I) were mixed in accordance with manufacturer's instructions with a standard powder/liquid ratio (2.7 g/1.0 g) (one level scoop of powder to one drop of liquid), mix up to 30 s and then placed in the prepared class V cavities on the prepared sound or artificial caries affect dentin surfaces and contoured with a plastic hand instrument (3 M, ESPE, USA). Restored class V cavities were left in function for 15 days in the rabbits’ oral environment.
Extraction of teeth and elemental analysis
All rabbits were sacrificed after 15 days following the restorative procedure, and teeth were carefully excised to avoid damage of their surfaces. The cervical portion of the extracted anterior teeth was sectioned mesio-distally to separate each restored tooth cervical portion from the remaining tooth portion of crown (to be utilized in the in vitro study). Then, the sectioned restored cervical portion was sectioned cervico-incisally through the center of class V restoration into two halves using diamond disk (Dental Golden S.A.W., Switzerland) mounted on a low speed hand piece (NSK, Naskanishi, Japan) at (300.000) rpm under copious water coolant. Specimens were analyzed using environmental Energy-Dispersive X-ray Analysis (EDX, Model Quanta 250, FEI company, Netherlands) to determine the calcium (Ca) and phosphorous (P) mineral content and the change of the level of these elements percentage due to remineralization. The measurements were taken from three different regions at dentin around the applied cements, and then, the mean of each specimen was calculated.
In vitro study
Specimens’ preparation and grouping
Labial enamel of remaining crown segments of the rabbits’ teeth that were previously sectioned in the in vivo study was grinded to expose the dentin substrate. A total of 36 dentin disc were prepared and randomly subdivided into two groups (n = 18/each) according to the type of dentin substrate tested; group I: Sound dentin substrate (SD), while group II: was artificial caries-affected dentin (CAD). Then, each dentin substrate will be further divided into three class (n = 6/each) according to utilized cements type; subgroup I: Conventional glass ionomer (CGI) (control), subgroup II: 5 wt% experimental Ca aluminate glass ionomer (5% C3A GI), subgroup III: 10 wt% experimental Ca aluminate glass ionomer (10% C3A GI).
Development of artificial caries-affected dentin
Half of the dentin specimens were etched using 37% phosphoric acid for 30 s followed by rinsing for 30 s to obtain artificial caries-affected dentin.
Application of the experimental cements
A cylindrical transparent plastic tube of inner dimensions (2 mm diameter and 3 mm height) were utilized to act as a mold during cements application. Modified Ca aluminate glass ionomer cements (Group II, III) or glass ionomer cement (control; group I) were mixed and placed in the plastic molds on either the sound or artificial caries-affected dentin specimens as mentioned before in the in vivo study. After removing the plastic tubes, all the cements cylinders were checked using magnifying glass lens (25s) to detect any defects. Each restored specimen was stored in 15 ml artificial saliva (pH = 7) in an incubator at 37 °C for 15 days until testing.
Shear bond strength (SBS) test
Shear bond strength test was carried out for all specimens using a universal testing machine (Lloyd Instruments Ltd;.model LRX-plus;, Fareham, UK). A chisel-shaped shearing blade with a 0.5 mm width sharp edge was aligned parallel with the flat dentin surface of the bonded specimen. The load cell control system was then adjusted to apply load force of (5 N) by chisel on dentin-cement interface at a crosshead speed of 0.5 mm/min until failure occurs. The control system and its associated software recorded the maximum force needed to de-bond each specimen in Newton (N), which was automatically calculated to express the shear bond strength records on output device in Mega pascal (MPa).
The mean and standard deviation values were calculated for each group in each test. Data were explored for normality using Kolmogorov–Smirnov and Shapiro–Wilk tests, data showed parametric (normal) distribution. One-way ANOVA followed by Tukey post hoc test was used to compare between more than two groups in non-related samples. Independent sample t-test was used to compare between two groups in non-related samples. Two-way ANOVA was used to test the effect of interaction between different variables. The significance level was set at p ≤ 0.05. Statistical analysis was performed with IBM® SPSS® Statistics Version 20 for windows.
Setting time results
The setting time of the formulated C3A phase composite used in this study was (40 min ± 5.08 min).
Results of the characterization of the prepared Tri-Calcium aluminate phase

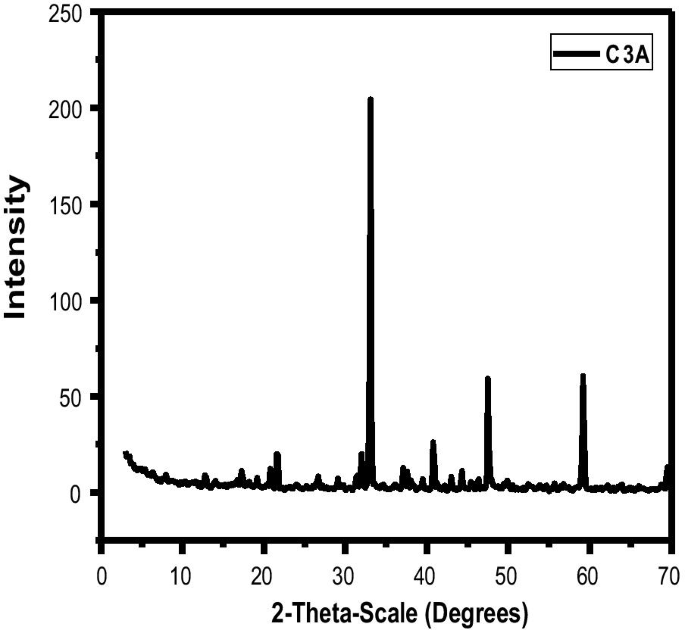

The X-ray diffraction analysis was used in this study to investigate the hydration characteristics of the synthesized aluminate composite pastes cured under artificial saliva solution in comparison with those cured in distilled water. Figure 3 represents the X-ray diffraction patterns of the pure anhydrous tri-calcium aluminate phase (C3A) in comparison with the prepared composite pastes hydrated for one day and those cured under distilled water and artificial saliva solution for 14 days at 37 °C. It was clear from Fig. 3 that the beaks intensities of the anhydrous C3A phase decrease with the hydration periods for pastes prepared with distilled water after one day curing period and those cured for 14 day under the two different curing media that was due to the formation of different hydrated phases. The XRD patterns reveal that the hydration reactions proceeded normally, i.e., the main peaks of calcium aluminate hydrates, mono and tri-sulphoaluminate compounds were found.
The XRD pattern of pastes cured for one day showed the characteristic peaks of trisulphoaluminate compound (ettringite, C3A.3CaSO4·32H2O) due to the reaction of C3A phase with CaSO4·2H2O (gypsum) that was responsible for set regulation of the synthesized phase composite during early hydration period. The characteristic peaks of the residual free gypsum were also detected in this pattern. In this pure system of C3A, the added amount of gypsum retards the phase hydration by the formation of the protective impermeable ettringite layer on the C3A surface. The ettringite compound that was formed rapidly after mixing with distilled water reacted with C3A to form the more stable monosulphoaluminate compound (C3A·CaSO4·12H2O) according to Eq. (1 and 2) with an XRD characteristic peak detected in the patterns of the two 14 days samples as shown in Fig. 3. The XRD patterns of samples cured for 14 days under distilled water and saliva solution showed an increase in peak height of aluminate hydrate compounds (C3AH6, C4AH13 and C4AH19) for pastes cured under artificial saliva solution more than those cured under distilled water. The characteristic peak of ettringite (trisulphoaluminate) was found only in the XRD pattern of one day sample, while, that of the monosulphoaluminate compound was found in the pattern of the 14 days samples for both curing media due to chemical reaction of the trisulphate form with C3A phase to form the more stable monosulphate compound according to chemical Eq. 2. As can be seen from Fig. 3, the XRD peaks for monosulphoaluminate compound showed an increasing intensity for the samples cured in saliva solution than those cured in distilled water.
The infrared spectral analysis was carried out on the hydrated paste samples cured for 24 h. and those cured for 14 days under distilled water and artificial saliva solution. The FTIR spectra given in Figs. 4 and 5 indicate the presence of strong aluminate bands at ~ 425 and 540 cm−1 correspond to aluminate coupling vibration, weak band at ~ 805 that overlapped with Ʋ4 and Ʋ2 for CO32− at ~ 715 and 874 cm−1, respectively, and medium shoulder at ≈ 945 and 950 cm−1 associated with weak band of Ʋ1 CO32− at ~ 1067 cm−1. The very strong wave band at ~ 1420 cm−1 assigned to Ʋ3 CO32− and the shoulder for Ʋ4 + Ʋ2,CO32−at ~ 2840 cm−1 were detected in the IR spectra. The medium to weak band at ~ 1645 cm−1 and its associated shoulder at ~ 1635 cm−1 assigned to the molecular water bending H–O-H (Ʋ2, H2O) are found in Figs. 4 and 5. In addition, the strong broad band at ~ 3365 cm−1 corresponding to Ʋ2, H2O and the band for OH− at ~ 3620 and 3670 cm−1 were also seen in the spectra.
The scanning electron microscopy was carried out on some selected hydrated samples to investigate the influence of curing medium on the morphology and crystal forms of the different hydrated aluminate phases. Figure 6 represents the scanning electron micrographs of the hardened paste samples cured for 14 days hydration period under both distilled water (Fig. 6a, b) and saliva solution (Fig. 6c, d).
The micrographs given in Fig. 6 reveal a clear difference in the structural morphology between the samples cured under distilled water and those cured under saliva solution. Generally, accumulation of the hydrated aluminate compounds was found to precipitate over the anhydrous particles and inside the pores which results in a more dense structure. The micrographs of samples cured in distilled water (Fig. 6 a (7000 ×), b (25,000 ×)) reflect the difference in morphology compared with the micrograph of samples cured in salvia solution (Fig. 6 c (7000 ×), d (25,000 ×)). Figure 6a shows an agglomerated micro-fine crystals of sulphoaluminate compounds (mono- and tri- forms) that covered the anhydrous particles together with the hexagonal crystals of the hydrated aluminate phases (C4AH13 and C4AH19). The cubic crystals of the hydrogarnet phase (C3AH6) resulting from the conversion process of the aluminate hydrate compounds were also seen clearly in the micrographs. Figure 6c and d which represents the micrographs of samples stored in artificial saliva solution showed a dense agglomeration of the hexagonal crystals of aluminate hydrate phases more than those found in Fig. 6a and b. It is also clear that the hydrogarnet cubic crystals were not clearly seen in these micrographs as they may be encapsulated by the aluminate hydrate crystals. Fig. 7A and B represents the EDS graphs of samples cured under the curing media for 14 days. The EDS analysis emphasize the presence of Ca, Al and O elements that were incorporated in the different hydration crystals of C3A phase. It was clear from Fig. (7-B) that there was an increase in the intensities of those elements. EDS analysis also showed the presence of phosphorus peaks in Fig. (7-B).
pH of the immersion medium
Figure 8 represents the pH values of the immersing media (distilled water and saliva solution) after 3, 7 and 14 days curing ages. There was a statistically significant difference between (0 days), (3 days), (7 days) and (14 days) groups for both specimens immersed in distilled water and artificial saliva, where (p = 0.001) and (p = 0.002), respectively. A statistically significant difference was found between (0 days) and each of (3 days), (7 days) and (14 days) groups where (p = 0.001), (p = 0.001) and (p < 0.001) for distilled water specimens and (p = 0.001), (p = 0.002) and (p < 0.001) for artificial saliva specimens. No statistically significant difference was found between any other groups. While regarding comparing distilled water and artificial saliva specimens results revealed a statistically significant difference between (Distilled water) and (Saliva) groups at 0 and 14 days where (p < 0.001) and (p = 0.008), respectively. On the other hand, there was no statistically significant difference between (Distilled water) and (Saliva) groups at 3 and 7 days where (p = 0.738) and (p = 0.288), respectively.
Results of the experimental C3A-modified Glass Ionomer
Results of elemental analysis (calcium and phosphorous wt%)
Results of calcium (Ca) wt%, and phosphorous (P) wt% (Tables 2, 3) revealed that there was a statistically significant difference between (SD) and (CAD) groups for the three tested materials. While regarding comparing the tested materials on SD, there was no statistically significant difference between them. On the other hand, comparing the tested materials on CAD, a statistically significant difference was found for Ca wt% between (CGIC) and each of (5% C3A-GIC) and (10% C3A-GIC) groups where (p = 0.034) and (p < 0.001), respectively. Also, a statistically significant difference was found between (5% C3A-GIC) and (10% C3A-GIC) groups where (p < 0.001). Where 10% C3A-GIC group showed the highest statistically significant mean Ca wt% values. For P wt%, no statistically significant difference was found between (5% C3A-GIC) and each of (CGIC) and (10% C3A-GIC) groups where (p = 0.722) and (p = 0.102). A statistically significant difference was found between (CGIC) and (10% C3A-GIC) groups where (p = 0.038). Figure 9 showed representative figures for the elemental analysis by EDX for different groups.
Results of the shear bond strength
Table 4 showed results of the shear bond strength for different groups. There was a statistically significant difference between (SD) and (CAD) groups for both (GIC) and (5% C3A-GIC) groups where (p = 0.008) and (p = 0.030), respectively. While there was no statistically significant difference between (SD) and (CAD) groups with 10% C3A-GIC where (p = 0.073). Moreover, there was no statistically significant difference between (CGIC), (5% C3A-GIC) and (10% C3A-GIC) groups with SD where (p = 0.982), while with CAD, 10% C3A-GIC group showed a statistically significant higher bond strength compared to (CGIC) and (5% C3A-GIC) groups.
Different upper case letters in the same column indicating statistically significant difference, while different lower case letters in the same raw indicating statistically significant difference; *: significant (p < 0.05), ns: non-significant (p > 0.05).
Progression of dental caries or its reversal relies upon the equilibrium between demineralization and remineralization. Many factors affect this equilibrium such as: the concentration of Ca and P in saliva, bio-obtainability of fluoride, pH and prevention of secondary caries. For the prevention of secondary caries, dentin left in the cavity remineralization is expected to happen due to the usage of highly bioactive adhesive restorative materials (Tamilselvi et al. 2019).
A bioactive material produces a biologic response from the host in the interface and provoke the creation of a band between the material and the tissue. So, the bioactive materials chemically react with body fluids in terms of tissue repair. Moreover, the ability of forming apatite is closely related to the ability of exchanging data with the biological system, this is called interactivity. So, the material capability to stimulate apatite formation on demineralized dentin is greatly correlated with its bio-interactivity and bioactivity (Daneshpoor and Pishevar 2020).
The hydration reactions of C3A phase involve the formation of various aluminate hydrate compounds in addition to carbo- and sulphoaluminate hydrates depending upon the chemical composition of the curing medium. Calcium aluminate hydrate compounds of formulas CAH10, C2AH8 and C4AH19 are readily formed at ambient temperature in CaO·Al2O3 system (Ramachandran 1969; Taylor 1997; Sarkar et al. 2005).
The setting time of the formulated C3A phase composite used in this study was carried out in accordance with Sect. (2.2) by using the desired amount of distilled water to be 40 min ± 5.08 min. In the current study, 15 wt% chemically pure Calcium sulphate dihydrate (CaSO4·2H2O; gypsum) was incorporated in the experimentally prepared C3A cement composition in order to regulate setting process and to avoid flash set of the prepared pastes. The CaSO4·2H2O (gypsum) reacts with C3A phase to form the ettringite (tri-sulphoaluminate) and the more stable mono-sulphoaluminate compounds that were responsible for set regulation according to the following chemical equations (Taylor 1997):
The hydration products of C3A in the absence of sulphates and other interfering ions were C2AHx and C4AH19. It reacts with H2O to give C2AH8, C3AH6 and C4AH13 [C3A·Ca(OH)2·12H2O]. The hydrated compound C2AH8 reacts with free lime [Ca(OH)2] if present in the curing medium to form C4AH13 or C3AH6 (Taylor 1997; Sarkar et al. 2005). The hydrated compound C3AH6 crystallizes in the cubic form similar to garnet of chemical formula Ca3Al2(SiO4)3 and of (SiO4)4− was replaced by 4 (OH)− as a hexahydrate of composition Ca3Al2(OH)2 was formed. The hydrated phases C2AH8 and C4AHx crystallize as a thin hexagonal plates, and the compound C4AH19 exists in α1 and α2 modifications converted to C4AH13. These α-forms of C4AH19 may give the formula of C3ACaCO3·11 H2O by carbonation reactions (Taylor 1997; Lea 1970).
The reaction of the formulated pure C3A phase composite with water in the presence of small amounts of free unreacted lime [Ca(OH)2] present in C3A phase composition at 37 °C results in the formation of C4AH13 and C4AH19 that was converted to the more stable cubic crystals of hydrogarnet (C3AH6) (Matschei et al. 2007). In this research work, this conversion process is more rapid due to the exothermic nature of the hydration reactions of C3A phase in addition to the higher working temperature of the curing media (37 °C). The hydration reaction of C3A phase proceeds through two highly exothermic reactions, the first was the formation of tri-sulphoaluminate compound (ettringite) and C4AH19 during the first 30 min after mixing with distilled water at 37 °C. This elevated curing temperature did not prevent ettringite formation. The second step, at later hydration periods, is typically related to the formation of solid solution of aluminate hydrate phases and mono-sulphate compound according to the following equation, Eq. 3 (Taylor 1997).
As can be seen in Fig. 3, the characteristic peaks of the aluminate hydrate compounds (C4AH13 and C3AH6) were clearly detected in XRD pattern of the 14 days samples, while, for the one day sample only the peaks of the hydrated aluminate phase (C4AH19) was found together with those of hydrogarnet compound (C3AH6) that was formed due to the conversion process mentioned above (Poellmann 1989; Lawrence 1998). The increase in almost all XRD peaks intensities of the aluminate hydrate compounds might be attributed to the presence of different ions in chemical composition of artificial saliva solution [Table 1] that may act as a nucleating centers during the hydration process of C3A phase with an acceleration effect on the hydration reactions by both cations and anions as much of these ions are present in the interlayer spaces and adsorbed on the surface of both anhydrous and hydrated aluminate compounds (Taylor 1997; Lea 1970). The presence of a small amount of CaCl2·2H2O (0.04%) in saliva solution has long been known to accelerate the hydration process of the used material. It may react with C3A phase to form few crystals of chloroaluminate hydrate (C3A·CaCl2.H2O) that were precipitated in the micropores and could not be detected by XRD as it was encapsulated by other aluminate hydrates (Lea 1970). Artificial saliva solution contains very low concentrations of NaCl and KCl salts (0.04% and 0.048%, respectively) as given in Table 1. The ions of these highly ionized salts were sufficiently free in solution and might accelerate the hydration reactions of C3A phase in artificial saliva solution by suggesting the electrolyte effect of such free ions (Glasser et al. 1999; Quennoz and Scrivener 2012).

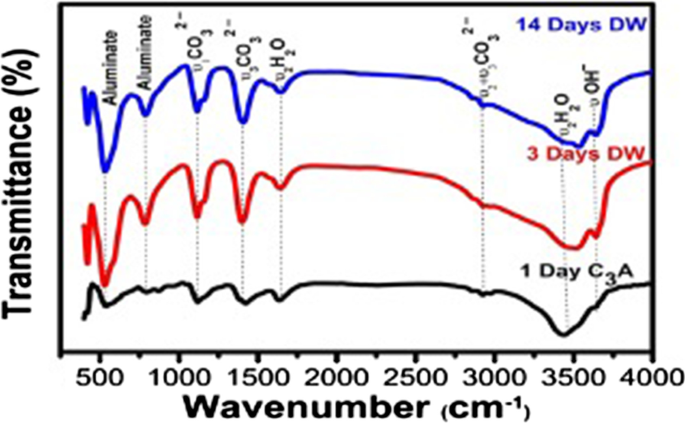

By following up the IR spectral bands given in Figs. 4 and 5 as a function of hydration period, it was clear that there was an increase in the IR bands of pastes cured for 3 and14 days under both distilled water and artificial saliva solution compared with those of pastes mixed with distilled water for 24 h that was due to the formation of different hydrated aluminate compounds. The aluminate coupling vibration bands at ~ 425 and 540 cm−1 were increased due to the incorporation of the C3A phase in the hydration reactions to form C3AH6, C4AH13 and C4AH19 hydrated phases together with tri- and mono-sulphoaluminate compounds (ettringite, C3A.3CaSO4·32H2O and mono-sulphate C3A·CaSO4·12H2O). This was connected with the increase in band broadening of the molecular water Ʋ2, H2O at ~ 1635 cm−1 and also the IR bands of OH- at ~ 3620 to 3670 cm−1. These findings were in a good agreement with the results of XRD data. The little change of the IR bands between the samples cured for 14 days and those cured for 3 days for both curing media might be attributed to the encapsulation of the formed aluminate hydrate phases on the surface of the anhydrous composite particles especially in case of pastes cured in artificial saliva solution because it accelerates the hydration reactions of tricalcium aluminate phase as was discussed before. The presence of CO32− bands was mainly due to the reaction of atmospheric CO2 gas with hydrated aluminate compounds in a process cold carbonation (Lea 1970; Poellmann and Kuzel 1990; Kuzel and Poellmann 1991; Kuzel 1996). Results of XRD were confirmed by the SEM photomicrographs which showed a dens agglomeration of the hexagonal crystals of aluminate hydrate phases in samples cured in artificial saliva.
This study showed that the prepared experimental C3A cement has bioactivity properties. EDS analysis emphasizes the presence of Ca, Al and O elements that were incorporated in the different hydration crystals of C3A phase. It is clear from Fig. 9b that there was an increase in the intensities of those elements due to the enhancement of the hydration reactions rate of pastes cured under artificial saliva solution. EDS analysis also showed the presence of phosphorus peaks in Fig. 7b which was attributed to the formation of small amounts of calcium phosphate crystals on the surface of aluminate hydrate crystals in artificial saliva solution.
Moreover, pH results showed that the fully hardened material was basic and stay basic through-out its service. This might be attributed to the presence of trace amounts of free lime or unreacted Ca(OH)2 in the composition of the synthesized C3A phase. The pH values showed a little decrease from 3 to 14 hydration ages for pastes cured in distilled water while in case of artificial saliva solution the pH values showed a slight increase up to 14 days curing period that might be due to the presence of free ions which act as nucleating centers during the aluminate phase hydration process (Taylor 1997). This property is crucial for the material to be bioactive that is forming apatite on its surface when the material is in contact with phosphate containing solution (artificial saliva).
Conventional glass ionomer cements (CGIC) have many favorable characteristics, as adhesion to enamel and dentin, discharge of fluoride, low thermal expansion coefficients and low shrinkage, low cytotoxicity and excellent compatibility with the pulp (Mahesh et al. 2011; Shikumar et al. 2016). On the other hand, glass ionomers have some shortcomings as: low early mechanical strength and short working time, moisture sensitivity during the early stages of the setting reaction, inadequate wear-resistance, brittleness and unsatisfactory surface properties (Dhoot et al. 2016). Thus, in order to overcome the low mechanical properties of glass ionomers, many alterations have been created to the conventional GICs. Modifying the conventional GICs by calcium aluminate cement could be beneficial in terms of increasing strength and retention over time; biocompatibility; bioactivity apatite creation; sealing of tooth material interface; durable, constant long-term properties and scarcity of solubility; and greatest development of a stable basic cement pH (Jefferies 2014).
Energy-dispersive X-ray (EDX) analysis was utilized in the current study to evaluate the remineralization of dentin after the restoration with C3A-GIC. EDX was considered as a non-destructive tool that provides reliable data of the surface composition of the object (Tamilselvi et al. 2019).
Results of the current study using EDX analysis showed a remarkable increase in Ca and P wt% values of the CAD restored with C3A-GIC (5%wt, 10%wt), significantly with the higher concentrations 10% wt, than the CGIC (control). This might be due to the chemical reaction of tricalcium aluminate which started when reacted with water contained in GI mixing solution. The dissolution of calcium aluminate phase aqueous curing medium had a consequent development of calcium ions (Ca2+), aluminum hydroxyl ions (Al (OH)4−, and hydroxyl ions (OH−). This procedure was then followed instantly by precipitation of new hydrated solid phases mentioned above (tri-sulphoaluminate, mono-sulphoaluminate, C2AH8, C3AH6 and C4AH13) as the solution attains saturation. These precipitates mature and enlarge until they meet, and a linked cluster of hydroxide particles is formed repeatedly. Crystallization of the phases continue and the hydrates enlarge in size from nanometers (nm) to microns (μm). Sedimentation and penetration of these crystals into the demineralized tooth surface acts as a template and attracted large amount of Ca2+ and PO43− from the in vivo body fluids (saliva, dentinal fluids). These crystals precisely fill up defects and micropores on CAD (demineralized teeth) (Huang et al. 2009). These unique properties as apatite formation and remineralization develop quickly and continue to be active (Chotard et al. 2001; Jefferies 2014).
The shear bond strength (SBS) test was selected in the present study to evaluate the bond strength of the CGIC and the experimental 5%wt and 10%wt C3A-GIC to sound and artificial caries-affected dentin. Shear bond strength testing of restorative materials is one of the widespread techniques to assess its capability to endure stresses of the oral environment. Furthermore, it is considered the most important test for evaluation of restorative materials, because most of intraoral failure occurs through shear forces (Somani et al. 2016; Zhao et al. 2017). Thus, the higher shear bond strength indicates advanced bonding and enhanced clinical performance of the material to tooth (Sirisha et al. 2014).
Regarding to the effect of the tooth substrate either; sound or caries-affected dentin on the SBS for the tested cements, results showed that sound dentin had statistically significant higher shear bond strength values than CAD; with both CGIC and 5%wt C3A-GIC (Table 4). This might be related to that CAD lost a part of its mineral component from the intertubular dentin during the demineralization procedure (Palma-Dibb et al. 2006). Thus, loss of calcium ions during the demineralization process in caries-affected dentin groups, decrease the chance for bonding between calcium ions and carboxyl groups of polyalkenoic acid. As it is proposed that the chemical bonding mechanism of CGICs is reached through ionic and polar exchanges between calcium ions of hydroxyapatite and carboxyl groups of polyalkenoic acid (Choi et al. 2006).
In addition, chemical and morphological changes that occur in the demineralized CAD as loss of its organic content, increased porosity of intertubular dentin, dissolution of apatite crystals and degradation of collagen fibrils and increasing the permeability might negatively impact the performance of the GIC bonding to it (Alves et al. 2013; Saad et al. 2017).
Results of the SBS showed that 10% C3A-GIC showed the highest statistically significant SBS values when bonded to CAD compared to both 5% C3A-GIC and CGIC, Table 4. It seems that the addition of C3A to the CGIC in high concentration (10wt%) fixed the GIC structure and improved its properties. C3A phase enhanced the hydration chemical reactions with a continuous dissolution/precipitation process which maintained sufficient seal insoluble in tissue fluid and non-resorbable (Sarkar et al. 2005; Shetty et al. 2014).
This might be due to aluminum ions concentration in calcium aluminate rather than conventional type. Al3+ was a main contributor to increase strength as it was supposed to form three-dimensional crosslinks but not Ca2+ or Sr2+, which makes enormous strength difference between glass-ionomer cement and other cements (Burgess et al. 1993; Mitra and Kedrowski 1994). Therefore, the presence of Al2O3 in the reacted glass particles might precisely also contributed to the mechanical performance of the C3A-GIC (Mitra and Kedrowski 1994).
This result may refer to a strong reaction between glass ionomer cement matrix and the C3A phase. Which might be also due to the release and precipitation of extra calcium (Ca2+) ions from dissoluted Ca-Aluminate in the cement, forming polysalt bridge and cross-linking that all reinforce the cement matrix (Barandehfard et al. 2016). Moreover, the presence of additional hydroxyl (OH−) and phosphate (PO4−3) ions from the C3A phase in the intermediate layer between the cement and tooth structure may lead to more hydrogen and ionic bonds between the modified GIC and the tooth structure, with subsequent increase in the GIC bond strength (Moshaverinia et al. 2008).
Moreover, in the chemical reaction the particle size was an important factor, and by decreasing the particle size greater surface area available for interaction (Moshaverinia et al. 2008). Thus, the formed sulphoaluminate fine crystals and hexagonal crystals of aluminate hydrate compounds coating the anhydrous phase particles seen in the XRD, FTIR and the SEM photomicrographs in the current study, could occupied the empty spaces between the glass ionomer powder particles made the GIC mix denser and improved its chemical reactivity. This may lead to enhanced and superior adhesion with subsequent increase in cement bond strength.
The hydration process of the synthesized tri-calcium aluminate phase composite proceeded normally under distilled water and artificial saliva solution at 37 °C.
The free ions (cations and anions) present in artificial saliva solution accelerate the hydration reactions of C3A composite pastes more than those cured under distilled water which results in the formation of more hydrated aluminate compounds at all hydration periods with a delaying effect on the conversion process of the hexagonal crystals of aluminate hydrates to the cubic hydrogarnet crystals that occurred at elevated curing temperatures.
10 wt% Calcium aluminate-modified glass ionomer had a remineralizing effect on artificial caries-affected dentin under in vivo conditions. Moreover, it had an improved bonding to dentin. Thus, it might be promising restorative/base with advanced remineralization potential and adequate bond strength to both sound dentin and caries-affected dentin.
