Evaluation of two predatory mites and acaricide to suppress Tetranychus urticae (Acari: Tetranychidae) on strawberry

Abstract

Background

The two-spotted spider mite, Tetranychus urticae Koch (Acari: Tetranychidae), is a major pest of strawberry. It was necessary to control this mite pest that can reducing the quality and quantity of the fruits. In this regard, the effect of ZORO acaricide, Neoseiulus californicus (McGregor) and Amblyseius swirskii Athias-Henriot for suppressing the naturally occurring T. urticae populations on three strawberry cultivars were investigated.

Results

The two predatory mites and ZORO treatments significantly suppressed the populations of T. urticae below the control in all tested cultivars. In most cases of the current study, significantly lower numbers of T. urticae were generally observed in ZORO and N. californicus treatments compared to A. swirskii treatment. In all cultivars, the overall mean of reduction percentages of T. urticae populations in N. californicus and ZORO treatments were not statistically different, and all were significantly higher than that in A. swirskii treatment.

Conclusion

The present results suggested that the release of N. californicus and the application of ZORO acaricide could be promising strategies for controlling T. urticae on strawberry, although the release of N. californicus appears to be more competent tactic than ZORO acaricide.

Background

The strawberry (Fragaria × ananassa Duchesne) (Family: Rosaceae) is one of the highest consumed fruits over the last two decades worldwide (Albendin et al. 2015). The ripe fresh strawberry fruits are rich in vitamins and minerals (Khunte et al. 2020). In 2017, Egypt occupied the fourth place among the countries of the world in the production of strawberry (FAO 2019). In recent years, the cultivated area of strawberry has been increasing in Egypt (Abd-Elgawad 2019). The two-spotted spider mite, Tetranychus urticae Koch (Acari: Tetranychidae), is a main pest of several crops and attacks more than 1000 various plant species which includes economically important crops worldwide (van Leeuwen et al. 2010, 2015). However, T. urticae is also a major pest-infested strawberry in many countries such as New Zealand (Butcher et al. 1987), Spain (Garcia-Mari and Gonzalez-Zamora 1999), Argentina (Greco et al. 1999), USA (Dara et al. 2018) and Egypt. In strawberry, the high population of T. urticae can decrease the floral and foliar development and therefore reducing the quality and quantity of the fruits (Rhodes et al. 2006).

In Egypt, the chemical control is still widely used for the management of T. urticae in strawberry crop. The rapid developmental rate of spider mites and their high fecundity allows them to attain destructive population levels very quickly (Sato et al. 2007). In addition, they became resistance to several extensively used acaricides (Gerson and Weintraub 2007). Consequently, the extensive use of pesticides led to the outbreaks of T. urticae during the last few decades (Fraulo et al. 2008). Due to the environmental and health hazards resulted from the chemical pesticides as well as their side effects on the non-target organisms (e.g., soil microorganisms (Scheepmaker and van de Kassteele 2011) and predators (Bergeron and Schmidt-Jeffris 2020)), its use has been regulated firmly (Horikoshi et al. 2017). Take into account the economic significance of strawberry, it is important to search for efficient alternatives for the controlling of T. urticae. In this regard, biological control is one of the most economical and environmentally harmless methods of pest controlling for farmers (Cock et al. 2010). In some agricultural systems, the natural enemies can suppress the spider mite populations below levels of the economic damage (Nyrop et al. 1998). Among many natural enemies, phytoseiids are the most important biocontrol agents of T. urticae (McMurtry and Croft 1997). In different countries, phytoseiid mites are successfully used in the management of T. urticae in protected environments and in an open fields (e.g., Strong and Croft 1995; Gerson et al. 2003; Zhang 2003; Croft et al. 2004). However, phytoseiids are commonly used to control T. urticae in strawberry (Raworth 1990; Easterbrook 1992; Garcia-Mari and Gonzalez-Zamora 1999; Easterbrook et al. 2001; Oliveira et al. 2009).

Neoseiulus californicus (McGregor) (Acari: Phytoseiidae) is a phytoseiid mite that has wide range of diets, e.g., several phytophagous mite species (McMurtry and Croft 1997) and pollen (Pascua et al. 2020). On various crops, N. californicus found to be an effective control agents of T. urticae in different countries (Barber et al. 2003; Elmoghazy et al. 2011). Amblyseius swirskii Athias-Henriot (Acari: Phytoseiidae) is also one of the most effective biocontrol agents and is used in over 50 countries worldwide (Calvo et al. 2015). This predatory mite is a polyphagous phytoseiid that can feed on several kinds of prey, such as thrips, whiteflies (Calvo et al. 2011) and T. urticae (Xu and Enkegaard 2010). The aim of the current study was to evaluate the effect of an acaricide (ZORO) and the individual release of two predatory mites (N. californicus and A. swirskii) for suppressing the naturally occurring T. urticae populations on three strawberry cultivars.

Methods

Rearing of mites

The two-spotted spider mite, T. urticae, and the two phytoseiid mites (A. swirskii and N. californicus) were obtained from colonies reared in the Laboratory of Acarology, Pests and Plant Protection Department, National Research Centre, Dokki, Cairo, Egypt.

The colony of T. urticae was reared on kidney bean plants, Phaseolus vulgaris L. The stock colonies of the two phytoseiid mites, N. californicus and A. swirskii, were maintained separately on kidney bean leaves placed on wet cotton pads in large trays. The cotton pad was put in the center of each tray, leaving an empty space provided with water to prevent the phytoseiids from escaping. Infested leaves from T. urticae culture were provided to the phytoseiids cultures as food. The trays were kept in an incubator at 28 ± 2 °C, 70 ± 5% RH. For the mass rearing of these predatory mites, the two phytoseiids were released and reared separately on kidney bean plants infested with T. urticae in greenhouses.

Acaricide used

Abamectin (ZORO 3.6% EC) is the acaricide that was used in the present study at the rate of 100 cm3/100 liter of water.

Experimental design

These experiments were conducted to evaluate the effect of ZORO acaricide and the individual release of two predatory mites for suppressing the naturally occurring T. urticae populations on three strawberry cultivars. The tested cultivars (029, Fortona, and Wanter star) were cultivated during the 2018/2019 season in strawberry field located at Markaz Badr, Beheira Governorate, Egypt. The experimented area of each strawberry cultivar was consists of four equal plots (control and three treatments plots) with three replicates/plot. The size area of each treatment plot was about 84 m2 and the plots were completely separated by plastic sheets. Recommended agricultural process were performed.

All the tested strawberry cultivars were naturally infested with all stages of T. urticae. In the present study, four treatments were assessed and included 1) the releases of N. californicus, 2) the releases of A. swirskii, 3) ZORO acaricide, and 4) the untreated control. On the three cultivars, the two predatory mites were released on November 1, 2018, and December 13, 2018, while for A. swirskii an additional release was carried out on January 31, 2019. However, ZORO acaricide had four applications that carried out on November 1, 2018, December 13, 2018, January 31, 2019 and March 7, 2019. Predatory mites were released on bean leaves with an estimated numbers of each phytoseiid. The two predatory mites were released at predator–prey ratio of 1:7.

Mite sampling

Sampling was initiated from the first of November, the date of first treatment (week 0), and continued for 26 weeks after the first treatment. The leaves samples were collected weekly from the three treatments and control of each cultivar till the end of the study. Each week, 10 leaves per replicate (30 leaves/plot) were collected from 10 randomly selected plants and transferred to the laboratory. The numbers of T. urticae (all stages) on each leaf were counted under a stereomicroscope.

Data analysis

A randomized complete block design was used in the present study. For each cultivar, the efficacy of the three treatments on T. urticae population was estimated by comparing the numbers of T. urticae that recorded in the treated plot with those recorded in the control (untreated) plot in each sampling week. We also calculated the reduction percentages of T. urticae in the treated plots of each cultivar according to Henderson and Tilton equation (Henderson and Tilton 1955). For each cultivar, the overall mean of reduction percentages of mite (during the period from the first sample after treatment to the last sample of the study, the weekly values of reduction percentages of mite were averaged over this period to obtain the overall mean of reduction percentages of mite on each treatment) were also calculated at the end of study. All data were subjected to analysis of variance (ANOVA), F test. For comparing the means, Tukey's multiple range test (P < 0.05) was applied. All statistical analysis were performed by Statistical Package of Social Science (SPSS), version 20.

Results

Natural populations of T. urticae occurred in all strawberry experimental plots. On November 1, the pretreatment samples (week 0) revealed that there were no significant differences in T. urticae natural populations among the four experimental plots of each cultivar (029: F = 0.06; P > 0.05, Fortona: F = 0.01; P > 0.05, Wanter star: F = 0.11; P > 0.05) (Fig. 1). For all cultivars, the first treatment was made on November 1. On all tested cultivars, the three treatments significantly reduced the numbers of T. urticae in treated plots as compared to control plot after one week of treatment (029: F = 217.28; P < 0.01, Fortona: F = 140.11; P < 0.01, Wanter star: F = 69.44; P < 0.01) (Fig. 1). However, the numbers of T. urticae in the untreated plots remained significantly higher than those in treated plots on all weeks following the first treatment (all P’s < 0.01). Generally, from week 1 to week 10, the mean numbers of T. urticae in ZORO and N. californicus plots were significantly less than that in A. swirskii plots. By weeks 12 and 13, the mean numbers of T. urticae in ZORO treatment became significantly higher than those in A. swirskii treatment (all P’s < 0.01). During the two weeks followed the third treatment of ZORO and A. swirskii, the numbers of T. urticae significantly reduced by ZORO treatment compared to A. swirskii treatment (all P’s < 0.01). Again by week 17 and 18, the mean numbers of T. urticae in A. swirskii plots were statistically less than that in ZORO plots (all P’s < 0.01). One week after fourth ZORO treatment, T. urticae numbers in both N. californicus and ZORO treatments were significantly lower than that in A. swirskii treatment (all P’s < 0.01). In the last month of the study, N. californicus treatment led to the highest decreases in T. urticae numbers, followed by A. swirskii and ZORO treatments (Fig. 1).

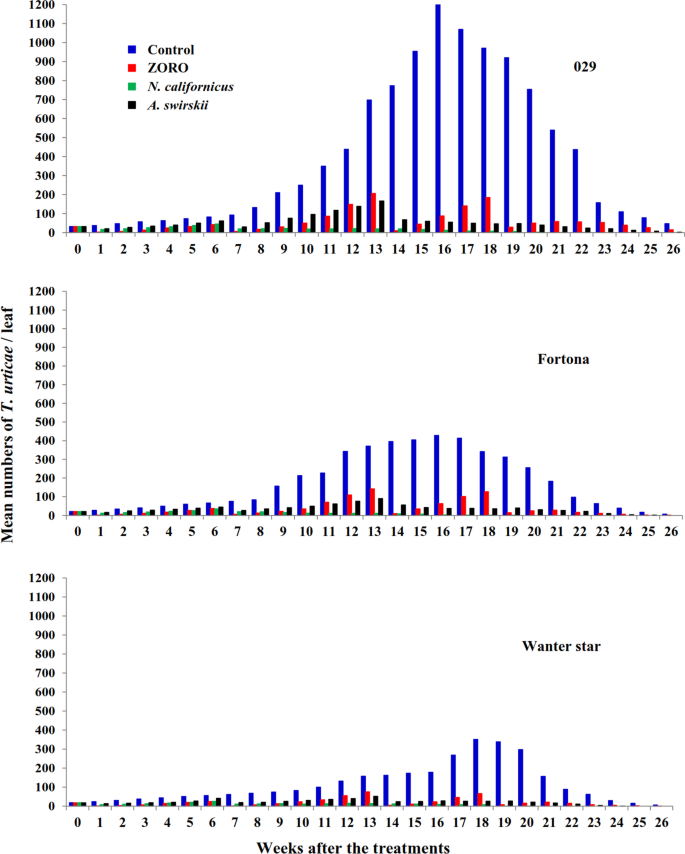

Fig. 1
figure1

Mean numbers of Tetranychus urticae on three strawberry cultivars after Tetranychus urticae management treatments. The treatments were: Neoseiulus californicus, Amblyseius swirskii release, ZORO acaricide and untreated control

The reduction percentages of T. urticae populations after the treatments of the two phytoseiids and ZORO acaricide on three strawberry cultivars were presented in Fig. 2. For 029, Fortona and Wanter star cultivars, the first samples after predatory mites releasing (week 1) showed that the reduction percentages of T. urticae were reached to 56.16, 58.19 and 67.55% in N. californicus and 44.37, 42.41 and 44.76% in A. swirskii treatments, respectively. In general, this values were declined in both phytoseiid treatments for the following weeks then increased by week 7 (one week after the second release). In A. swirskii plots, the reduction percentages of T. urticae were fluctuated for the following weeks then increased by week 14 (one week after the third release). On the other hand, the reduction percentages of T. urticae in N. californicus treatment were gradually increased from week 7 until attained their peaks (100% reduction) by week 23, 20 and 21, on the aforementioned cultivars, respectively (Fig. 2).

Fig. 2
figure2

Reduction percentages of Tetranychus urticae populations on three strawberry cultivars after Tetranychus urticae management treatments. The treatments were: Neoseiulus californicus, Amblyseius swirskii release and ZORO acaricide

One week after the first ZORO application, the reduction percentages of T. urticae were 91.26, 94.47, and 93.92% for 029, Fortona and Wanter star cultivars, respectively (Fig. 2). These values gradually decreased during the following weeks then greatly increased by week 7 (1 week after second application) to record 92.84, 91.76 and 97.39% on the aforementioned cultivars, respectively. Once again, these values gradually decreased until week 13 (date of the third application) then increased for only a week followed by a gradual decrease until week 18 (date of the fourth application). In all cultivars, the reduction percentages of T. urticae in ZORO plots were increased by week 19 followed by a gradual decrease in the next three weeks of study (Fig. 2).

In each cultivars, the statistical analysis indicated that the overall mean of reduction percentages of T. urticae were varied significantly among treatments (all P’s < 0.05). The highest value of the overall mean of reduction percentages of T. urticae populations was recorded in N. californicus, while the lowest was recorded in A. swirskii treatments; without significant difference in these values between N. californicus and ZORO treatments in each cultivars (Fig. 3). In each treatment, although the highest value of the overall mean of reduction percentages of T. urticae was recorded on Wanter star cultivar as compared to the other cultivars, these values were not statistically different among the tested cultivars (all P’s > 0.05) (Fig. 3).

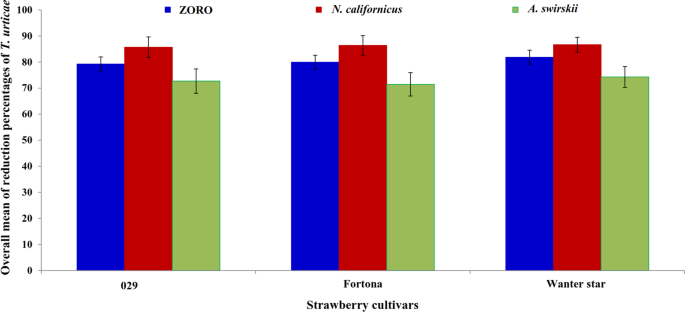

Fig. 3
figure3

The overall mean of reduction percentages of Tetranychus urticae on strawberry cultivars after Tetranychus urticae management treatments. The treatments were: Neoseiulus californicus, Amblyseius swirskii release and ZORO acaricide

Discussion

The predatory phytoseiid mites are an effective tool for T. urticae management in strawberry crop as indicated by previous studies (Easterbrook et al. 2001; Fitzgerald and Easterbrook 2003; Tuovinen and Lindqvist 2014). In the present study, the two phytoseiids and ZORO treatments suppressed the populations of T. urticae below the control in all cultivars (Fig. 1). Although A. swirskii preyed and developed on T. urticae (Xiao et al. 2012; Farazmand and Amirs-Maafi 2020), our study showed that N. californicus suppressed T. urticae populations quickly and better than A. swirskii; perhaps due to the degrees of phytoseiid specialization with regard to their food. Neoseiulus californicus is known to prefer the tetranychid spider mites that producing heavy webbing as prey (e.g., T. urticae) (McMurtry and Croft 1997), while A. swirskii is a generalist phytoseiid that found to prefer other types of prey such as thrips when compared with T. urticae (Xu and Enkegaard 2010). Our results were also in agreement with the study of van Houten et al. (2007) who confirmed that A. swirskii can decelerate the populations of T. urticae but cannot control T. urticae hot spots because it does not enter the colonies with dense webbing. Elmoghazy et al. (2011) found that N. californicus reduced the populations of T. urticae by 87.22%, while A. swirskii reduced the populations of T. urticae by 57.49% on faba bean which is corroborating with our findings.

In general, it was observed that T. urticae populations that naturally occurred on the tested cultivars were dissimilar among these different cultivars (Fig. 1). This variability in tetranychid mite populations on different plant cultivars may be related to the differentiations in cultivar nutritional value (van de Vrie et al. 1972). However, Fahim et al. (2020) reported variations among the strawberry cultivars in their suitability for the reproduction and development of T. urticae, which may be explain the variations in T. urticae populations on the different tested cultivars in our study.

The pest management programs must be aimed to control the agricultural pests, with considerable success in the terms of environmental safety and long-term economic control. Although a number of studies concluded that Phytoseiulus persimilis Athias-Henriot (Acari: Phytoseiidae) found to be able to successfully control T. urticae on strawberry in several countries (Cross 1984; Decou 1994; Cross et al. 1996), other studies have displayed additional advantages of N. californicus over P. persimilis. The reproduction of P. persimilis is depending on the existing of Tetranychus mites as prey. Consequently, this phytoseiid has a tendency to disperse after the number of its prey on a crop is greatly reduced as a result of predation (Cakmak et al. 2005) which only offers short-term pest management (Walzer and Schausberger 1999). On the contrary, N. californicus be able to adapt to variations in its prey populations, which provide a stable pest control over time (Castagnoli et al. 1999; Greco et al. 2005). In spite of that N. californicus prefer tetranychid mites as prey, it can survive on other food sources (e.g., thrips and pollen) if spider mite populations were decreased (Gerson et al. 2003; Pascua et al. 2020). Moreover, N. californicus can survive at low RH (Bakker et al. 1993) and can develop on T. urticae at 15–35 °C (Gotoh et al. 2004). However, the potential of N. californicus as a biocontrol agent that can provide a long-term control of T. urticae on strawberry was mentioned by previous studies (Rhodes et al. 2006; Fraulo et al. 2008).

In all cultivars, the overall mean of reduction percentages of T. urticae populations in N. californicus treatments were ranged between 85.69 and 86.64%. (Fig. 3). This proposed that N. californicus may be a promising biocontrol agent for successful management of T. urticae on strawberry. In the same context, the study of Rhodes and Liburd (2006) on strawberry revealed that N. californicus has a potential to successfully suppress spider mites under the economic thresholds. Our present results are in accordance with previous studies that have demonstrated that N. californicus found to be an efficient suppressor of T. urticae in strawberry crop (Greco et al. 2005; Rhodes et al. 2006; Ahn et al. 2010). On the other hand, Cakmak et al. (2009) found that N. californicus did not decrease Tetranychus cinnabarinus Boisduval population. In our study, N. californicus reduced T. urticae populations below the control after its releases at a predator–prey ratio of 1:7, whereas in Cakmak et al. (2009) study, N. californicus was released at a predator–prey ratio of 1:20; perhaps this is the reason why N. californicus did not reduce T. cinnabarinus numbers. In this context, phytoseiid–spider mite ratios < 1:10 are considered promising in other cropping systems (e.g., Hamlen and Poole 1982; Strong and Croft 1995; Opit et al. 2004).

Compared with N. californicus and ZORO treatments, A. swirskii recorded the lowest overall mean of reduction percentages of T. urticae populations on the tested cultivars (Fig. 3). This suggests that both N. californicus and ZORO may be better in decreasing or controlling T. urticae than A. swirskii on strawberry. Presently, ZORO acaricide was very effective and successfully knocked down T. urticae populations for two weeks after each application. By time, T. urticae populations started to increase, and therefore additional ZORO treatments were required to keep T. urticae numbers low. We suggested that using ZORO acaricide in combination with an efficient phytoseiid, like N. californicus, for the control of T. urticae possibly will be an efficient management strategy on strawberry, although further investigation would be required to prove this possibility.

Based on our results, N. californicus generally decreased the populations of T. urticae to an extent similar to ZORO acaricide in all cultivars. In the same way, Cakmak et al. (2009) indicated that P. persimilis suppressed T. cinnabarinus populations to a level equal to chemical control. In this regard, spider mite is considered a serious pest on the plants treated with commercial chemicals due to its ability to develop a resistance against several widely used acaricides (Kim et al. 2006). Additionally, the extensive use of chemical pesticide can lead to negative impact on the environment and its elements (Kumral et al. 2010). This is contrary to the use of biocontrol agents which might allow permanent reduction of the spider mite populations below damaging levels (Abdallah et al. 2012).

In many agricultural systems, biological control found to be an economically and environmentally good alternative to pesticides (van Lenteren and Bueno 2003). Although ZORO acaricide is effective, the costs of its successive applications in the present study are higher than that of N. californicus; since the acaricide may be less profitable. In strawberry, a one-time treatment of N. californicus costs one-third the costs of chemical applications (Fraulo et al. 2008). Besides, the predatory mites can provide a control for the entire season at a costs approximately equal to one abamectin spray (Waite 2002). However, it is essential to take into consideration the costs of control agents and their effectiveness on the environment when selecting a strategy to control T. urticae. Consequently, the release of N. californicus appear to be more competent tactic than ZORO acaricide to provide an efficient management of T. urticae on strawberry.

Conclusion

In conclusion, both ZORO acaricide and N. californicus are very effective for T. urticae control as compared to A. swirskii. However, the present results suggested that the release of N. californicus appears to be more competent strategy for controlling T. urticae than the chemical control on strawberry.
