Impact of indoxacarb and sulphur formulation on aphid and three specific predators in Okra fields

Abstract

Background

For the sake of environmental safety, many new insecticide generations developed. Sulphur formulations and other botanicals or formulated synthetic insecticides were recommended in many integrated pest management programs to protect, particularly, edible vegetables and fruit trees from insect and mite pests as well as plant pathogenic diseases. Such formulations, at the recommended application rates, proved to be safer for mammals. Regarding their safety to beneficial arthropods, diversified results were reported. This study was designed to investigate and evaluate the impact of indoxacarb and sulphur formulation against some natural enemies naturally prevailing in some vegetable crops.

Results

Application of indoxacarb and sulphur formulation in Okra fields to control aphid was carried out. The adverse effects of these applications against some important predators were investigated. The obtained results revealed that indoxacarb was more effective than sulphur application in all treatments. At the end of the experiment, the percentages of population reductions of Coccinella indoxacarb treatment reached ≈ 92 and 76% for larvae and adults, respectively. The corresponding figures for Chrysoperla were ≈ 79 and 82% for larvae and adults, respectively. Indoxacarb-induced reduction in the Paederus population reached about 80%, while sulphur formulation had negative effects. Both indoxacarb and sulphur formulations were harmful to the aphid, inducing about 97 and 26% reduction, respectively, for the mean number of aphid populations.

Conclusion

It could be concluded that indoxacarb is more hazardous towards different natural enemies prevailing naturally in open fields at anywhere season round the year, and care must be in consideration when we choose and select some insecticides to kill or to eradicate pests and simultaneously conserve the natural enemies.

Background

It is well known that aphids induced serious damages to many vegetables and crops. Since aphid is a piercing-sucking insect pest, it is feeding on plant sap inducing loss in leaves qualities, transferring plant viruses, building up fungus mildew and finally destroying leaves. Many efforts were carried out to manage this pest. Using different chemical and/or botanical insecticides, nonetheless, induced the drawbacks. Herein, we will speak about three important natural enemies prevailing in almost all crop and vegetable fields. In this regard, many research studies were carried out to protect either plant and/or natural enemies from the adverse effects of pesticides (Yada 1989 and Meena et al. 2002, Awasthi et al. 2013; Zuo et al. 2016).

Coccinella undecimpunctata L. is a very important predator that feeds principally on aphids. Given its greediness to these pests. C. undecimpunctata offers an interesting perspective as a control agent in the context of Integrated Pest Management (IPM) (ElHag 1992; ElHag and Zaitoon 1996; Zaki et al. 1999; Moura et al. 2006; Cabral et al. 2009). Recent studies showed that, in general, pirimicarb and pymetrozine pesticides had no adverse effects on the biological features (developmental time, fecundity, fertility, percentage of egg hatchability) of immature and/or adult stages of Coccinella when sprayed to control insect pests, which makes these chemicals potentially suitable to use in combination with coccinellids for integrated control of sucking pests (Cabral et al. 20082011). On the other hand, Galven et al. (2005, 2006) reported harmful effects of spinosad and indoxacarb to the lady beetle, Harmonia axyridis (Pallas).

Concerning the adverse effects on the Green lacewing, Chrysoperla carnea (Stephens) that considered one of the cosmopolitan important predators of arthropod pests of many crops. The larvae voraciously feed on many soft-bodied arthropods including eggs and early instars of mites, lepidopterans, coleopterans and homopterans (Carnard and Principi 1984). This predator can be found in orchards and farms. In some areas, it is mass-reared and released as a biological control agent (Azma and Mirabzadae 2004). At present, the application of pesticides is one of the most effective strategies of pest control. Considering chemical control side effects such as the development of resistance in pests, environment pollution and destruction of natural enemies and nontarget organisms, their application can be reduced using the integrated pest management programs (Croft 1990). Therefore, the selection of pesticides shall be made carefully to maximize the effects on target pests and minimize deleterious effects on beneficial organisms.

Due to the physiological similarities among pest arthropods and their natural enemies, insecticides usually cause severe mortality in both groups. Moreover, insecticides disrupt the feeding interactions in the ecosystems and in some cases increase the secondary pests’ population. Determining the effects of pesticides on natural enemies can be useful in the appropriate selection of these compounds for integrated pest management programs. Some researches were carried out on C. carnea as an important predator in many cropping systems, where imidacloprid, indoxacarb and endosulfan are applied and the lethal and sublethal effects of these insecticides were investigated (Metcalf 1986; Croft 1990).

The third important natural enemy is the rove beetle; Paederus alfierii Koch. (Coleoptera: Staphylinidae) is well known among natural enemies in Egypt as an important predator of agricultural insect pests, and it is used as an essential agent in the integrated pest management programs. The population level of the rove beetle was relatively low in general (Tawfik et al. 1976).

This work aimed to explore the adverse effects of the tested insecticides (sorell 98% and indoxacarb (Avaunt 150 SC)) when applied to control aphids infesting Okra plants, on the population abundance of three important insect predators (Coccinella undecimpunctata, Chrysoperla carnea, and rove beetles, Paederus alfierii).

Methods

Insecticides used

• 1. Indoxacarb: Indoxacarb was produced by DuPont Company (Avaunt 150 SC, 1 L). Active ingredient: indoxacarb 14.5%. The recommended concentration is 150 g/L added to 1500L water/hectare = 600L water/Feddan (1 hectare = 2.381 Feddan.

• 2. Sulphur formulation (agricultural sorell 98%) was produced by Kafr El-Zayat Company, for Chemical Insecticides Production, Egypt, which was recommended by the Ministry of Agriculture, Egypt as a protectant for vegetable crops against some plant diseases and piercing-sucking pests (aphids, whiteflies, thrips, leafhoppers and mites); the recommended dose is 30Kg/Feddan. The dusting of sulphur was carried out using Chapin 5000 16-oz Hand Rose and Plant Duster Sprayer—Model #5000 duster 30-day post-sowing.

Tested insects

• 1. Ladybird, Coccinella undecimpunctata Linnaeus (larvae and adults).

• 2. Lacewing, Chrysoperla carnea Stephens (larvae and adults).

• 3. Rove beetles, Paederus alfierii Fabricius (larvae and adults).

• 4. Aphids, Aphis gossypii Glover (nymphs and adults).

Field application

Field experiments were carried out (as described by Gesraha et al. 2019; Gesraha and Ebeid 2019 and Matter et al. 2018, 2019) in two separate fields.

Experiments were conducted at Belbeis region, El-Sharkia Governorate, Egypt (coordinates: 30°25′18″ N–31°33′33″ E), in already-cultivated Okra field, where all agricultural practices were carried out as usual by their owner farmer during June 2018. Two infested areas (ca. 300 m² each) were chosen to execute the experiment; one for indoxacarb and the other for sorell 98% application to control the aphid, Aphis gossypii infestation. Another two areas were chosen and serve as a control (check). Each area was divided into four equal plots (ca. 75 m²). The mean number of aphid and each tested natural enemy/50 plant/plot/time interval was recorded at five time intervals, i.e., before application (− 2 h), 2-h, 24-h, 48-h and 7-day post-application. Percentages of reduction in infestation were calculated. The abovementioned statement was applied also for check plots.

Statistical analysis

A randomized complete block design was applied. MSTAT-C Statistical Package (Freed 1985) Computer program was used. All data were subjected to analysis of variance ANOVA F test. Mean values were significantly separated using Duncan’s Multiple Range Test (Duncan 1955). Student t test was applied to discriminate between each treated plot and its control. Percentages of reduction in infestation were calculated according to Henderson and Tilton equation (Henderson and Tilton 1955).

Results

Coccinella larval treatments

The application of both insecticides revealed that statistically nonsignificant differences between the treated and the control plots of ladybird larvae at 2 h before application were observed as referred by the calculated F value (F_3,12 = 0.479^NS, P = 0.703) (Table 1). Two hours post-application interval, the corresponding figure was in contrast, where there was a highly significant difference between the mean numbers of the treated ladybird larvae (F_3,12 = 20.080**, P = 0.000). It was observed that indoxacarb treatment induced a higher effect compared to the sulphur treatment and the tow controls (Table 1). In another view, nonsignificant differences were observed between sulphur treatment and its control (T = 0.012^NS, df = 6), with the same nonsignificant difference in the case of indoxacarb and its control (T = 1.359^NS, df = 6) (Table 1, Fig. 1).

Table 1 Effect of indoxacarb and sorell 98% treatments on the population density of ladybird larvae and adults

Fig. 1

Effect of indoxacarb and sorell 98% applications on the abundance of Coccinella larvae. Significant differences were calculated separately for each interval

Nearly, the same trends were observed for 24-h-, 48-h- and 7-day-interval post-treatment (F_3,12 = 137.818**, 372.444**, 123.141**), respectively (Table 1).

It is obvious that on comparing sulphur treatment and its control, there was an nonsignificant difference at all inspection time intervals, except after 7-day interval (T = 6.724**) (Table 1, Fig. 1), where the mean number of ladybird populations in treated plots was more than that in control plots. That may be referred to as the disappearance of sulphur application effects.

For indoxacarb, significant differences were observed in all check-ups time intervals between treated and control plots except that before application (Table 1, Fig. 1). Comparing the Coccinella populations in different time intervals revealed that an nonsignificant difference was observed in sulphur treatments (F = 2.584^NS, P = 0.061), i.e., sulphur application had no negative effect on Coccinella larvae, specifically, population abundance; it is worthy to indicate that an increment was noticed in the mean population number (≈ 74%), whereas the corresponding figure for indoxacarb was the opposite (F = 267.700**, P = 0.000) for treated plots and (F = 52.031**, P = 0.000) for control plots, gaining a reduction in ladybird larval population by ≈ 92% (Table 1). Figure 1 explains the statistical differences between sulphur and/or indoxacarb treatments and their control.

Coccinella adult treatment

Data in Table 1 demonstrate that applying the sulphur formulation to control Aphis gossypii in the Okra field somewhat negatively affects the population number of beetle’s adult throughout all inspection intervals except at the beginning of the experiment, where a significant difference was observed between treated and control plots (Table 1 and Fig. 1). Also, there was an increment in the adult population reached ≈ 74% (Table 1), which means that the sulphur application had negative effects on beetle adults.

Indoxacarb in general reflects an opposite figure, where it adversely affects the population number of Coccinella adults, gaining ≈76% population reduction. Highly significant differences within time intervals, and between treated and control plots (Table 1 and Fig. 2).

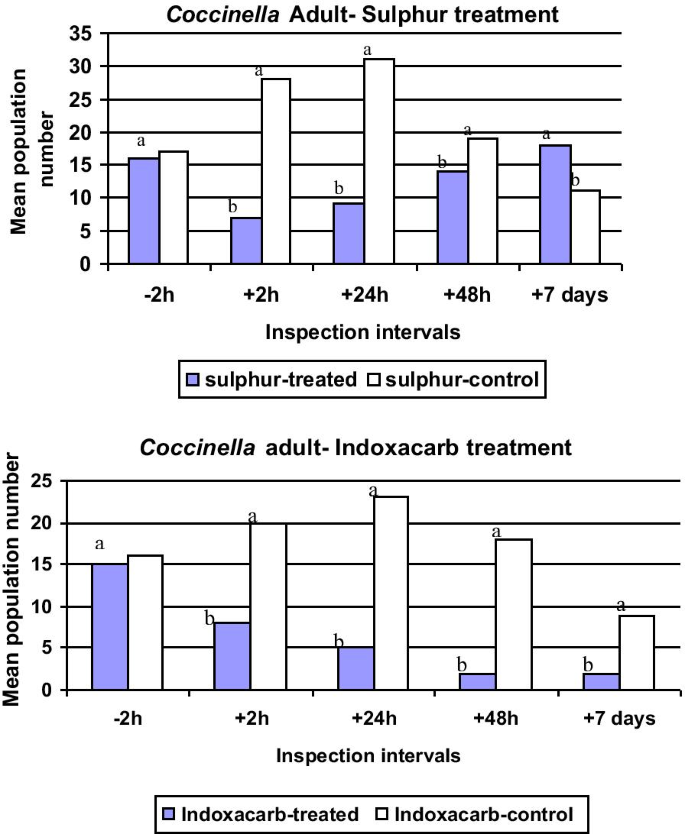

Fig. 2

Effect of indoxacarb and sorell 98% applications on the abundance of Coccinella adult. Significant differences were calculated separately for each interval

Chrysoperla larval treatments

As for Lacewings' predator, it was observed in general that the mean number of prevailing larvae was less on average than that of ladybird. Almost the same figure of the abundance of Chrysoperla larvae post-insecticides application bore a resemblance to that in the case of ladybird, whereas indoxacarb application affected roughly the mean numbers of the treated larval population, where the calculated F values in each check time interval were as follows (F_3,12 = 1.429^NS, 6.533**, 46.889**, 148.357**, 131.684**) for − 2-, 2-, 24-, 48-h intervals and 7 days as well, respectively) (Table 2). On the other hand, when comparing the treated plots with its control at each inspection interval, nonsignificant differences were recorded 2 h before application and 2- and 24-h post-treatment, while a significant difference was recorded at 48-h and 7-day post-treatment intervals (Table 2, Fig. 3).

Table 2 Effect of indoxacarb and sorell 98% treatments on the population density of lacewing larvae and adults

Fig. 3

Effect of indoxacarb and sorell 98% applications on the abundance of Chrysoperla larval. Significant differences were calculated separately for each interval

Chrysoperla adult treatment

Table 2 and Fig. 4 clarify the negative effects of both sulphur formulation and indoxacarb that were applied to control Aphis gossypii on the Okra field. As for sulphur treatment, the nonsignificant difference was recorded at − 2 h and + 48 h between the treated plot and its control, but statistically significant differences were recorded at + 2-, + 24-h and 7-day post-treatment (Table 2, Fig. 4). Besides, there was a significant difference between inspection intervals (F = 13.406**), whereas an increment was recorded in the Chrysoperla adult population gaining ≈59% (Table 2).

Fig. 4

Effect of indoxacarb and sorell 98% applications on the abundance of Chrysoperla adults. Significant differences were calculated separately for each interval

The opposite results were found in indoxacarb by induced reduction percentage reached ≈ 82% (Table 2, Fig. 4). Also, significant differences were recorded in almost all inspection intervals between treated and control plots (Table 2, Fig. 4).

Paederus Treatments

Paederus is one of the most important coleopteran predators, and it attacks many insect pests on either plant surface or underground when sulphur formulation or indoxacarb was applied to control aphids its population was negatively affected. Table 3 and Fig. 5 clarify this effect. It was observed that sulphur application reflects significant adverse reaction on the population mean number, especially at + 2 and + 24 h post-treatment, and then increased once again (Table 3, Fig. 5); on another view, there were significant differences between the mean number throughout inspection intervals (F_4,15 = 10.453**), gaining ≈ 25% increment in the mean population count at the end of the experiment (Table 3). A significant difference was observed between treated plots and there control at all inspection periods except at the beginning and the end inspection times (Table 3, Fig. 5).

Table 3 Effect of indoxacarb and sorell 98% treatments on the population density of Paederus and Aphis movable stages

Fig. 5

Effect of indoxacarb and sorell 98% applications on the abundance of Paederus larvae and adults. Significant differences were calculated separately for each interval

The similar pattern was noticed in indoxacarb treatment, but with some minor differences. The mean population number was diminished sharply to reach only three aphids at the end of the experiment, gaining 80% reduction, demonstrating significant difference between inspection intervals (Table 3). In addition, there were significant differences between treated plots and their control throughout the experiment period (7 days) (Table 3, Fig. 5).

Aphid treatments

After 7 days of aphid treatments, sulphur formulation and indoxacarb both had negative effect on the mean population number. Sulphur formulation caused ≈a 25% reduction in population, while indoxacarb caused a staggering ≈a 97% drop in mean population number (end of the experiment) (Table 3, Fig. 6).

Fig. 6

Effect of indoxacarb and sorell 98% applications on the abundance of aphid nymphs and adults. Significant differences were calculated separately for each interval

Discussion

Coccinella undecimpunctata larval and adult treatments

The application of sulphur formulation insecticide produced statistical differences between inspection times instance, as well as between treated and control plots. Data in Table 1 demonstrate that applying both tested insecticides to control aphids negatively affected the density of the C. undecimpunctata prevailing population. All treated plots exhibit highly significant differences between inspection time intervals, and also between a treatment and its control plots.

In case indoxacarb was applied, the statistical analysis indicates a highly significant difference was noticed in mean numbers recorded between inspection time interval and when comparing treated and control plots.

These obtained results matched those of Cabral et al. (2011) when they evaluated the effects of pirimicarb and pymetrozine on the voracity of fourth instar larvae and adults of C. undecimpunctata. Results were agreed with those findings reported by Matter et al. (2018 and 2019), Gesraha and Ebeid (2019), Gesraha et al. (2019) when they applied sulphur formulation to study its effects on C. undecimpunctata larvae and adults. The obtained results matched those of Jalali et al. (2009) when they evaluated the toxicity of some insecticides to the two-spot ladybird, Adalia bipunctata in a laboratory study, and those of Roubos et al. (2014) when they conducted a series of bioassays to determine the relative toxicities and residual activities of insecticides labelled for use in blueberry (Vaccinium corymbosum L.) on natural enemies, to identify products with low toxicity or short-duration effects on biological control agents. They evaluate 14 insecticides and four commercially available natural enemies including ladybeetle, Hippodamia convergens Guérin-Méneville. Results were in accordance with that reported by Garzón et al. (2015) who tested the toxicity and sublethal effects of flonicamid, flubendiamide, metaflumizone, spirotetramat, sulfoxaflor and deltamethrin on the natural enemies Chrysoperla carnea and ladybeetle, Adalia bipunctata that were toxic to the tested natural enemies. Liu et al. (2016) then examined the toxicity of nine insecticides on four natural enemies of Spodoptera exigua. Our results were confirmed by Galvan et al. (2005, 2006) when applied spinosad and indoxacarb, where they reported that the tested insecticides are more toxic to lepidopteran pests than to the ladybird, Harmonia axyridis.

Chrysoperla carnea larval and adult treatments

As for Lacewings predator, it was observed that treated C. carnea larvae or adults reflect the incognizant difference between inspection time intervals and between treated and control plots at − 2 h, + 2 h and + 24 h of treatment, but significant differences were observed between each treatment and its control plots after 48 h and after 7 days. Indoxacarb induced highly significant differences in the case of each treated and control plots or between inspection time intervals, leading to about 80% reduction in population mean number. Data illustrated in (Table 2 and Fig. 4) clarify that the negative effects induced by applying the sulphur-tested insecticide for controlling aphid population resulted in highly significant differences either between inspection time intervals or between treated and control plots.

The abovementioned obtained results matched those reported by Golmohammadi and Hejazi (2014) when they evaluated the toxicity of endosulfan, imidacloprid and indoxacarb on C. carnea adults under the laboratory conditions. They reported that males were more sensitive than females to all three insecticides. The adult stage was very sensitive to indoxacarb, imidacloprid and endosulfan. Hence, they recommended that these insecticides should not be applied when the density of adults is high in the field. Also, the results were following that reported by Roubos et al. (2014) when they conducted a series of bioassays to determine the relative toxicities and residual activities of insecticides labelled for use in blueberry (Vaccinium corymbosum L.) on natural enemies, to identify products with low toxicity or short-duration effects on biological control agents. In total, 14 insecticides were evaluated and four commercially available natural enemies including Chrysoperla rufilabris [Burmeister]. Results matched those of Liu et al. (2016) when they examined the toxicity of nine insecticides on four natural enemies of Spodoptera exigua. Also, our results matched the findings of Wanumen et al. (2016) who tested and compared seven insecticides including indoxacarb on some natural enemies comprising C. carnea and reported adverse effects on the tested natural enemies. In addition, our findings were matched with Barros et al. (2018) who tested some conventional and new insecticides to control cotton pests, and to evaluate these insecticides against prevailing natural enemies including Chrysoperla externa Hagen, they reported that all tested natural enemies exhibited 100% mortality. Our findings matched those of Khan et al. (2015) who tested the residual effects of four insecticides against C. carnea different stages, showing the adverse effects of these tested materials on this important natural enemy. Results were agreed with those reported by Gesraha and Ebeid (2019), Gesraha et al. (2019) who reported the adverse impact on this predator. Also, our results matched those reported by Rugno et al. (2019) when they studied the impact of 11 insecticides on the predator Chrysoperla cubana from first instar larvae to adults; he reported that showing the negative effects of these tested insecticides.

Paederus treatments

Paederus as one of the most important coleopteran predators was badly affected when both tested insecticides were applied for aphid control. There were highly significant differences between its mean number of population at each inspection time interval especially after 2 and 24 h, and also, between treated and control plots. Indoxacarb was harmful to this beetle inducing the same trend between treated and control plots. These findings were in accordance with Bong et al. (2013) when they evaluated the contact toxicity of four insecticide formulations applied against the adult rove beetle, Paederus fuscipes Curtis; they reported that all tested insecticides were highly toxic. Zhang et al. (2016) evaluated the contact and fumigant toxicity as well as repellent activity of ten plant essential oils carried out against Paederus fuscipes Curtis adults and reported that almost all tested materials were highly toxic to the predator adults. Also, matched with that reported by Khan et al. (2018) when examined the use of pesticides in rice fields. The rove beetle (Paederus fuscipes), which is an important predator of the brown planthopper (Nilaparvata lugens) in rice ecosystems, was tested to investigate acute and chronic effects of emamectin benzoate. The results from this study show that the tested material had significant adverse effects on the second instar developmental time of P. fuscipes compared with that of the control. They conclude that more attention should be paid to the use of this chemical as part of integrated pest management strategies. Our findings matched those reported by Feng et al. (2019) for his work on Paederus fuscipes Curtis treated with three insecticides; they reported that the tested materials reflect the bad impact on all physiological parameters on this predator.

Aphid treatments

Dealing with aphid treatments, it was observed that either sulphur formulation or indoxacarb insecticide negatively affected the population of aphid, where indoxacarb proved more toxicity than sulphur formulation inducing about 97% reduction in the aphid population but sulphur inducing only about 26%. Our obtained results were following that reported by several authors such as Farag (1995) who examined the effect of some predators and parasitoids to control Aphis spp. population and Zaki et al. (1999) who released two predators to control the aphid population in greenhouse and open fields. The obtained results matched those of Bostanian and Akalach (2004) who examined the toxicity of some insecticides, including indoxacarb, under laboratory conditions, to control aphid population and to study their adverse effects on some natural enemies. They reported that indoxacarb had no effects on aphid mummy, but affected the movable stages. Our obtained findings were accordance with Awasthi et al. (2013) for his work deals with studying the comparative toxicity of some commonly used insecticides to cotton aphid and their safety to predatory coccinellids.

Lastly, the obtained results matched those reported by Dutta et al. (2016) on their field study to evaluate four insecticides against mustard aphid and their toxicity to coccinellid beetles. They found that among the treatments, azadirachtin 1EC appeared to be safest to coccinellid beetles, while indoxacarb 145 SC was found to be toxic. Our findings were in accordance with Zuo et al. 2016 on their work on the sublethal effects of indoxacarb and beta-cypermethrin on Rhopalosiphum padi (Hemiptera: Aphididae) under laboratory conditions.

Conclusion

It could be concluded that indoxacarb is more hazardous towards different natural enemies prevailing naturally in open fields at anywhere season round the year. Care must be in consideration when we choose or recommend and select some insecticides to kill or to eradicate the pest and simultaneously conserve the natural enemies.
