Evaluation of the benzo[a]anthracene biodegradation by animal bioassays

Abstract

Background

Benzo[a]anthracene (BAA), also known as “tetraphene” belongs to the polycyclic aromatic hydrocarbons (PAHs) which are considered as an important class of environmental genotoxins. The present work focused on the evaluation of the efficiency of the biodegradation of the BAA by Bacillus amyloliquefaciens using animal bioassays, which include micronucleus (MN) and DNA fragmentation as end point of genotoxicity of the resulting metabolites from BAA biodegradation.

Results

B. amyloliquefaciens was exposed to different doses of γ radiation (0.5, 1.0, 1.5, and 2.0 kGy) kGy. The colonies for the wild strain and its variants obtained after radiation were counted. The final counts for variant 3 (V3), variant 4 (V4), and variant 5 (V5) have been increased from its initial count by (0.3, 0.48, and 0.1 log cycle) respectively at 1 mg/100 ml (BAA). For animal bioassay, male mice were divided into seven groups; control group received vehicle only, groups II and III were injected with 5 and 10 mg/kg b.wt (BAA) respectively, and groups IV, V, VI, and VII were injected with the residues of BAA after biodegradation with wild type, V3, V4, and V5 of B. amyloliquefaciens respectively.

Conclusions

Results of the micronucleus test and the DNA fragmentation as end point of genotoxicity of (BAA) indicated that B. amyloliquefaciens have the efficiency in biodegradation of (BAA) to nongenotoxic metabolites where (V3) and (V4) are more efficient than the wild type and (V5). So B. amyloliquefaciens could solve the problem of soil and water contamination by oil spill or industrial petroleum waste by ecofriendly manner.

Introduction

Polycyclic aromatic hydrocarbons (PAHs) are considered as pollutants which consist of two or more fused aromatic rings. It formed after incomplete combustion of the organic materials such as fossil fuels, wood, or coal, also present in the smoke of cigarette (Li et al. 2018). It found in different environment places as fresh water, marine sediment, sand, and also in the atmosphere.

These environmental pollution has a global concern; this is because almost all PAHs are highly toxic, mutagenic, and carcinogenic to humans, plant, and also to microorganisms (Rengarajan et al. 2015). Wiley (2012) mentioned the genotoxicity and carcinogenicity to benzo[a]anthracene (BAA). Jacob et al. (1983) proved that the formation of epoxides and dihydrodiolsas is a result of BAA metabolization. The PAHs metabolizing enzymes are present in all tissues and are involved in detoxification of BAA as indicated by Slooff et al. (1989). DNA adducts were formed in epithelial cells and blood lymphocytes, and unscheduled DNA synthesis was observed in HeLa cells; in addition, BAA was found to be genotoxic in many different organisms in vivo (McCarrick et al. 2019). Toxic effects of BAA, benzo-a-pyrene (BAP) and naphthalene were described in experimental embryo of animals and laboratory studies conducted on mice have demonstrated that ingestion of high levels of BAP during pregnancy results in birth defects and a decreased body weight in the offspring (Ng et al 2009).

Also, the Environmental Protection Agency (EPA) has classified the following seven PAH compounds as being one of the cause of human carcinogens: BAA, BAP, benzo(b) fluoranthene, benzo(k)fluoranthene, chrysene, dibenz[a,h]anthracene, and indeno (1,2,3-cd) pyrene (Ramesh et al. 2010).

Bone marrow where the rapid cell proliferation occurs is the most preferred organ for the evaluation of genotoxicity of different chemicals (Vikram et al. 2007). The micronucleus (MN) test is widely used for screening the genotoxic potential of different agents (Asanami et al. 1995). Micronuclei are formed in dividing cells due to either a compound’s interaction with DNA leading to breakage of chromosome or of its interaction with non-DNA targets leading to loss of chromosome (De Boeck et al. 2005). This bioassay is recommended for genotoxicity evaluation and has become increasingly common for regulatory acceptance. For the in vivo genotoxicity studies, the mice is preferred than the rats (Ramirez-Munoz et al. 1999).

Microbial degradation is considered to be the main process involved in the bioremediation of PAH (Yuan et al. 2002). This method was better than physical and chemical such as combustion, photolysis, and ultrasonic decomposition; this is due to their ecofriendly and environmental way for removal of PAHs (Toledo et al. 2006). Some microorganisms have the ability to utilize PAHs as a source of carbon and energy and degraded them to carbon dioxide and water, or transformed to other nontoxic or low-toxic substances (Perelo 2010).

Partila (2013) determined BAA degradation percentage by different isolates with HPLC and indicated that the best BAA degrader was MAM-62; this isolate degraded 39% of 500 μg/L BAA. And identified by DNA sequencing as Bacillus amyloliquefaciens with accession No. JN03805, Bacillus amyloliquefaciens is a non-pathogenic soil bacterium capable of producing endospores allowing it to survive.

For extended periods of time, it also shows some antifungal properties which are influenced by environmental nitrogen availability (Caldeira et al. 2008).

Also the intermediates as determined by GC-MS analysis of BAA degradation by B. amyloliquefaciens after 24-h incubation are hexanoic acid, hepatanoic acid, benzeneethanol, hexanoic acid,2-ethyl, octanoic acid, nonanoic acid, indol-5-aldhyde, n-hexadecanoic acid, benz(a)anthracene 7,12 dione, and b-sitosterol acetate (Partila 2013). The proposed pathway for degradation of BAA by B. amyloliquefaciens, as shown in Fig. 1, considered as novel pathway for the bacterial metabolism of BAA. This pathway contains a set of metabolites, not present in previously known pathways, like benzo[a]quinone, phthalic acid, phthalicaciddehydroxy, phthalic acid methylester, hydroxytetralone, naphthalonedione and dihydroxy naphthalene (Cajthaml et al. 2006), and BAA-dihydrodiol (Schneider et al. 1996). Also, the variants showed better results than a wild type; this may be due to a variety and increasing of enzymes which increase the rate of biodegradation for BAA. The parent strain MAM-62 produced nine intermediates. However, the mutant strain MAM-62(4) produced 15 intermediates (Partila 2013).

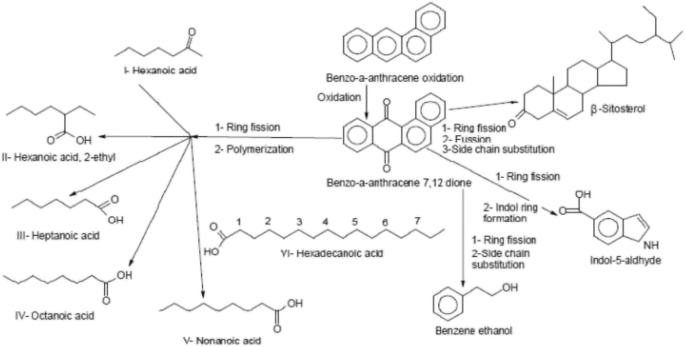

Fig. 1

Proposed pathway of benzo-a-anthracene degradation by B. amyloliquefaciens (Partila 2013)

So, the aim of this work is to evaluate the efficiency of Bacillus amyloliquefaciens for biodegradation of the (BAA) by using micronucleus (MN) and DNA fragmentation as end point of BAA genotoxicity.

Material and methods

Bacillus amyloliquefaciens culture media and treatments

The bacterial strain was Bacillus amyloliquefaciens with accession No. JN038054. BAA was purchased from (AcRos organics, New Jersey, USA). B. amyloliquefaciens was inoculated in LB (Luria-Bertani) broth medium prepared according to Martin et al. 1981 and incubated at 30 °C for 24 h in shaking incubator. The well grown bacterial culture were centrifuged at 8000 rpm for 10 min and washed twice with basal salt media (BSM) (Ogawa and Miyashita 1995). The washed bacterial cells were resuspended in BSM supplemented with 1 mg/100 ml BAA. The bacterial count for the bacterial culture was determined after 7 days incubation to confirm their ability to grow and degrade the compound.

Effect of gamma radiation on the viability of the most potent strain

B. amyloliquefaciens was grown in LB broth medium for 24 h at 37 °C in shaking incubator (150 rpm). The well grown bacterial cells were harvested by centrifugation at 8000 rpm for 10 min then washed and resuspended in sterile saline. Cell suspensions were distributed into 5.0 ml sterile screw capped test tubes and then exposed to different doses of gamma radiation (0.5, 1.0, 1.5, and 2.0 kGy) (Indian cell Co-60) with dose rate kGy/15 min in the National Center for Radiation Research and Technology (NCRRT), Nasr City, Cairo, Egypt. Three replicates were used for each dose. Serial dilution and pore plate technique were established. The plates were incubated at 30 °C for 24 h. The changes in morphological characters (color, shape, margin, size) of the colonies at different doses were picked up as variants.

Each picked irradiated bacterial colony was inoculated in LB broth medium and incubated at 30 °C for 24 h in shaking incubator along with the wild type B. amyloliquefaciens.

The well-grown bacterial culture were centrifuged at 8000 rpm for 10 min and washed twice with BSM.

The washed bacterial isolated strains were used to inoculate 100 ml BSM in 250 ml conical flask amended with 0.5 mg of BAA. Three replicates were used for each concentration for each strain. The inoculated flasks were incubated at 30 °C in shaking incubator.

Samples were examined for O.D. at 600 nm by using spectrophotometer (LW-V-200 RS UV/Vis., Germany) and for count of cells (CFU/ml) at the beginning and after 1, 2, 7, 14, and 21 days incubation (Partila 2013).

Experimental animals and treatments

Swiss albino male mice weighting 20–25 g were obtained from National Center for Radiation Research and Technology, Cairo, Egypt. They were housed in steel mesh cages in a temperature of 25–30 °C with alternating 12 h light and dark cycles and allowed free access to standard diet and tap water. The animals were housed five mice per cage and randomly divided into seven groups, five mice for each group. Group I was used as control treated with the vehicle only i.p.(0.1 ml DMSO diluted with 0.2 ml saline). Groups II and III were injected by (BAA), which was dissolved in the vehicle, at dose of 5 and 10 mg/kg b.wt. respectively. Groups VI, V, VI, and VII were injected i.p. with the residues of the equivalent dose of 10 mg/kg b.wt. after biodegradation with wild type, V3, V4, and V5.

Micronucleus assay

The animals were sacrificed after 24 h of treatment and the bone marrow was collected for the micronucleus assay (Schmid 1975) modified from the femurs were washed with 2 ml of fetal calf serum (Sigma) in a centrifuge tubes, homogenizing the cell suspension, and centrifuging it at 1000 rpm for 10 min, after which the supernatant was partially discarded to leave few drops of fetal calf serum in which the cell pellet was re-suspended and then smeared on clean and dry slides, which then fixed with absolute methanol for 10 min and stained for 8 min with 5% (v/v) Giemsa stain diluted with phosphate buffer (Na₂HPO₄ 0.06 M and KH₂PO₄ 0.06 M, pH 6.8). For each animal, 1500 polychromatic erythrocytes (PCEs) were analyzed to ascertain the frequencies of micronuclei and micronucleated cells in mice exposed to the different treatments. The slides were scored blindly according to the established criteria (Titenko-Holland et al. 1997). Microscopic examination was done under oil immersion using (LeitzWetzlar, Germany)—Orthomat binocular optical microscope with magnification × 1000.

DNA fragmentation assay by diphenylamine

Quantification of fragmented DNA was estimated by diphenylamine (DPA) assay. The method was carried out according to Perandones et al. (1993). Cell lysates was obtained by mechanically dissociation of 0.5 g. of liver in 400 μl hypotonic lysis buffer which was prepared by dissolving 5 mM, tris HCl, 20 mM EDTA, and 0.5% Triton-100 in distilled water then the solution was adjusted to 100 ml. The cell lysates were centrifuged then the supernatant containing small DNA fragmentations was removed in another tubes and the pellet containing large pieces of DNA and cell debris was left in the tubes, then the reagent was added as following TCA 10% then centrifuge; the precipitate was resuspended in 400 μl 5% TCA. The tubes were incubated in boiling water for 30 min and then were centrifuged. The extracted DNA was left to cool at room temperature. Further, 1 ml DPA solution (0.88 M diphenylamine dissolved in 98% glacial acetic acid) then 1.5% concentrated sulfuric acid was added to the solution. This solution was stored in a dark glass bottle. On the day of use, 0.5% of freshly prepared (1.6% v/v acetaldehyde) was added to 0.5 ml of extracted DNA and the samples were kept at 4 °C for 48 h. The absorbance of samples was recorded at 578 nm. The percentage of DNA fragmentation was expressed by the formula:

$$ \%\mathrm{DNA}\ \mathrm{fragmentation}=\left[\mathrm{O}.\mathrm{D}.\mathrm{of}\ \mathrm{supernatant}/\left(\mathrm{O}.\mathrm{D}.\mathrm{of}\ \mathrm{supernatant}+\mathrm{O}.\mathrm{D}.\mathrm{of}\ \mathrm{pellet}\right)\right]\times 100 $$

Statistical analysis

The data obtained in the present work were represented as mean ± standard deviation. Statistical analysis was carried out using (Statistical Package for Social Science) (SPSS) software version 20 for windows; significant differences among groups were evaluated using one-way analysis of variance (one-way ANOVA); least-significant difference (LSD) was used for multi-group comparisons. P values ≤ 0.05 were considered as significant (Festing and Altman 2002).

Results

The bacterial growth and count

The growth of B. amyloliquefaciens wild type and its variants in 1 mg/100 ml BAA as indicated in Table 1 cleared a variation in the O.D., but in all samples the final OD was not higher than the initial OD so in this experiment, it was not recognized which sample can get the highest growth under the effect of BAA, which could be cleared in the bacterial count experiment. Table 2 indicated that the initial count in 1 mg/100 ml BAA for variants (V1 and V2) was (36 × 10⁶ and 18 × 10⁶ CFU/ml) respectively. It was cleared to be more than its count after 21 days incubation (6 × 10⁶, 3 × 10⁶CFU/ml) respectively. But for the other variants V3, V4, and V5, the count after 21 days incubation was (76 × 10⁶, 83 × 10⁶, and 40 × 10⁶ CFU/ml) respectively exceeding their initial count (36 × 10⁶, 27 × 10⁶, and 32 × 10⁶ CFU/ml) respectively. According to these results, only V3, V4, and V5 were chosen for further evaluation by animal bioassay.

Table 1 The growth of the wild type and variants during 21 days incubation. Data expressed as mean ± standard deviation

Table 2 The counts of the wild type of B. amyloliquefaciences and the variants at initial and after 21 days incubation. (p = 0.05)

Effect of BAA on the formation of micronuclei

As shown in Table 3, a significant increases in the percent of micronuclei induction in the groups that were injected with (BAA) at different doses as compared with the control group. As expected, the significant increase in the total number of the cells with MN, mononucleated cells, binucleated cells, and multinucleated cells was proportionally related to the dose of (BAA). On the other hand, the genotoxic effect of (BAA) residue, after biodegradation with wild and variant types of bacteria, was significantly lower than that before biodegradation but still significantly higher than that of control group except for the groups of variant 3 and variant 4 which have non-significant genotoxic effect as compared with the control group.

Table 3 The effect of (BAA) or its residues after biodegradation by different types of bacteria on the induction of MN. Showing MN cells: total cells with MN, Mono-MN cells: with one MN, Bi-MN cells: with two MN, Multi-MN cells: with more than two MN. p < 0.05)

Effect of BAA on the % of DNA fragmentation

The percentage of DNA fragmentation increased proportionally with increasing the dose of BAA as shown in Fig. 2. The genotoxic effect of BAA significantly reduced after the biodegradation with wild and variant types of bacteria as compared with that before biodegradation. Meanwhile, the residue of biodegradated BAA with V3 and V4 has insignificant genotoxic effect as compared with control group; the residue from V5 is still significantly higher as compared with control group.

Fig. 2

The effect of (BAA) or its residues after biodegradation by different types of bacteria on the % of the DNA fragmentation. (p < 0.05), a: comparison with DMSO group, b: comparison with (BAA)10 mg/kg bwt. group

Discussion

Many studies previously showed that MN is a biomarker of chromosomal damage, but now we should reconsider MN as an important cause of genetic variation that may be critical during the genesis of some diseases and cancer (Bayram et al. 2016). Chromothripsis, a sole pattern of localized chromosome rearrangements and it was suggested that DNA damage from MN could lead to a moderate level of rearrangement (Zhang et al. 2015). As indicated in Table 1, the variation of O.D. may be due to the interference between the yellow color of BAA and the turbidity of the B. amyloliquefaciens growth, so as Juhasz et al. (1997) observed that the culture supernatant turned to a yellow color when BAA was utilized as a sole carbon and energy source. In addition, the decrease in the amount of PAH was evidenced by a color change in the medium and was approved by GC-MS analysis of BAA degradation by B. amyloliquefaciens as was mentioned by Partila (2013).

Bacteria initiate PAH degradation by the action of intracellular dioxygenases; the PAHs must be taken up by the cells before degradation takes place (Smith 1990). In the present study, the count after incubation time as indicated in Table 2 was less than the initial in the case of wild, V1, and V2; this may be due to the decrease of the enzymes necessary for the consumption of the compound. While in the case of V3, V4, and V5, the final count were more than the initial, better than the wild type, V1, and V2; this may be due to the sufficient enzymes which are secreted by these variants that might play an important role in the transformation and the degradation of BAA.

PAH dioxygenase (PDO) and catechol 2,3-oxyenase (C23O) are identified as two key PAH-degrading-related enzymes (Meyer et al. 1999). However, to the best of our knowledge, there is no information regarding the simultaneous change of these key enzyme activities in a biodegradation process (Grifoll et al. 1995).

Ting et al. (2011) showed that the degradation rate constants for phenanthrene and pyrene increased when the PAH concentration in the cultures contains (from 2 to 50 mg/lPAHs). But, at the level of 100 mg/l, the degradation rate does not change due to the failure of the organism to degrade the remaining PAHs after 6 days. It appears that the organism entered an inactive phase after 6 days incubation in the liquid culture.

It is well known that very few organisms have been able to degrade a single compound completely (You-Qing et al. 2008). Bacillus cereus and Bacillus megaterium were observed consuming 65.8% and 33.7% of pyrene (50 mg/l) within 3 weeks, respectively.

The results of control group presented micronucleated cells < 3/100 cells which are the normal value of the mean spontaneous micronucleus frequency (Salamone and Mavournin 1994). The present data is in agreement with many previous studies indicated that bone marrow cells of mice are susceptible to the genetic damaging action of BAA. This damage is due to the effect of metabolites of BAA which have been indicated for their ability to induce mutations, cell transformation, and form nucleic acid adducts covalently (Conney 1982). Even without external metabolic activation, BAA caused DNA strand breaks (Platt et al. 2008). The 3,4-diol-1,2-epoxide metabolite is mutagenic; its metabolic precursor, the 3,4-dihydrodiol, is also mutagenic. The 3,4-dihydrodiol and a 3,4-diol-1,2-epoxide also have high carcinogenic activity (Li et al. 2018). DNA analysis from skin of mice or cultured cells treated with BAA indicates that a 3,4-diol-1,2-epoxide and a 8,9-diol-10,11-epoxide form nucleic acid adducts covalently (IARC 1972).

For some metabolites from other work like benz[a]anthracene-trans-3,4-dihydrodiol (BA-3,4-dihydrodiol) which consider the minor metabolite getting from BAA, it shows higher mutagenicity and tumorigenicity than parent BAA; this cause the damage of DNA. Its liberation enhanced by addition of NADH. Also, BA o-quinone type metabolite, benz[a]anthracene-3,4-dione (BA-3,4-dione) both induced oxidative DNA damage in the presence of cytochrome P450 reductase (Seike et al. 2003). Cooper et al. (1980) declared that diol-epoxide for anthracene thought to be involved in the binding of BAA to DNA in some situations reacts mainly with deoxyguanosine.

Conclusions

From the results of the present study, it could be concluded that B. amyloliquefaciens and its variants have the efficiency in biodegradation of (BAA), which are considered as an important class of environmental genotoxins; this is confirmed by micronucleus (MN) and DNA fragmentation as end point of genotoxicity of BAA and its resulting metabolites. So, B. amyloliquefaciens may be used for degradation of BAA in contaminated water and soil by oil spill or industrial petroleum waste.
