Optimizing PEEP levels during injury development is essential to achieve clinically relevant ARDS in animal models
Bulletin of the National Research Centre volume 48, Article number: 106 (2024)
To the Editor
Preclinical animal models of acute respiratory distress syndrome (ARDS) are a critical component of knowledge generation in the quest to advance the clinical management of human ARDS. However, there is a paucity of positive preclinical findings translated into clinical practice that subsequently impacts patient outcomes (i.e., mortality) (Pham and Rubenfeld 2017). One possible contributor to this issue is a lack of positive end expiratory pressure (PEEP) optimization during the injury development before reaching the ARDS criteria triggering observation phase, which may impact the translatability of animal findings to human clinical practice. By addressing this and other similar issues, the preclinical knowledge may be more efficiently and effectively translated into clinical practice.
Although PEEP optimisation is essential to improve oxygenation and achieve an appropriate level of lung injury, our systematic review of PEEP in ARDS showed that this ventilatory strategy has not been appropriately applied in preclinical settings (Millar et al. 2019). PEEP optimization must be prioritized, especially in circumstances where adjunctive therapies, such as extracorporeal membrane oxygenation (ECMO), are required. However, past animal models of ARDS and ECMO consistently applied insufficient levels of PEEP during injury development (Millar et al. 2019), with ECMO initiated immediately after achieving the target PaO2/FiO2 ratio, as a surrogate endpoint of severity, rather than achieving clinically relevant ventilator settings (Battaglini et al. 2024). Since insufficient PEEP levels could often introduce severe hypoxaemia in a short period, this approach might result in subjects with mild lung injury (i.e., not ARDS) being included, leading to erroneous conclusions and difficulty applying preclinical findings to clinical human scenarios. Thus, we call for PEEP optimization, adjusting PEEP levels according to the injury progression (e.g., increase in PEEP as PaO2/FIO2 ratio decreases), to be incorporated in all preclinical ARDS model development to achieve consistent and clinically relevant lung injury.

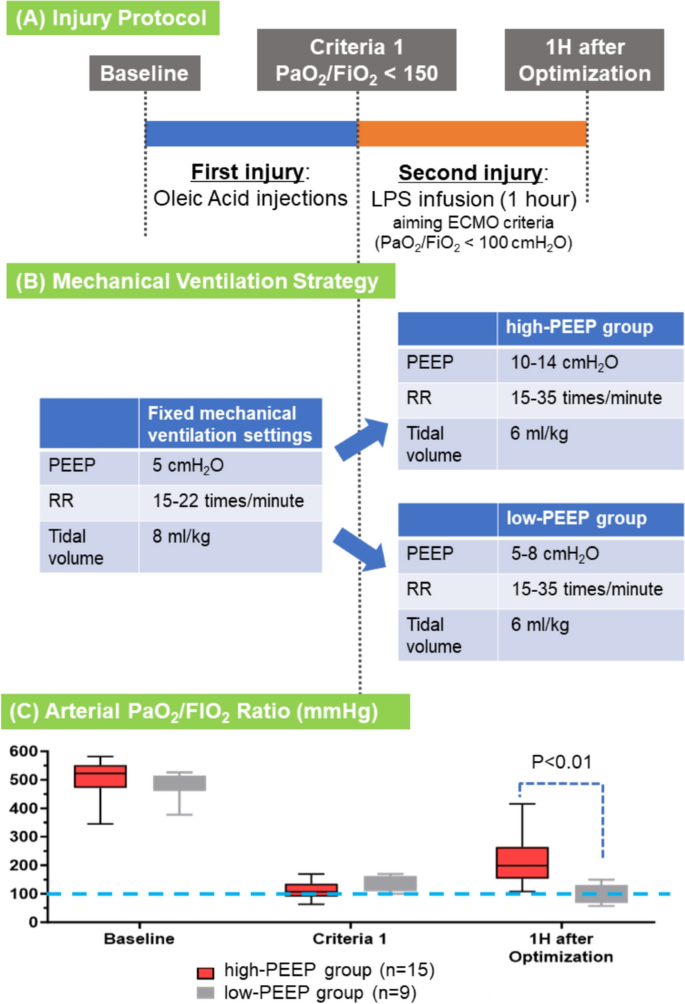

In an ovine model of ARDS instigated by the administration of oleic acid and lipopolysaccharide, we investigated the effects of PEEP optimisation during the injury phase and before achieving the target criteria (Fig. 1A) using data from two randomised controlled preclinical studies [Wildi et al. 2023, Unpublished study]. These studies used the same injury protocol and hemodynamic management, but a different PEEP strategy (Table 1). Upon achieving PaO2/FiO2 < 150 cmH2O and using similar tidal volumes (6 ml/kg) and respiratory rate, two different levels of PEEP were applied during the second injury with lipopolysaccharide: (1) high-PEEP group (n = 15, PEEP 10–14cmH2O) [Unpublished study], and (2) low-PEEP group (n = 9, PEEP 5–8cmH2O) (Wildi et al. 2023) (Fig. 1B).
Despite similar oleic acid doses, we found a notable discrepancy in PaO2/FiO2 ratios between the groups within just one hour from PEEP adjustment (Fig. 1C). In the high-PEEP group, the PaO2/FiO2 ratio improved to 218 ± 21 mmHg, exceeding the typical clinical indication threshold for ECMO (i.e. PaO2/FiO2: 80–120). Consequently, ECMO would likely be not clinically indicated in such a scenario. Conversely, in the low-PEEP group, the PaO2/FiO2 ratio declined to 102 ± 11 mmHg, supporting the clinical initiation of ECMO.
Our findings suggest that optimizing PEEP during injury development could substantially alter injury levels in preclinical ARDS models, and more accurately align ARDS characteristics with those seen in clinical practice. Preclinical models must reproduce clinical settings and adhere to clinical guidelines as closely as possible during the development of ARDS (Grasselli et al. 2023) in order to ascertain relevant, clinically applicable results in this area. Additional research is imperative to explore how to effectively refine the application of PEEP in preclinical ARDS models, aiming to provide guidance for its application and establish reliable models capable of replicating the complexity of ARDS, thereby facilitating translatable discoveries. Finally, future preclinical studies should incorporate clinically relevant adjunctive therapies, such as neuromuscular blockade and prone positioning, to better replicate the complexity of ARDS in real-world scenarios.
Data availability
The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
Abbreviations
- ARDS:
-
Acute respiratory distress syndrome
- ECMO:
-
Extracorporeal membrane oxygenation
- PaO2/FiO2 :
-
Partial pressure of oxygen in blood/ fraction of oxygen in the inhaled air
- PEEP:
-
Positive end-expiratory pressure
References
Battaglini D, Roca O, Ferrer R (2024) Positive end-expiratory pressure optimization in ARDS: physiological evidence, bedside methods and clinical applications. Intensive Care Med. https://doi.org/10.1007/s00134-024-07397-5
Grasselli G, Calfee CS, Camporota L et al (2023) ESICM guidelines on acute respiratory distress syndrome: definition, phenotyping and respiratory support strategies. Intensive Care Med 49:727–759
Millar JE, Bartnikowski N, von Bahr V et al (2019) Extracorporeal membrane oxygenation (ECMO) and the acute respiratory distress syndrome (ARDS): a systematic review of pre-clinical models. Intensive Care Med Exp 7:18
Pham T, Rubenfeld GD (2017) Fifty years of research in ARDS. The epidemiology of acute respiratory distress syndrome. A 50th birthday review. Am J Respir Crit Care Med 195:860–870
Wildi K, Livingstone S, Ainola C et al (2023) Application of anti-inflammatory treatment in two different ovine acute respiratory distress syndrome injury models: a preclinical randomized intervention study. Sci Rep 13:17986
Acknowledgements
We would like to thank the members of Critical Care Research Groups and the staff at Medical Engineering Facility (MERF) based at the Prince Charles Hospital (Queensland University of Technology (QUT), Brisbane, Australia), who helped and supported the submitted projects.
Funding
This study was funded by MERA (Senko Medical Instrument Mfg, Tokyo, Japan), Japan Society for the Promotion of Science (Tokyo, Japan), the Wesley Medical Research Foundation (QLD, Australia), and the Prince Charles Hospital Foundation (QLD, Australia).
Author information
Authors and Affiliations
Contributions
KL drafted the letter. JS, KW, GB, and JF contributed substantially to revising and approving the final version of the letter.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
The animal studies were assessed and approved by the QUT Office of Research Ethics and Integrity (No. 18-606), the University Animal Ethics Committee of the Queensland University of Technology (QUT) (202100026), and the University of Queensland (2022/AE000077), following the ARRIVE guidelines. All experiments were performed in accordance with the Australian Code of Practice for the Care and Use of Animals for Scientific Purposes and the Animal Care and Protection Act 2001 (QLD).
Consent for publication
Not applicable.
Competing interests
The authors declare that they do not have any competing interests related to the submitted work.
