Effect of incorporation of nano-hydroxyapatite particles on the clinical performance of conventional and resin-modified glass ionomer cement in class V cavities: split-mouth, randomized controlled trial

A Correction to this article was published on 06 December 2021

This article has been updated



The aim of this study was to compare the clinical performance of Nano-hydroxyapatite-modified conventional glass ionomer cement (NHA-GIC) and Nano-hydroxyapatite-modified resin-modified glass ionomer cement (NHA-RMGIC) with conventional glass ionomer (CGIC) and resin-modified glass ionomer (RMGIC) in the treatment of caries class V cavities. Sixty patients with at least two cervical caries lesions participated in this study. A total of 120 class V cavities were prepared and then restored using different restorative materials. Restorations were clinically evaluated according to modified United States Public Health Service criteria at baseline and after 3, 6 and 9 months.


There was no statistically significant difference in the clinical performance of the different restorative materials at any of the follow-up periods. However, throughout the study period there was a statistically significant change in the color match, surface texture and marginal integrity in NHA-GIC. A statistically significant change in the surface texture and marginal integrity was found in GIC. On the other hand, there was only a statistically significant change in surface texture in NHA-RMGIC.


All tested restorative materials, control (CGIC and RMGIC) as well as experimental (NHA-GIC and NHA-RMGIC), exhibited comparable clinical performance after 9 months follow-up.


Cavities affecting the cervical regions of teeth are a common clinical finding. They might require restoration if associated with caries, to improve appearance, alleviate sensitivity or prevent enlargement of the lesion (Stewardson et al. 2012). Class V restorations represent a challenging situation in each step in the restorative procedure, including proper isolation, adhesion, contouring, finishing and polishing. Moreover, the cervical margin is mostly located in cementum or dentin which makes it more susceptible to microleakage, causing cavosurface stains, post-operative sensitivity, and recurrent caries (Perez 2010).

A variety of tooth-colored restorative materials and adhesive agents are now suggested for the restoration of class V cavities. Either resin composite (RC) or glass ionomer cements (GICs) are recommended to restore these lesions. However, several drawbacks have been reported when resin composite is used to restore this type of cervical lesion, such as polymerization shrinkage, incomplete marginal sealing and resin-tooth interface degradation over time (Folwaczny et al. 2001; Boing et al. 2018).

Conventional glass ionomer and resin-modified glass ionomer have been advocated for restorations of class V restorations, especially in patients with high caries risk. A number of clinical trials have assessed the performance of GICs for restoring cervical lesions and these trials have demonstrated acceptable clinical results (Mahn et al. 2015; Priyadarshini et al. 2017). This might be related to the unique properties of GICs, such as chemical bonding to enamel and dentin, good sealing to cavity walls, caries-inhibition effect, remineralization potential due to the gradual release of fluoride ions for a long period, a coefficient of thermal expansion and elastic modules similar to those of the tooth structure, as well as minimal effect on the pulp tissue and easy handling properties (Singh et al. 2011).

Despite its various advantages, unfortunately GIC suffers from various shortcomings, such as poor physical properties, brittleness, low fracture toughness, inferior mechanical properties, high initial solubility, poor wear resistance, inadequate surface properties, moisture sensitivity and poor aesthetics when compared to resin composites (Khoroushi and Keshani 2013).

Recently, nanotechnology has rapidly expanded into all branches of dentistry as it offers significant alternative ways to solve scientific and medical questions and problems. Previous studies have suggested incorporation of nano-sized particles or nanoclusters, such as silver cermet, zinc, titanium dioxide, gold and zirconia as an attempt to improve the poor mechanical and physical properties of GIC and RMGIC (Khurshid et al. 2015; Najeeb et al. 2016). Although these modified reinforced materials exhibited high strength properties and reduced abrasion, they showed poor aesthetics, potential hazards, such as cytotoxicity that limits their use (Najeeb et al. 2016). Therefore, Nano-hydroxyapatite particles (NHA), with their chemistry being similar to that of mineralized bone and dental tissues, are considered an excellent candidate as filler material for both GICs and RMGICs (Kantharia et al. 2014).

Thus, it seems to be of value to study the effect of adding NHA on the clinical performance of CGI and RMGI restorations in class V cavities. This study was conducted to accept or reject the null hypotheses that: There is no difference in the clinical performance of NHA-GI and NHA-RMGI in comparison to CGI and RMGI in class V cavities.


Trial design and setting

This double-blinded randomized, controlled, multicenter, split-mouth clinical trial with 1:1 allocation ratio was conducted at the dental clinic (DC) of the National Research Centre (NRC), Cairo, Egypt, and the restorative dental clinic at the Faculty of Oral and Dental Medicine, Girl's branch, Al-Azhar University, Cairo, Egypt. The experimental design followed the CONSORT 2010 guidelines (Consolidated Standards of Reporting Trial) (Table 1).

Table 1 Study design

Trial registration and ethical approval

The trial was registered in the Pan African Clinical Trial Registry (PACTR) ( under the identification number (PACTR201908519911054). The ethical approval was obtained from the Ethical Research Committee—National Research Centre (NRC), Cairo, Egypt (Ref number: 16039) and from the Faculty of Dental Medicine, Girls branch, Al-Azhar University, Cairo, Egypt (approval code:OPDEN-108-1-i) after looking for rights, safety and dignity of the clinical trial. This study was conducted in accordance with the 1964 Declaration of Helsinki and its subsequent amendments.

Sample size calculation

The sample size estimation was calculated using a priori by G* power 3.1.2 software based on previous studies (Burgess et al. 2004). The minimum size of each group was calculated, using the following conditions: α (allowable type I error) 0.05 (5%), β (allowable type II error) 0.20 (20%), and power of the study (1–β) = 80%. Thus, in order to detect a difference of 20%, a minimum sample size of 25 teeth per group was needed. Considering 5 dropouts, the final restorations were placed in thirty teeth per group which was obtained from 60 participants. Each participant received two restorations of class V lesions, totaling 120 dental restorations.

Eligibility criteria

Eligibility criteria for patients: Thirty participants with ages ranging from 25 to 45 years were selected to fulfill the following inclusion and exclusion criteria (Fagundes et al. 2014). The inclusion criteria for patients were: (a) ability to read and sign the informed consent form, (b) willingness to participate, (c) have no medical or behavioral problems preventing patients from attending recall treatments, and (d) moderate and high caries risk index. The exclusion criteria were: (a) rampant uncontrolled caries, (b) parafunctional habit, or bruxism (c) pregnant or breastfeeding, (d) heavy smoking, (e) evidence of xerostomia, and (f) presence of abnormal oral soft tissue.

Eligibility criteria for teeth: The inclusion criteria for teeth were: (a) presence of contra-lateral matched pair of cavitied buccal cervical carious lesion, (b) small to medium size cavities that extended into dentin, while maintaining natural tooth contour, (c) absence of tooth mobility, tenderness, extensive carious lesions, severe pain or pre-operative sensitivity, and (d) easily accessible gingival margins. The exclusion criteria were: (a) periapical pathology, internal or external resorption, (b) questionable pulp vitality or root canal therapy, (c) pulp capped, (d) periodontal pocket and bleeding on probing, (e) presence of cracks.

Participant recruitment

The patients were selected from the outpatient clinic of National Research Centre (NRC), Cairo, Egypt, and Faculty of Dental Medicine, Girl's branch, Al-Azhar University, Cairo, Egypt. Eligible patients who agreed to participate in this trial signed written informed consents.

Patient risk assessment using American Dental Association® (ADA) caries risk assessment form (Ages > 6) was carried out for the all selected patients to be categorized into the medium and high risk category. Radiographical assessment was also performed to exclude patients with any sign of periapical pathosis.

Randomization, allocation and blinding

Each selected participant had two contra-lateral class V carious lesions and received the experimental restorative material (NHA-GIC or NHA-RMGIC) in one cavity and the corresponding control restorative material (CGIC or RMGIC) in the other cavity. Thus, a total of 120 restorations were placed in the 120 teeth of 60 patients.

The method used to generate the random allocation sequence of the participants and arch side was a computer-generated list of random numbers using Microsoft® Excel program. Each participant occupied a sequence no (ID) from “1 to 60” and was randomly assigned to one of the two control restorative materials (either CGIC or RMGIC). Each participant was then given another randomized letter either "R” or “L," to determine which side was to be treated with the control material and eventually the other side was treated with the corresponding experimental material.

Generation of random allocation sequence was done by a person who was not involved in the clinical trial. Neither the participants nor the outcome assessor knew which tested restorative material was used, while the primary investigator was not blinded, thus resulting in a double-blind study.


  1. a.

    Preparation and characterization of Nano-hydroxyapatite particles (NHA)

NHA were synthesized using the wet chemical precipitation method at the National Research Centre, Egypt. Synthesized NHA was then characterized by transmission electron microscopy (TEM), Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and elemental-dispersive X-ray (EDX) to study the powder purity, surface area and the particle size which affect their bioactivity, mechanical and biological properties.

Fourier transform infrared spectra were recorded for synthesized NHA by KBr disk technique using FTIR Spectrometer (Nexus 670 FTIR, USA). The NHA was analyzed in the range of 400–4000 cm−1 and at 4 cm−1 resolution to examine the chemical functional groups.

XRD analysis was done by using (Bruker D8 advance diffractometer, Germany) to determine different crystalline phases. The NHA was evaluated using CU Kα1 radiation with a wavelength of 1.54Ao.

EDX was used to detect mineral element composition (Ca/P) of the synthesized NHA, by estimation of calcium (Ca) and phosphate (P) weight content (%).

Moreover, Transmission electron microscopy (Philips XL, 30; Japan) was used to evaluate the morphology and the particle size of synthesized NHA. The samples were prepared first by dispersing few particles of HA nano-particles in distilled water, and then a carbon-coated copper grids 200 mesh (TED Pella, inc; USA) was dipped inside it. Particle size measurement was conducted using Clemex image analysis software.

  1. b.

    Preparation and characterization of Nano-HA-modified glass ionomer cements

Modified cements (NHA-GIC and NHA-RMGIC) were prepared by addition of NHA to the powder component of CGIC and RMGIC. Five percent by weight (5% w/w) of CGIC or RMGIC powder were replaced by NHA and then mixed using a ball mill machine (LFJS, Hunan, China) with 200 rpm for 30 min to produce a homogenous powder (Barandehfard et al. 2016; Poorzandpoush et al. 2017). The brand name, manufacturer and composition of the restorative materials are presented in Table 2.

Table 2 Name, specifications, composition, manufacturer and batch numbers of the restorative materials

Characterization of NHA-GIC and NHA-RMGIC was done using TEM (Philips XL, 30; Japan) to observe the distribution of NHA into CGIC and RMGIC powder.

  1. c.

    Clinical procedure: Cavity preparation, material application, intervention and outcome

All participants' demographic data together with tooth numbers, types and arch distribution were recorded (Table 4). Each patient first underwent scaling and polishing procedures to clean the tooth surfaces.

The 120 cavities were prepared on 88 maxillary anterior teeth and 32 mandibular teeth. Appropriate local dental anesthesia (Mepecaine-L) 1 mg had been injected preoperatively unless declined by the patient. Treated teeth were isolated with rubber dam (OptraDam® Plus) (Ivoclar Vivadent, size S & M AG; USA) and saliva ejector. A conservative class V cavity was prepared on the buccal surface of each tooth with a #330 carbide bur (FG, Dentsply Midwest®) fixed to a high-speed handpiece with water coolant system. Cavity preparation was limited to the removal of caries, and the exact cavity form and size were obtained after caries removal. Each bur was discarded after 5 preparations (Nassar et al. 2014).

After cavity preparation, the dentin was conditioned for 10 s with Ketac™ Conditioner, washed and gently dried with a cotton pellet. Control and experimental restorative materials were mixed according to manufacturer instructions and then packed into the prepared cavities on the contra-lateral side of each tooth.

NHA-GIC and CGIC restorations’ finishing and polishing procedures were carried out immediately after initial setting of the restorative materials as recommended in the manufacturer's instructions for "single-visit treatment." On the other hand, NHA-RMGIC and RMGIC restorations were light-cured for 20 s prior to finishing and polishing. For all 120 restorations, excess material was removed with super-fine diamond burs under copious water coolant and restorations were polished with a SoF-Lex* abrasive disk. The restorations were finally coated with a thin layer of "EQUIA® Coat," and then light-cured for 20 s. Patients were instructed to maintain optimum oral hygiene measures and the importance of periodic follow-up and recall were highlighted.

The primary outcome measure was evaluation of the clinical performance of the tested restorative materials using modified (USPHS) criteria (Kharma et al. 2018) (Table 3). All criteria were evaluated at regular visits; at baseline (immediately) and after 3, 6 and 9 months. All the restorations were evaluated for the outcome by a single experienced, calibrated independent examiner who was blinded to the objectives of this study and tooth allocation. The restorations were evaluated visually by using mirror and probe under good operating light.

Table 3 Primary outcome, measuring devices and measuring units for in vivo study using modified (USBHS) criteria

All data about patient's enrollment, intervention, follow-up and data analysis are shown in CONSORT flow diagram 2010, Fig. 1.

Fig. 1
figure 1

Flow diagram of the study (Consolidated Standards of Reporting Trial) [CONSORT] 2010

Statistical analysis

Qualitative data were presented as frequencies and percentages. Wilcoxon signed-rank test was used to compare each group and its contra-lateral side. Friedman’s test was used to study the changes with time within each group. Chi-square test or Fisher’s Exact test (when applicable) were used to compare the groups. The significance level was set at P ≤ 0.05. Statistical analysis was performed with IBM® SPSS® Statistics for Windows, Version 23.0. Armonk, NY: IBM Corp.


  1. a.

    Results of Synthesized NHA characterization

  2. 1.

    Fourier transform infrared spectroscopy (FTIR) analysis

Figure 2 represents the FTIR spectrum of the prepared NHA by the wet chemical precipitation method. The figure shows all the characteristic bands for hydroxyapatite; the asymmetric stretching (v3) and bending (v4) modes of PO4−3 ion were detected at around 1067.9, 610.1 and 536.7 cm−1, respectively. The symmetrical stretching modes (v1) and (v2) of PO4−3 ion were also found at around 970.4 and 430.4 cm−1, respectively. The liberation and stretching mode of the OH– were detected at around 3471 and 1657 cm−1, respectively. The stretching vibrations, ascribed to CO32−, were also present at around 1400.1 and 816 cm−1. The bands at 3471.3 and 1657.5 cm−1 correspond to adsorbed H2O.

  1. 2.

    X-ray diffraction (XRD) analysis

Fig. 2
figure 2

FTIR spectrum of the prepared NHA

Figure 3 represents the XRD analysis of the prepared NHA. The characteristic peaks of NHA were clearly detected. Also, it was observed that most of the peaks fit well with hexagonal hydroxyapatite phase. The phase analysis of crystalline NHA shown was carried out with the help of Joint Committee on Powder Diffraction Standards (JCPDS) data card no. 09-0432. The grain size D of NHA was calculated.

  1. 3.

    Energy-dispersive X-ray (EDX)

Fig. 3
figure 3

XRD analysis of the prepared NHA

Figure 4 represents the elemental analysis of NHA, which indicates the elemental compositions of the material. The EDX spectra clearly showed that the prepared NHA constitutes mainly calcium and phosphate groups, while the weight percentages of calcium (Ca), phosphorous (P) and oxygen (O) element were found to be 31.26%, 21.92% and 46.82%, respectively.

  1. 4.

    Transmission electron microscope (TEM) observation

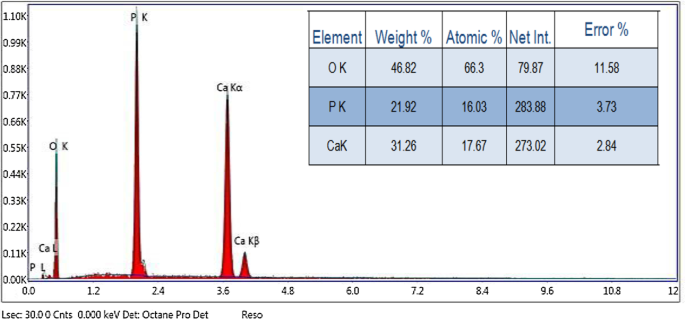

Fig. 4
figure 4

EDX spectra of the prepared NHA

Figure 5 represents a transmission electron microscope (TEM) photomicrograph of the prepared NHA. The morphology of NHA appears in nanostructure form and uniform rod shape. The crystalline size of the prepared NHA was estimated from TEM micrographs by image analysis, which has an estimated crystalline size about (20–80) nm in length and (10–25) nm in width.

  1. b.

    Results of characterization of Nano-HA-modified glass ionomer cements

Fig. 5
figure 5

TEM photomicrograph of the prepared NHA

Figures 6a, b and 7a, b represent TEM photomicrographs of the prepared NHA-GIC and NHA-RMGIC powder, respectively. The rod-shaped NHA particles were easily detected distributed inside the CGIC and RMGIC powder.

  1. c.

    Results of the in vivo study

Fig. 6
figure 6

a, b TEM photomicrographs of the prepared NHA-GIC powder

Fig. 7
figure 7

a, b TEM photomicrographs of the prepared NHA-RMGIC powder

Table 4 shows the frequencies, percentages (%) and results of the Chi-square test for comparisons of demographic data of the two main groups (CGIC, NHA-GIC) and (RMGIC, NHA-RMGIC). The table demonstrated that there was no statistically significant difference between the two groups as regards age distribution, gender distributions, marital status, arch and tooth types at P value 0.705, 0.713, 0.169, 0.243 and 0.480, respectively.

Table 4 Frequencies, percentages (%) and results of the Chi-square test for comparison of demographic data of the two main groups

Table 5 presents data for retention, color match, surface texture, surface staining, marginal discoloration, marginal integrity, secondary caries, and post-operative sensitivity at all evaluation periods. The total number of restorations assessed at each time period is given in percent, and the numbers in parenthesis indicate the total number of restorations classified as Alpha (A) + the total number of restorations classified as Bravo (B) in that evaluation period.

Table 5 Descriptive statistics and results of Fisher’s Exact test for comparison between the four groups

At baseline as well as after 3 months, all restorations in the four groups showed Alpha score for all evaluation criteria except for color match, surface texture, and postoperative sensitivity.

After 6 as well as 9 months, two patients had dropped out (6.7%) in each group. There was no statistically significant difference between the four groups for any of the evaluated criteria at each follow-up period.

Analysis of the changes with time within each group, revealed that there was no statistically significant change in most of the tested criteria through the study period. The exceptions were as follows. In the NHA-GIC group, there was a statistically significant change in color match, surface texture, and marginal integrity through the study period. In the CGIC group there was a statistically significant change in surface texture and marginal integrity through the study period. In the RMGIC group there was a statistically significant change in color match and surface texture through the study period. Finally, in the NHA-RMGIC group there was only a statistically significant change in surface texture through the study period.

The overall cumulative survival rate was 100% and a survival plot cannot be drawn since all tested restorative materials either, "control or experimental," showed Alpha and Bravo scores which were considered as successful.


This randomized clinical trial investigated the clinical performance of the modified, experimental cements (NHA-GIC and NHA-RMGIC) and compared the performance to their respective control cements (CGIC and RMGIC) in class V cavities at baseline (immediately) and after 3, 6 and 9 months using modified USPHS criteria (retention, color match, surface texture, surface staining, marginal adaptation, marginal discoloration, recurrent caries and post-operative sensitivity).

At the 9 month recall, all restorations, irrespective of material, showed excellent retention [93.3% (Alpha) rating], which confirms the results of previous studies (Loguercio et al. 2003; Franco et al. 2006; Jyothi et al. 2011; Fagundes et al. 2014). The high retention rate reported for both Fuji GC Gold Label 2 (CGIC) and Fuji II LC (RMGIC) might be related to their relatively good mechanical properties and better adhesion mechanism to dental tissue. The auto-adhesive capacity of GICs through the formation of ionic bonds between the carboxyl groups of polyalkenoic acid and hydroxyapatite in the tooth structure might have been responsible for higher retention rate of these materials (Shikumar et al. 2016). Moreover, the micro-mechanical interlocking of the polymer in RMGIC added another adhesion mechanism, which might participate in improving its retention rate (Jyothi et al. 2011). Another factor associated with the favorable retention performance of CGIC and RMGIC, was the fact that these materials have elastic modules close to that of tooth structure (Shikumar et al. 2016). This increases the strain capacity of the restorations and prevents their deformation under occlusal load, thus preserving the adhesion of the materials at the margins of the cavities (Abdalla et al. 1997). The fact that there was no significant difference between the experimental groups (NHA-GIC and NHA-RMGIC) and the control groups (CGIC and RMGIC) regarding the retention rates might be due to the similarity in general mechanical and physical properties between the control and the experimental cements.

The results of clinical performance regarding the color matching showed that there was no statistically significant difference between the four tested restorative materials during the study period. Nevertheless, there were statistically significant changes in the color matching criterion through the 9 months study period in the NHA-GIC and RMGIC groups. There was an increase in prevalence of Bravo scores and a decrease in prevalence of Alpha scores from 3 to 6 in NHA-GIC and RMGIC groups, as well as from 6 to 9 months in NHA-GIC. These results were in accordance with several previous clinical trials (Folwaczny et al. 2001; Sidhu 2010; Lee et al. 2010; Priyadarshini et al. 2017). The poor color match for both CGIC and RMGIC, control as well as experimental groups, could be related to the "chalking phenomenon" of glass ionomers which damages its appearance under dry conditions making the surface appear weak and opaque (Perdigão et al. 2012). Moreover, the presence of porosity and microcracks within the glass ionomer microstructure, might be another factor that affects the color stability of the tested cements. This allowed for the accumulation of oral fluid and stain adsorption and discoloration of the restoration (Priyadarshini et al. 2017). In addition, lack of color stability in GICs could be attributed to the polyacid content in the material, which could be explained by degradation of the metal polyacrylate salts. When GICs were exposed to acid attack (depending upon pH of the patient oral environment), H+ ions diffuse into the glass ionomer component and replace the metal cations in the matrix. These cations later diffuse outwards and get released to the cement surface. Thus, the material might become rough with voids, and undissolved glass particles result in greater water and food colorant absorption (Cardoso et al. 2010). Moreover, RMGIC "Fuji II LC, improved" undergoes color change during polymerization of the resin components as the acid–base reaction is retarded. This delayed acid–base reaction in addition to water sorption by the resin components within RMGIC might result in post-polymerization color change (Adusumilli et al. 2016). Furthermore, the hydrophilic monomers, incomplete polymerization, residual HEMA molecules after light-curing, physical adsorption and desiccation might also affect the color stability of RMGIC and increase its potential body discoloration and surface staining (Cardoso et al. 2010; Hussainy et al. 2018).

In contrast to these results Hussainy et al. (2018) observed close color matching and high color stability of RMGIC "Fuji II LC, improved" to the tooth structure with Alpha scores of 100% and 95%) after 6 months and one year, respectively. The differences in the results might be explained by the carious cervical lesions which were selected for this study rather than the non-carious cervical lesions which were selected for the other studies (Priyadarshini et al. 2017; Hussainy et al. 2018). Therefore, the cavities might be deeper in the present study with subsequent increase in the volume of the restorations. This might result in higher rate of water sorption and more pronounced color change (de Oliveira et al. 2012). Moreover, it was suggested that the color stability of RMGIC was shade dependent (Yap et al. 2006).

Regarding the surface texture of the restorative materials, the results showed that there was no statistically significant difference among the four tested restorative materials during the 9 months study period. However, there was an increase in the prevalence of Bravo scores and a decrease in prevalence of Alpha scores from; baseline to 3 in NHA-GIC group and from 3 to 6 as well as 6–9 months for all tested restorative materials. These results were in consistence with those of other studies (Folwaczny et al. 2001; Jyothi et al. 2011; Sooraparaju et al. 2014; Hussainy et al. 2018).

The decrease in the quality of the surface texture of CGIC and RMGIC, control or experimental, might be related to the influence of microstructure and mean filler particles size of the restorative materials on its physical properties and abrasion resistance. In the current study, the rough surface texture for the tested RMGIC (Fuji II LC, improved) might be contributed to the larger and irregular filler particles size which were approximately about (4–5 µm) (Abdalla et al. 1997; Loguercio et al. 2003; Sidhu 2010; Jyothi et al. 2011; Fagundes et al. 2014; Shikumar et al. 2016; Priyadarshini et al. 2017).

Moreover, this value was much higher than the wave-length of the light (350–750 nm), so these particles scatter light and produce opaque materials (Jyothi et al. 2011; Konde et al. 2012). In addition, conventional GIC (Fuji II Gold Label 2) was found to present larger mean particle sizes, more sensitivity to water sorption and longer setting time than RMGIC, which might be responsible for the high surface roughness obtained by GIC (Pacifici et al. 2013).

Another factor might explain the pitted or rough surface of glass ionomers restorations; in the present study glass ionomer cements were used in "powder and liquid" form rather than "encapsulated" form, which was mandatory to allow for incorporation of NHA in a correct way. Manual mixing might incorporate air bubbles and decrease polymer conversion due to inhibition of the setting reaction by oxygen in the bubbles, which introduces voids and porosity leaving behind a rough, plaque retentive surface and staining (Priyadarshini et al. 2017).

In addition, surface roughness of glass ionomers restorative materials may be related to the final surface resin coating (varnish). This resin coat may represent an area of weakness at the resin coat-GIC interface, especially under-functioning force. This might result in bond failure between the GIC and the overlying coating, which creates a high roughness area and a gap on the restoration surface (Yap et al. 2006).

According to the present study, there was a statistically significant, positive relation between surface texture and color match. This observation is in accordance with another previous study (Nassar et al. 2014). This could be related to the rough surfaces of restorations which positively favor the accumulation of dental plaque and staining from dietary habits, resulting in a change in surface properties of the restorations, such as surface gloss and color stability. Moreover, it has been found that an increase in surface roughness results in an increase in the degree of random reflection of light with subsequent decrease in color properties (Pacifici et al. 2013; Nassar et al. 2014). Regarding the surface staining criterion, results showed that there was no statistically significant change through the study period for any of the restorative materials. Moreover, there was no significant difference between the four materials during the 9 months study period. This observation was similar to that of Jyothi et al. (2011), which might be related to the relatively short follow-up duration as surface staining is usually recorded after long period.

The results showed that there were statistically significant changes in marginal integrity criterion through the study period in the CGIC and NHA-GIC groups. Thus, there was an increase in the prevalence of the Bravo score and a decrease in the prevalence of the Alpha score from 3 to 6 as well as from 6 to 9 months for these groups. At the same time, there was no significant change in marginal integrity through the study period in the RMGIC and NHA-RMGIC groups. This result was in agreement with other previous studies (Franco et al. 2006; Fagundes et al. 2014; Adusumilli et al. 2016; Shikumar et al. 2016; Hussainy et al. 2018).

The differences in the marginal adaptation of CGIC (Fuji GC gold label) in comparison to RMGIC (Fuji II LC, improved), could be explained by the sensitivity of CGIC to humidity in the early period, which increases the solubility of the cement. On the other hand, RMGIC sets by instant resin polymerization, which makes RMGICs more resistant to moisture contamination and hence results in better marginal adaptation (Bapna et al. 2002).

Another reason for the inadequate marginal adaptation in GIC groups could be related to the immediate finishing/polishing procedure of the "one-visit treatment." This immediate finishing/polishing could compromise the marginal seal of GIC to the tooth, as the material is still soft during its initial setting (Fagundes et al. 2014).

Moreover, GIC cervical restorations can be abraded more easily by tooth brushing with dentifrices compared to RMGIC restorations, which exhibit higher resistance to toothbrush wear (Rekha et al. 2012). Also, GICs are more subjected to erosion and microhardness loss over time in comparison to RMGICs. This could be explained by matrix dissolution that occurs in the periphery of the glass particles of CGICs and could result in dissolution of the siliceous hydrogel layer (Rekha et al. 2012; Meral and Baseren 2019). All these factors might contribute to the poor marginal adaptation observed in the GICs groups.

Contradictory results to this study have been reported by Sidhu (2010), who found unsatisfactory marginal integrity results for RMGIC restorations. The author attributed that to the hygroscopic expansion of glass ionomer components, which might result in minor marginal fractures at the interface between the tooth and the restoration. This difference in observations could be explained by multiple variables contributed between different study designs that might affect the outcome, such as cavity design, size of restorations and operator variability. Additionally, other factors, such as the bonding capacity of the restorative material, light-curing device and technique, follow-up period, pH and temperature fluctuation in the patient's mouth could also explain the difference in results between the studies.

There was no significant change in the marginal discoloration criterion through the study period for any of the tested materials. This is in agreement with findings from other studies (Abdalla et al. 1997; Franco et al. 2006; Lee et al. 2010; Sidhu 2010; Perdigão et al. 2012; Fagundes et al. 2014; Adusumilli et al 2016; Shikumar et al. 2016; Priyadarshini et al. 2017; Hussainy et al. 2018). The cavosurface marginal discoloration might be considered a sign of microleakage, which occurs when there are marginal gaps. The absence of marginal discoloration with CGIC and RMGIC, control and experimental groups, was considered as an indication of good bonding of these materials to tooth structure without microleakage (Jyothi et al. 2011).

The results showed absence of failures due to secondary caries with the four tested restorative materials after the 9 months follow-up period. This result is in accordance with other previous studies (Franco et al. 2006; Jyothi et al. 2011; Fagundes et al. 2014). Secondary caries at the margin of the restoration are rarely detected in GIC restorations. This might be related to a demineralization inhibition effect of GICs due to continuous fluoride release over time, which possibly produces a cariostatic action (Dias et al. 2018).

The present clinical trial found no significant difference in post-operative sensitivity among the tested groups during the study period. However, some patients exhibited mild hypersensitivity immediately (at baseline) in the RMGIC, GIC and NHA-RMGIC groups. This finding was in agreement with Gurgan et al. (2015); and Hussainy et al. (2018). Post-operative sensitivity might be attributed to several factors, such as operative trauma, marginal leakage and desiccation. The absence of post-operative sensitivity in the current study may be explained by the absence of marginal leakage together with the clinically acceptable properties of materials that minimize the hydrostatic fluid movement within the dentinal tubules (Hussainy et al. 2018). However, the presence of immediate hypersensitivity (at baseline) may result from mechanical irritation during the restorative procedures or following the finishing and polishing procedure. In this study, the initial hypersensitivity was decreased over time and had disappeared completely at the 3 months follow-up.

In the present study, the cumulative survival rate at the 9 months follow-up for the four tested materials NHA-GIC, NHA-RMGIC, CGIC and RMGIC was 100%. This is in agreement with previous short-term evaluations performed with similar restorative materials (Yap et al. 2006; Nassar et al. 2014) or even with long-term evaluations (Loguercio et al. 2003; Franco et al. 2006; Jyothi et al. 2011; Fagundes et al. 2014). These studies found that glass ionomer cement and resin-modified glass ionomer considered the most retentive materials for the management of cervical lesions.

This insignificance difference between the experimental NHA groups and control groups in the current study could be attributed to two main reasons: First, the tested materials may not really differ, but possess similar mechanical and physical properties, and thus show no clinical difference in survival rates. Secondly, a 9 months follow-up period can be considered a very short period to evaluate the long-term clinical behavior of dental restorative materials (Gӧstemeyer et al. 2016).

Finally, the null hypothesis of the present study was accepted, as the 9 months clinical performance of the modified NHA-GIC and NHA-RMGIC did not differ from that of CGIC and RMGIC. However, further long-term clinical studies are required.


Within the limitations of the current clinical trial, it could be concluded that there was no benefit of incorporating 5% NHA into "Fuji GC Gold Label” and “Fuji II LC, improved" regarding their 9 months clinical performance in class V cavities.
