Effects of alkali solution on the dissolution kinetics and optimization processes of iron from Akwuke ore

Abstract

Background

The dissolution process kinetics and optimization of iron from Akwuke ore were investigated in this study. The effects of process parameters such as agitation rate and ore particle size on the dissolution process were also examined. The Akwuke ore was characterized employing the XRD, FT-IR, SEM, and UV-spectroscopy.

Results

The results from the rate constants indicated that the diffusion through the boundary layer process with R² > 0.96 was the rate-determining mechanism. The maximum iron dissolution rate of 83.2% was obtained at 45-μm particle size while 81.2% and 72.6% iron dissolution rates were obtained at 490 and 390 rpm agitation rates, respectively. Silicon oxide, aluminum oxide, and iron oxide were present in Akwuke ore as indicated from the XRD analysis. The RSM predicted optimum value of the iron dissolution rate from the numerical optimization was experimentally validated to confirm the satisfactory performance of the quadratic model.

Conclusion

This study concludes and presents the potential extraction of iron from Akwuke ore, which will be of immense benefit in hydrometallurgical process.

Background

Globally, the demand for iron is steadily on the increase, and this is because it is used in civil engineering constructions as an excellent reinforcement in building bridges and houses. Also, the utilization of iron in steel manufacturing has been reported. Iron as one of the most prevalent of all metals is also among the earth’s crust abundant elements. Iron ores are embedded in minerals such as hematite, pyrite, and ilmenite in the form of iron (III) oxide (Olvera-Venegas et al. 2017). However, oxides in iron constitute impurities that require removal as it affects the commercial value of iron. Different hydrometallurgical extraction processes have been used to study the extraction processes of iron and other valuable metals of interest from their oxide bearing nature (Kokes et al., 2014). Recently, attention has been directed towards the use of acid or alkaline reagents in the dissolution process to extract valuable metals from their oxide nature. Previously, Nadeem et al. (2014) used formic acid as a dissolution reagent in the leaching studies of magnesite from magnesite ore. Olvera-Venegas et al. (2017) investigated iron dissolution from kaolin using bisulfate from sodium thiosulfate as a reducing agent and citric acid as a complexing agent. Also, in a study carried out by Seyed and Azizi (2018), lead and zinc were leached out from an Iranian low-grade oxide ore with maximum recoveries of 72.12% and 85.52%, respectively. However, to the best of our knowledge, there are no studies on the alkaline dissolution process of iron from Akwuke ore, which is the focus of this study. Accordingly, the objective of this work is to examine the dissolution of iron from Akwuke ore using sodium hydroxide (NaOH) as a dissolution reagent after the initial analysis of Akwuke ore confirmed the presence of iron in oxide form. The characterization of Akwuke ore and the effects of process parameters (agitation rate and ore particle size) that affected the iron dissolution process were investigated. Also, the dissolution kinetics and numerical optimization of the process parameters were evaluated.

Methods

Raw material collection and preparation

The Akwuke ore sample was obtained from the Akwuke community located in Enugu State Nigeria. The ore sample was crushed and dried after which it was sieved. The ore sample was homogenized after oven drying it at 100 °C.

Characterizations of Akwuke ore

The various phases in the Akwuke ore were identified using Siemen D500 XRD. The XRD analysis was performed at a 1° divergence slit between the 2Ѳ ranges of 20–70° while maintaining the voltage at 35 kV. Phase and elements identification was made using the joint committee on powder diffraction standard (JCPDS) file number. The Fourier transform infrared (FTIR) analysis of the raw ore sample was analyzed using a SHIMADZU 8400s infrared spectrophotometer. The spectra pattern was observed in transmission mode with a resolution of 4 cm¯¹ in the range of 4000 to 350 cm¯¹. The ore sample was analyzed at three different particle sizes using SEM (ASPEX 3020) at 10 kV to determine their surface morphological characteristics. The UV-VIS spectrophotometer (SHIMADZU UV-1900i) was used to examine the Akwuke ore at a wavelength between 200 and 1000 nm.

Dissolution procedure

The dissolution process of Akwuke ore was examined in a 250-mL beaker using 20 g of the ore sample. The beaker was heated on a hot plate which contained a magnetic stirrer for continuous mixing. The experiment was conducted at room temperature with 3M sodium hydroxide (NaOH) concentration, which was prepared as the dissolution reagent and put into the beaker. At a constant solid to liquid ratio, 20 g of the ore sample at different particle sizes (45–600 μm) was added into the beaker containing NaOH. The solution was mixed at varying agitation rates (90–490rpm). After the specified time, agitation rate, and particle size, the samples were withdrawn from the beaker filtered and the liquid phase analyzed for iron content using the atomic absorption spectrophotometer (iCE 3000 series ThermoFisher scientific). The dissolution rate of iron from Akwuke ore was calculated following Seyed and Azizi (2018) and expressed in Eq. (1).

$$ R\ \left(\%\right)=\frac{C_A\times V}{C_O\times M}\times 100 $$

(1)

From Eq. (2), R (%) is the dissolution rate of Iron; C_A (gL¯¹) is the concentration of iron in the dissolution liquor; V (L) is the dissolution liquor volume; C_o is the iron content in the oxide ore; and M (g) is the mass of the iron oxide.

Statistical analysis

The statistical method used in this study investigates the kinetic model validity by estimating the degree of correlation between the experimental and model calculated data. The correlation coefficient (R²) and the root mean square error (RSME) of Eqs. (2) and (3), respectively, were used to judge the degree of the model representation of experimental data (Kitanovic et al. 2008). The model goodness of fit to experimental data was evaluated using the lower values of RMSE and higher R² values (Kitanovic et al. 2008). From Eqs. (2) and (3), Xexp and Xcal are experimental and model calculated conversion values; n is the number of data points.

$$ \mathrm{R}2=1-\frac{\sum_{n=1}^n{\left( Xexp- Xcal\right)}^2}{\sum_{n=1}^n{\left( Xexp- Xcal\right)}^2} $$

(2)

$$ {\displaystyle \begin{array}{l}\mathrm{RMSE}\ \left(\%\right)=\sqrt{\frac{1}{\mathrm{n}}}{\sum}_{n=}^n{\left(\frac{\mathrm{Xexp}-\mathrm{Xcal}}{\mathrm{Xexp}}\right)}^2\kern2em \\ {}\end{array}} $$

(3)

Experimental design methodology

The central composite design (CCD) of response surface methodology (RSM) with two categorical variables was employed to correlate and study the influence of the ore particle size and agitation rate on the dissolution rate (%) of iron from Akwuke ore. The CCD methodology allows the investigation of a quadratic model for the response (% dissolution rate). The quadratic model which correlates the relationship between the response (Y) and the independent variables under investigation is presented in Eq. (4).

$$ Y=\beta o+{\sum}_{j=1}\beta i. xi+{\sum}_{j=1}\beta i i.{xi}^2+{\sum}_{i=1}{\sum}_{j=2}\beta i j. xi xj+e $$

(4)

where xi, xi², and xixj are the linear, quadratic, and interactive terms of the quadratic model, respectively, while e is the random error (Elibol, 2002). βo, βi, βii, and, βij represent the intercept, coefficients of the linear, quadratic, and interactive terms, respectively, as shown in Eq. (4). The Design Expert (version 7.0, Stat Ease Inc. Minneapolis, USA) was used for statistical analysis. The statistical significance for the ANOVA of the quadratic model was investigated using the p value, F value, R², and the lack of fit test (Elibol, 2002). The levels and ranges of the independent variables in the CCD design are presented in Table 1. The experimental design matrix in terms of the actual values of the independent variables (ore particle size and agitation rate) with the corresponding actual and predicted responses is shown in Table 2. The response surface plots generated from the significant model equation was used to study the interactive effects of the independent variables on the response (Ani and Ochin, 2018). Furthermore, a numerical optimization process was used to predict the optimum dissolution rate of iron from Akwuke ore, which was validated experimentally.

Table 1 Independent variables and levels

Table 2 Experimental design matrix with responses

Kinetics of iron dissolution from Akwuke ore

The dissolution process of metals from ores of different types involves a heterogeneous solid to liquid reactions (Liddell, 2005). To understand the dissolution process kinetics, the shrinking core model, which was explained in detail by Liddell (2005) is widely used. However, the dissolution process of iron from Akwuke ore is a rate-limiting phenomenon. The rate-limiting mechanism of the iron dissolution process was investigated using the surface chemical reaction (Eq. (5)) and the diffusion-controlled (Eq. (6)) processes of the shrinking core model (Liu et al. 2014; Das et al. 2015). The suitability of the shrinking core model emanates from the fact that it relates the conversion fraction (X) of the ore solid particle to the reaction rate constant (K) and reaction time (t) (Liu et al. 2014; Das et al. 2015).

$$ 1-{\left(1-\mathrm{X}\right)}^{1/3}={\mathrm{K}}_{\mathrm{s}}.\mathrm{t} $$

(5)

$$ 1-\frac{2}{3}X-{\left(1-X\right)}^{\frac{2}{3}}={K}_d\cdot \mathrm{t} $$

(6)

The rate constant for the surface chemical reaction (K_s) was obtained from the slope of the linear plot of 1 − (1 − X)^1/3 versus time (t) using Eq. (5). Also, the rate constant for the diffusion process (K_d) was obtained from the slope of the linear plot of $1-\frac{2}{3}X-{\left(1-X\right)}^{\frac{2}{3}}$ versus time (t) using Eq. (6). The obtained rate constants with their corresponding R² values were used to judge the rate-limiting mechanism that governs the dissolution process of iron from Akwuke ore. However, the rate-limiting mechanism was believed to be the slowest step between the surface chemical reaction and the diffusion-controlled processes of the shrinking core model (Asim et al. 2013; Baba et al. 2014; Yi et al. 2014).

Results

Effects of process parameters

Effect of particle size and agitation rate on iron dissolution from Akwuke ore

The effects of ore particle sizes on iron dissolution rates from Akwuke ore was investigated at room temperature while varying the particle sizes from 45 μm, 75 μm, 150 μm, 300 μm, and 600 μm. Other experimental conditions such as agitation rate and reaction time were kept constant at 490 rpm and 240 min, respectively. Experimental results in Fig. 1 showed that the iron dissolution rate from Akwuke ore increased from 78.4 to 83.2% at lower ore particle sizes of 75 μm and 45 μm, respectively. The rate of iron dissolution from Akwuke ore was also found to have decreased at 150 μm (62.1%), 300 μm (57.2%), and 600 μm (43.3%).

Fig. 1

Effects of ore particle sizes on the dissolution rate of iron from Akwuke ore

The effects of agitation rates on the dissolution rates of iron from Akwuke ore were examined at room temperature in the ranges of 90–490 rpm under the following constant conditions of 45-μm particle size and 240 min reaction time. Results showed that the dissolution rates of iron from Akwuke ore increased rapidly with an increase in agitation to the optimum rates of 72.6% and 81.2% at 390 rpm and 490 rpm, respectively (Fig. 2). The result in Fig. 2 indicates that the dissolution rates at 90 rpm, 190 rpm, and 290 rpm were 41.1%, 46.8%, and 56.2%, respectively.

Fig. 2

Effects of agitation rates on the dissolution rate of Iron from Akwuke ore

Kinetics of iron dissolution from Akwuke ore

The rate constants for the surface chemical reaction process (Ks) as shown in Tables 3 and 4 were within the ranges of 0.0019–0.0025 min¯¹ and 0.0013–0.0022 min¯¹ for the agitation rate and ore particle size, respectively. Also, from Tables 3 and 4, the rate constants for the diffusion-controlled process (Kd) were within the ranges of 0.0016–0.0021 min¯¹ and 0.0010–0.0020 min¯¹ for agitation rates and ore particle sizes, respectively. Observations made from the rate constants showed that the rate-determining mechanism governing the dissolution of iron from Akwuke ore favored the diffusion-controlled process. The obtained R² values were also in support of the diffusion-controlled process as the rate-determining mechanism. This was as the R² values for Kd were within the ranges of 0.995–0.998, while for Ks it was within the ranges of 0.918–0.996 (Tables 3 and 4). The experimental kinetic plots obtained at different agitation rates and ore particle sizes are presented in Figs. 3, 4, 5, and 6.

Table 3 Rate constants and R² at different agitation rates

Table 4 Rate constant and R² at different ore particle sizes

Fig. 3

Plot of 1 − (1 − X)^1/3 versus dissolution time at different agitation rates

Fig. 4

Plot of 1 − (1 − X)^1/3 versus dissolution time at different ore particle sizes

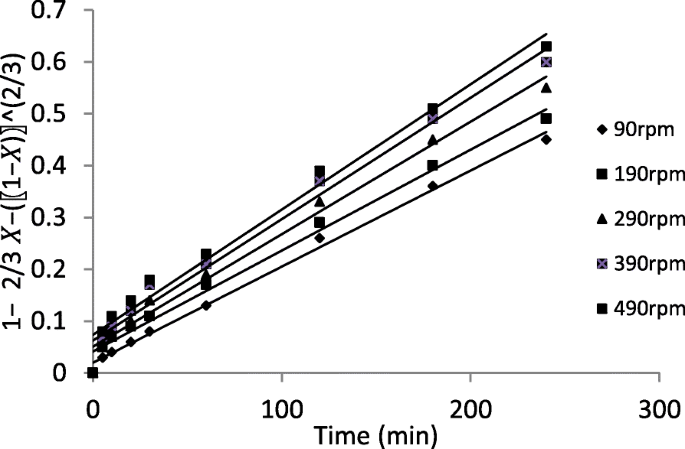

Fig. 5

Plot of $1-\frac{2}{3}X-{\left(1-X\right)}^{\frac{2}{3}}$ versus dissolution time at different agitation rates

Fig. 6

Plot of $1-\frac{2}{3}X-{\left(1-X\right)}^{\frac{2}{3}}$ versus dissolution time at different ore particle sizes

Discussion

UV analysis of Akwuke ore

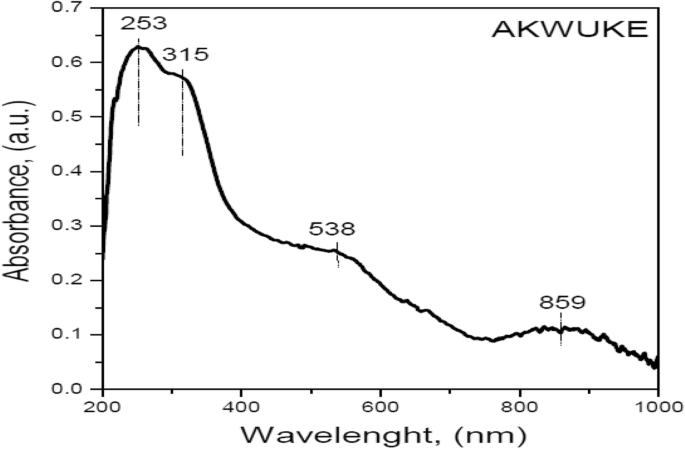

The UV spectroscopy investigates the bonding structure and organic nature of the Akwuke ore. The peak ranges were from 200 to 1000 nm while four visible peaks were observed from the UV spectrum of Akwuke ore as shown in Fig. 7. The wavelength at maximum absorbance (ʎmax) was observed at 253 nm and was indicative of the charge transition in montmorillonites which was within the ranges of 24–255 nm (Manoj and Kunjomana, 2011). The charge transition could be attributed to the migration of an electron to an oxo-ligand in the Akwuke ore. The saturated absorbance in some montmorillonites with divergent scattering might be responsible for the UV wavelength at 315 nm which shifted downwards to 538 nm. The UV light absorbance in Akwuke ore reduced at a higher wavelength (859 nm) and might be due to a large conjugated system in the Akwuke ore, which tends to shift the peak towards a long wavelength (Fig. 7).

Fig. 7

UV-visible spectroscopy of Akwuke ore

XRD analyses of Akwuke ore

The pattern of the XRD analysis of Akwuke ore in the 2Ѳ range at about 20–70° is presented in Fig. 8. Accordingly, the elements in oxide form in Akwuke ore could also be seen in Fig. 8. These elements with their corresponding JCPDS file number includes Silicon oxide (42–0022), aluminum oxide (46–1215), iron oxide (40–1139), sphalerite (01–0792), and cassiterite (41–1445). The presence of iron oxide (Fe₂O₃) indicated the possibility of leaching out this compound (iron) from Akwuke ore. The mineralogical composition of Akwuke ore also showed the presence of a siliceous mineral in the form of Silicon oxide otherwise known as quartz (Fig. 8). The structural packing of the Akwuke ore layer arrangement was also investigated using the XRD analysis. Results deduced showed that silicon oxide and cassiterite existed in tetragonal sheet arrangements. Iron and sphalerite existed in the hexagonal sheet arrangements while aluminum oxide existed in the orthorhombic sheet arrangement.

Fig. 8

XRD pattern of Akwuke ore with identified elements

FTIR analysis of Akwuke ore

Since the inorganic nature of the Akwuke ore is known to be embedded with metal oxides, the FTIR spectroscopy was used to study the functional groups of these metallic oxides. The FTIR spectrum of Akwuke ore is presented in Fig. 9, and it ranges from 3460 to 457 cm¯¹. The peak at the vicinity of 3460 cm¯¹ was indicative of the characteristics vibration of the OH stretching in silicates and water compounds. This vibration is similar to 3406.30 cm¯¹ observed from the FTIR spectrum analysis of azaraegbelu clay ore (Ohale et al. 2017) and was attributed to the OH stretching in most silicates (Ohale et al. 2017). The band at 1583.93 cm¯¹ was due to the CO₃ stretching of calcite, which was indicative of hectorite (Madejova and Komadel, 2001). The peak at 1098.36 cm¯¹ was assigned to the Si–O stretching of cristobalite in montmorillonite. The Si–O stretching vibration was observed at 801 cm¯¹ and was indicative of silica. Also, the Si–O deformation of feldspar in palygorskite appeared at 457 cm¯¹ (Fig. 9).

Fig. 9

FTIR analysis of Akwuke ore

Scanning electron microscope (SEM)

The surface morphologies of the investigated Akwuke ore at three different particle sizes are shown in Fig. 10. The micrographs were captured at 6 μm, 20 μm, and 60 μm. At 6 μm in Fig. 10a, the micrograph shows a rough, porous, and spherical surface. The porous and rough surface could be due to the natural weathering process, which was intense in the area where the ore was located. There was no much difference between the 20 μm and 60 μm SEM micrographs (Figs. 10b, c) as both showed filamentous and irregular edges, which was identical with hematite (Baioumy et al. 2013).

Fig. 10

a–c SEM analysis of Akwuke ore at particle sizes of a 6 μm, b 20 μm, and c 60 μm

Effect of particle size and agitation rate on iron dissolution from Akwuke ore

The finer grind of ore particles produced at 45 μm and 75 μm may have allowed the alkali to penetrate the internal pores of the ore, contributing to an increase in the iron dissolution rate (Fig. 1). Also, previous studies reported that the finer ore particles produced at lower particle sizes provided an increased surface area to alkaline volume ratio, which enhanced the dissolution rate (Nadeem et al. 2014; Madakkaruppan et al. 2016; Seyed and Azizi, 2018).

The observations made from the particle size effect further indicated that the coarse nature of the ore particles might not be suitable for the iron dissolution. The findings of this study indicated that increasing the ore particle size reduced the dissolution rate of iron from Akwuke ore and was in strong agreement with previous works on the dissolution process of metallic oxides from ores (Baba et al. 2012; Jianrong et al. 2016; Madakkaruppan et al. 2016; Adekola et al. 2018).

However, the 490 rpm and 390 rpm agitation rates might have permitted a homogenous mixing of the alkaline solution with the reacting ore particles, which resulted in a higher dissolution rate (Fig. 2). Also, Madakkaruppan et al. (2015) reported that the increase in agitation rate enhances reagent diffusion to the surface of the reacting ore particle resulting in improved dissolution and process kinetics.

Comparative fitness of the kinetic models

The rate-determining mechanism between the surface chemical and diffusion-controlled processes of Eqs. (5) and (6), respectively, was further investigated. This was done by plotting the experimental conversion values (Xexp) and model calculated conversion values (Xcal) for both processes as shown in Fig. 11a, b. The degree of correlation between the experimental and calculated conversion values was judged from the R² values in Fig. 11a, b. It can be seen from Fig. 11a that the diffusion-controlled process gave a good correlation between the experimental and calculated conversion values with R² value of 0.977 when compared to the surface chemical process with R² value of 0.882 in Fig. 11b. Similarly, in the kinetics of chromium dissolution from Philippine chromite ore, Chen et al. (2013) reported that the diffusion process gave a better straight line with a relatively good fit (R² > 0.98). The criteria for evaluating the fitness of the kinetic models to experimental data was also investigated using the RMSE tool. The RSME values for both the diffusion-controlled and surface chemical processes are shown in Fig. 11a, b. Observations made indicated that the RSME value for the diffusion-controlled process was less than 5% while it was greater than 5% for the surface chemical process. These results further validate the diffusion-controlled process as the rate-limiting and suitable mechanism for the iron dissolution process from Akwuke ore.

Fig. 11

a, b Correlations between experimental and calculated conversion values

Analysis of variance (ANOVA)

Examining the ANOVA of the quadratic model in Table 5, it was found that the p value of the model term AB was insignificant (p > 0.05). The insignificant term was removed from the model (Eq. (7)) to obtain a significant model equation (Eq. (8)) that contains only the significant variables (Ferdowsi and Yoozbashizadeh, 2017). The significant model of Eq. (8) was used to investigate the effects and interactions of the agitation rate and ore particle size on the rate of Iron dissolution. The model p value of 0.0003 indicated the statistical significance of the quadratic model in predicting the iron dissolution rate (Table 5). The model with an R² value of 0.888 implies that 88.8% of the iron dissolution process was explained by the model. The R² value of 0.888 was also in good conformance with the predicted and adjusted R² values of 0.869 and 0.806, respectively (Table 5). The closeness of the R² values further indicated the suitability of the quadratic model in explaining the relationship between the rate of Iron dissolution and the independent variables of agitation rate and ore particle size (Ani and Ochin, 2018). The adequacy of the model was also confirmed through the mode lack-of-fit test. The model non-significant lack-of-fit (0.22) implies a good fit of the proposed model (Ani et al. 2018). The model adequate precision of 7.241 indicated a proper signal to noise ratio of the model as it was greater than 4 (Ferdowsi and Yoozbashizadeh, 2017; Zhang et al. 2010).

Table 5 ANOVA for response surface quadratic model

Model equation

$$ \left(\%\right)\ \mathrm{dissolution}=+65.43001+0.063714\mathrm{A}+0.076334\mathrm{B}-1.00450\mathrm{E}-005\mathrm{AB}-9.05787\mathrm{E}-005{\mathrm{A}}^2-1.36628\mathrm{E}-004{\mathrm{B}}^2 $$

(7)

Significant model equation

$$ \left(\%\right)\ \mathrm{dissolution}=+65.43001+0.063714\mathrm{A}+0.076334\mathrm{B}+9.05787\mathrm{E}-005{\mathrm{A}}^2-1.36628\mathrm{E}-004{\mathrm{B}}^2 $$

(8)

Numerical optimization of the process variables

The optimization process aims to predict the optimum values of the independent variables of the agitation rate and ore particle size. However, at the predicted optimized values, a maximum iron dissolution rate was achieved. The ranges of variables and goals with weight and importance were properly placed as shown in Table 6. The optimization process using Design Expert 7.0 predicted the optimum agitation rate and particle size of 366.00 rpm and 48.00 μm, respectively. At these optimized values, a maximum iron dissolution rate of 86.35% was obtained from Akwuke ore (Table 6). The optimized particle size value of 48.00 μm was also in conformance with previous studies that reported that the reduction in ore particle size to a finer grain enhanced the dissolution process (Baba et al. 2012; Asim et al. 2013; Chen et al. 2013; Madakkaruppan et al. 2016). The optimized iron dissolution rate of 86.35% was further validated experimentally using the optimized values of 366.00 rpm and 48.00 μm for agitation rate and particle size, respectively. The result shows that the iron dissolution rate of 82.3% was obtained after the experimental validation. This value was close enough to the predicted value of 86.35%, which confirmed the adequacy of the quadratic model.

Table 6 Numerical Optimized solutions and values for the quadratic model

Diagnostic and response surface plots

The confirmation of the model validity was evident as the normal probability plot in Fig. 12 shows a straight line. This indicates that the residual plots were properly aligned to the model fitted regression line. The interactive influences of the particle size and agitation rate on the iron dissolution from Akwuke ore were investigated. The significant model of Eq. (8) was used to construct the 2D contour and 3D response surface plots in Figs. 13 and 14. The lines of the 2D contour plot in Fig. 13 indicated a particular response (iron dissolution) obtained from the interactive effects of the ore particle size and agitation rate. The contour lines indicated that a maximum iron dissolution rate of 84.04% was obtained from Akwuke ore. Fig. 14 shows the 3D response surface plot of the iron dissolution process from Akwuke ore as a function of ore particle size and agitation rate. It was evident from the 3D surface plot that the increase in agitation rate and reducing the ore particle size gave a better iron dissolution result. This was as the surface curve increased towards the increase in agitation rate and decreased towards the ore particle size (Fig. 14).

Fig. 12

Normal probability plot of residual

Fig. 13

Interactive 2D contour response surface plot for ore particle size and agitation rate

Fig. 14

Interactive 3D response surface plot for ore particle size and agitation rate

Conclusion

In this study, the iron dissolution process from Akwuke ore was investigated and the following conclusions were drawn.

• The characterization of Akwuke ore by XRD showed the presence of iron oxide, silicon oxide, and aluminum oxide while the FTIR result indicated the presence of hectorite and montmorillonite.

• Under the process conditions of ore particle size of 45 μm and agitation rate of 490 rpm, the dissolution rate of iron from Akwuke ore was 82.2% and 81.2%, respectively.

• The kinetic analysis supported the diffusion process of the shrinking core model as the rate-determining mechanism governing the iron dissolution process from Akwuke ore.

• The quadratic model of the CCD was used to model the iron dissolution process while the numerical optimization process of the CCD predicted a maximum iron dissolution rate of 86.35% with agitation rate and ore particle size of 366.00 rpm and 48 μm, respectively.
