Alkali delignification and Bacillus sp. BMP01 hydrolysis of rice straw for enhancing biofuel yields

Abstract

Background

Lignocellulose biomass such as agricultural residues is increasingly important for biofuel production. Using agricultural residues like rice straw for biofuel production has dual purposes of utilizing the huge waste generated. The abundant availability and high polysaccharide contents are the main reason for biofuel production. However, the use is limited due to the reluctant nature of lignin in the biomass. Therefore, sodium hydroxide was used for solubilizing lignin and preserving the polysaccharides.

Results

About 71.29% of lignin (maximum amount of lignin) was removed after 7% sodium hydroxide (NaOH) pretreatment followed by 3% pretreatment (about 67.13%). Also, maximum cellulose (about 71.33%) was preserved after 7% NaOH pretreatment. Results of reducing sugars obtained by spectrophotometric analysis (3,5-dinitrosalycilic acid method) of pretreated rice straw show about 88.27% conversion (753 mg/g) after the 13th day of hydrolysis by bacteria isolated from a termite. FE-SEM, XRD, FTIR, and TGA analyses show a significant amount of lignin was removed which helps in releasing cellulose tangled in lignin.

Conclusion

Rice straw pretreatment at 7% NaOH and hydrolysis by Bacillus sp. BMP01 achieved the release of a high yield of fermentable sugars that increased the yield of bioethanol. This study demonstrates the potential of alkali pretreatment coupled with microbial hydrolysis for efficient bioethanol production from agricultural residues like rice straw.

Background

Rice is one of the most common staple foods in the world in which half of the world population relies on it. Both in terms of consumption and growth, Asia alone accounts for about 90%. From every 4 tons of rice grain produced, 4–6 tons of straw is obtained (Poornejad et al. 2013). Annually, about 550 million tons of straw and 110 million tons of husks are produced in Asia alone. Leaving rice straw on the soil causes emissions of methane to the atmosphere and delays the land preparation for the next cropping. Also, burning can cause air pollution and health problems (Binod et al. 2010). Therefore, alternative ways of disposing of the straw by reducing environmental risks are required. Besides this, rice straw can be used for alternate renewable energy resources through processes of chemical, physical, physicochemical, or biological pretreatments. The abundance and high amount of polysaccharide content make it an ideal raw material for biofuel production. However, it is reluctant to enzymatic and microbial attacks making it difficult to use for biofuel production (Rastogi and Shrivastava 2017). Hence, pretreatment is required before hydrolysis and fermentation of polysaccharides to increase biofuel yield (Vandenbossche et al. 2014; Zhu et al. 2015; Fang et al. 2016).

Pretreatment is one of the most important steps to improve biodegradability by altering its composition and structure. It can also remove lignin and hemicellulose to a certain extent, which increases the porosity and concentration of amorphous cellulose (Ravindran and Jaiswal 2016; Gao et al. 2017; Sun and Cheng 2002; Tsegaye et al. 2019a; Tsegaye et al. 2019d). These are achieved by different mechanisms such as by applying high pressure and/or temperature, treatment with corrosive chemicals such as acids and alkali, use of enzyme and/or microorganisms, or the use of molecular disruption techniques such as ultrasound and plasma (Ravindran and Jaiswal 2016; Gao et al. 2017; Sun and Cheng 2002; Tsegaye et al. 2018).

Compared to other pretreatment methods, alkali pretreatments are the most effective ones because of its ability to increase cellulose accessibility and lignin removal capability (Ravindran and Jaiswal 2016; Zhang et al. 2012). The contents of lignin amount are a detrimental effect in alkali pretreatment process of lignocellulosic materials (Zhao et al. 2017). Alkali pretreatments work on the principle of saponification (de-esterification) of xylan-hemicellulose and lignin intermolecular crosslinking ester bonds. As much as the crosslinks (bonds) removed, lignocellulose porosity increased. Hemicellulose and lignin removal change the crystallinity index (gross) of the biomass which often contributes for increasing crystallinity index (gross) after pretreatments (Lai and Idris 2016; Wang et al. 2016; Tsegaye et al. 2019a; Tsegaye et al. 2019c). When NaOH is used as a pretreatment process, the internal surface area increased and crystallinity and degree of crystallinity are increased due to the swelling of lignocellulose material caused by NaOH that eventually leads to the removal of amorphous parts (Zhao et al. 2017).

Techniques, such as XRD, FE-SEM, FTIR, and thermogravimetric analysis (TGA), have been widely used to analyze the structural changes caused by alkali pretreatments of rice straw biomass. Employing FE-SEM provides the morphological and elemental composition changes. The crystallinity of the biomass is obtained by using XRD. FTIR gives information on functional changes where TGA gives thermal decomposition behavior of the biomass.

In this paper, the effect of various concentrations of NaOH treatments on the composition and microstructure of rice straws was studied using XRD, FTIR, FE-SEM, TGA, and spectrophotometric analysis. It was attempted to maximize delignification and biomass digestibility and to reduce the loss of sugars during pretreatment. The efficiency of bacterial hydrolysis of pretreated rice straw was also studied. Biofuel (bioethanol) production from the hydrolyzed rice straw samples was also investigated by employing carbon 5 and carbon 6 fermenting microorganisms (Zymomonas mobilis subsp. mobilis and Saccharomyces cerevisiae).

Materials and method

Chemicals and straw preparation

NaOH, acetone, and sulfuric acid (analytical grade) were purchased from Himedia Laboratories Pvt. Ltd., Mumbai, India.

Rice straw was collected from the agricultural field around Roorkee, Uttarakhand, India. The straw was dried in an oven to moisture content (dry basis) of less than 10%. Then, the straw was cut into pieces (1–2 mm) for NaOH treatments and ground to the size of 0.25 mm (250 μm) for hydrolysis and analysis. After pretreatments, all the samples were kept in an airtight bag for further use and analysis.

Compositional analysis

The composition of raw and pretreated rice straw samples was analyzed according to the standard analytical procedures of the US National Renewable Energy Laboratory (NREL) (Sluiter et al. 2008). Ground rice straw samples were treated with 72% sulfuric acid for an hour and then diluted to 3% sulfuric acid by adding 84 ml of distilled water and autoclaved for an hour at 121 °C and a pressure of 15 psi. Acid-soluble lignin was evaluated by UV spectrophotometry (Hach DR-5000) and acid-insoluble lignin by weight difference after oven drying and burning in a furnace (575 °C). The moisture content in the biomass was determined by convection oven procedure. Hexose and pentose sugars for NaOH-treated and untreated rice straw samples were analyzed by high-pressure liquid chromatography (HPLC) system equipped with an RI detector and Agilent Hi-Plex H, 300 × 7.7 mm column.

Isolation of hydrolytic bacteria from a termite

Termites were collected from the village around Roorkee, Uttarakhand, India. Hydrolytic bacteria have been isolated from termite gut and used for hydrolysis of pretreated rice straw. Details of the isolation and characterization of the isolates were mentioned in our previous work (Tsegaye et al. 2019b).

NaOH pretreatments

Various concentrations of NaOH were used for removing lignin and preserving polysaccharides. NaOH concentrations of 1, 3, 5, 7, and 10% at 80 °C were used for pretreating rice straw for 4 h. Pretreatments were carried out in a beaker (1000 ml, borosil glass) containing 500 ml of sodium hydroxide solutions with a solid-to-liquid ratio of 1:10. The pretreated rice straws were washed by deionized water until the washings become clean and neutral to remove the alkali.

Characterization

Scanning electron microscopy (SEM) analysis

The morphology of rice straw (both raw and sodium hydroxide-treated) was analyzed by FE-SEM (field emission scanning electron microscope). The samples were coated with a gold layer using a Leica EM SCD050 sputter coater system before analysis. All samples were analyzed immediately after coating. Sample imaging was done by Carl Zeiss Ultra Plus FE-SEM operated with an acceleration voltage of 10 kV and a working distance of 5–10 mm. SEM micrographs of different areas and magnifications were taken for careful examination of sodium hydroxide effect on surface morphology and elemental composition.

X-ray diffraction (XRD) analysis

Effect of sodium hydroxide treatment on rice straw crystallinity was analyzed by X-ray diffraction using powdered X-ray diffractometer (Bruker D8-Advance) operated at 30 mA and 40 kV with Cu/Kᾳ radiation. The sample was scanned at a scanning speed of 2°/min from 2θ = 5° to 95° with a step size of 0.02°. Biomass crystallinity index (CrI) was determined by peak intensity method as the percentage of crystalline material in biomass (Segal et al. 1959).

$$ \mathrm{CrI}=\left(\frac{I_{002}-{I}_{\mathrm{am}}}{I_{002}}\right)\times 100 $$

where I_am is the intensity of the peak for the amorphous portion at 2θ = 18° and I₀₀₂ is the maximum intensity at 2θ = 22.

The Scherer equation was used to calculate the apparent crystallite size (L) (Scherrer 1918).

$$ L=\raisebox{1ex}{$ K\lambda $}\!\left/ \!\raisebox{-1ex}{$\beta \mathrm{Cos}\uptheta $}\right. $$

where L = apparent crystalline size, k = dimensionless shape factor (0.94), λ = X-ray wavelength (0.1542), β = line bordering in radian, and θ = Bragg angle.

The degree of crystallinity was calculated based on the area under crystalline peaks and non-crystalline region using the following equation:

$$ {X}_c=\left(\frac{F_c}{F_a+{F}_c}\right)\times 100 $$

where X_c is a degree of crystallinity, F_c is the area of crystalline, and F_a is the non-crystalline regions.

Fourier transform infrared spectroscopy (FTIR) analysis

Fourier transform infrared spectroscopy was used to analyze the change in functional groups caused by sodium hydroxide treatments. Sodium hydroxide-treated and untreated (raw) rice straw spectra were generated by using FTIR-Thermo Scientific Nicolet 6700 spectrometer (FTIR, Thermo Nicolet 6700, USA). FT-IR spectra were obtained within the scanning range of 4000–500 cm⁻¹ with a detector at 4 cm⁻¹ resolution and 32 scans per sample.

Thermogravimetric analysis (TGA)

Thermal stability and decomposition temperature of the main rice straw constituents were analyzed for each sodium hydroxide-treated rice straw by using the thermogravimetric analyzer. TGA measurements were taken using a thermogravimetric analyzer (TGA) (SII 6300 EXSTAR) operating in a nitrogen environment. Samples for each measurement were maintained at 10.0 ± 0.5 mg, and scans were performed from 30 to 800 °C at a rate of 10 °C/min.

Hydrolysis of pretreated rice straw

Hydrolysis of sodium hydroxide pretreated rice straw was done in a 250-ml round bottom flask. The efficiency of hydrolysis was studied by measuring reducing sugar produced within 2-day intervals using 3,5-initrosalycilic acid method (Miller 1959). The hydrolysis was done in an orbital shaker incubator (Metrex, MO-250, India) at 30 °C and 120 rpm.

Fermentation

Zymomonas mobilis subsp. mobilis (MTCC 91) and Saccharomyces cerevisiae (MTCC 170) were obtained from the Microbial Type Culture Collection and Gene Bank, Chandigarh, India, and used for ethanol fermentation. The microorganisms were grown for 12 h at 30 °C and transferred to fermentation media. The hydrolyzed rice straw samples were sterilized at 121 °C for 15 min. The sterilized medium was inoculated with 2.5 × 10⁷ yeast cell per milliliter and 3.15 × 10⁵ bacteria cell per milliliter. The ethanol fermentation was performed in a 250-ml flask incubated at 30 °C for 96 h in a shaker incubator (120 rpm). The supernatants were centrifuged at 7000 rpm for 5 min. The ethanol content was analyzed by HPLC equipped with an RI detector. Ethanol yield was calculated to determine the efficiency of the fermentation process.

$$ \mathrm{Ethanol}\ \mathrm{yield}\%=\left(\frac{E\times V}{m\times 0.511}\right)\times 100 $$

where E is the concentration of ethanol produced during fermentation (milligrams per milliliter), V is the total volume of the medium (milliliters), m is the initial dry weight of glucose at the start of fermentation (milligrams), and 0.511 is the conversion factor for glucose to ethanol during the biochemical process.

Results

Effect of pretreatment on rice straw composition

The chemical composition of raw and sodium hydroxide-treated rice straws are presented in Table 1. The effect of different concentrations of sodium hydroxide treatments is described by comparing it with raw/untreated rice straw. The effects of different concentrations of NaOH on the three main rice straw compositions are given in Fig. 1.

Table 1 Proximate composition of rice straw treated with NaOH and untreated straw

Fig. 1

Effect of different concentration of NaOH. a Percentage of cellulose increased, b percentage of lignin removed, and c percentage of hemicellulose removed after 1, 3, 5, 7, and 10% NaOH treatments

Characterization of pretreated rice straw

Scanning electron microscopy analysis (SEM)

The effect of different concentrations of NaOH treatments on surface morphology and the microstructure of rice straw were characterized by scanning electron microscopy (SEM). Figure 2 shows an electron micrograph of rice straw treated with different concentrations of NaOH and untreated (raw) straw. Changes on the surface microstructure and morphology of rice straw were observed following NaOH pretreatments.

Fig. 2

Electron micrograph of rice straw particles at × 5000 magnification. a Untreated (raw). b 1% NaOH treated. c 3% NaOH treated. d 5% NaOH treated. e 7% NaOH treated. f 10% NaOH treated

X-ray diffraction (XRD) analysis

The XRD pattern of NaOH pretreated and untreated rice straw samples are given in Table 2.

Table 2 XRD profile of NaOH treated rice straw and untreated straw

Figure 3 a presents the X-ray diffraction patterns of 1, 3, 5, 7, and 10% NaOH-treated and untreated rice straw. As seen from the plot, all treated samples showed little increments in peak height relative to untreated rice straw. The difference in the XRD profile of the untreated and treated rice straw indicates that different concentrations of NaOH solution applied to rice straw had significant changes in the crystalline nature of the straw used.

Fig. 3

a XRD profile of NaOH pretreated and raw rice straw. b TGA profiles of raw rice straw and NaOH pretreated rice straw

Fourier transform infrared spectroscopy (FTIR) analysis

Changes induced by different concentrations of sodium hydroxide pretreatment on rice straw were investigated by analyzing the appearance and/or disappearance and decrease and/or increase of absorption bands of functional groups that are assigned to lignin, cellulose, and hemicellulose (He et al. 2008; Gao et al. 2017). Figure 4 shows FTIR spectra of untreated and sodium hydroxide pretreated (1, 3, 5, 7, and 10%) rice straw. The spectrum of both untreated and pretreated showed a little similarity of absorbance intensity tendency with weak and strong absorbance intensities depending upon the concentration of sodium hydroxide used. Major IR spectra appeared and disappeared during treatments of rice straw that are related to compounds assigned for hemicellulose, cellulose, and lignin are given in Table 3 (Bilba and Alex 1996; Yang et al. 2006; Zhao et al. 2016; Phitsuwan et al. 2016; Wang et al. 2016).

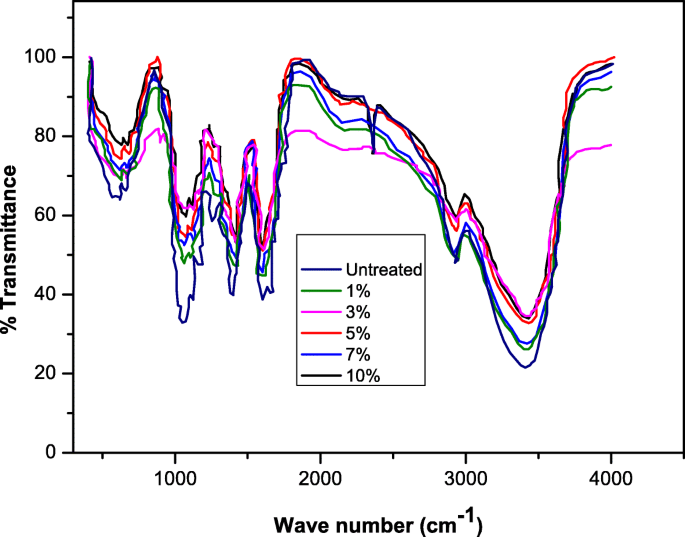

Fig. 4

FTIR spectra of native and NaOH pretreated rice straw

Table 3 Major adsorption bands appeared and/or disappeared after NaOH treatments

Thermogravimetric analysis (TGA)

Figure 3 b shows the derivative of weight loss with respect to the temperature obtained from TGA analysis for alkali-treated and hydrolyzed rice straw. The rate of removal of cellulose and hemicellulose is given in Table 4 for all treatments considered.

Table 4 Rate of weight loss of rice straw

Microbial hydrolysis and fermentation of pretreated rice straw

All pretreated straws were subjected to hydrolysis using bacteria isolated from termite gut. The bacterial isolates (Bacillus sp. BMP01) were used for simultaneous hydrolysis of hemicellulose and cellulose obtained after sodium hydroxide pretreatment. The concentration of reducing sugar obtained after bacterial hydrolysis for all pretreatments are given in Table 5. Figure 5 describes the percentage of sugar released after microbial hydrolysis for all NaOH pretreated rice straw.

Table 5 Reducing sugar obtained after bacterial hydrolysis for treated rice straw

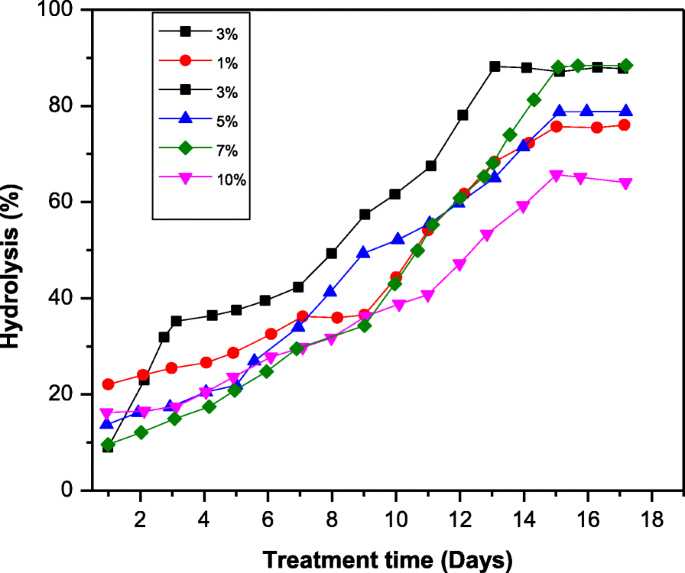

Fig. 5

Percentage of sugar released after microbial hydrolysis for 1, 3, 5, 7, and 10% NaOH pretreated rice straw

Discussion

Effect of pretreatment on rice straw composition

From Table 1, we observe that the percentage of cellulose increased from 38.02 to 71.33% after treating with 7% NaOH that is the maximum amount of cellulose obtained. Hemicellulose was also solubilized in NaOH solution and decreased from 18.3 to 8.53%. Treatment with 3% and 7% NaOH releases maximum cellulose and solubilizes minimum amount of hemicellulose. The amount of lignin was decreased significantly from 21.6 to 6.2%.

From Fig. 1, we observe that the amount of lignin and hemicellulose decreased and the amount of cellulose is increased. Maximum removal of lignin was observed at 7% NaOH treatment with 71.29% lignin removal. 67.13% lignin removal was also observed at 3% treatment. Low amount of hemicelluloses 13.77% and 26.34% were also solubilized at 3% and 7% treatments, respectively. Compared to raw rice straw, significant change in carbohydrate and lignin composition was observed in all treatments. The increment in cellulose composition and reduction in lignin and hemicellulose amount was mainly attributed by the saponification reaction between NaOH and intermolecular ester linkage that produces active carboxyl group that cleaves lignin and hemicellulose linkages. This causes the destruction of biomass component matrix (cellulose-hemicellulose-lignin) (Lai and Idris 2016; Wang et al. 2016). In this study, we found that 3% and 7% NaOH treatments are more effective for lignin removal and to release the maximum amount of cellulose.

Characterization of pretreated rice straw

Scanning electron microscopy analysis (SEM) analysis

The raw rice straw (untreated) showed a rigid and compact surface structure whereas there is an appreciable surface modification on the treated ones. Pores and cracks were observed in 3% NaOH treatments (Fig. 2c) whereas cracks were observed on 1% and 5% NaOH treatments (Fig. 2b, d). Scaling and more layering as well as splitting of fibers and abrasion were observed on 7% NaOH treatment (Fig. 2e) whereas irregular and rough structure were observed in all treatments. Relative to raw straw, noticeable changes were observed on the morphology and surface structure of all treated rice straw. The possible reason for this may be due to the breaking of lignin-xylan bond caused by NaOH activity, thus increasing the porosity of rice straw (Ravindran and Jaiswal 2016; Gao et al. 2017). McMillan demonstrated that lignin-hemicellulose-cellulose matrix is cleaved and destroyed by excited carboxyl groups produced by saponification of ester linkage on xylan backbone facilitating in hemicellulose and lignin removal and causing hydrogen bonds disruption in the cellulose (McMillan 1994).

X-ray diffraction (XRD) analysis

Crystallinity index increased from 41.59 (untreated) to 62.71 (7% treated) and crystalline size from 2.45 nm (untreated) to 7.45 nm (7% treated). The maximum size of the crystalline structure, the high degree of crystallinity, and the maximum crystallinity index were observed after 7% treatment. Maximum peak heights were seen for 3 and 7% NaOH-treated rice straws followed by 10% treatment. One and 5% treatments showed minimum peak heights (Fig. 3a and Table 2). Relative to treated rice straw, much less peak height was observed for untreated straw due to hemicellulose fraction and lignin interference (Kahar et al. 2013). The increments in peak intensities of straws after treatments with different sodium hydroxide solution (1, 3, 5, 7, and 10%) indicate that there was enhanced solubility of lignin and hemicellulose removal (Pu et al. 2013; Wang et al. 2016; Jin et al. 2016). Hydrogen bond rapture within cellulose crystalline regions which causes hydrolysis of glycosidic linkage and ester bond was possibly the main reason attributed for increments in peak intensities of rice straw after sodium hydroxide pretreatments (Foston and Ragauskas 2010; He et al. 2008; Gao et al. 2017). From Table 2, we observe that the degree of crystallinity and crystallinity index of rice straw was increased after sodium hydroxide pretreatments indicating lignin and hemicellulose were solubilized and cellulose were released (Mansfield et al. 1999). These results are online with data obtained by SEM analysis and proximate analysis.

Fourier transform infrared spectroscopy (FTIR) analysis

Major changes in functional groups of rice straw components (hemicellulose, cellulose, and lignin) were observed. Strong wide band between 3100 and 3500 cm⁻¹ has assigned for O–H stretching vibration of lignin. The IR spectrum at 3409.26 cm⁻¹ in raw rice straw is caused by the presence of phenolic and alcoholic hydroxyl group. This wavenumber shifts to 3410.31 cm⁻¹, 3429.48 cm⁻¹, and 3425.09 cm⁻¹ for 3, 5, and 7% sodium hydroxide-treated rice straws due to demethylation of O–CH₃ bond in the methoxyl group, which contributes to the formation of new O–H group by replacing CH₃ (Durie et al. 1960). The aromatic ring at 2360.43 cm⁻¹ and 2330.99 cm⁻¹ disappeared after 3 and 7% treatments. Bands of hemicellulose for C–C stretching at 467.70 disappeared and new bands of the carbonyl stretching appear at 1639.5, 1621.59, 1636.30, and 1648.08 for 3, 5, 7, and 10% sodium hydroxide-treated rice straw, respectively. Between the regions of 850–1250 cm⁻¹, cellulose characteristic bands were detected. The appearance of new cellulose bands assigned for C–O stretching was also observed at 1206.54, 1200.65, and 1203.06 for 3, 7, and 10% treated straw, respectively. Three and 7% NaOH-treated rice straws show the best lignin removal when compared to other treatments used and 5% and 10% show more hemicellulose solubility. The solubility of lignin and hemicellulose released cellulose bounded to them resulting in an increase in cellulose composition after treatment.

Thermogravimetric analysis (TGA)

Hemicellulose starts to decompose at 180 °C and goes up to 330 °C whereas cellulose degrades at a higher temperature between 300 and 400 °C. Lignin degrades slowly between 200 and 600 °C (Kumabe et al. 2007). From Fig. 3 b, we observe that the rate of weight loss is very high (about 80%) between 200–500 °C for all treatments considered. Lignin loses slowly within 200–600 °C but hemicellulose was lost in a much faster rate than the others were. From Table 4, we observe that the range of temperature for lignin removal was reduced indicating lignin was solubilized in the pretreatment process. The maximum rate of weight loss of cellulose was observed for 3% and 7% pretreated rice straws indicating cellulose was released from the hemicellulose-lignin matrix.

Microbial hydrolysis and fermentation of pretreated rice straw

At the start, minimum sugar was released in all pretreated straw since the bacteria were adapting and preparing enzymes for hydrolysis. We observe that the amount of reducing sugar obtained increases with hydrolysis time and maximum sugar was released at the 13th and 15th day for 3 and 7% treated straws, respectively. The maximum sugar released from the polysaccharide was 0.753 g/100 ml for 3% pretreated rice straw and 0.741 g/100 ml for 7% pretreated rice straw. It was observed that 88.27% of sugar was released on the 13th day from 3% pretreated rice straw and 88.40% released from 7% pretreated rice straw after the 15th day of hydrolysis. This is the maximum percentage released after treating the pretreated rice straw simultaneously with xylan and cellulose-degrading bacteria (Bacillus sp. BMP01). Removal of lignin by alkali facilitates the enzymatic and microbial hydrolysis of rice straw (Azizi-shotorkhoft et al. 2016; Yan et al. 2015). This result reveals that alkali pretreatment enhanced the release of reducing sugars, which were initially bonded to lignin in the biomass matrix.

After 96 h fermentation, the hydrolyzed rice straw sample resulted in 88.62% ethanol yield. The result clearly indicates the advantage of using alkali pretreatment along with microbial hydrolysis. This result was quite impressive compared to other reported works in literature (Agblevor et al. 2003). The use of xylose-fermenting microbe increased the ethanol yield. Hence, using microbial consortium utilizing glucose and xylose was effective in converting all the available fermentable sugars that enhanced ethanol production.

Conclusions

This study shows sodium hydroxide has a significant effect in removing lignin, which opens the biomass structure for microbial or enzymatic hydrolysis. The combination of sodium hydroxide pretreatment with microbial hydrolysis has significant capacity for biofuel production. Pretreatment in 3% and 7% sodium hydroxide concentration at 80 °C were effective in removing 67.13% and 71.29% of lignin, respectively. These pretreatments were also effective in solubilizing lower amount of hemicellulose compared to other pretreatments. 70.56% and 71.33% of cellulose were preserved after 3% and 7% pretreatments, respectively, due to solubilization of high amount of lignin and hemicellulose. 88.27% and 88.40% of all the polysaccharides were converted to glucose and xylose after subjecting to microbial hydrolysis. Microbial sources from a termite showed great potential to replace commercial enzymes. Generally, the study revealed the enhancement of bioethanol production by coupling alkali pretreatment with microbial hydrolysis and fermentation of carbon 5 and carbon 6 sugars.
