In vitro antimicrobial activity of lignan from the stem bark of Strombosia grandifolia Hook.f. ex Benth

Article metrics

  • 239 Accesses

Abstract

Background

The continuous spread of multidrug-resistant and new strains of disease-causing microbe have become a great concern to the world health community. There is therefore the need for the development of new and effective drugs for the treatment of these diseases. Traditional medicinal plants used in our community could be a good source of drugs to fight these problems. This is why this study is focused on the antimicrobial properties of Strombosia grandifolia used as traditional medicines in Nigeria.

Results

The first reported investigation into the phytochemical constituents of S. grandifolia led to the isolation of (-)-8-hydroxypinoresinol from the CH2Cl2 extract of the stem bark of the plant. The compound was identified as (-)-8-hydroxypinoresinol using 1D and 2D NMR spectroscopic methods and by comparison with literature data. The compound was active against tested microorganisms which included Staphylococcus aureus, Streptococcus pneumoniae, Escherichia coli, Salmonella typhi and Candida albicans using ciprofloxacin and terbinafine as standards. The zones of inhibition (ZOI) ranged between 11 and 17 mm for the compound against the microorganisms. The compound had a minimum inhibitory concentration (MIC) ranging from 0.75 to 3.0 mg/ml, and minimum bactericidal concentration (MBC) of 1.5, and a minimum fungicidal concentration (MFC) of 3.0 mg/ml. The lignan also showed antifungal activity against C. albicans. This experiment confirmed the efficacy of the lignan as a natural antimicrobial and suggested the possibility of employing it in drugs for the treatment of infectious diseases caused by the test organisms. This is the first report of the isolation of this compound from Strombosia grandifolia.

Conclusion

In this study, antimicrobial activities of (-)-8-hydroxypinoresinol isolated from the stem bark of Strombosia grandifolia used in Nigeria for the treatment of various ailments were assessed. The result showed potential antibacterial effects of the phytochemical against bacterial strains tested. The compound also exhibited antifungal activity against C. albicans. This justifies the ethnomedicinal uses of the plant in Nigeria.

Background

Antimicrobial agents are useful agents in reducing the global menace of infectious diseases. However, the emergence of multidrug-resistant (MDR) pathogenic bacteria and their continuous increase has become a health concern. This is mainly because of the limited antimicrobial agents available to treat the infections caused by these pathogens (Luitel and Dahal 2019). However, many medicinal plants have been identified as alternative natural sources of antimicrobial agents that could be used in the treatment of these infections (Luitel and Dahal 2019). The World Health Organization (WHO) stated that medicinal plants would be the best source to obtain a variety of drugs against the MDR bacteria (Yadav et al. 2009). A number of medicinal plants have been used because of their antimicrobial traits due to the presence of various phytochemicals in them (Altemimi et al. 2017; Luitel and Dahal 2019).

Lignans isolated from five cultivars of flax growing in Egypt have been reported to show various biological activities. These lignans have exhibited numerous antioxidant and antibacterial activities (Gaafar et al. 2013). Pinoresinol for instance is one of the structurally simplest lignans, called a dimer of coniferyl alcohol, and found in plants (Schroeder et al. 2006). They have shown antioxidant, antitumor, antiviral, antibacterial, insecticidal, fungistatic and anti-platelet activities as well as protective effects against coronary heart disease (Hwang et al. 2010). Pinoresinol had been reported for its antibacterial activities against Escherichia coli, Pseudomonas aeruginosa, Staphylococcus aureus, Bacillus subtilis and Salmonella enterica (Zhou et al. 2017). The compound is therefore generally presumed to be a defensive agent, as is suggested also by its antihelminthic and antifungal activity (Schroeder et al. 2006). Lignans and neolignans represent a large class of pharmacologically active compounds (Teponno et al. 2016). Various lignans have shown anti-tumour, antimitotic and antiviral activity. Toxicity to fungi, insects and vertebrates has also been reported for lignans, and a variety of physiological activities have been documented (MacRae and Towers 1984). Antibacterial, antioxidant, antagonist activities and general toxicity of lignans have been assessed (Kumarasamy et al. 2003). Lignans are known for their antioxidant, apoptotic, anti-cancer, anti-inflammatory, anti-bacterial, anti-viral, anti-fungal, and anti-protozoal properties (Marcotullio et al. 2018). The most studies of the lignans have concentrated on the bioactivities to provide the future lead drugs. Based on the effects of numerous biological research, pinoresinol is being reported as a potential protecting agent of human health (Mistrzak et al. 2015).In view of these medicinal uses, S. grandifolia is a good candidate for screening for bioactive compounds. To study the plant with a view to justifying the claims by the traditional users and possibly isolating and characterizing the compound(s) responsible for the perceived activity, we now report the isolation and characterization of a bioactive compound from the stem bark of S. grandifolia and its antimicrobial properties.

Materials and methods

Sample collection

The stem bark of S. grandifolia was collected in April 2018 from Otukpo (7° 12′ 60.00″ N, 8° 08′ 60.00″ E), Benue State, Nigeria. The plant was identified by the plant taxonomist Mallam Sanusi Namadi, and a voucher specimen (03689) is retained in Biological Science Department, Ahmadu Bello University, Zaria, Nigeria

Extraction and isolation

Air-dried stem bark of S. grandifolia (1.0 kg) was extracted on a shaker at standard room temperature of 25 °C successively with 100 % CH2Cl2 for 72 h in the ratio of 1:4 w/v. The extract was concentrated using a rotary evaporator at 40 °C to yield extract (10.0 g). The CH2Cl2 extract was separated by flash chromatography over silica gel in a Biotage SP1 Flash Chromatography Purification System using three solvent mixtures: first with a hexane/-CH2Cl2 step gradient starting with 100 % hexane and gradually increasing the polarity to 100 % CH2Cl2, then EtOAc was added gradually until 100 % EtOAc was reached to yield 8 fractions (Fr.1–Fr.8). Fr.4 (4.0 g) was separated successively by silica gel column chromatography (CH2Cl2 /EtOAc 2:8) to yield (-) 8hydroxypinoresinol (41.0 mg).

Antimicrobial screening of the isolate

The microorganisms tested against Gram-positive Staphylococcus aureus, Streptococcus pneumoniae and Gram-negative Escherichia coli, Salmonella typhi and Candida albicans. They were obtained from the Department of Medical Microbiology, Ahmadu Bello University Teaching Hospital (ABUTH), Shika, Zaria. All the isolates were checked for purity and maintained in nutrient agar slant. All isolates were checked for purity and maintained in slants of blood agar. A solution of 6.0 mg of the compound was made using 10 mL DMSO (Bello et al. 2011).

Determination of zone of inhibition of the isolate

The standardized inocula of the isolates were uniformly streaked into freshly prepared Mueller Hinton agar plates with the aid of a sterile swab stick. Using a sterile cork borer (6 mm in diameter), 5 appropriately labelled wells were punched into each agar plate. Aliquot of 0.3 mL of the appropriate isolate concentration was placed in each well and then allowed to diffuse into the agar. An extra plate was streaked with the isolate and ciprofloxacin (10 μ/disc) was placed on it. The plates were incubated at 37 °C for 24 h. While for the fungi, Sabouraud dextrose broth was used and the incubation period was 30 °C and 48 h. The antimicrobial activities were expressed as diameter (mm) of inhibition zones produced by the plant extracts (Madumelu Mark 2014).

Determination of minimum inhibition concentration (MIC) of the isolate

The antimicrobial activity of the isolates was evaluated using the broth dilution assay as described previously for the bacteria and Mueller Hinton broth assay for the fungus (Niaz et al. 2018). Twofold serial dilutions of the isolate in the sterilized media were made to obtain the concentrations of 3.00 mg/ml, 1.50 mg/ml, 0.75 mg/ml, 0.37 mg/ml, 0.18 mg/ml and 0.09 mg/ml. The initial concentration was obtained by dissolving 6.0 mg of the isolate in 10 ml of the sterile broth. Having obtained the different concentrations of the extracts in the sterile broth, 0.3 ml of the standard inoculum of the test microbes in the normal saline was then inoculated into the different concentrations. Incubation was made at 37 °C for 24 h, after which each test tube of the broth was observed for turbidity (growth). The lowest concentration of the isolate in which the media show no turbidity was recorded as the minimum inhibition concentration (MIC) (Madumelu Mark 2014).

Determination of minimum bactericidal concentration/minimum fungicidal concentration (MBC/MFC) of the isolate

The minimum bactericidal concentration of the extracts was determined as outlined by the CLSI on the nutrient agar plates. Minimum bactericidal concentrations were determined by assaying the test tube contents of the MIC determinations. A loopful of the content of each tube was inoculated by streaking on a solidified nutrient agar plate and then incubated at 37 °C for 24 h for bacterial and 30 °C for 48 h for fungi, after which it was observed for microbial growth. The lowest concentration of the subculture with no growth was considered as minimum bactericidal concentration/minimum fungicidal concentration (Madumelu Mark 2014).

Results

The compound was isolated as a yellow solid from the CH2Cl2 extract of the stem bark of Strombosia grandifolia and was identified as the known (-)-8-hydroxypinoresinol, which has been previously isolated from the methanol extract of the roots of Vladimiria muliensis (Chen et al. 2013; Dong et al. 2018).

The HRESIMS (Additional file 1) showed a molecular [M-H] ion at m/z 373.1289 (calcd 373.1287 for C20H21O7) indicating a molecular formula of C20H22O7 and 10 degrees of unsaturation for the compound. The IR spectrum (Additional file 1) showed absorbance bands for hydroxyl (3406 cm−1) groups.

Although the NMR spectra showed similarities to those of compound (-)-pinoresinol, indicating that the compound was closely related, 20 13C NMR resonances could be seen, and many looked paired, indicating the molecule was no longer symmetrical. The major difference was a fully substituted oxygenated resonance that was assigned as C-8’ (δC 91.9). The 1H NMR spectrum (Additional file 1) of compound showed the presence of two methoxy group proton resonances at δH 3.92 and δH 3.90 (with the integrated value of 3H each) and the presence of two aromatic rings, each showing ABX systems with proton resonances at δH 6.99 (H-2, d, J = 2.0 Hz), δH 6.95 (H-5, d, J = 8.1 Hz), δH 6.90 (H-6, d, J = 2.0, 8.0 Hz), δH 6.98 (H-2’, d, J = 1.8 Hz), δH 6.90 (H-5’, d, J = 8.0 Hz) and δH 6.87 (H-6’, d, J = 2.0, 8.0 Hz). The corresponding carbon signals occurred at δC 109.3 (C-2), δC 114.9 (C-5), δC 119.8 (C-6), δC 109.6 (C-2’), δC 114.5 (C-5’) and δC 119.8 (C-6’).

A singlet proton resonance at δH 4.85 was assigned to H-7’ as it showed correlations in the heteronuclear multiple bond correlation (HMBC) spectrum (Additional file 1) with the C-1’, C-2’, C-6’, C-8, C-8’ and C-9’ resonances. The two non-equivalent H-9’ resonances appeared as a pair of doublets at δH 4.01 and δH 3.92 and showed no further coupling in the correlation spectroscopy (COSY) spectrum (Additional file 1), confirming the presence of the hydroxyl group at C-8’ (Table 1).

Table 1 Correlation table for NMR data of compound 8: (-)-8-hydroxypinoresinol

The COSY spectrum showed coupling between the two H-9 (δH 4.52 dd, J = 8.2, 9.3, δH 3.85 dd, J = 6.3, 9.3), H-8 (δH 3.12 m) and H-7 (δH 4.86 d, J = 4.7) resonances, and the H-7 resonances showed correlations in the HMBC spectrum with the C-1, C-2, C-6, C-8, C-8’, C-9 and C-9’ resonances. The H-2 and H-2’ resonances showed correlations in the nuclear Overhauser effect spectroscopy (NOESY) spectrum (Additional file 1) with the methoxy group proton resonances, so methoxy group were placed at C-3 and C-3’ and the remaining hydroxyl groups at C-4 and C-4’. The data suggested that the compound was the lignan, (-)-8-hydroxypinoresinol (Chen et al. 2013).

A specific rotation of [α°] D 20 = − 46.7 (c = 1.00 g/ml, CH2Cl2) was measured, and the compound was identified as (-)-8-hydroxypinoresinol. The configurations at the chiral centres were confirmed using the NOESY spectrum.

The 1H and 13C NMR resonances were assigned using heteronuclear single quantum correlation (HSQC) and HMBC spectra and are given in Table 1; the structure of the compound is shown in Fig. 1.

The result showed the zone of inhibition ranging from 11 to 17 mm (Table 2). The MIC was observed from 1.50 to 3.00 mg/ml, MBC was 1.50 mg/ml for S. pneumoniae and MFC was 3.00 mg/ml (Table 3).

Table 2 Diameter of zone of inhibition (mm) of the isolate
Table 3 Summary of MIC, MBC and MFC of the isolate (mg/ml)

Discussion

The antimicrobial activity of the isolates was evaluated using the broth dilution assay as described previously for the bacteria and Mueller Hinton broth assay for the fungus (Niaz et al. 2018). These organisms are the causes of infectious diseases. The study showed that the phytochemical exhibited a varying degree of antimicrobial activity against all microorganisms (Table 2).

The compound was active against Staphylococcus aureus, Streptococcus pneumoniae, Escherichia coli, Salmonella typhi and Candida albicans. The zones of inhibition (ZOI) ranged between 11 and 17 mm (Fig. 1) for the compound against the microorganisms. The compound had MIC ranging from 0.75 to 3.0 mg/ml, MBC of 1.5, and MFC of 3.0 mg/ml (Figs. 2 and 3). The lignan also showed antifungal activity against C. albicans (Table 3). This experiment confirmed the efficacy of the lignan as natural antimicrobials and suggested the possibility of employing them in drugs for the treatment of infectious diseases caused by the test organisms. This is the first report of the isolation of this compound from Strombosia grandifolia.

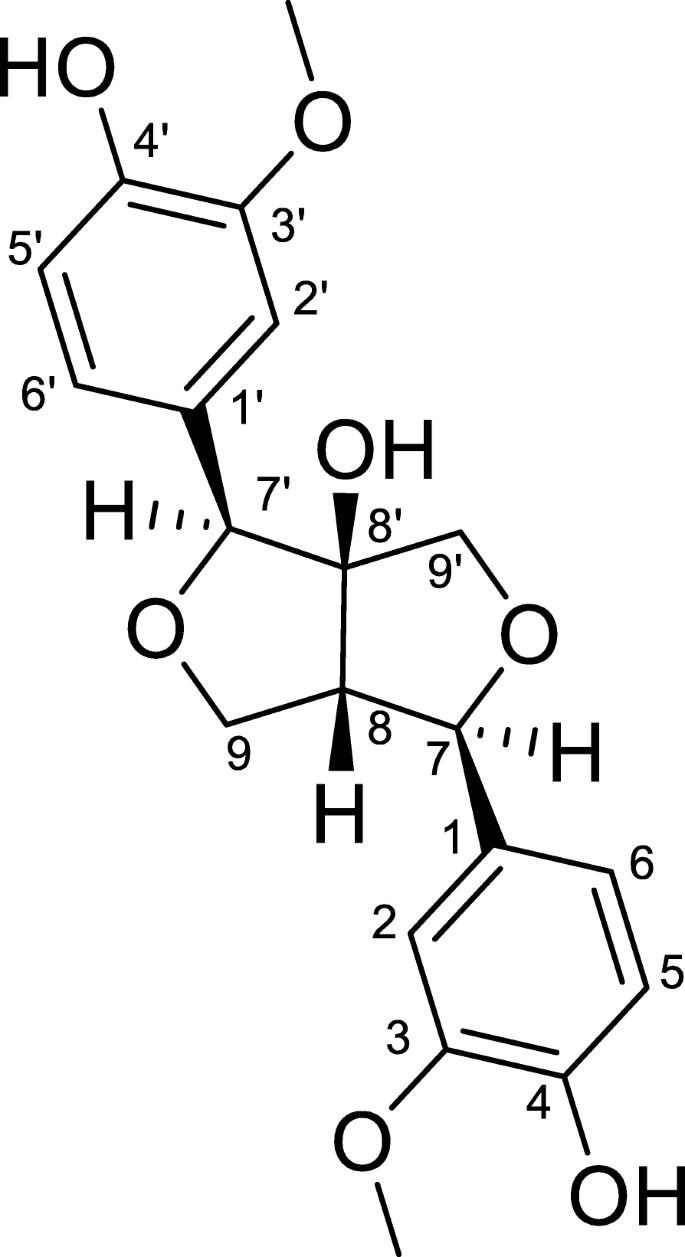

Fig. 1
figure1

(-)-8-hydroxypinoresinol

Fig. 2
figure2

Diameter of zone of inhibition of the isolate

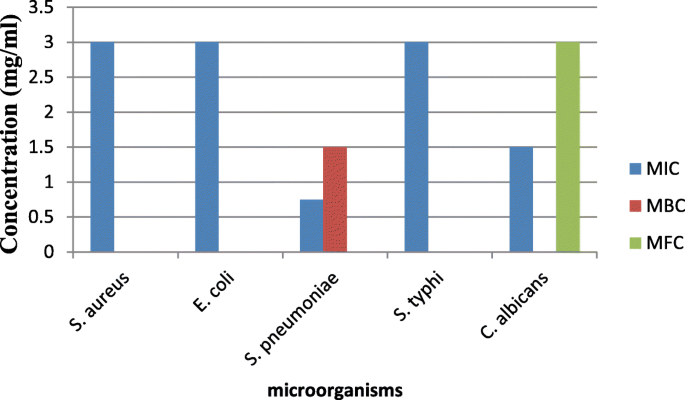

Fig. 3
figure3

MIC, MBC and MFC of the isolate

This study has been conducted to evaluate the antimicrobial activity of lignin isolated from Strombosia grandifolia against some human pathogens including two reference strains (Luitel and Dahal 2019).

The compound was very active against S. pneumonia and C. albicans. It also exhibited significant MIC value against E. coli, S. aureus, and S. typhi. This result was similar to those reported antibacterial activity (Zhou et al. 2017). Similarly, the oxidative effect of 8-hydroxylpinoresinol and (-)-olivil have been reported to protect human high-density lipoprotein (HDL) against lipid peroxidation (Chang et al. 2008). It has been widely observed and accepted that the medicinal value of plants lies in the bioactive constituents present in them (Luitel and Dahal 2019). Multidrug-resistant S. Typhi and S. pneumoniae possess the greatest threat to mankind. Therefore, the significant activity the compound against them makes us believed that it could be an important alternative to fight these diseases.

Previously, three lignans carissanol, carinol and nortrachelogenin were reported (Kaunda and Zhang, 2017) to exhibit cytotoxicity against breast (MCF7) and lung (A549) cancer cells. Additionally, carinol showed considerable antimicrobial activity against P. aeruginosa, E. coli, S. aureus and B. subtilis, with a MIC of 1.25 mg/mL by a micro-broth dilution technique (Kaunda and Zhang, 2017). This is similar to our finding that the lignan was active against E. coli and S. aureus. Also, in vitro antifungal activity of lignans have been reported (Chapa et al. 2007) in agreement with the activity of the isolate against C. albicans. Pinoresinol exhibited significant antimicrobial activities against Escherichia coli, Staphylococcus aureus and Candida albicans (Céspedes et al. 2006).

Though the lignan exhibited good antimicrobial activity against the test organisms which is in agreement with the traditional uses of stem bark of S.grandifolia in treatment of infectious diseases in Nigeria, further study, however, is required to explore the effectiveness in inhibiting the growth of parasites and viruses.

Conclusion

In this study, antimicrobial activities of (-)-8-hydroxypinoresinol isolated from the stem bark of Strombosia grandifolia used in Nigeria for the treatment of various ailments were assessed. The result showed potential antibacterial effects of the phytochemical against bacterial strains tested. The compound also exhibited antifungal activity against C. albicans. This justifies the ethnomedicinal uses of the plant in Nigeria. The results from this research have supported the ethnomedicinal uses of this plant in the treatment of skin infections, abdominal disorders, and gonorrhoea and as a cough and cold remedy. Further investigations are necessary to evaluate the antimycobacterial, antiviral and antiparasitic activity of this lignan. Moreover, other parts of the plant need to be studied to evaluate the plant extracts as a potential antimicrobial agent.

Availability of data and materials

Data used to support the findings of this study are included within the supplementary information file.

Abbreviations

COSY:

Correlation spectroscopy

FTIR:

Fourier-transform spectroscopy

HMBC:

Heteronuclear multiple bond correlation

HRESIMS:

High-resolution electrospray ionization mass spectrometry

HSQC:

Heteronuclear single quantum correlation

MBC:

Minimum bactericidal concentration

MFC:

Minimum fungicidal concentration

MIC:

Minimum Inhibition Concentration

NOESY:

Nuclear Overhauser effect spectroscopy

ZOI:

Zone of inhibition

References

  1. Altemimi A, Lakhssassi N, Baharlouei A, Watson D, Lightfoot D (2017) Phytochemicals: extraction, isolation, and identification of bioactive compounds from plant extracts. Plants 6:42. https://doi.org/10.3390/plants6040042

  2. Bello IA, Ndukwe GI, Audu OT, Habila JD (2011) A bioactive flavonoid from Pavetta crassipes K. Schum. Organic and Medicinal Chemistry Letters 1:14. https://doi.org/10.1186/2191-2858-1-14

  3. Céspedes CL, Avila JG, García AM, Becerra J, Flores C, Aqueveque P, Bittner M, Hoeneisen M, Martinez M, Silva M (2006) Antifungal and antibacterial activities of Araucaria araucana (Mol.) K. Koch heartwood lignans. Zeitschrift fur Naturforschung - Section C Journal of Biosciences 61:35–43

  4. Chang MJ, Hung TM, Min BS, Kim JC, Woo MH, Choi JS, Lee HK, Bae K (2008) Lignans from the fruits of Forsythia suspensa (Thunb.) Vahl protect high-density lipoprotein during oxidative stress. Bioscience Biotechnology and Biochemistry 72:2750–2755. https://doi.org/10.1271/bbb.80392

  5. Chapa C, Guerrero R, Durán-Medina E, Mas J, Velázquez A, Ecology P, By P, Soderlund DM, Chou C, L CC, L AI (2007) Cambios en las coberturas de vegetación y usos del suelo en regiones con manejo forestal comunitario y áreas naturales protegidas de México. Ecología y cambio de uso del suelo. Critical Reviews in Plant Sciences 35:610–616.

  6. Chen JJ, Wei HB, Xu YZ, Zeng J, Gao K (2013) Antioxidant lignans from the roots of Vladimiria muliensis. Planta Medica 79:1470–1473. https://doi.org/10.1055/s-0033-1350801

  7. Dong M, Liu D, Li H, Yan S (2018) Chemical compounds from Swertia bimaculata. Chemistry of Natural Compounds 54:817–821. https://doi.org/10.1007/s10600-018-2523-8

  8. Gaafar AA, Salama ZA, Askar MS, El-hariri DM, Bakry BA (2013) In vitro antioxidant and antimicrobial activities of Lignan flax seed extract (Linum usitatissimum L.). Int J Pharm Sci Rev Res 23:291–297

  9. Hwang B, Lee J, Liu Q-H, Woo E-R, Lee DG (2010) Antifungal effect of (+)-pinoresinol isolated from Sambucus williamsii. Molecules 15:3507–3516. https://doi.org/10.3390/molecules15053507

  10. Kaunda S, Zhang Y-J (2017) The genus Carissa: an ethnopharmacological, phytochemical and pharmacological review. Natural Products and Bioprospecting 7:181–199. https://doi.org/10.1007/s13659-017-0123-0

  11. Kumarasamy Y, Nahar L, Cox PJ, Dinan LN, Ferguson CA, Finnie DA, Jaspars M, Sarker SD (2003) Biological activity of lignans from the seeds of Centaurea scabiosa. Pharmaceutical Biology 41:203–206. https://doi.org/10.1076/phbi.41.3.203.15099

  12. Luitel S, Dahal RK (2019, 2019) In Vitro Antimicrobial activity of some medicinal plants against human pathogenic bacteria. Journal of Tropical Medicine:5. https://doi.org/10.1155/2019/1895340

  13. MacRae WD, Towers GHN (1984) Biological activities of lignans. Phytochemistry 23:1207–1220. https://doi.org/10.1016/S0031-9422(00)80428-8

  14. Madumelu M, NIG and AG-OR (2014) In vitro studies of antimicrobial evaluations of petroleum ether, chloroform, ethyl acetate and methanol extracts of the leaves of peucedanum H. Wolff. International Journal of Current Research in Chemistry and Pharmaceutical Sciences 1:59–63

  15. Marcotullio MC, Curini M, Becerra JX (2018) An ethnopharmacological, phytochemical and pharmacological review on lignans from Mexican Bursera spp. Molecules 23. https://doi.org/10.3390/molecules23081976

  16. Mistrzak P, Celejewska-marciniak H, Szypuła WJ, Olszowska O, Kiss AK (2015) Identification and quantitative determination of pinoresinol in Taxus × media Rehder needles, cell suspension and shoot cultures. Acta Societatis Botanicorum Poloniae. https://doi.org/10.5586/asbp.2014.038

  17. Niaz SI, Zhang P, Shen H, Li J, Chen B, Chen S, Liu L, He J (2018) Two new isochromane derivatives penisochromanes A and B from ascidian-derived fungus Penicillium sp. 4829. Natural Product Research 6419:1–7. https://doi.org/10.1080/14786419.2018.1470173

  18. Schroeder FC, Campo ML, Grant JB, Weibel DB, Smedley SR, Bolton KL, Meinwald J, Eisner T (2006) Pinoresinol: a lignol of plant origin serving for defense in a caterpillar. Proceedings of the National Academy of Sciences of the United States of America 103:15497–15501

  19. Teponno RB, Kusari S, Spiteller M (2016) Recent advances in research on lignans and neolignans. Natural Product Reports 33:1044–1092. https://doi.org/10.1039/C6NP00021E

  20. Yadav NP, Thakur M, Dixit VK (2009) Recent approaches in herbal drug standardization. International Journal of Integrative Biology 24:25–44

  21. Zhou H, Ren J, Li Z (2017) Antibacterial activity and mechanism of pinoresinol from Cinnamomum Camphora leaves against food-related bacteria. Food Control 79:192–199. https://doi.org/10.1016/j.foodcont.2017.03.041

Download references

Acknowledgements

The author wishes to thank the Natural product Research Group of the Department of Chemistry, University of Surrey, UK, for the laboratory and NMR analyses.

Funding

This work was supported by the Tertiary Education Trust Fund (TETFUND).

Author information

AE designed the research work and performed the experiments for extraction, isolation and characterization of the bioactive lignan. RGA, HDJ and IH guided and supervised the work. All authors read and approved the final manuscript.

Correspondence to Abiche Ekalu.

Ethics declarations

Ethics approval and consent to participate

The manuscript does not contain studies involving human participants, human or animal data and animal or human tissue.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Additional file

Additional file 1:

Supplementary spectra. (DOCX 193 kb)

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Ekalu, A., Ayo, R.G., Habila, J.D. et al. In vitro antimicrobial activity of lignan from the stem bark of Strombosia grandifolia Hook.f. ex Benth. Bull Natl Res Cent 43, 115 (2019) doi:10.1186/s42269-019-0159-x

Download citation

Keywords

  • Lignan
  • (-)-8-hydroxypinoresinol
  • Antimicrobial activity
  • Strombosia grandifolia
