Elastic Properties of Cr-doped Mn Ferrite

Article metrics

  • 228 Accesses

Abstract

Background

The mechanical properties of Mn-Cr ferrite of different compositions are important for industrial applications in everyday life. Ferrites are used in electric choke coils, electric transformers, and many other electronic and optical devices. The elastic properties can be understood by studying the longitudinal sound velocity (Vl) and shear velocity (Vs).

Results

The longitudinal sound velocity (Vl) and shear velocity (Vs) are measured at room temperature by pulse transmission technique at the frequency of 1659 Hz, which is ideally representing the mechanical properties of the ferrite crystal. The shear sound velocity was found to be around 4 × 103 m∕s while the longitudinal sound velocity was ranging according to the doping concentration from 6 × 103 to 1 × 104 m∕s. The behavior of Young’s modulus (E), rigidity modulus (n), mean sound velocity (Vm), and Debye temperature (θD) is quite similar, where a change in the slope was noticed at Cr concentration higher than 0.7 in the spinel lattice.

Conclusion

We have characterized the elastic properties of the spinel structure Mn-Cr ferrite with different Cr ion concentration at a fixed sound frequency using the pulse transmission technique. The longitudinal sound velocity showed an increase with increasing Cr ion concentration, the rigidity constant as well as Debye temperature, Isotropic compressibility, and the acoustic impedance showed behavioral change at Cr ion concentration x = 0.7 which is correlated to the intra-ionic distances change due to the replacement of Fe ions with smaller size Cr ions.

Introduction

Ferrites have been proven as important compounds that have a wide range of applications in the industry (Abdellatif et al., 2018; Abdellatif et al., 2017), research (Liakos et al., 2016; Abdellatif et al., 2015), physics (Abdellatif et al., 2018; Abdellatif et al., 2015; Abdellatif et al., 2012; Abdellatif et al., 2011), and chemistry of everyday life (Abdellatif et al., 2017; Abdellatif et al., 2016; Abdellatif et al., 2017; Abdellatif et al., 2018; Abdellatif & Azab, 2018). One of the important features of ferrites is its elastic properties; the importance of elastic properties arises due to the fact that studying mechanical and acoustic can give wide insight on the interatomic and interionic forces in solid and crystalline material (Modi et al., 2014; Patange et al., 2013; Modi et al., 2006). The study of elastic properties also helps one to calculate some thermodynamic coordinates such as the Debye temperature. Moreover, the variation of the elastic properties with gradually changing compositions is also important. Previous studies on Cu-Zn (Modi et al., 2006) and Ni-Zn (Rajesh Babu & Tatarchuk, 2018) show a linear variation of the elastic moduli with concentration. Young’s modulus, the rigidity constant, the mean sound velocity, the transverse sound velocity, and the longitudinal sound velocity are known as the elastic parameters of solid crystals. Those parameters can be used to interpret the behavior of the crystalline solid on the basis of binding energy between atoms. Moreover, the Debye temperature can be calculated based on the mechanical parameters using the Anderson formula (Lakhani & Modi, 2010).

One more point, the elastic properties are important in the industry due to the direct relation to the strength of the material under various conditions. The ultrasonic pulse transmission technique is based on transmitting an acoustic pulse at one end of the solid and measuring the attenuation at the other end; accordingly, various mechanical parameters can be calculated. In this work, a systematic study of Mn-Cr ferrite of different composition (x = 0.2, 0.4, 0.7, 0.9, 1) is undertaken at room temperature. We have paid high attention to calculate the thermodynamical parameters and discuss their correlation with the ferrite structure, and the results are presented in this paper.

Experimental details

Mn-Cr mixed ferrites of the chemical formula MnCrxFe2-xO4 where x = 0.2, 0.4, 0.7, 0.9, and 1 have been prepared by double sintering technique from high purity oxides. Namely, the oxides are manganese(II) oxide (MnO), iron(III) oxide (Fe2O3), and chromium(III) oxide (Cr2O3), all bought from Sigma-Aldrich. The oxides are mixed together in a stoichiometric ratio to obtain materials with general formula MnCrxFe2-xO4. The mixed oxides were continuously grounded for 12 h in a ball miller model PM100 (Retsch, Germany). The oxide’s powder was compressed into discs of 10 mm diameter and 3 mm thickness with the help of a home-made uniaxial press, by using an appropriate steel mold. The samples were pre-sintered at 800 °C for 8 h. Then, they were grinded to a fine powder and then pressed again into pellets of a rectangular form of 0.8 cm × 0.6 cm dimensions using a uniaxial press of pressure 3 × 105 N/m2, and the pellets are sintered at 1200 °C for 10 h with a heating rate of 4 deg/min. More details of this method are given in the earlier publication (Ahmed et al., 2012). The elastic properties have been measured by pulse transmission technique (Kohlhauser & Hellmich, 2013; Yu-Huai et al., 1985). In this method, a short pulse from a pulse generator is subjected to the sample through a copper rod using a PZT crystal (Piezoelectric Transducer), which is converted into the mechanical wave and on its arrival at the receiving point, and is converted back into an electrical signal, which is then amplified and fed to an oscilloscope. By knowing the dimensions of the sample and phase difference between the transmitted and received pulse, the sound velocity could be obtained. The sample is housed in a suitable sample holder made of copper rod. Calibration has been done to correct the delay of the sound wave at endpoints. The elastic parameter has been calculated using the following formulas (Venudhar & Mohan, 2002; Ravinder et al., 2001):

$$ E\kern0.5em =\kern0.5em 2n\left(1\kern0.5em +\kern0.5em \sigma \right) $$
(1)

where n is the rigidity modulus calculated from \( n=\rho {V}_{\mathrm{s}}^2 \) where ρ is the density of the sample calculated by knowing the mass and dimensions of the sample, Vsis the sheer velocity, and σ is the Poisson ratio.

$$ \sigma =\frac{\left({V}_{\mathrm{\ell}}^2-2{V}_{\mathrm{s}}^2\right)}{2\left({V}_{\mathrm{\ell}}^2-{V}_{\mathrm{s}}^2\right)} $$
(2)

Debye temperature θD as given by Anderson’s formula (Venudhar & Mohan, 2002; Ravinder et al., 2001):

$$ {\theta}_{\mathrm{D}}=\left(\frac{V_{\mathrm{m}}h}{k}\right){\left(\frac{3 qN\rho}{4\pi M}\right)}^{1/3} $$
(3)
$$ {V}_{\mathrm{m}}=1/3{\left(\frac{2}{V_{\mathrm{s}}^3}+\frac{1}{V_{\mathrm{\ell}}^3}\right)}^{-1/3} $$
(4)

where h is the Planck constant, q is the number of atoms per molecule, M is the molecular weight, and Vm is the average sound velocity.

Results

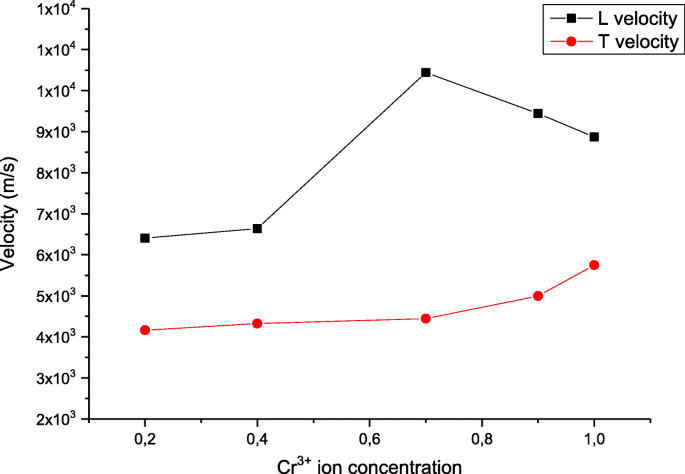

Figure 1 shows the shear and longitudinal sound velocity respectively as a function of Cr ion concentration at room temperature. It can be seen that the general trend is the increase of the sound velocity with increasing Cr3+ ion concentration.

Fig. 1
figure1

Variation of the shear and longitudinal sound velocity with Cr3+ ion concentration in the spinel structure of Mn-Cr Ferrite

Figure 2 a and b show the rigidity and Young’s modulus, respectively. It is clear from the figure that Young’s modulus increases with increasing Cr3+ ion concentration. The graph could be noted by two straight lines that intersect at x = 0.7, which is the point at which the strain decreases by a value corresponding to the decrease in the mean free path of the oscillation.

Fig. 2
figure2

a Variation of Young’s modulus with varying Cr3+ ion concentration. b Rigidity constant with varying Cr3+ ion concentration

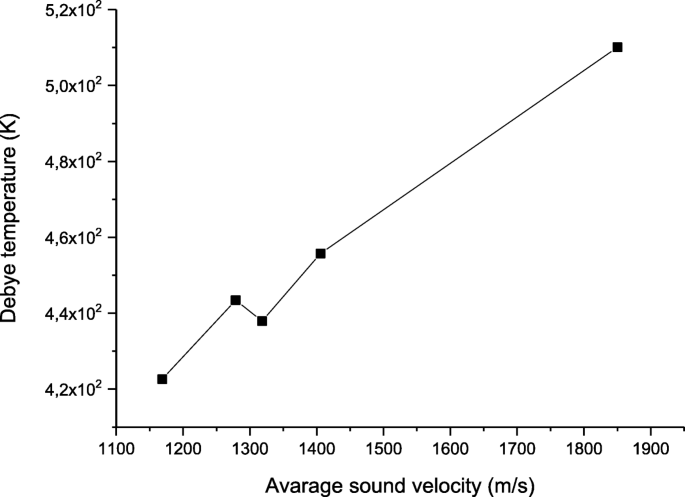

Figure 3 shows the variation of one of the most important parameters of the thermodynamical coordinate, and it is the Debye temperature of the samples for all mixed ferrites versus average sound velocity. The figure shows that the Debye temperature varies linearly with the average sound velocity Vm. The Debye temperature θD has been calculated from the Anderson formula.

Fig. 3
figure3

Variation of the Debye temperature with varying average sound velocity

Figure 4 illustrates the isotropic compressibility of the sound wave and the acoustic impedance of the specimen for the sound wave. The figure shows that the concentration at x = 0.7 has minimum isotropic compressibility and maximum acoustic impedance.

Fig. 4
figure4

Variation of the isotropic compressibility and acoustic impedance with varying Cr3+ ion concentration in Mn-Cr spinel ferrite

Figure 5 correlates the continuous decrease in the mean atomic weight with increasing Cr3+ ion (51.996) concentration due to the fact that Cr ions replace Fe ions (55.847) in the spinel lattice, which is understood as a decrease in the inertia of the molecules of the spinel lattice in which it gets lighter due to ion Cr and Fe ion replacement.

Fig. 5
figure5

Variation of the mean atomic value with varying Cr3+ ion concentration

Table 1 shows the variation of density (ρ) and longitudinal (Vλ), shear (Vs), and average sound velocity (Vm) with increasing Cr3+ ion concentration; the trend of the acoustic and thermodynamical parameters can be followed in the table during the discussion.

Table 1 Variation of density (ρ), longitudinal (V1), shear (Vs), and average sound velocity (Vm) with increasing Cr3+ ion concentration

Discussion

The mechanical properties of spinel ferrite can be fully understood by considering the interatomic distance of the spinel lattice. It is well known that the ionic radius of Fe3+ (0.645 Å) is greater than Cr3+ (0.615 Å) so that as the Cr3+ content increases, the interionic distance decreases. As the bond strength increases Young’s modulus, the rigidity modulus increases. In other words, one can understand from the experimental data that the binding between the ions of the investigated ferrite is increased successively with increasing Cr3+ ion content (Mazen & Elmosalami, 2011; Bartůněk et al., 2018; Sattar & Rahman, 2003) which greatly affects the shear and longitudinal sound velocity in the ferrite slap as shown in Fig. 1. The figure shows an increase in the sound velocity with increasing Cr3+ ion concentration. The longitudinal velocity shows a hump at x = 0.7. The Cr3+ ion is known to have a strong preference to the octahedral site, which replaces Fe3+ content, refer to Table 1 for exact calculated values. We can fully understand the change of the sound velocity by studying its thermodynamical coordinates, since the response of the solid to the acoustic pulse depends on its interatomic arrangement, in a spinel structure, and there are two main interstitial sites, the octahedral (B) and tetrahedral site (A). The vibrating force constant then depends on the ion distribution in the crystal lattice; with the help of Waldron’s method (Mazen & Abu-Elsaad, 2012), the force constant can be calculated using the following equations (Mazen & Abu-Elsaad, 2012):

$$ {K}_{\mathrm{t}}=7.62\times {M}_{\mathrm{a}}\times {\upnu_1}^2\ N/m $$
(5)
$$ {K}_{\mathrm{o}}=10.62\times {M}_{\mathrm{b}}\times {\upnu_2}^2\ N/m $$
(6)

where ν1 and ν2 are determined from the IR spectra, then Ma and Mb are the molecular weights of cations in sites A and B, respectively, according to the cation distribution predicted from X-ray. Moreover, the Debye temperature θd can be calculated using the following formula (Mazen & Abu-Elsaad, 2012):

$$ {\theta}_{\mathrm{D}}=\frac{hc{V}_{\mathrm{a}\mathrm{b}}}{k},{V}_{\mathrm{a}\mathrm{b}}=\frac{V_{\mathrm{a}}+{V}_{\mathrm{b}}}{2} $$
(7)

where Vab is the average wave number of the absorption band in the FTIR spectrum, h is the Planck constant, and k is the Boltzmann constant.

The bulk modulus (B) of the solid is defined by as seen in Eq. 8 (Kittel, 2005):

$$ B=\frac{1}{3}\left[{C}_{11}+2{C}_{12}\right] $$
(8)

where C11 and C12 are the components of the elasticity tensor, for isotropic materials with cubic symmetry like spinel ferrites and garnets; C11 is almost equal to C12 that leads to B = C11.

Hence, the force constant kav = aC11, where kav is the average force constant \( {K}_{\mathrm{av}}=\frac{\left({K}_{\mathrm{t}}+{K}_{\mathrm{o}}\right)}{2}. \)

The longitudinal elastic wave velocity and transverse wave velocity can be calculated from (Kittel, 2005):

$$ {V}_{\mathrm{l}}={\left({C}_{11}/\Delta x\right)}^{1/2},{V}_{\mathrm{t}}={V}_{\mathrm{l}}/\surd 3 $$
(9)

However, the mean elastic wave velocity is defined by:

$$ {V}_{\mathrm{m}}=\frac{1}{3}{\left[\frac{2}{{V_{\mathrm{l}}}^2}+\frac{1}{{V_{\mathrm{t}}}^2}\right]}^{-1/3} $$
(10)

Rigidity modulus G is defined by (Raj et al., 2004):

$$ G=\Delta x\cdotp {{\mathrm{V}}_{\mathrm{t}}}^2 $$
(11)

Poisson’s ratio is defined by:

$$ P=3B-\frac{2G}{6B}+2G $$
(12)

In that sense Young’s modulus will be defined as:

$$ E=\frac{\frac{1}{P}}{2G} $$
(13)

Then by using Anderson’s formula, the Debye temperature can be calculated using the following equation (Raj et al., 2004):

$$ {\theta}_{\mathrm{d}}=\frac{h}{K}{\left[3{N}_{\mathrm{a}}/4\pi {V}_{\mathrm{a}\mathrm{tomic}}\right]}^{1/3}V/m $$
(14)

where Vatomic is the mean atomic volume, Vatomic = (M/∆x)/q, M is the molecular weight, Na is Avogadro’s number, and q is the number of atoms in the formula unit. However, the importance of elastic properties in spinel structure and all isotropic crystals is the possibility to that it can define the behavior of the binding energies in the crystal lattice. In general, the relation between the average sound velocity increases linearly with the Debye temperature, which is the relation between acoustic parameters defined by sound velocities in the material and the thermodynamic parameters defined by the Debye temperature. However, since ferrite materials are mostly porous which can affect the measured parameters, the velocity should be corrected to zero porosity using the Mackenzie formula (Showry & Murthy, 1991). The hardness of the material can be determined by the Poisson ratio. It is found that material with a low value of Poisson ratio less than 0.25 is brittle, and those with high value are ductile.

The change in the binding energy due to replacement of Fe by Cr ions also has its effect on the rigidity and Young’s modulus shown in Fig. 2; however, a change in the slope can be noticed at x = 0.7. This can be understood as the point at which the strain decreases by a value that corresponds to the decrease in the mean free path of the oscillation. The same trend was obtained, where the rigidity modulus increases slightly up to x = 0.7, after which it increases suddenly up to x = 1. That can be understood as the interionic space changes with changing ion concentration that has a critical value at x = 0.7. The data in Fig. 1 enhances our expectation where a hump is obtained at x = 0.7. The highest normal mode of vibration for the crystal can be found considering the Debye temperature which is shown in Fig. 3. The Debye temperature defines the thermodynamical coordinates of all mixed ferrites versus average sound velocity. It is found that in our samples, the Debye temperature varies linearly with the average sound velocity Vm. The Debye temperature θD has been calculated from the Anderson formula. The linear increase of the Debye temperature corresponds to the linear increase of the normal vibrational mode of the crystal, which is correlated to the interatomic distances due to the replacement of Fe ions by Cr ions in the spinel lattice.

The controlling principles of ultrasonic are associated with material properties such as density and modulus of elasticity. In general, there are two types of ultrasonic waves based on material, the bulk waves and guided waves. The bulk waves propagate inside the material while the guided wave propagates near the surface or along with the interface. The longitudinal waves are those with the displacement in the same direction as travel direction while shear waves are based on the displacement of the amplitude in a direction perpendicular to the propagation direction. According to a theoretical model of attenuation, ultrasonic waves in polycrystalline materials are mainly attenuated by scattering at structure boundaries, grains, grain boundaries, and inclusions. The number of scattering is proportional to the grain volume while the attenuation is a function of the grain size and frequency of the wave. The attenuation coefficient α is a sum of the individual coefficient for scattering and absorption over all frequencies (Mazen & Elmosalami, 2011; Bartůněk et al., 2018; Sattar & Rahman, 2003; Muralidhar et al., 1992; Srinivas Rao et al., 2002; Ravinder & Reddy, 2003).

The attenuation coefficient can be defined as the logarithmic decrement between two consecutive pulse echoes (Lakhani & Modi, 2010; Yu-Huai et al., 1985):

$$ \alpha \left(\frac{\mathrm{dB}}{\mathrm{mm}}\right)=20\ \log\ \frac{\left(\frac{{\mathrm{S}}_1}{{\mathrm{S}}_2}\right)}{2d}, $$
(15)

Where S1 and S2 are the amplitude of two consecutive back wall echoes, and d is the thickness of the specimen in millimeter. It follows that the velocity of the ultrasound waves in polycrystalline or bulk materials is primarily controlled by elastic modulus and density which is directly related to its microstructure.

The isotropic compressibility changes accordingly, as shown in Fig. 4. The figure shows that the concentration at x = 0.7 has a minimum isotropic compressibility and maximum acoustic impedance. The isotropic compressibility is related to the density and longitudinal velocity by the formula \( {K}_{\mathrm{s}}=\frac{1}{\rho {V}_{\mathrm{\ell}}} \), and the acoustic impedance of the sound energy is calculated from Z  =  ρVλ. The isotropic compressibility can be understood by looking at the change in the mean atomic weight due to ion replacement shown in Fig. 5. The continuous decrease in the mean atomic weight with increasing Cr3+ ion is due to the difference in ionic weight of Cr3+ (51.996) instead of iron (55.847). The variation of the bulk modulus and the average sound velocity with Cr ion concentration is shown in the Appendix, and the two graphs show a behavioral change at x = 0.7 in accordance with previous data. In general, a microstructure that strains the lattice or interrupts its continuity reduces the elastic modulus and the velocity of ultrasonic waves. Ferrite materials are made of grain and grain boundaries, and hence, its response to acoustic pulse depends on its microstructure performance. Considering the magnetic nature of ferrite, then magnetocrystalline anisotropy comes into play. The magnetocrystalline anisotropy is a measure for the magnetic energy resistance to the movement of the domain walls, while the domain walls are free to move at a temperature where the magnetic anisotropy is equal to zero. That means the substance undergoes a maximum strain for given stress, or in other words, the longitudinal and shear sound velocity show a decrease with increasing temperature. In the case of an externally applied magnetic field that saturates the sample, the longitudinal and shear sound velocity are slightly higher than the demagnetized state. However, in a mono-domain state, the sound velocities decrease constantly with the increase in temperature (Mazen & Elmosalami, 2011; Bartůněk et al., 2018; Sattar & Rahman, 2003; Muralidhar et al., 1992; Srinivas Rao et al., 2002; Ravinder & Reddy, 2003).
