Evaluation of Piper betle mediated silver nanoparticle in post-harvest physiology in relation to vase life of cut spike of Gladiolus



The purpose of this study is to evaluate the effect of green synthesized silver nanoparticles on post-harvest physiology of cut flower in relation to improvement of its vase life as well as keeping quality of the flowers taking gladiolus cut spikes as a model.


The synthesized Piper betle mediated silver nanoparticles (PbSNPs) were characterized by using UV-visible spectroscopy and transmission electron microscopy studies. It was revealed that PbSNPs ranges from 30 to 50 nm in diameter and spherical in shape. The experiments were conducted to study the effect of PbSNPs on post-harvest physiology, vascular blockage, prolonging vase life, and keeping the quality of cut spike of gladiolus. The treatment consisted of six vase solutions, viz. distilled water (control), 4% sucrose (T1), 4% sucrose + 100 ppm 5-SSA (T2), 4% sucrose + 2 ppm PbSNPs (T3), 4% sucrose + 4 ppm PbSNPs (T4), and 4% sucrose + 6 ppm PbSNPs (T5). Experimental outcomes depicted that T4 vase solution gives the best results in all the aspects statistically compared to its positive control (T2). The results also show PbSNPs in vase solution might have played a significant role for scavenging the reactive oxygen species by inducing antioxidant enzyme system at the time of senescence, leading to a decrease in lipid peroxidation and increase in the membrane stability.


This study revealed that application of T4 vase solution helps to maintain spikes fresh and dry weight, reduce the vascular blockage, improve the antioxidative defense, and stabilize the membrane integrity that leads to delay senescence.


Nanotechnology deals with the production and stabilization of various types of nanoparticles. It is a rapidly expanding research field which has tremendous implications on the society, industry, and medicine (Naik et al. 2002; Kemp et al. 2009). Green synthesis of nanoparticles (Singh and Vidyasagar 2014) is an effective method as it is environment-friendly, cost-effective, and easy to scale up for large synthesis and safe to handle. The use of nanoparticles as bactericidal agents represents a new model in the design of antimicrobial therapy against bacteria, viruses, and fungi (Kaviya et al. 2011).

Silver-ion and silver-based nanoparticles are highly toxic to microorganisms. The mode of action of silver nanoparticles to act as antimicrobial agent is not clearly known. The silver nanoparticle synthesis using plant extracts is preferred as this method is non-toxic, cost-effective, eco-friendly, and easy to scale up in contrast to the chemical procedures which use hazardous material causing adverse effects to this approach (Dubey et al. 2010; Kaushik et al. 2010; Solgi and Taghizadeh 2012; Solgi 2014). Recently, several groups of researchers have synthesized silver nanoparticles using a variety of easily available plants like banana (Bankar et al. 2010), aloe (Chandran et al. 2006), pomegranate and damask rose (Solgi and Taghizadeh 2012), geranium leaves (Shankar et al. 2003), and basil (Ahmad et al. 2010).

The vase life of a cut flower is the maximum post-harvest day before its senescence. It is important to improve the quality and longevity of cut spikes from harvesting to marketing, and it has a direct commercial impact on floricultural business. That is why it is an interesting area of research to increase the post-harvest days of different cut flowers, i.e. sweet pea (Elhindi 2012), carnations (Baker et al. 1985; Rahman et al. 2012), Gerbera (Van Meeteren 1979; Solgi et al. 2009; Kazemi et al. 2011a), lily (Kazemi et al. 2011b), and roses (Abri 2013). Gladiolus (Gladiolus grandiflorus), one of the economically important garden plants, is cultivated worldwide for cut flower production to use in the valuable floral arrangement.

The metabolic activity and senescence of the cut spike (vase life) are regulated by the different physiological and biochemical processes (Mayak and Halevy 1980; Ahmad and Tahir 2016). The extension of the vase life also depends on the membrane stability and water balance of cut spike. Membrane stability is influenced by reactive oxygen species (ROS). The ROS directly affects the cell membrane integrity (Kazemi et al. 2011a); the free superoxide radicals like O2 and H2O2 damage the intercellular proteins, lipids, nucleic acid, and pigments leading to senescence. To counter the effect of ROS antioxidant, enzymes like superoxide dismutase (SOD), peroxidase (PO), catalase (CAT) are present; thus, by scavenging ROS, it delayed the senescence (Gill and Tuteja 2010).

Most of the cut flowers are harvested at budding stage to ensure a long post-harvest life and reduce the damages that might be occurred by transpiration and handling. Continual supply of food (carbohydrate) and water are required for the growth of these flower buds during the post-harvest period. Carbohydrates are the important components of storage food as well as a part of structural materials in the floral spike. These carbohydrates also help to increase osmotic pressure, water balance and maintenance of cell’s turgor (Marousky 1971). Vase solution is normally used to extend the vase life of the cut flower. The soluble sugar content of cut spikes influence the vase life because stored carbohydrate gives energy for bud opening and floral development (Ho and Nichols 1977). In low sugar content, the flowers senescence rapidly and petals become pale in color. Under these situations, sugar supplements in vase solution can act as stable food source for the floral spike.

Due to the presence of sucrose in the vase solution, which is considered as an unfavorable condition and is associated with many problems, microbial growth occurs (Rodney and Hill 1993). The moisture enters the stem through the cut and exposed sides of the spikes and leads to blockage of the vascular bundles, thus creating an imbalance between water uptake and water loss. They also release secondary metabolites like enzymes or ethylene which are toxic and thus decrease the longevity of the cut spikes. So, addition of an antimicrobial element in sugar solution is essential to prevent the vascular blockage and enhance the vase life. Different chemicals, i.e. silver nitrate, aluminum sulphate, cobalt sulphate, 8-hydroxyquinoline sulphate in different combinations and proportions (Reddy et al. 1997), 5-Sulfo Salicylic Acid (5-SSA) (Ezhilmathi et al. 2007), boric acid, citric acid, and α-lipoic acid (Singh 2005), are used in different formulations and combinations to enhance the vase life of cut flowers. Selection of appropriate vase solution or preservative is necessary to extend the vase life and floral quality by studying physiological and biochemical processes of floral senescence.

Here, we report a cost-effective, eco-friendly, and very reproducible method for the large-scale synthesis of silver nanoparticles (SNPs) by reduction process using an ethanolic extract of Piper betle leaf (PbLE). Here, the PbLE act as a reducing and stabilizing agent with an antimicrobial property (Datta et al. 2016). This extract is used for the green synthesis of Piper betle silver nanoparticles (PbSNPs) to prepare commercial vase solution.

The present study was performed to investigate the effect of PbSNPs with respect to the 5-SSA (taken as a positive control) on the post-harvest physiology (effect on antioxidant enzymes, vascular blockage, and vase life of gladiolus cut-spikes) with an objective to find out an appropriate vase solution for enhancing its vase life.

Materials and methods

Preparation of Piper betle leaf extracts (PbLE)

Piper betle (ver. Kali Bangla) leaves have obtained from landrace of Paschim Medinipur, West Bengal, India. The material was washed, dried in hot air oven (40 °C ± 1 °C) for 48 h. The dried leaves were grounded into fine powder with mortar and pestle and stored at − 20 °C. The ground powder (1 g) was Soxhlet extracted using 80% ethanol for overnight. Final crude extract was concentrated and dried by rotary vacuum evaporator at a temperature less than 50 °C following concentrated extract which was maintained at 4 °C. Working PbLE stock solution of concentration 10 mg/ml was prepared by dissolving 100-mg dried crude extract in 500 μL of dimethyl sulfoxide (DMSO) and further diluted with distilled water (Maity et al. 2014).

Synthesis of silver nanoparticles from Piper betle leaf extracts (PbLE)

Silver nitrate (AgNO3) was obtained from Sigma Aldrich chemicals. The reduction reaction of pure silver ions (Ag+) into silver (Ag0) was carried out with PbLE using the method by Kumar et al. (2014). The protocol used involved drop-wise addition of 250 μL of PbLE (1 mg/ml) to 50 ml freshly prepared 1 mM of silver nitrate aqueous solution in a Teflon container. This was stirred continuously at different temperature (30 °C, 40 °C, 50 °C, 60 °C, and 70 °C) for 4 h using a magnetic stirrer. This reduction reaction was confirmed by the color change of the solution from colorless to yellowish-brown. When nanoparticles have been formed, the pH of the aqueous solution was changed using 0.1 (N) KOH in different (pH -6, pH -7, pH -8, pH -9 and pH -10) and incubated for overnight at room temperature.

Characterization of silver nanoparticles

The UV-vis spectrum of the reduced product was measured in the range of visible region (300–800 nm) with the help of UV-VIS spectrophotometer (Genesys 10S UV-VIS, Thermo Scientific). The size and morphology of the Piper betle mediated silver nanoparticles were studied by the transmission electron microscopy (TEM) image by using (Philips CM12) at Central Research Facility, Indian Institute of Technology, Kharagpur, India.

Plant material and treatments

Fresh cut spikes of Gladiolus (Gladiolus grandiflorus) were obtained from a local commercial market (Haldia, West Bengal, India) and brought to the laboratory early in the morning. The spikes were cut uniformly having a length of 65 cm with six pairs of florets per spike.

The experiments were conducted in completely designed setups by placing the spikes in a 250-ml bottle containing 100 ml of different vase solutions. To prevent the surface evaporation of the vase solution, non-absorbent cotton was used to plug the bottles. The bottles were placed at a room temperature of 25 ± 2 °C, relative humidity 70 ± 3% under continuous illumination (range 400–700 nm) system. At every 48-h intervals, the vase solutions in the bottles were changed and the remaining volume of vase solution was measured. The six vase solutions used were as follows: (1) control, distilled water; (2) T1, 4% sucrose; (3) T2, 4% sucrose + 100 ppm 5-SSA; (4) T3, 4% sucrose + 2 ppm PbSNPs; (5) T4, 4% sucrose + 4 ppm PbSNPs; (6) T5, 4% sucrose + 6 ppm PbSNPs.

Observations of vase life, fresh weight (FW), height of spike, total solution uptake, flower diameter, relative water content (RWC), number of opened flower, activities of SOD and CAT, lipid peroxidation, total soluble protein, total soluble sugar, chlorophylls and carotenoids content, microbial growth, and vascular blockage were recorded.

All the morphological and biochemical estimations were done in triplicate using flower petal and leaf sample from the post-harvest gladiolus cut spikes at different stages (initial day, 2nd, 5th, 7th, 9th, 12th days of vase life) of flower development.

Vase life

Vase life of the cut spikes depends on various physical appearances such as slumping down of spike head, flower discoloration, and shedding of petals. Vase life was calculated as the time period during which the fresh weight of the spikes was retained the same to that at the initial day of harvest (Ezhilmathi et al. 2007).

The percentage increase or decrease in fresh weight and height of spikes were recorded at initial day, 2nd, 5th, 7th, 9th, and 12th days of vase life.

Total solution uptake

The vase solution remaining in the bottles was recorded. Hence, the water uptake was calculated using the following formula.

$$ {N}^{\mathrm{th}}\mathrm{day}\ \mathrm{water}\ \mathrm{uptake}\ \left(\mathrm{ml}\right)={N}^{\mathrm{th}}\mathrm{day}\ \mathrm{total}\ \mathrm{volume}\ \left(\mathrm{ml}\right)-{\left(N\hbox{-} 1\right)}^{\mathrm{th}}\mathrm{day}\ \mathrm{total}\ \mathrm{volume}\ \left(\mathrm{ml}\right) $$
$$ \mathrm{Water}\ \mathrm{uptake}\ \mathrm{rate}\ \left(\mathrm{ml}\right)=\mathrm{amount}\ \mathrm{of}\ \mathrm{water}\ \mathrm{consumed}\ \mathrm{per}\ \mathrm{day}\ \left(\mathrm{ml}/\mathrm{day}\right) $$
$$ \mathrm{Total}\ \mathrm{water}\ \mathrm{uptake}=\mathrm{water}\ \mathrm{uptake}\ \mathrm{on}\ N+\left(N+1\right)+\left(N+2\right)\kern0.5em {\left(N+n\right)}^{\mathrm{th}}\mathrm{day}..\left(\mathrm{where}\ n\ge 1\right) $$

Flower diameter

The mean diameters of the bloomed flowers were recorded on 2nd, 5th, 7th, 9th, and 12th days of vase life. Flower diameter was measured by taking three measurements, which crossed at the center of the opened flowers, and finally, the mean was calculated.

Relative water content

RWC of the fresh flower petals was recorded by using a 0.5-g fresh petal sample which was dipped in water for 4 h to find the turgid weight. Consequently, they were dried in a hot air oven at 80 °C to achieve a constant weight (Weatherley 1950).

$$ \mathrm{RWC}=\left[\left(\mathrm{Fresh}\ \mathrm{weight}-\mathrm{dry}\ \mathrm{weight}\right)/\left(\mathrm{turgid}\ \mathrm{weight}-\mathrm{dry}\ \mathrm{weight}\right)\right]\times 100 $$

Antioxidant enzymes activity

The enzyme extract for SOD and CAT was prepared by grinding of a 0.5-g petal tissue in ice cold extraction buffer (0.1 M potassium phosphate buffer of pH 7.6 containing 0.5 M EDTA) with a pre-chilled mortar and pestle. The homogenate was centrifuged at 4 °C in refrigerated centrifuge (Remi C-24 plus) for 15 min at 15,000 rpm, and the supernatant was used to determine enzyme activity.

SOD activity was estimated by recording the decrease in absorbance of nitro-blue tetrazolium dye (Dhindsa et al. 1981; Datta Gupta and Datta 2003). Three milliliters of the reaction mixture was prepared which contained 100 mM potassium phosphate buffer (pH − 7.6), 100 mM methionine, 1 mM nitro-blue tetrazolium (NBT), 0.5 M EDTA, 0.1 ml enzyme, and distilled water for making up mixture volume. The reaction was started by adding l00 μM riboflavin and placing the tubes under three 5 W fluorescent lamps for 15 min. The reaction was stopped on the withdrawal of the light source. The reaction mixture without enzyme was used as a standard. A non-irradiated reaction mixture containing enzyme served as a blank. The tubes which were enzyme less showed the maximum color, and the blank showed no color development. Finally, absorbance was recorded at 560 nm, and one unit of enzyme activity was taken as the quantity of enzyme which reduced the absorbance reading of samples to 50% in comparison with the reaction mixture lacking enzyme.

CAT activity was obtained by monitoring the decrease in absorbance due to hydrogen peroxide (H2O2) at 240 nm (Aebi 1984; Datta Gupta and Datta 2003). The reaction mixture for measuring the CAT activity consisted of 3-mL 50 mM potassium phosphate buffer (pH -7), 5 μl H2O2, and 50 μl enzyme extract, whereas only 3-ml 50 mM potassium phosphate buffer (pH -7) was served as blank. The reaction began by the addition of H2O2, and the decrease in the absorbance value was recorded for 30-s interval of 10 min at 240 nm. Hence, by taking the standard curve of known concentrations of H2O2 as a reference, the amount of H2O2 decomposed was calculated and thus the amount of enzyme activity.

The level of lipid peroxidation depends on the terms of thiobarbituric acid reactive substances (TBARS). Thus, the amount of TBARS was used to determine the lipid peroxidation level (Heath and Packer 1968). The protocol for estimation of lipid peroxidase activity involved homogenization of the petal sample (0.5 g) in 10 ml 0.1% trichloroacetic acid (TCA). The homogenate was centrifuged for 15 min at 10,000 rpm. The supernatant aliquot (2 ml) was added in 4 ml of 0.5% thiobarbituric acid (TBA) in 20% TCA. The mixture was then heated at 95 °C for 30 min following which it was quickly cooled in an ice bath. The mixture was further centrifuged at 10,000 rpm for 10 min. The absorbance spectrum of supernatant was recorded at 532 nm and 600 nm. The TBARS content was calculated according to its extinction coefficient [155 mM−1 cm−1]. The final result was obtained by subtracting the non-specific absorbance at 600 nm.

Total soluble protein

The protein sample was prepared by grinding of a 0.5-g petal tissue in ice cold extraction buffer (0.1 M potassium phosphate buffer of pH 7.6 containing 0.5 M EDTA) with a pre-chilled mortar and pestle. The homogenate was centrifuged at 4 °C in refrigerated centrifuge (Remi C-24 plus) for 15 min at 15,000 rpm, and the supernatant was used to determine total soluble protein using the Bradford Assay method (Bradford 1976). The absorbance of blue color was read at 595 nm using UV-VIS spectrophotometer. The amount of protein was quantified by using a standard curve of known concentration.

Total soluble sugar

The total soluble sugar contents were carried out by hydrolyzing into simple sugars using dilute hydrochloric acid (Sadasivam and Manickam 1996). In the presence of hot acidic medium, glucose is dehydrated to hydroxymethyl furfural. This compound forms with anthrone, a green color product. A 0.5-g petal sample was hydrolyzed by keeping in a boiling water bath for 3 h with 5 ml of 2.5 N HCl. After cooling to room temperature, aqueous sample was neutralized with solid sodium carbonate until the effervescence ceases. The homogenize was centrifuged at 15,000 rpm for 15 min after making the volume up to 10 ml with distilled water. Five hundred-microliter supernatant was mixed gently with 4 ml of anthrone reagent (2 mg/ml) and heated for 8 min in a boiling water bath. The mixture was cooled rapidly and read the green to dark green color at 630 nm. The amount of total soluble sugars present in the sample was calculated using a standard curve of known concentration.

Chlorophyll and carotenoid

Chlorophyll was extracted with 80% acetone, and the absorption at 663 nm, 645 nm, and 470 nm was read in a spectrophotometer after being centrifuged twice at 5000 rpm for 5 min at room temperature. The amount of chlorophyll present in the supernatant was calculated using the following equations (Arnon 1949),

$$ \mathrm{Total}\ \mathrm{chlorophyll}\ \mathrm{a}\ \left(\mathrm{mg}\;\mathrm{g}\hbox{-} {\;}^1\mathrm{FW}\right)=\left[12.7\left({A}_{663}\right)\hbox{-} 2.69\left({A}_{645}\right)\right]\times \left(V/{W}^{\ast }1000\right) $$
$$ \mathrm{Total}\ \mathrm{chlorophyll}\ \mathrm{b}\ \left(\mathrm{mg}\;\mathrm{g}\hbox{-} {\;}^1\mathrm{FW}\right)=\left[22.9\left({A}_{645}\right)\hbox{-} 4.68\left({A}_{663}\right)\right]\times \left(V/{W}^{\ast }1000\right) $$
$$ \mathrm{Total}\ \mathrm{chlorophyll}\ \left(\mathrm{mg}\;\mathrm{g}\hbox{-} {\;}^1\mathrm{FW}\right)=\left[20.2\left({A}_{645}\right)+8.02\left({A}_{663}\right)\right]\times \left(V/{W}^{\ast }1000\right) $$
$$ \mathrm{Total}\ \mathrm{carotenoid}\ \left(\mathrm{mg}\;\mathrm{g}\hbox{-} {\;}^1\mathrm{FW}\right)=\left[1000\times {A}_{470}-3.27\ \left(\mathrm{chl}\ \mathrm{a}\right)-104\ \left(\mathrm{chl}\ \mathrm{b}\right)\right]\div 229\ \left(V/{W}^{\ast }1000\right) $$

(where A = absorbance at specific wavelength; V = Final volume of chlorophyll extract in 80% acetone; W = Fresh weight of tissue extracted; chl = Chlorophyll).

Microbial growth

The evaluation of microbes was studied to determine the effectiveness of PbSNPs in controlling the microbial growth in the vase solution of the cut flowers gladiolus. Ten-microliter vase solutions from each of the bottles were analyzed after 10 times dilution to check the presence of microbes after the 6th day of vase life by placing it on nutrient agar (Himedia) media. The bacterial colony was observed and counted after overnight incubation at 37 °C.

Vascular blockage

Vascular blockage was determined by microscopic observation of the transverse section of xylem vessels. The spike ends were cut on the 6th day of vase life and immediately stained with safranin dye and observed under microscope (Olympus).

Statistical analysis

Standard errors of the means were calculated, and LSD (P ≤ 0.05) was performed to check the level of significance of the difference with the help of ANOVA test using Microsoft Excel data analysis tools.


Phyto-synthesis of PbSNPs and its characterization

The aqueous solution of silver nitrate from colorless to yellowish brown indicates the synthesis of silver nanoparticles using ethanolic leaf extracts of Piper betel. The formation of PbSNPs is indicated by reduction of silver ion which leads to the color change (Fig. 1c (ii)). Due to excitation of surface plasmon vibration, the color change to yellowish-brown occurs (Solgi and Taghizadeh 2012). The size and shape of nanoparticles was determined by UV-vis spectroscopy. It was found by earlier researchers that the pH and incubation temperature of the aqueous solution play an important role in the synthesis of different shapes and sizes of silver nanoparticles (Iravani et al. 2014). The stability of silver nanoparticles depends on the pH of the working solutions. In our present study, the absorbance of PbSNPs was maximum at pH − 9 (Fig. 1a). The UV-vis spectra were recorded on the reaction medium for different temperature-dependent PbSNPs. At temperature 60 °C, the absorption of PbSNPs solution was the highest (Fig. 1b). One narrow absorption band was observed at 420 nm as shown in Fig. 1c. Transmission electron microscopic analysis showed that the particle size of PbSNPs ranges from 30 to 50 nm in diameter spherical (Fig. 1c (i)) in shape.

Fig. 1
figure 1

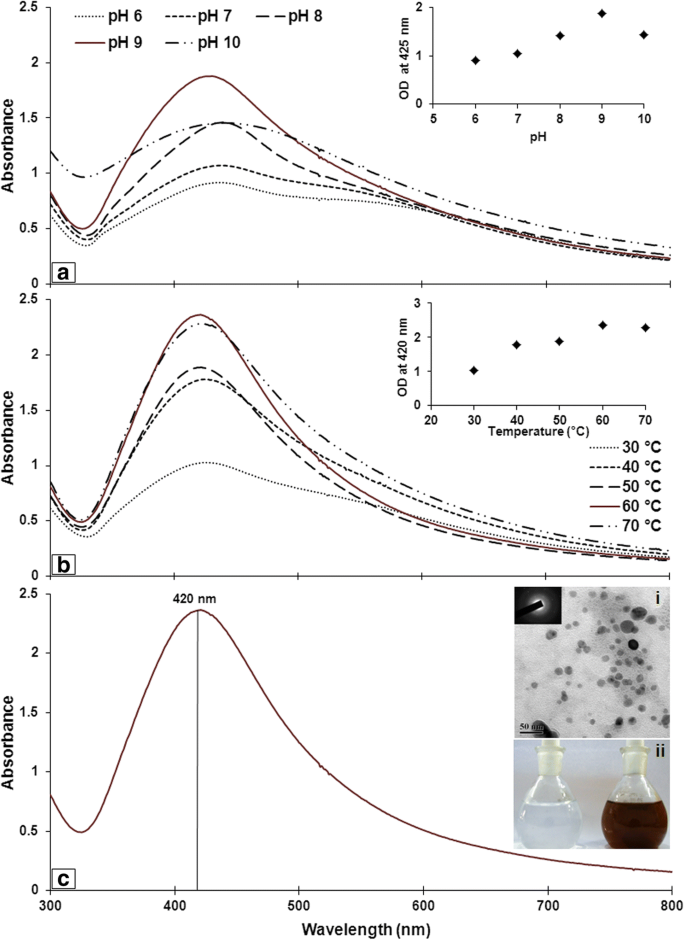

UV-vis spectra of Piper betle mediated silver nanoparticles recorded after overnight incubation at room temperature: a After being treated at different pH (pH − 6, pH − 7, pH − 8, pH − 9, and pH − 10). b After being treated at different temperatures (30 °C, 40 °C, 50 °C, 60 °C, and 70 °C). c UV-vis spectra of Piper betle mediated silver nanoparticles (incubate: 60 °C; pH 9) showing maximum absorbance at 420 nm. c (i) Transmission electron micrograph (TEM) image of synthesized silver nanoparticles. The SAED pattern of PbSNPs is presented in the inset. c (ii) Represent color change detected in the reaction mixture containing ethanolic extract of Piper betle leaf and 1 mM silver nitrate solution

Vase life

The cut flowers are valued for their long vase life (Bhattacharjee and De 2005). The effect of the different concentration of PbSNPs (2 ppm, 4 ppm, and 6 ppm) in vase solution was observed to extend the vase life of gladiolus cut flower. The vase solution containing PbSNPs expressively increased the vase life of cut spikes. In the case of T4-treated spikes, the vase life was 11.75 days (95.8% increased) where as in control, it was the 6th day (Fig. 2). But there was no significant difference in the vase life of cut spikes which were treated with T2 (positive control: 4% sucrose with 100 ppm 5-SSA), T3, and T5. So, T4 was the best vase solution to extend the vase life of cut spike gladiolus followed by T5, T3, and T2. Ezhilmathi et al. (2007) reported the extended vase life in 5-SAA-treated gladiolus spike was associated with the increased water uptake, lower respiration rate, and improved water balance.

Fig. 2
figure 2

Effect of different vase solutions (control, T1, T2, T3, T4, and T5) in vase life (day) and floral stick height (cm) of gladiolus cut spikes. Inset represents the average flower diameter of differently treated gladiolus cut spikes during vase life. Vertical bars show ± SE of mean

Gladiolus spike is multi-florets, which opens in an acropetal sequence, and the vase solution quality depends upon the percentage of florets open in the vase. The trend in flower opening was increased day by day during the vase life of the cut spikes treated with PbSNPs as indicated by the flower diameter (Fig. 2, inset). The gladiolus spikes with fully opened flowers when treated with T4 showed the maximum flower diameter (10.62 cm). The control flowers were smallest in diameter (9.06 cm) compared to flowers of other five vase solutions. The water uptake and sugar translocation is improved in the presence of PbSNPs, which improves cell division and elongation by exercise of turgor pressure, which also helps in floral opening. There was no significant difference in height between all the treated spikes compared to control (Fig. 2).

Fresh weight, water uptake, and relative water content

The fresh weight of cut spikes treated with T4 vase solution was greater than the initial fresh weight up to the 9th day of vase life (Fig. 3). Second day onwards, the fresh weight of control spikes was gradually decreased. Water uptake not only increased the fresh weight but also indicated the supply of food and nutrient through the stems for the flower development. The amount of total solution uptake (31.87 ml) was highest by the cut spikes of T4 vase solution (Fig. 3, inset). Flower turgidity depends on the rate of water uptake and water loss. After the fifth day, RWC was highest in T4-treated vase solution, and then, a gradual decrease was observed. Relative water content of the petal showed that the level of turgidity reached the highest level when the water uptake is greater than the transpiration rate. There was a significant reduction in the fresh weight and total solution uptake of control spikes during the vase life due to the decrease in water uptake or increase in water loss.

Fig. 3
figure 3

Effect of different vase solutions (control, T1, T2, T3, T4, and T5) on relative changes in fresh weight of gladiolus cut spikes. Inset represents total solution uptake (ml) during vase life

Vascular blockage vs. antimicrobial activity of PbSNPs

Microscopic observation (longitudinal section) of xylem vessels of the cut stem, after the 6th day of treatment control and T1 vase solution treated, showed more vascular blockage (Fig. 4m, inset) than the stems treated with PbSNPs. The antibacterial activity of PbSNPs was established by the decreasing number of bacterial colonies present in the nutrient agar media with increased PbSNPs concentration in the vase solution. The control (227 ± 14 per plate) and T1 vase solution (242 ± 23 per plate) contained a significantly higher bacterial load compared to the vase solution containing PbSNPs (T4: 06 ± 02 per plate). The total no. of the bacterial colony was gradually decreased with increasing the concentration of PbSNPs in the vase solution (Fig. 4g–l).

Fig. 4
figure 4

Gladiolus spikes in different vase solutions at the 9th day of vase life. a Control, b T1, c T2, d T3, e T4, and f T5. Microbial colony development at the 7th day in different vase solutions (10−2 dilution) were cultured on LB agar plates and observed after overnight incubation at 37 °C. g Control, h T1, i T2, j T3, k T4, and l T5. m Vascular blockage in vessel observed after the 7th day by longitudinal sections (LS) of the gladiolus stems treated in T1 vase solution

Content of total chlorophyll, soluble sugar, and protein

When the test sample was treated with sucrose and PbSNPs, it effectively delayed the deterioration of chlorophyll compared to the control as shown in Table 1. The content of chlorophyll a was higher than chlorophyll b during the vase life. There was a significant correlation between degradation of total chlorophyll and carotenoid during the vase life of gladiolus in both the cases of control and treated spikes. The total soluble protein concentration of cut spikes treated with T4 vase solution was recorded as highest at any point of the time throughout the vase life compared to the cut spikes treated with other vase solutions (Table 1). The total soluble sugar concentration was maximum in petals when the cut spike was kept in treated vase solution than control (Table 1).

Table 1 The effect of different vase solutions on total chlorophyll, carotenoid, total soluble protein, and total soluble sugar in gladiolus cut spikes at different stages of vase life

Antioxidant enzymes activity

In the present study, SOD activity increased initially until flowers were fully opened and after that activity gradually decreased till senescence. The gladiolus cut spikes treated with PbSNP vase solution showed enhance activity of SOD in compared to control (Table 2). At day 5, T4 vase solution-treated flowers had thrice the activity of SOD (4.34 units min−1 mg−1 protein) in comparison to control.

Table 2 The effect of different vase solutions on the activity of superoxide dismutase, catalase, and lipid peroxidation in gladiolus cut spikes at different stages of vase life

Catalase activity decreased continuously from harvest to senescent stage in both control and treated petals of the flowers (Table 2). The spikes treated with PbSNPs vase solution showed slightly higher CAT activity throughout the vase life. Sairam et al. (2011) also observed a steady decrease in CAT activity in cut spike of gladiolus kept in 5-SSA-treated vase solution.

There was a gradual increase in lipid peroxidase activity till senescence in both control and treatment. However, PbSNP vase solution-treated spikes maintained slightly lower lipid peroxidase activity, especially T4 vase solution-treated flowers (63.06 μmol TBARS content g−1 FW at day 5).


Role of PbSNPs in vase life extension

Vase solution is widely used for the extension of vase life. Thus, effect of PbSNPs in vase solution perhaps exhibited the similar mechanism which is also observed in tuberose spike when Piper betle extract was used in vase solution (Maity et al. 2014) or 8-hydroxyquinoline sulphate (8-HQS) used for snapdragon (Asra 2012). The previous results showed that adding sucrose increased the vase life if the growth of microorganisms was controlled (Ezhilmathi et al. 2007; Moneruzzaman et al. 2010; Saeed et al. 2016). Thus, the presence of PbSNPs in the vase solution plays an important role to expand the vase life by controlling microbial growth. SNPs showed more efficient antimicrobial agent due to their interaction with the bacterial cell membrane (Nabikhan et al. 2010). The antimicrobial effect of SNPs is due to structural changes of the bacterial cell membrane, blockage of DNA replication, the debauchery of proton motive force, and finally cell death (Solgi et al. 2009; Solgi 2014). Antimicrobial activity of plant-mediated synthesized SNPs reported earlier (Kaviya et al. 2011; Maity et al. 2014; Solgi 2014; Yugandhar et al. 2015). Thus, the PbSNPs appeared to be an effective antibacterial agent that significantly reduced the bacterial growth in vase solution as well as vascular blockage in cut spike with its increasing concentration. Li et al. (2017) similarly observed that nano-silver (NS) treatment significantly cakes the microbial growth on and in the stem end of Gladiolus “Eerde” spike in association with enhance solution uptake.

There was a relation between fresh weight and solution uptake during vase life. Similar relationships have also been reported by earlier workers (Bieleski and Reid 1992; Borochov et al. 1995; Maity et al. 2014) in daylily, rose, and tuberose. The vase life, the fresh weight of cut spikes, and microbial load resisted in xylem vessel by the use of PbSNPs and helped to maintain the water uptake by floral spike. With the increasing rate of solution uptake, the fresh weight of PbSNPS-treated cut spikes was gradually increased.

The role of total soluble protein and sugar content of the cut spike in relation to vase life

The loss of the protein is related with petal senescence (Kenis et al. 1985). The soluble protein concentration of petals in cut spikes of gladiolus was increased at the initial stages of flower development. With increasing the vase life of gladiolus cut spikes, the soluble protein concentration was decreased rapidly due to little de novo synthesis and protein degradation (Lay-Yee et al. 1992). The total soluble protein concentration of cut spikes treated with T4 vase solution was recorded as the highest at any point of the time throughout the vase life compared to the cut spikes treated with other vase solutions (Table 1).

The total soluble sugar concentration was maximum in petals when the cut spike was kept in treated vase solution than control (Table 1). It was well known that high petal soluble sugar increases the vase life of many cut flowers since they act as a source of primary metabolite (Halevy and Mayak 1981). Sustained level of petal sugar was known to control the hydrolysis of cellular component and the remobilization of the nutrient and retained the flower dry weight as observed in Asiatic lily (Vander JJM et al. 2001).

Role of ROS and antioxidant enzyme activity during vase life of cut spike

Various studies have already established that vase life of flower was regulated by antioxidant level (Sairam et al. 2011) and involvement of ROS in senescence (Prochazkova et al. 2001; Maity et al. 2014). Studies demonstrated that prolongation of vase life was associated with the scavenging of excess ROS from the cells by antioxidants and ROS scavenging enzymes (Ezhilmathi et al. 2007; Sairam et al. 2011; Datta Gupta and Sahoo 2015). In the present study, SOD activity increased during early days of vase life and declined in the latter phase. It showed the similar pattern worked out by earlier workers studied in rose (Abri 2013), gladiolus (Sairam et al. 2011; Saeed et al. 2014), tuberose (Maity et al. 2014), etc.

Cellular membranes are highly sensitive to ROS, and it is responsible for the progressive decline in membrane stability and probably the consequence of decreasing antioxidant activity. Thus, senescence of flowers was delayed by the use of ROS scavenger, such as sodium benzoate (Baker et al. 1985), n-popylgalate (Mayak et al. 1985), and 5-SSA (Ezhilmathi et al. 2007). Molecular mechanism associated with the increase in SOD and CAT activity in petals of gladiolus spike treated with PbSNPs needed to be explored in the future. Since lipid peroxidation is facilitated by ROS, therefore, either PbSNPs might be decreasing the lipid peroxidation by directly scavenging the ROS, or it might modulate the activity of antioxidant enzymes. A similar result was also found in 5-SSA-treated spike (Ezhilmathi et al. 2007).


Based on the results of this study, it could be concluded that PbSNPs have the potentiality to improve the vase life of gladiolus cut flower and it may act in two ways to delay the senescence: (i) By acting as a potential antimicrobial agent, it reduced the microbial load. As a result, vascular blockage was also checked and subsequently enhanced the nutrient as well as water uptake in the floral stalk. (ii) By acting as a messenger in the signaling pathway, it may lead to upregulation of SOD, CAT, and lipid peroxidase which scavenge more ROS to delay the senescence.



5-Sulfo salicylic acid


8-Hydroxyquinoline sulphate




Fresh weight


Piper betle leaf extract


Piper betle silver nanoparticles




Reactive oxygen species


Relative water content


Silver nanoparticles


Superoxide dismutase


Thiobarbituric acid reactive substances


Trichloroacetic acid
